2010 Jeep Liberty Engine Control Module Relearn and Replacement Guide
The Engine Control Module in a 2010 Jeep Liberty manages engine timing, fuel delivery, and emissions controls. A failure can disrupt sensor communication, cause diagnostic codes, and prevent the engine from running correctly, often requiring replacement and a VIN‑specific relearn procedure.
Quick Summary
- ECM replacement typically needs a half‑hour of labor for removal and reinstall.
- A VIN‑matched scan‑tool programming step is required after installing a new module.
- Failure to program can trigger a diagnostic trouble code and illuminate the MIL.
- Flagship One units arrive pre‑programmed, eliminating the factory programming step.
When a 2010 Jeep Liberty experiences engine control issues, the ECM often becomes the focus. This guide explains what the module does, how to replace it, and what post‑install programming is required. By following the outlined steps, you can understand the labor involved, avoid common pitfalls, and know how a Flagship One replacement can simplify the process.
What the PCM Does in a 2010 Jeep Liberty
The Engine Control Module in the 2010 Jeep Liberty interprets sensor data to control ignition timing, fuel injection, and emissions functions. It communicates with the Powertrain Control Module to ensure smooth operation across all driving conditions. Proper operation is critical because any fault can lead to loss of power, stalling, or a check engine light. Understanding its role helps you appreciate why a correct VIN match is essential during replacement. replacement engine control modules for the 2010 Jeep Liberty ensures the vehicle retains its original calibration.

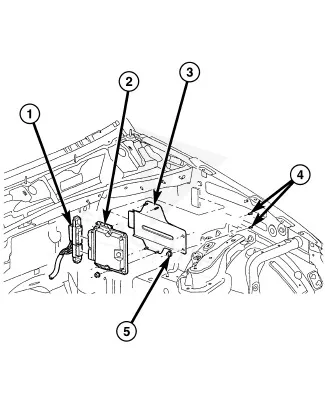

Where the PCM Is Located and What Replacement Involves
The ECM resides within the engine compartment, bolted to the firewall and connected with a harness that supplies power and data. Removing the unit involves disconnecting the connector, unfastening the mounting bolts, and extracting the module, a task typically accounted for as 0.5 hours of labor. Installation reverses these steps, securing the new module with the same fasteners and reconnecting the harness. The same half‑hour labor estimate applies to reinstalling the Powertrain Control Module if required.
How to Reach the PCM on the 2010 Jeep Liberty
- Disconnect and isolate the.
- Remove the glow plug relay.
- Disconnect the positive battery.
- Disconnect the two electrical.
- Remove the two nuts or screws.
- Remove the engine control.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory procedure calls for a scan tool to reprogram the module with the original VIN and mileage. This step prevents a diagnostic trouble code from being set. Flagship One supplies a VIN‑programmed replacement unit, so the required reprogramming is already completed when the part arrives. a VIN‑programmed replacement unit eliminates the need for additional on‑vehicle programming time.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2010 Jeep Liberty include engine no‑start conditions, intermittent stalling, rough idle, and loss of power during acceleration. You may also see the check engine light illuminated with codes such as Processor Communication Fault. Communication loss with the scan tool or erratic shifting can also point to ECM problems, especially if the Powertrain Control Module reports related issues.
Module Trouble Codes on the 2010 Jeep Liberty
The following diagnostic trouble codes are documented for the ECM in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin 18-004-10 addresses a MIL illumination with code P1696 caused by an EEPROM write denial, while Bulletin 18-014-11 Rev. A covers MIL illumination with code P0401 related to EGR system performance. Both bulletins provide guidance for flash procedures and troubleshooting steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-004-10 | 18-004-10 Flash: MIL Illumination P1696 – EEPROM Memory Write Denied / Invalid | — |
| 18-014-11 Rev. A | 18-014-11 Rev. A Flash: MIL Illumination P0401 – EGR System Performance | — |
Protecting the PCM in Your 2010 Jeep Liberty
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep ground connections and ECM connectors clean and tight.
- Avoid jump‑start spikes that can damage the module’s electronics.
- Address any diagnostic codes promptly to prevent further damage.
- Inspect and preserve connector seals to keep moisture out.
Frequently Asked Questions
What labor time is needed to replace the ECM on a 2010 Jeep Liberty?
The factory book time lists 0.5 hours for both removal and reinstall of the Engine Control Module.
Do I need a scan tool after installing a new ECM in my 2010 Jeep Liberty?
Yes, the factory procedure requires reprogramming the new module with the original VIN and mileage using a scan tool.
Will a Flagship One ECM need the VIN‑programming step?
No, Flagship One units arrive pre‑programmed with the correct VIN and mileage, so the factory programming step is already completed.
When the ECM fails in a 2010 Jeep Liberty, you can choose a repair that follows the factory relearn process or opt for a refurbished Flagship One replacement that arrives VIN‑matched. Both approaches restore engine control, but the Flagship One unit saves the additional programming time required by the factory method.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Jeep Liberty with a lifetime warranty, free shipping and no core charge. The full Jeep Liberty module lineup covers other engine configurations as well.
Final Thoughts
For a 2010 Jeep Liberty, addressing ECM issues promptly ensures reliable engine performance. Whether you follow the factory relearn steps or select a pre‑programmed Flagship One replacement, the goal is to restore proper operation and clear any related trouble codes.
