2009 Jeep Liberty Engine Control Module Relearn and Replacement Guide
The engine control module in a 2009 Jeep Liberty manages fuel injection, ignition timing, and emissions functions. Failure of this unit can trigger multiple diagnostic codes, cause the check engine light to illuminate, and lead to loss of engine power or stalling. Restoring proper operation typically requires reprogramming and relearn procedures.
Quick Summary
- ECM replacement usually needs a scan tool to program VIN and mileage.
- Relearn steps for both ECM and PCM are each estimated at half an hour.
- Missing the programming step can set a diagnostic trouble code.
- Service bulletins list specific MIL illumination codes for this model.
When a 2009 Jeep Liberty experiences persistent check engine illumination or internal fault codes, the engine control module often becomes the focus of diagnosis. Understanding how the ECM functions, where it resides, and what post‑install steps are required can help you decide between a repair or a refurbished replacement. This guide outlines the module’s role, the typical labor involved, programming cautions, common symptoms, and practical steps to keep the unit operating reliably.
What the PCM Does in a 2009 Jeep Liberty
In the 2009 Jeep Liberty the engine control module serves as the brain for engine management, controlling fuel delivery, spark timing, and emissions monitoring. It continuously processes sensor data to adjust engine operation for performance and fuel efficiency. Because the ECM stores vehicle‑specific information, any replacement must match the original VIN and mileage to maintain system integrity. Proper function is essential for smooth idle, power delivery, and compliance with emission standards. The module works alongside the powertrain control module, and both require periodic relearn after service. Jeep Liberty ECM replacements ensure the new unit integrates correctly with existing vehicle networks.
Where the PCM Is Located and What Replacement Involves
The ECM is mounted within the engine compartment, typically secured to the firewall or near the intake manifold. Access involves removing a few fasteners and disconnecting the electrical connector. Factory labor guides assign half an hour for removal and replacement, reflecting the straightforward nature of the task. After the unit is seated and torqued to specification, the connector is reattached and the system is ready for programming.

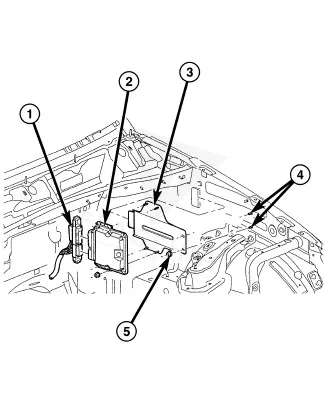

How to Reach the PCM on the 2009 Jeep Liberty
- Disconnect and isolate the.
- Remove the glow plug relay.
- Disconnect the positive battery.
- Disconnect the two electrical.
- Remove the two nuts or screws.
- Remove the engine control.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in a 2009 Jeep Liberty, the factory procedure requires a scan tool to reprogram the module with the original VIN and mileage before the vehicle will operate correctly. Flagship One supplies units that arrive already programmed, so the VIN and mileage step is already completed. a VIN-programmed replacement unit eliminates the need for additional field programming and reduces the risk of a diagnostic trouble code.
Symptoms of a Failing PCM
A failing engine control module in a 2009 Jeep Liberty may cause the check engine light to stay on, intermittent stalling, loss of power, or an inability to start. You might also see communication loss with scan tools or erratic transmission shifting. When internal errors occur, the module can set codes such as internal processor error that indicate a processor fault within the ECM.
Module Trouble Codes on the 2009 Jeep Liberty
The following internal diagnostic codes are documented for the 2009 Jeep Liberty ECM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin 18-028-09 addresses MIL illumination for codes P2302, P2305, P2308, P2311, P2314, P2317, and P2610. Bulletin 18-014-11 Rev. A covers MIL illumination for P0401 related to EGR performance, while 18-015-11 Rev. B documents MIL illumination for P050d or P2181. These bulletins provide guidance on troubleshooting and corrective actions specific to each code.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-028-09 | 18-028-09 Flash: MIL Illumination P2302, P2305, P2308, P2311, P2314, P2317, P2610 | — |
| 18-014-11 Rev. A | 18-014-11 Rev. A Flash: MIL Illumination P0401 – EGR System Performance | — |
| 18-015-11 Rev. B | 18-015-11 Rev. B Flash: MIL Illumination P050d or P2181 Is Set | — |
Protecting the PCM in Your 2009 Jeep Liberty
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep all ground straps and connector pins clean and corrosion‑free.
- Avoid jump‑start voltage spikes that can damage electronic modules.
- Address any diagnostic codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can I replace the ECM on my 2009 Jeep Liberty without a scan tool?
You can physically replace the unit, but the factory procedure still requires a scan tool to program the VIN and mileage. Without that step a fault code may appear.
What labor time is typical for ECM relearn on this model?
Factory labor guides estimate about half an hour for each relearn operation for both the engine and powertrain control modules.
Do the service bulletins cover all possible MIL codes for the 2009 Jeep Liberty?
The listed bulletins address several common MIL illumination codes, but additional codes may exist that are not covered in those documents.
When the ECM in your 2009 Jeep Liberty fails, you can choose a professional repair that includes programming or opt for a refurbished replacement that arrives VIN‑programmed. Both approaches aim to restore engine performance and clear diagnostic codes, allowing you to decide based on cost, availability, and your confidence in the repair process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Jeep Liberty with a lifetime warranty, free shipping and no core charge. The full Jeep Liberty module lineup covers other engine configurations as well.
Final Thoughts
The engine control module is vital to the operation of your 2009 Jeep Liberty. Whether you pursue a repair or a refurbished replacement, ensuring proper programming and relearn steps will help keep the vehicle running smoothly. Consider your options and choose the solution that best fits your needs.
