2006 Jeep Liberty 3.7L PCM: Replacement and Programming Guide
The Powertrain Control Module (PCM) in the 2006 Jeep Liberty 3.7L is the primary engine computer, managing fuel delivery, ignition timing, and emissions. When it fails, you may experience no-start conditions, erratic shifting, or diagnostic trouble codes like P0601 and P0606 indicating internal module faults.
Quick Summary
- The PCM is mounted in the engine compartment and typically requires 0.5 hours for removal and replacement on the 3.7L engine.
- A post-installation relearn procedure is specified at 0.5 hours to adapt the module to your vehicle.
- Factory programming requires a scan tool to write the VIN and original mileage into the new module.
- Service bulletin #08-030-06 Rev. A addresses PCM initialization concerns for this model.
- Internal fault codes P0601 and P0606 are documented for this vehicle’s PCM.
If your 2006 Jeep Liberty with the 3.7L engine has developed hard-starting, intermittent stalling, or a check engine light that won’t stay off, the Powertrain Control Module may be the root cause. This onboard computer orchestrates nearly every aspect of engine operation, and when it begins to fail, the symptoms can be frustrating and difficult to diagnose. You might have already replaced sensors or ignition components without success. Understanding the PCM’s role, how to confirm a fault, and what a proper replacement involves can save you time and money. This guide walks you through the module’s location, the labor involved in swapping it, the critical programming steps, and the factory service bulletins that apply to your Liberty. You’ll also learn about common failure codes and practical ways to protect the new module. By the end, you’ll know exactly what to expect from a professional repair and how a pre-programmed replacement unit can simplify the process, getting you back on the road with confidence. The 2006 Jeep Liberty 3.7L relies on its PCM to manage fuel, spark, and transmission functions. When this computer malfunctions, it can mimic other problems, leading to misdiagnosis. Whether you’re a DIY owner or working with a shop, having clear, factual information helps you make informed decisions.
What the PCM Does in a 2006 Jeep Liberty
The Powertrain Control Module in your 2006 Jeep Liberty 3.7L is the central computer that governs engine and transmission operation. It receives data from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then calculates the precise amount of fuel to inject and the optimal spark timing. The PCM also manages the automatic transmission’s shift points, ensuring smooth gear changes under varying load conditions. Without a functioning PCM, the engine may not start at all, or it may run poorly with hesitation, stalling, and reduced fuel economy. This module is specifically calibrated for the 3.7L V6 engine and the vehicle’s emissions standards. Over time, heat, vibration, and electrical surges can degrade the internal circuitry, leading to intermittent or permanent faults. When the original unit fails, many owners turn to replacement PCMs for the Jeep Liberty to restore proper function. A replacement must match the original part number and be programmed with the correct vehicle identification and mileage to communicate with the Liberty’s other modules. Understanding the PCM’s responsibilities helps you appreciate why a simple sensor swap often doesn’t resolve deeper computer-related issues. The PCM also performs self-diagnostics and stores trouble codes when it detects anomalies. It communicates with the Body Control Module and the instrument cluster over the vehicle’s data network. A failing PCM can trigger misleading codes that point to other components, making accurate diagnosis essential. The module’s location in the engine compartment exposes it to temperature extremes, which can accelerate wear. When you replace the PCM, the new unit must undergo a relearn procedure to adapt to your specific engine and transmission characteristics. This process, which takes about 0.5 hours according to the labor guide, allows the computer to recalibrate idle speed, fuel trims, and shift timing. Without this step, the vehicle may exhibit rough running or transmission harshness. The 2006 Liberty’s PCM is a sophisticated component, and using a properly refurbished and programmed unit can avoid many of the pitfalls associated with used or unprogrammed modules.

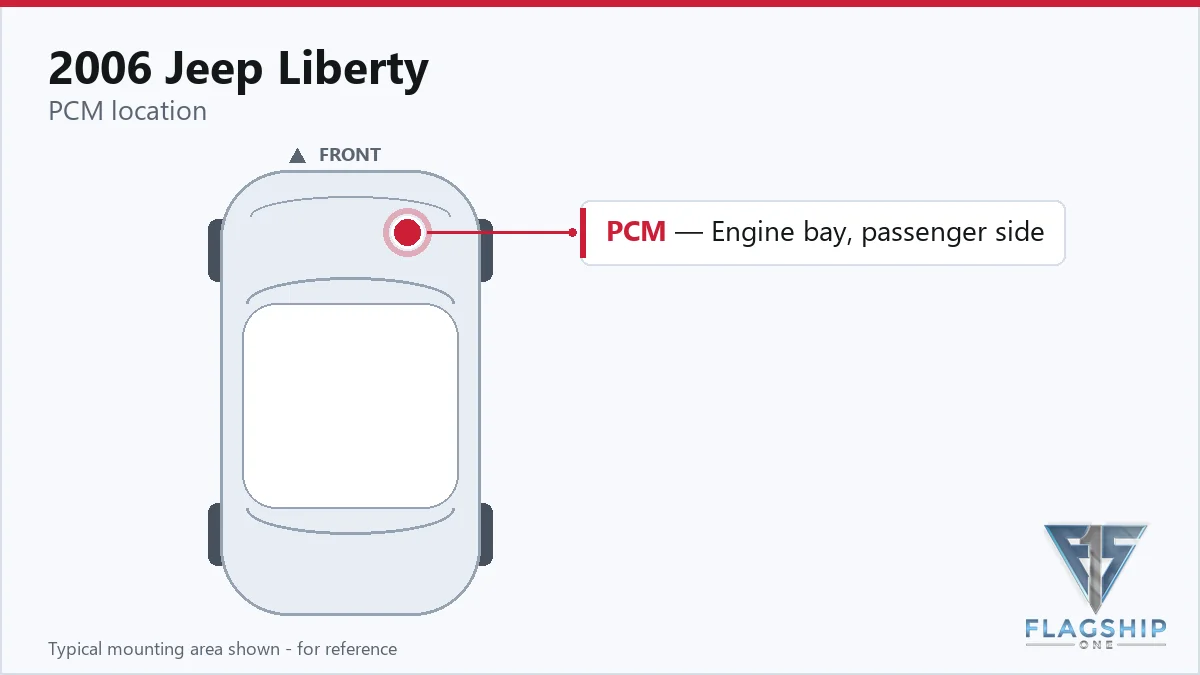

Where the PCM Is Located and What Replacement Involves
The PCM on the 2006 Jeep Liberty 3.7L is situated in the engine compartment. The labor guide allocates 0.5 hours for removal and replacement of the module on this engine. Once the new unit is installed, a separate relearn procedure is specified at 0.5 hours. This relearn allows the PCM to adapt to your vehicle’s specific operating parameters. The engine compartment location means the module is subject to heat and vibration, so ensuring secure mounting and clean electrical connections is important. The replacement process involves disconnecting the electrical harness connectors, removing any retaining fasteners, and lifting the module out. Installation is the reverse. Because the PCM stores adaptive memory, the relearn step is critical; skipping it may result in drivability concerns. The book time of 0.5 hours for R&R is a guideline and may vary depending on the technician’s experience and the condition of the mounting hardware. No additional access steps or torque specifications are provided in the standard service information, but a professional technician will typically disconnect the battery before beginning work and handle the module with care to avoid static damage.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 3.7L | 0.5 hr |
| Powertrain Control Module R&R | 2.8L | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | 3.7L | 0.5 hr |
| Engine Control Module R&R | 2.8L | 0.3 hr |
Programming Requirements After Replacement
The factory service information for the 2006 Jeep Liberty specifies that after installing a new PCM, you must use a scan tool to write the vehicle’s original identification number (VIN) and the original mileage into the module. This programming step ensures the PCM can communicate with the Liberty’s other electronic systems and that the odometer reading is correctly stored. Without it, the vehicle may not start or may exhibit warning lights. The procedure typically requires a professional-grade scan tool with security access capabilities. However, when you order a VIN-programmed replacement unit from Flagship One, this programming is already completed before the module ships. The unit arrives with your Liberty’s VIN and mileage pre-loaded, so you can skip the dealer-level programming step. After installation, you may still need to perform the relearn procedure to allow the PCM to adapt to your engine and transmission, but the critical VIN writing is already done. This can save significant time and expense, especially if you do not have access to a factory scan tool.
Symptoms of a Failing PCM
When the PCM in a 2006 Jeep Liberty 3.7L begins to fail, you may notice a range of drivability problems. The engine might crank but refuse to start, or it could start and then stall unexpectedly. Intermittent misfires, rough idle, and hesitation during acceleration are common. The transmission may shift erratically or get stuck in a single gear, a condition often called limp mode. You might also find that your scan tool cannot establish communication with the PCM, making diagnosis difficult. The check engine light will typically illuminate, and you may retrieve codes that seem unrelated to any single sensor. In particular, a stored internal control module memory fault points directly to a problem within the PCM’s processor or memory. Another code, P0606, indicates an internal processor fault. These codes are strong indicators that the module itself, rather than an external sensor or actuator, is the source of the trouble. Other symptoms can include a sudden drop in fuel economy, failed emissions tests, or the engine dying while driving. Because the PCM controls so many functions, the symptoms can be intermittent at first, appearing only when the module gets hot. If you experience multiple, seemingly unrelated issues, a professional diagnosis that includes checking the PCM’s internal integrity is a wise next step.
Module Trouble Codes on the 2006 Jeep Liberty
The following diagnostic trouble codes are documented specifically for the Powertrain Control Module in the 2006 Jeep Liberty 3.7L. These codes indicate internal faults within the module itself, rather than problems with external sensors or circuits. When you encounter them, the PCM is likely the root cause and may need to be replaced or reprogrammed.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Jeep issued service bulletin #08-030-06 Rev. A to address concerns with Powertrain Control Module initialization on certain 2006 Liberty models. This bulletin outlines a specific procedure for initializing a new or reprogrammed PCM to ensure proper communication with the vehicle’s other modules. Additionally, customer satisfaction notification Rc-If21-06 (F21) involves reprogramming the Body Control Module. While this bulletin focuses on the BCM, it may be relevant if you are experiencing electrical issues that coincide with PCM replacement, as the two modules interact over the vehicle’s data bus. Following these factory guidelines can help prevent post-repair complications.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
| — | Rc-If21-06 Customer Satisfaction Notification F21 – Reprogram Body Control Module | — |
Protecting the PCM in Your 2006 Jeep Liberty
- Keep the battery and charging system in good condition; a weak alternator or corroded terminals can cause voltage spikes that damage the PCM.
- Inspect and clean all engine and chassis ground connections periodically to ensure stable electrical reference.
- Avoid jump-starting your Liberty with a high-voltage booster or reversed cables, which can send a surge through the module.
- Address check engine lights promptly; ignoring codes can lead to conditions that stress the PCM over time.
- Make sure the PCM connector seals are intact and free of moisture or corrosion to prevent internal short circuits.
- When washing the engine bay, avoid direct high-pressure spray on the PCM and its connectors.
Frequently Asked Questions
What are the most common signs that the PCM has failed in a 2006 Jeep Liberty 3.7L?
Typical signs include a no-start condition, intermittent stalling, and erratic transmission shifting. You may also see diagnostic trouble codes P0601 or P0606, which indicate internal module faults. If your scan tool cannot communicate with the PCM, that is another strong clue.
Does a replacement PCM for the 2006 Jeep Liberty require programming?
Yes, the factory procedure requires using a scan tool to write the vehicle’s VIN and original mileage into the new module. However, a pre-programmed unit from Flagship One arrives with this data already loaded, so you can skip that step. A relearn procedure is still recommended to adapt the module to your engine.
Where is the PCM located on the 2006 Jeep Liberty 3.7L?
The PCM is mounted in the engine compartment. The exact position may vary slightly, but it is typically accessible near the firewall or inner fender. The labor guide allows 0.5 hours for removal and replacement.
Can I install a used PCM from another 2006 Jeep Liberty?
A used PCM may not work correctly because it is programmed with a different VIN and mileage. The vehicle’s security system and other modules may reject it. A refurbished unit that is VIN-programmed to your specific Liberty is a more reliable choice.
What is the difference between the PCM and the ECM on this vehicle?
In the 2006 Jeep Liberty 3.7L, the terms PCM (Powertrain Control Module) and ECM (Engine Control Module) are often used interchangeably. The PCM typically controls both the engine and transmission, while an ECM might refer only to engine functions. For this model, the module is commonly called the PCM.
When your 2006 Jeep Liberty’s PCM fails, you have two main paths: repair the existing module or replace it with a refurbished unit. Repair can be cost-effective for simple issues like corrupted software, but internal hardware faults often require replacement. A refurbished PCM that has been thoroughly tested and pre-programmed with your VIN offers a balance of reliability and convenience. It eliminates the need for a dealer visit to perform the initial programming, and it comes with a warranty for peace of mind. Whichever route you choose, addressing the problem promptly will restore your Liberty’s performance and prevent further damage.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Jeep Liberty with a lifetime warranty, free shipping and no core charge. The full Jeep Liberty module lineup covers other engine configurations as well.
Final Thoughts
A malfunctioning PCM doesn’t have to sideline your 2006 Jeep Liberty 3.7L. By understanding the module’s role, recognizing the symptoms, and following the correct replacement and programming steps, you can get back on the road with confidence. Whether you tackle the job yourself or rely on a professional, using a quality, VIN-programmed replacement simplifies the process. Take the next step toward a reliable repair and enjoy the peace of mind that comes with a properly functioning engine computer.
