2010 Chevrolet Express 5.3L: When the Engine Computer Needs Replacement
The powertrain control module (PCM) in your 2010 Chevrolet Express 5.3L acts as the vehicle’s central computer, managing engine performance and transmission behavior. Failure may cause erratic operation, warning lights, or a complete no-start condition.
Quick Summary
- The 2010 Chevrolet Express 5.3L PCM controls engine and transmission functions.
- Replacement typically requires 1.8 hours of labor for removal and installation.
- A relearn procedure of 0.5 hours is needed after PCM replacement.
- Factory programming requires capturing ECM data before removal.
- Common symptoms include stalling, warning lights, and diagnostic trouble codes.
If your 2010 Chevrolet Express 5.3L is experiencing unexplained stalling, warning lights, or a no-start condition, the powertrain control module (PCM) may be the cause. This critical component manages engine performance, fuel delivery, and transmission behavior. Understanding its role, location, and replacement process helps you make informed decisions about repairs. You’ll learn what the PCM does, how to recognize failure symptoms, and what steps are involved in replacement and programming.
What the PCM Does in a 2010 Chevrolet Express
The powertrain control module (PCM) in your 2010 Chevrolet Express 5.3L is the brain behind engine and transmission operation. It processes data from sensors to optimize fuel injection, ignition timing, and shifting patterns. A failing PCM may disrupt these functions, leading to poor performance or even a vehicle that won’t start. If replacement becomes necessary, you’ll need replacement engine computers for the Express that are compatible with your vehicle’s specifications. The PCM’s role is critical, as it ensures smooth operation and compliance with emissions standards.

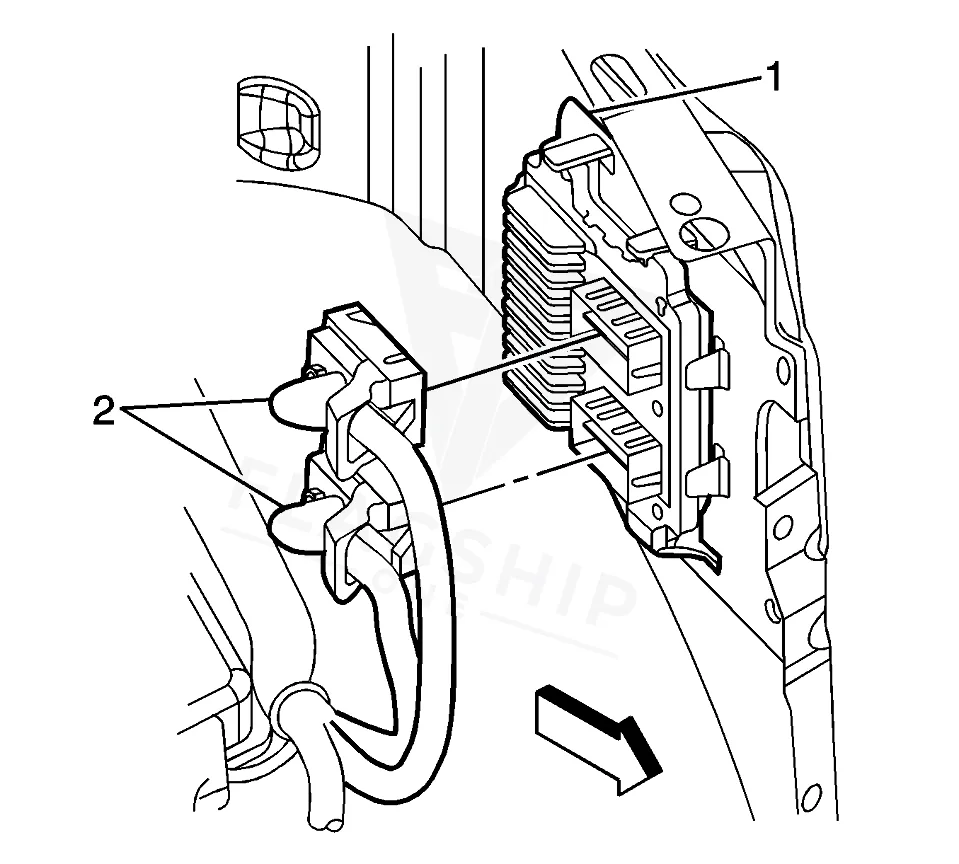

Where the PCM Is Located and What Replacement Involves
In the 2010 Chevrolet Express 5.3L, the PCM is typically located in the engine bay, secured to the firewall or inner fender. Replacing it involves disconnecting the battery, removing electrical connectors, and unbolting the module. The factory labor time for PCM removal and replacement is 1.8 hours. After installation, a relearn procedure of 0.5 hours is required to synchronize the new module with the vehicle’s systems. Proper torque on mounting bolts and secure connector attachment are essential to avoid future issues.
How to Reach the PCM on the 2010 Chevrolet Express
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM mounting bolts.
- Release the ECM upper retaining tabs.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.6 hr |
| Powertrain Control Module R&R | 5.3L | 1.8 hr |
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Powertrain Control Module R&R | 6.6L | 1.9 hr |
| Powertrain Control Module R&R | 4.8L | 1.8 hr |
| Powertrain Control Module Relearn | Express 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 3500 | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2010 Chevrolet Express 5.3L, the factory procedure requires capturing ECM data before removal and performing a relearn process. This ensures the new module communicates correctly with the vehicle’s sensors and systems. Flagship One units arrive as a VIN-programmed replacement unit, eliminating the need for additional programming steps. This simplifies the installation process and helps restore your vehicle’s performance quickly.
Symptoms of a Failing PCM
A failing PCM in your 2010 Chevrolet Express 5.3L may cause a range of symptoms. You might experience intermittent stalling, rough idling, or a no-start condition. Warning lights, such as the check engine or low oil pressure indicator, may illuminate unexpectedly. Diagnostic trouble codes like internal control module memory checksum error often appear during a scan. Poor engine performance, shifting issues, or even complete loss of communication with a scan tool are also common signs of PCM failure.
Module Trouble Codes on the 2010 Chevrolet Express
The 2010 Chevrolet Express 5.3L may log specific trouble codes when the PCM begins to fail. These codes help pinpoint internal module issues and guide diagnostics. Below are the documented module-internal trouble codes for this vehicle.
Factory Service Bulletins Worth Knowing
Two factory service bulletins address PCM-related issues in the 2010 Chevrolet Express. Bulletin #09-06-04-036 (and update #09-06-04-036A) describes an intermittent low oil pressure warning light that may appear after highway driving, particularly in high ambient temperatures. Bulletin #11-06-04-001 (and update #11-06-04-001A) covers a malfunction indicator lamp (MIL) with poor engine performance, often accompanied by codes such as P0299, P0606, or P2202. Both bulletins recommend reprogramming the engine control module (ECM) as a solution.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-04-036 | Intermittent Low Oil Pressure Warning Light Message Displayed (Reprogram Engine Control Module | Some customers may comment that the low oil pressure warning message will display when the vehicle comes to a stop after driving at highway speeds. They may… |
| 11-06-04-001 | Malfunction Indicator Lamp (MIL) Illuminated, Poor Engine Performance with Low Power, DTC P0299 | Some customers may comment that the malfunction indicator lamp (MIL) is illuminated and the engine performance is poor with low power. The technician may… |
Protecting the PCM in Your 2010 Chevrolet Express
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Ensure all electrical connectors and grounds are clean and securely attached.
- Avoid jump-starting the vehicle with improper voltage, which can harm sensitive electronics.
- Address diagnostic trouble codes promptly to prevent further module damage.
- Keep the PCM connector seals intact to protect against moisture and corrosion.
Frequently Asked Questions
How do I know if my 2010 Chevrolet Express 5.3L PCM is failing?
Common signs include warning lights, stalling, or a no-start condition. Diagnostic trouble codes like P0601 or P0606 may also appear. If the vehicle exhibits erratic behavior or fails to communicate with a scan tool, the PCM may be the issue.
What is the labor time for replacing the PCM in my 2010 Chevrolet Express 5.3L?
The factory labor time for PCM removal and replacement is 1.8 hours. An additional 0.5 hours is required for the relearn procedure to synchronize the new module with the vehicle’s systems.
Does the PCM in my 2010 Chevrolet Express 5.3L need programming after replacement?
Yes, the factory procedure requires capturing ECM data before removal and performing a relearn process. However, Flagship One units arrive pre-programmed to your vehicle’s VIN, eliminating the need for additional steps.
If your 2010 Chevrolet Express 5.3L is showing signs of PCM failure, you have options. A repair may address minor issues, but a replacement ensures long-term reliability. Given the labor involved, choosing a VIN-programmed unit can save time and restore your vehicle’s performance efficiently. Consider the benefits of a direct replacement tailored to your Express’s specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Chevrolet Express with a lifetime warranty, free shipping and no core charge. The full Chevrolet Express module lineup covers other engine configurations as well.
Final Thoughts
The 2010 Chevrolet Express 5.3L relies on its PCM for smooth engine and transmission operation. Recognizing failure symptoms early and understanding the replacement process helps you make informed decisions. Whether you opt for a repair or a replacement, addressing PCM issues promptly ensures your vehicle remains dependable on the road.
