2008 Chevrolet Express Engine Control Module Replacement Guide
The engine control module in the 2008 Chevrolet Express manages fuel injection, ignition timing and emission controls. A failure can interrupt engine performance, trigger multiple diagnostic codes and cause loss of power or stalling.
Quick Summary
- ECM removal requires a scan‑tool data capture before disconnection.
- Factory relearn for the ECM takes about half an hour after installation.
- Labor time for a complete ECM removal and reinstall is roughly 0.9 hours.
- Common codes include P0601 through P060A indicating internal processor faults.
- Flagship One units arrive VIN‑programmed, eliminating the need for post‑install coding.
When an engine control module stops communicating in a 2008 Chevrolet Express, the vehicle may exhibit warning lights, rough idle or a no‑start condition. Understanding how the ECM works, what the factory cautions require, and how a replacement is performed can help you decide between a repair or a refurbished unit. This guide explains the module’s role, typical labor steps, programming requirements and practical tips to keep the system healthy.
What the PCM Does in a 2008 Chevrolet Express
In the 2008 Chevrolet Express the engine control module acts as the brain for the powertrain, interpreting sensor data to adjust fuel delivery, spark timing and emissions output. It also coordinates with the powertrain control module to manage shift timing on automatic transmissions. Because it controls critical engine functions, any internal fault can lead to drivability issues or loss of power. The module’s reliability is essential for meeting performance and emissions standards. For owners seeking a swap, replacement engine computers for the Chevrolet Express are the direct equivalents used in factory service.

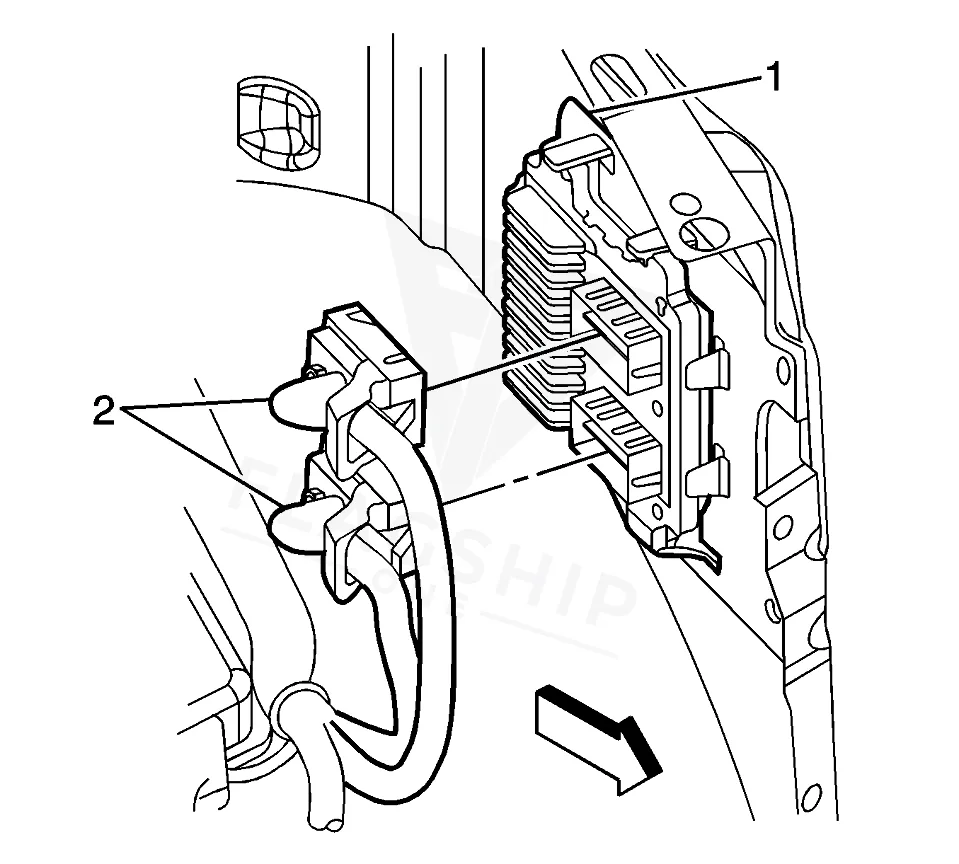

Where the PCM Is Located and What Replacement Involves
The ECM is mounted in the engine compartment, typically attached to the firewall near the intake manifold. Removal follows the book time of 0.9 hours, which includes disconnecting the wiring harness, unbolting the unit and extracting it from its bracket. Reinstallation mirrors these steps and adds a 0.5‑hour relearn procedure specific to the Express 1500, 2500 or 3500 variant. No torque specifications are provided, so standard fastener tightening practices apply.
How to Reach the PCM on the 2008 Chevrolet Express
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness electrical connectors from the ECM.
- Release the ECM bracket tabs.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.9 hr |
| Powertrain Control Module R&R | GAS | 0.9 hr |
| Powertrain Control Module Relearn | Express 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 3500 | 0.5 hr |
| Engine Control Module R&R | 4.3L | 0.9 hr |
| Engine Control Module R&R | GAS | 0.9 hr |
| Engine Control Module Relearn | Express 1500 | 0.5 hr |
Programming Requirements After Replacement
After the ECM is installed, the factory process calls for a scan‑tool capture of the original module’s data and a subsequent restoration to the new unit. This includes a relearn routine that typically lasts about half an hour. Flagship One supplies a VIN‑programmed replacement unit that already contains the captured data, so the technician can skip the manual data‑restore step and proceed directly to final verification.
Symptoms of a Failing PCM
A failing ECM in the 2008 Chevrolet Express often triggers intermittent low oil pressure warnings, especially after highway stops or in hot weather. Drivers may also notice a rough idle, occasional stalling or a complete no‑start condition. Diagnostic scans frequently reveal internal processor codes such as processor malfunction code P0601 which point to the module’s internal failure rather than external sensors.
Module Trouble Codes on the 2008 Chevrolet Express
The following diagnostic trouble codes are documented for internal ECM failures in the 2008 Chevrolet Express:
Factory Service Bulletins Worth Knowing
Bulletin #09-06-04-036 and its revision #09-06-04-036A address an intermittent low oil pressure warning that appears when the vehicle stops after highway speeds, particularly in high ambient temperatures. The recommended remedy is a reprogramming of the engine control module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-04-036 | Intermittent Low Oil Pressure Warning Light Message Displayed (Reprogram Engine Control Module | Some customers may comment that the low oil pressure warning message will display when the vehicle comes to a stop after driving at highway speeds. They may… |
Protecting the PCM in Your 2008 Chevrolet Express
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean all ground connections and connector pins regularly.
- Use proper jump‑start procedures to prevent excessive voltage on the ECM.
- Address any diagnostic codes promptly before they recur.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What should I do if the ECM warning light stays on after a replacement in my 2008 Chevrolet Express?
Verify that the scan‑tool data was captured before removal and restored to the new unit. If the warning persists, run a diagnostic scan to check for any remaining codes and confirm the relearn procedure was completed.
Can I use a used ECM from another 2008 Chevrolet Express?
A used unit may lack the specific VIN‑programmed data required by the factory. Using a VIN‑programmed replacement from Flagship One ensures the module matches your vehicle without additional coding steps.
How long does the ECM relearn take for my Express 2500?
The factory relearn time is listed as 0.5 hours for the Express 2500 model after the ECM is installed.
When the ECM in your 2008 Chevrolet Express needs attention, you can choose a repair if the original unit is salvageable, or opt for a refurbished replacement that meets factory specifications. Both paths require the same labor steps, but a VIN‑programmed unit eliminates the post‑install data restore, saving time and reducing the chance of error.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Chevrolet Express with a lifetime warranty, free shipping and no core charge. The full Chevrolet Express module lineup covers other engine configurations as well.
Final Thoughts
The engine control module is vital to the operation of your 2008 Chevrolet Express. Whether you repair the original or install a refurbished unit, following the factory cautions and programming steps will help restore reliable performance. Consider a VIN‑programmed replacement to simplify the process.
