2012 Chevrolet Express 5.3L PCM Replacement Guide
The powertrain control module (PCM) in your 2012 Chevrolet Express 5.3L is the engine’s primary computer, managing fuel injection, ignition timing, and emissions. Failure often results from voltage spikes, corrosion, or internal component wear, causing drivability issues and setting module-internal trouble codes.
Quick Summary
- PCM replacement for the 5.3L engine is a 1.8-hour book job, plus a 0.5-hour relearn procedure.
- Before removing the ECM, always use a scan tool to capture the module’s data for programming.
- Common failure symptoms include no-start, stalling, and communication loss with the scan tool.
- Factory bulletins address DTC P2610 and warn against non-GM calibrations in Duramax engines.
- Flagship One units arrive pre-programmed with your VIN, eliminating the need for a dealer relearn.
If your 2012 Chevrolet Express 5.3L is experiencing intermittent stalling, a no-start condition, or the check engine light is on with module-related trouble codes, the powertrain control module (PCM) may be failing. This guide explains what the PCM does in your Express, where it is located, and what the replacement process involves. You will learn the book labor times, the critical step of capturing ECM data before removal, and how a pre-programmed replacement unit can save you a trip to the dealership. We also cover common symptoms, relevant factory service bulletins, and practical tips to protect the module from future damage.
What the PCM Does in a 2012 Chevrolet Express
The powertrain control module (PCM) in your 2012 Chevrolet Express 5.3L is the central computer that controls engine operation. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel delivery, ignition timing, and idle speed to maintain performance and emissions compliance. The PCM also communicates with the transmission control module and other body control modules over the vehicle’s data bus. When the PCM fails, it can cause a range of drivability issues because the engine loses its primary brain. For this reason, replacement engine computers for the Express are a common repair item on high-mileage vans. The module is calibrated specifically for the 5.3L engine and the Express chassis, so using a correct replacement is essential for proper operation.

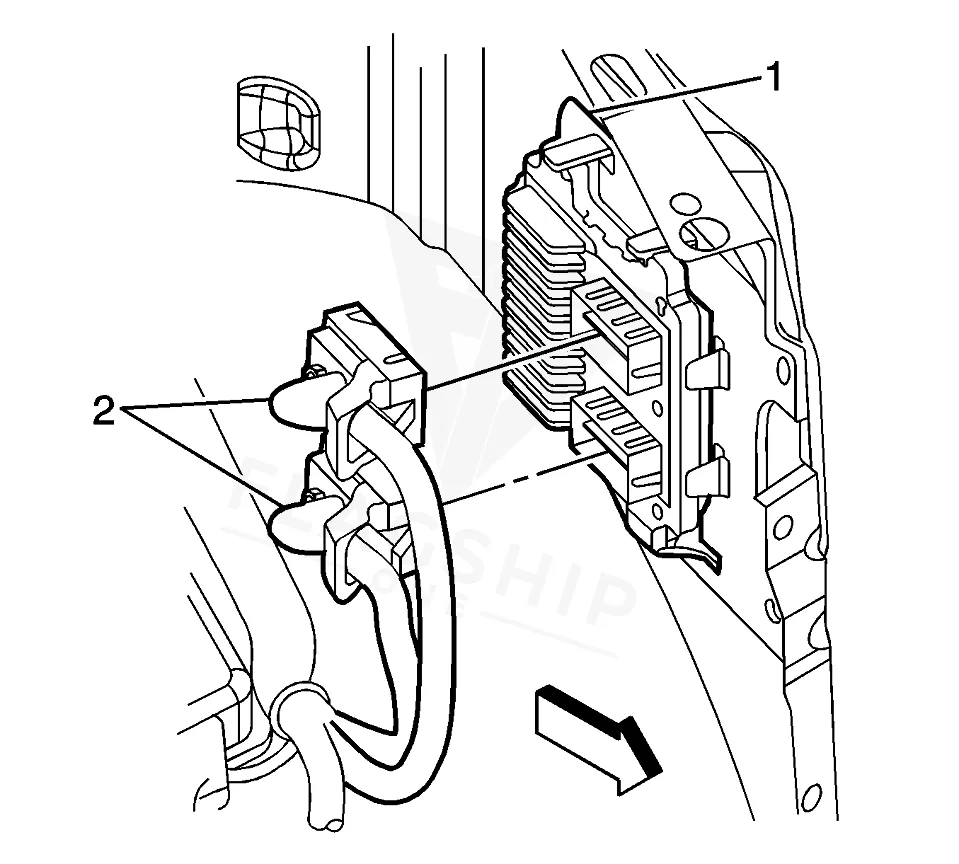

Where the PCM Is Located and What Replacement Involves
The PCM on a 2012 Chevrolet Express 5.3L is typically mounted on the driver-side inner fender, near the battery and underhood fuse block. Replacing it is a straightforward task for a skilled DIYer or mechanic. According to factory labor times, the powertrain control module removal and replacement for the 5.3L engine is rated at 1.8 hours. This time includes disconnecting the battery, unbolting the module, transferring the mounting bracket if needed, and reconnecting the electrical connectors. After installation, a powertrain control module relearn is required, which adds 0.5 hours of labor for Express 1500, 2500, and 3500 models. The relearn procedure involves using a scan tool to reset the module’s adaptive memory and verify communication.
How to Reach the PCM on the 2012 Chevrolet Express
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness electrical connectors from the ECM.
- Release the ECM bracket tabs.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.3L | 0.6 hr |
| Powertrain Control Module R&R | 5.3L | 1.8 hr |
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Powertrain Control Module R&R | 6.6L | 1.9 hr |
| Powertrain Control Module R&R | 4.8L | 1.8 hr |
| Powertrain Control Module Relearn | Express 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 2500 | 0.5 hr |
| Powertrain Control Module Relearn | Express 3500 | 0.5 hr |
Symptoms of a Failing PCM
A failing PCM in a 2012 Chevrolet Express 5.3L can produce several warning signs. The engine may crank but not start, or it may start and stall shortly after. You might notice erratic shifting, poor fuel economy, or the check engine light illuminating with module-internal trouble codes. The scan tool may fail to communicate with the PCM, or the module may appear unresponsive. One common internal fault is anchor text which indicates a control module read-only memory (ROM) error. Other symptoms include intermittent misfires, surging at idle, and the vehicle entering a reduced-power mode. If you experience any of these issues, diagnosing the PCM early can prevent being stranded.
Module Trouble Codes on the 2012 Chevrolet Express
The following trouble codes are documented as module-internal faults for the 2012 Chevrolet Express PCM. These codes indicate problems within the module itself rather than with external sensors or circuits:
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Engine Control Module DTC P2610 (Control Module Ignition Off Timer Performance) Setting Malfunc | — |
| 08-06-04-006 | Information for Identifying Non-GM ECM Calibration Use and Power-up Hardware Detection in Duram | — |
| — | 2012 and 2013 6.6L Duramax Engine Control Module Parts Restriction – (Jul 12, 2013) | — |
Protecting the PCM in Your 2012 Chevrolet Express
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep battery and PCM ground connections clean and tight to prevent voltage drops and corrosion.
- Avoid jump-starting the vehicle with a running donor vehicle; use a battery booster pack instead.
- Address any check engine light or drivability code promptly before it leads to module failure.
- Inspect the PCM connector seals and housing for moisture intrusion, especially after engine bay washing.
Frequently Asked Questions
How long does it take to replace the PCM on a 2012 Chevrolet Express 5.3L?
The factory book time for PCM removal and replacement on the 5.3L engine is 1.8 hours. An additional 0.5 hours is required for the powertrain control module relearn procedure after installation.
Do I need to program a new PCM for my 2012 Chevrolet Express 5.3L?
Yes, a new PCM must be programmed with the vehicle’s VIN and correct calibration files. The factory procedure also requires capturing ECM data with a scan tool before removal. A pre-programmed unit from Flagship One arrives with the VIN and calibrations already loaded, so you only need to perform the relearn.
What does DTC P0601 mean on a 2012 Chevrolet Express?
DTC P0601 is a module-internal trouble code indicating a control module read-only memory (ROM) error. This typically means the PCM has an internal fault and needs to be replaced. It is one of several internal codes that can appear when the module fails.
When your 2012 Chevrolet Express 5.3L needs a new PCM, you have two main options: have a dealership diagnose and replace the module at a higher cost, or install a refurbished or new replacement unit yourself. A pre-programmed PCM from Flagship One eliminates the dealer programming step, saving time and money. The 1.8-hour book time for replacement makes it a manageable job for a competent DIYer or independent shop.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Chevrolet Express with a lifetime warranty, free shipping and no core charge. The full Chevrolet Express module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module is a critical component in your 2012 Chevrolet Express 5.3L. Recognizing the symptoms of failure and understanding the replacement process can help you get back on the road quickly. Whether you choose a repair or a replacement, a pre-programmed unit simplifies the job and restores your van’s performance.
