2010 Cadillac CTS-V 6.2L PCM/ECM Replacement Guide

If your 2010 Cadillac CTS-V 6.2L is idling roughly, misfiring, or illuminating the check engine light, the engine control module (ECM) may be at fault. The ECM is the brain that manages fuel delivery, ignition timing, and supercharger boost on this supercharged V8. When it begins to fail, driveability suffers and diagnostic trouble codes often point to internal module errors. This guide explains what the ECM does, where it is located, what replacement involves, and how a pre-programmed unit from Flagship One can simplify the repair. You will also learn about relevant factory service bulletins and common failure symptoms specific to the CTS-V.

What the PCM Does in a 2010 Cadillac CTS-V

The engine control module (ECM) on a 2010 Cadillac CTS-V 6.2L is a dedicated computer that processes sensor inputs and controls actuators to maintain optimal engine performance. It adjusts fuel injector pulse width, ignition spark timing, and supercharger bypass valve position based on throttle demand, engine load, and knock sensor feedback. The ECM also communicates with the transmission control module and other body systems over the CAN bus. When the ECM fails, the engine may run poorly or not at all. For this reason, replacement engine computers for the CTS-V are a common solution when internal faults like P0601 or P0602 are stored and the module cannot be repaired.

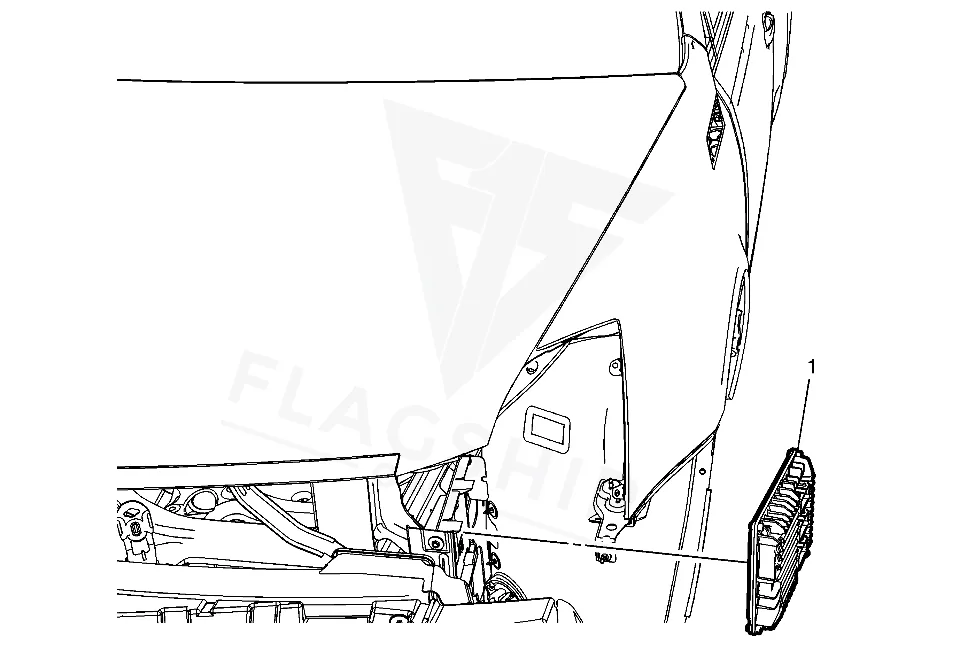

Where the PCM Is Located and What Replacement Involves

The ECM on the 2010 Cadillac CTS-V 6.2L is mounted in the engine compartment, typically on the driver side near the air cleaner assembly. Replacement is a 3.7-hour book-time job. The factory procedure requires using a scan tool to capture the ECM data before removal, as this data may be needed for diagnostics or to transfer learned values. After installing the new module, a 0.5-hour relearn procedure is necessary to synchronize the ECM with the vehicle’s security system and throttle body. The technician must also verify that all connectors are clean and fully seated to avoid intermittent faults.

Programming Requirements After Replacement

After replacing the ECM on a 2010 Cadillac CTS-V 6.2L, the factory procedure requires reprogramming the module with the correct calibration for the vehicle’s VIN and options. This step is essential for the engine to start and run properly. Flagship One supplies a VIN-programmed replacement unit that arrives ready to install, so the post-install programming step is already completed. The technician still needs to perform the 0.5-hour relearn procedure to match the ECM to the vehicle’s security system, but the time-consuming reprogramming with a factory scan tool is eliminated.

Symptoms of a Failing PCM

A failing ECM in a 2010 Cadillac CTS-V 6.2L often causes a rough idle, engine misfire, and an illuminated check engine light with diagnostic trouble code P0300. The engine may stall unexpectedly, especially during deceleration or when coming to a stop. In some cases, the vehicle may crank but not start because the ECM is not sending fuel injector or ignition commands. Communication with a scan tool may be lost entirely, or the tool may report internal module faults such as internal control module memory error. Shifting issues can also occur if the ECM fails to communicate properly with the transmission control module.

Module Trouble Codes on the 2010 Cadillac CTS-V

The following trouble codes are stored inside the ECM itself and indicate internal module failures. When any of these codes are present, the module is typically faulty and requires replacement rather than repair.

Factory Service Bulletins Worth Knowing

Two factory service bulletins apply to the 2010 Cadillac CTS-V 6.2L. Bulletin #PI0221 (dated Sep 1, 2010) addresses rough idle, engine misfire, and a check engine light with DTC P0300, and directs the technician to reprogram the ECM. Bulletin #08-07-30-020E (dated Mar 3, 2010) covers diagnostic information for a MIL illuminated with DTCs P1825, P182E, or P1915 found current or as history codes in the TCM, along with no PRNDL display and potential no engine crank. These bulletins should be reviewed before replacing any module.

Protecting the PCM in Your 2010 Cadillac CTS-V

• Maintain the battery and charging system; low voltage or voltage spikes can damage the ECM.
• Keep all engine ground straps and module connectors clean and tight to prevent resistance and heat buildup.
• Avoid jump-starting the vehicle with a running donor vehicle; use a battery charger instead.
• Address any check engine light or driveability codes promptly to prevent secondary damage.
• Inspect the ECM connector seals for cracks or moisture intrusion, especially after engine bay washing.

When your 2010 Cadillac CTS-V 6.2L needs a new ECM, you have two options: have a shop install a blank module and pay for reprogramming, or choose a refurbished unit that arrives VIN-programmed and ready to install. Flagship One offers tested, pre-programmed ECMs for this supercharged V8, saving you the time and cost of the factory programming step. The 3.7-hour book time still applies for the physical swap and relearn.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Cadillac CTS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS-V module lineup covers other engine configurations as well.

Final Thoughts

The ECM in a 2010 Cadillac CTS-V 6.2L is a critical component that controls engine performance. When it fails, symptoms like rough idle, misfire, and no-start are common. Replacing it with a pre-programmed unit from Flagship One eliminates the need for post-install reprogramming, making the repair more straightforward. Always follow the factory service bulletins and perform the required relearn procedure.
