2009 Toyota Tundra Engine Control Module (ECM) Replacement Guide
The engine control module (ECM) in your 2009 Toyota Tundra manages fuel delivery, ignition timing, and emissions systems. Failures may cause erratic engine behavior, poor performance, or a complete no-start condition.
Quick Summary
- The ECM controls critical engine functions in the 2009 Toyota Tundra.
- Replacement typically requires 0.5 hours for removal and installation.
- A relearn procedure of 0.5 hours is often needed after installation.
- Factory units may need reprogramming, but aftermarket options arrive pre-programmed.
- Symptoms of failure include stalling, misfires, or communication errors with scan tools.
If your 2009 Toyota Tundra is experiencing unexplained stalling, rough idling, or a no-start condition, the engine control module (ECM) may be at fault. This small but critical computer oversees fuel injection, ignition timing, and emissions controls, ensuring smooth operation. Replacing it involves removing the old unit, installing a new one, and often performing a relearn procedure to synchronize it with your vehicle’s systems. Understanding the process helps you anticipate labor time and avoid unnecessary steps, especially if you opt for a pre-programmed replacement unit that eliminates additional programming work.
What the PCM Does in a 2009 Toyota Tundra
The engine control module in your 2009 Toyota Tundra acts as the brain of the engine, processing data from sensors to optimize performance. It adjusts fuel mixture, ignition timing, and idle speed to maintain efficiency and reduce emissions. When it malfunctions, you may notice poor acceleration, rough running, or even a complete failure to start. Replacing it with replacement engine computers for the Tundra ensures your vehicle regains proper functionality, though some units may require additional programming steps unless pre-configured for your VIN.

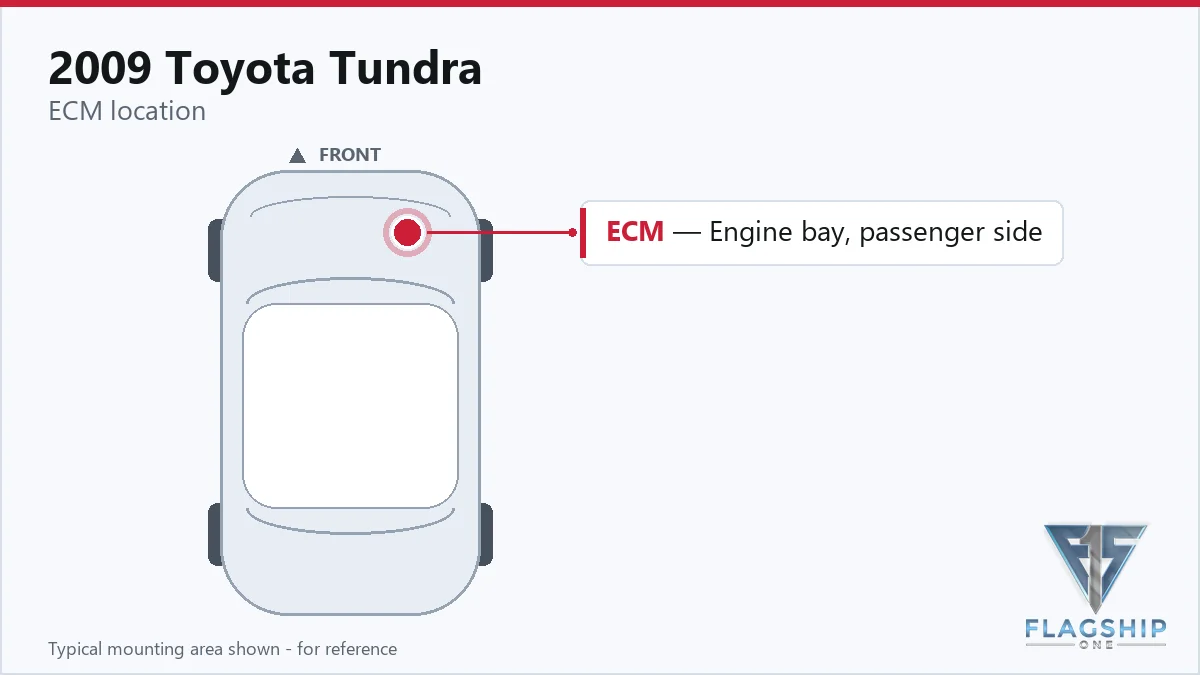

Where the PCM Is Located and What Replacement Involves
The ECM in the 2009 Toyota Tundra is located in the engine compartment, as specified by the factory electrical component locator. Replacing it involves removing the old unit and installing a new one, a process that typically takes 0.5 hours according to labor guides. The same time estimate applies whether you’re working with the engine control module or the powertrain control module, as both are similarly positioned and accessed. No additional disassembly is required beyond what’s necessary to reach the module.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2009 Toyota Tundra, a relearn procedure is often required to ensure proper communication with the vehicle’s systems. This step typically takes 0.5 hours and may involve using specialized diagnostic tools. However, if you choose a VIN-programmed replacement unit, these steps are already completed, saving you time and potential hassle. Always confirm compatibility with your vehicle’s VIN to avoid additional programming work.
Symptoms of a Failing PCM
A failing ECM in your 2009 Toyota Tundra may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor fuel economy, misfires, or warning lights on the dashboard. In some cases, the vehicle may enter a limp mode, limiting power to prevent further damage. If your scan tool shows a memory integrity error, it often points to internal ECM issues that require attention. Addressing these symptoms promptly can prevent more extensive engine problems.
Factory Service Bulletins Worth Knowing
Toyota issued a service bulletin (T-SB-0064-10) covering ECU flash reprogramming procedures for applicable models, including the 2009 Tundra. This bulletin outlines the steps required to update the module’s software using the Techstream diagnostic tool. If your vehicle exhibits symptoms related to outdated or corrupted programming, following this procedure may resolve the issue without requiring a full replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| T-SB-0064-10 | 01-11 Applicable Toyota Models: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2009 Toyota Tundra
- Maintain a healthy charging system to prevent voltage spikes that can damage the ECM.
- Keep electrical connections clean and secure to avoid intermittent communication issues.
- Avoid jump-starting with improper voltage, as this may harm sensitive electronics.
- Address trouble codes promptly to prevent cascading failures in related systems.
- Ensure the ECM connector seals remain intact to protect against moisture and corrosion.
Frequently Asked Questions
Does the 2009 Toyota Tundra ECM need to be programmed after replacement?
Yes, a relearn procedure is typically required after installing a new ECM. This ensures the module synchronizes with your vehicle’s systems. However, some aftermarket units arrive pre-programmed to your VIN, eliminating this step.
How do I know if my 2009 Toyota Tundra ECM is failing?
Common signs include stalling, rough idling, or a no-start condition. You may also see warning lights or trouble codes related to engine performance. A scan tool can help confirm if the ECM is the issue.
Can I replace the ECM in my 2009 Toyota Tundra myself?
Replacement is straightforward if you’re comfortable with basic engine compartment work. However, programming the new unit may require specialized tools. Pre-programmed units simplify the process.
If your 2009 Toyota Tundra is showing signs of ECM failure, you have options. A dealer replacement may involve additional programming time, while a pre-configured aftermarket unit can streamline the process. Consider labor costs, part availability, and whether you prefer a factory or refurbished solution to get your vehicle back on the road reliably.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Toyota Tundra with a lifetime warranty, free shipping and no core charge. The full Toyota Tundra module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Toyota Tundra relies on its ECM for smooth engine operation. If you’re experiencing performance issues, a replacement may be necessary. Opting for a pre-programmed unit can save time and ensure a hassle-free installation. Addressing the problem promptly helps maintain your vehicle’s reliability and performance.
