2009 Saturn Aura Hybrid ECM Replacement & Programming Guide
The Engine Control Module (ECM) in your 2009 Saturn Aura Hybrid serves as the central computer managing engine timing, fuel delivery, emissions controls, and hybrid system coordination. When this processor fails, your vehicle may experience starting issues, stalling, or trigger internal fault codes that indicate memory corruption.
Quick Summary
- The ECM controls engine functions and hybrid system integration in the Aura Hybrid
- Module failure often triggers internal diagnostic codes like P0601 through P062F
- Factory procedure requires scan tool data capture before removal and post-install relearn
- Flagship One replacement units arrive pre-programmed with your vehicle’s VIN
If your 2009 Saturn Aura Hybrid won’t start, runs poorly, or your scan tool can’t communicate with the engine computer, the Engine Control Module may be failing. This guide explains what the ECM does in your specific vehicle, the symptoms that indicate module failure, and what the factory repair procedure requires. You’ll learn why proper programming matters after replacement and how choosing a pre-programmed unit can simplify your repair. Whether you’re a DIY technician or discussing options with a professional shop, this information helps you understand what’s involved and what questions to ask.
What the PCM Does in a 2009 Saturn Aura Hybrid
The Engine Control Module in your 2009 Saturn Aura Hybrid is the primary computer responsible for managing the 2.4L engine’s combustion process, emissions systems, and coordination with the hybrid drivetrain components. This module continuously monitors sensor inputs from the crankshaft position, camshaft position, mass airflow, and throttle body to calculate optimal fuel delivery and ignition timing. It also interfaces with the hybrid system’s battery management and electric motor engagement. When the internal processor or memory becomes corrupted, the module may store internal trouble codes or fail to communicate with other vehicle systems. Replacing this component requires replacement engine computers for the Saturn Aura that match the hybrid system’s specific calibration requirements.
Where the PCM Is Located and What Replacement Involves

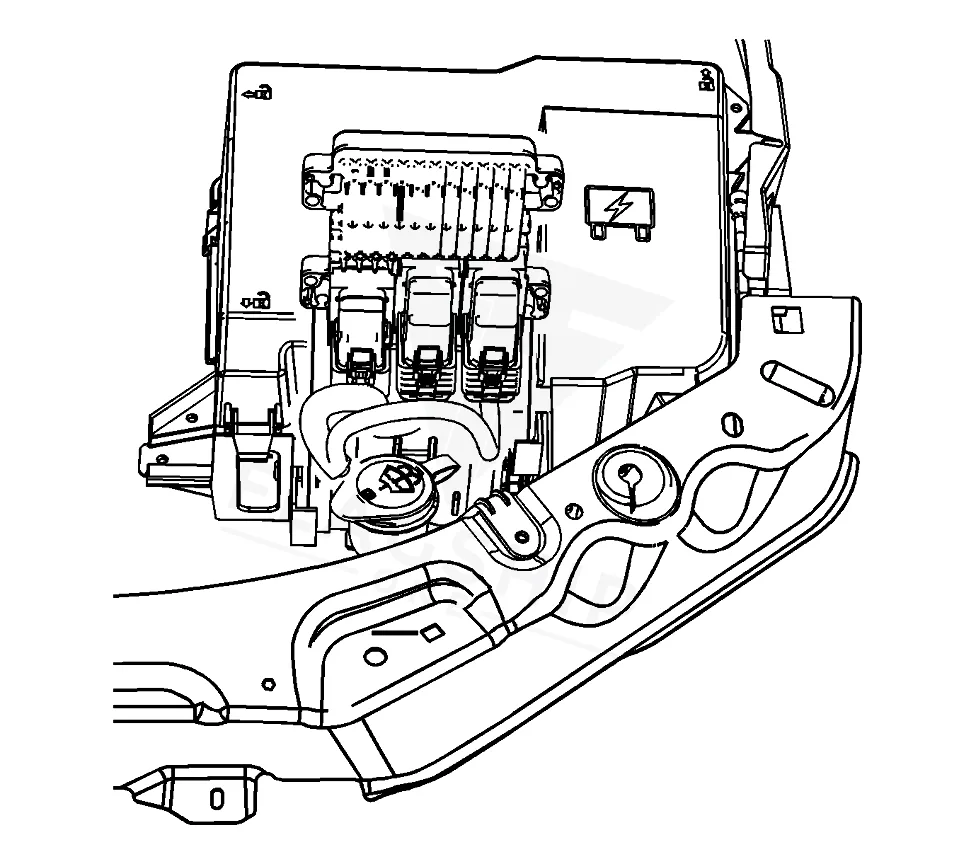

The ECM on your 2009 Saturn Aura Hybrid is typically located in the engine compartment, often mounted to the firewall or near the battery tray. Access may require removing engine covers or surrounding components. The labor guide specifies 1.4 hours for ECM R&R (remove and replace) plus 0.5 hours for the relearn procedure. This timing assumes a straightforward installation without complications from corrosion or damaged connectors. When replacing the module, ensure the mounting bolts are torqued to factory specifications and all electrical connections are fully seated. After installation, the new module must communicate with the powertrain control module and undergo the relearn process to adapt to your vehicle’s specific engine characteristics.
How to Reach the PCM on the 2009 Saturn Aura Hybrid
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Lift and gently pull the ECM up and out of the retainer on the battery tray.
- Disconnect the engine wiring harness electrical connectors from the ECM.
- Disconnect the body wiring harness electrical connector from the ECM.
- Position the ECM above the retainer in the battery tray and slide the ECM down into.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM on your 2009 Saturn Aura Hybrid, the factory procedure requires using a scan tool to capture data from the original module before removal. Once the new module is installed, a relearn procedure must be performed to calibrate the engine control system to your vehicle’s unique characteristics. This process requires special equipment and the correct program and calibration files for this specific application. Flagship One addresses this requirement by shipping a VIN-programmed replacement unit that arrives ready to install, eliminating the need for most post-install programming steps at your repair facility.
Symptoms of a Failing PCM
When the Engine Control Module fails on your 2009 Saturn Aura Hybrid, common symptoms include a no-start condition where the engine cranks but won’t fire, intermittent stalling during acceleration, and rough idle behavior. You may notice diagnostic trouble codes stored in the module, including internal memory checksum failure that indicates the module’s internal memory has become corrupted. The scan tool may be unable to communicate with the ECM, or you might experience transmission shifting issues because the module shares data with the transmission control unit. Misfire codes and illuminated check engine lights are also frequent indicators of ECM problems, particularly when the failure involves the module’s processor or memory circuits.
Module Trouble Codes on the 2009 Saturn Aura Hybrid
The 2009 Saturn Aura Hybrid is documented to store specific module-internal trouble codes that indicate ECM processor or memory failures. These codes include P0601 (internal memory checksum), P0602 (internal control module memory), P0603 (internal control module keep-alive memory), P0604 (internal control module random access memory), P062F (internal control module long-term memory preservation), and P1621 (transmission control module processor fault). These codes typically point to internal module failure rather than external sensor issues.
Factory Service Bulletins Worth Knowing
Factory service bulletin PIP4653D, dated June 20, 2012, addresses diagnostic trouble codes P0601, P0603, P0604, P062F, or P1621 stored in the transmission control module on certain vehicles including the 2009 Saturn Aura Hybrid. The bulletin indicates these codes may be set due to module internal failures and provides guidance for diagnosis and replacement. If your vehicle displays any of these codes along with drivability symptoms, the ECM may require replacement as outlined in the technical service bulletin.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | DTC’s P0601 P0603 P0604 P062F Or P1621 (Stored in the TCM) – (Jun 20, 2012) | — |
Protecting the PCM in Your 2009 Saturn Aura Hybrid
- Maintain your vehicle’s charging system to prevent voltage spikes that can damage the ECM processor
- Keep battery terminals and ground connections clean and tight to ensure stable electrical supply
- Avoid jump-starting from another vehicle when possible, as voltage surges can harm sensitive electronics
- Address diagnostic trouble codes promptly rather than driving with known module faults
- Inspect and maintain connector seals to prevent moisture intrusion into the ECM and wiring harness
- Use quality fuel and keep the intake system clean to reduce engine stress that can overwork the module
Frequently Asked Questions
Will any ECM work for my 2009 Saturn Aura Hybrid?
No. The ECM must be programmed with the specific calibration for the 2.4L hybrid application. Using an incorrect module may cause drivability issues or prevent the vehicle from running. A VIN-programmed unit matched to your vehicle ensures proper integration.
Can I replace the ECM myself on my 2009 Saturn Aura Hybrid?
If you have automotive electrical experience and access to a scan tool, the R&R procedure is straightforward at 1.4 hours. However, you must capture data before removal and perform the relearn procedure afterward. Pre-programmed units from Flagship One simplify this by arriving ready to install.
What happens if I don’t perform the ECM relearn after replacement?
The engine may run poorly, with rough idle, reduced power, or poor fuel economy. The module needs to learn your engine’s specific characteristics through the relearn procedure to optimize fuel delivery and emissions performance.
When your 2009 Saturn Aura Hybrid requires ECM replacement, you have two primary options: purchasing a new OEM unit from the dealer or choosing a quality refurbished replacement. Dealer units often include programming but come at a premium price. Refurbished units from Flagship One arrive pre-programmed with your VIN, saving you the time and cost of post-install programming. Consider your budget, timeline, and whether you have access to a shop capable of performing the relearn procedure after installation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Saturn Aura Hybrid with a lifetime warranty, free shipping and no core charge. The full Saturn Aura Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module in your 2009 Saturn Aura Hybrid is a critical component that manages engine and hybrid system operation. If you’re experiencing no-start conditions, stalling, or have diagnostic codes indicating module failure, replacing the ECM may be necessary. Flagship One offers VIN-programmed replacement units that eliminate most post-install programming requirements, making your repair more straightforward.
