2009 Saturn Astra ECM Issues: Diagnosis, Repair, and Programming
The engine control module in the 2009 Saturn Astra manages fuel delivery, ignition timing, and emission controls. Failure of this unit can trigger a range of diagnostic codes and may disable engine operation, leading to reduced performance or a no‑start condition.
Quick Summary
- Intermittent check‑engine light often appears in cold weather.
- Specific DTCs such as P0116, P0128, and P2097 may be logged.
- Reprogramming the ECM is required to resolve certain faults.
- Factory service bulletin #09-06-04-037 addresses cold‑ambient issues.
When a 2009 Saturn Astra begins to illuminate the MIL or exhibits erratic behavior during cold starts, the engine control module becomes a likely suspect. Understanding how this computer functions, what symptoms signal a problem, and the steps required to replace and program it can save you time and costly shop visits. This guide walks you through the module’s role in the Astra, the typical failure signs, the factory‑issued service bulletin that covers cold‑ambient code sets, and how a Flagship One replacement unit simplifies the post‑install programming process. By the end, you’ll know what to look for, how to verify the issue, and the options for a reliable repair.
What the ECM Does in a 2009 Saturn Astra
In the 2009 Saturn Astra the ECM serves as the brain that continuously monitors sensor inputs and commands actuators to keep the engine running smoothly. It controls fuel injection timing, spark advance, idle speed, and emission‑related valves, adjusting parameters in real time to match operating conditions. Because the Astra’s powertrain relies on precise coordination, any malfunction in the ECM can cause rough idle, stalling, or loss of driveability. The module also stores diagnostic trouble codes that help technicians pinpoint failures. Maintaining a correctly programmed ECM is essential for meeting emissions standards and ensuring optimal performance. Replacement units must match the vehicle’s calibration, and 2009 Saturn Astra replacement ECM provides the necessary hardware and software to restore proper operation.
What Replacing the ECM Involves

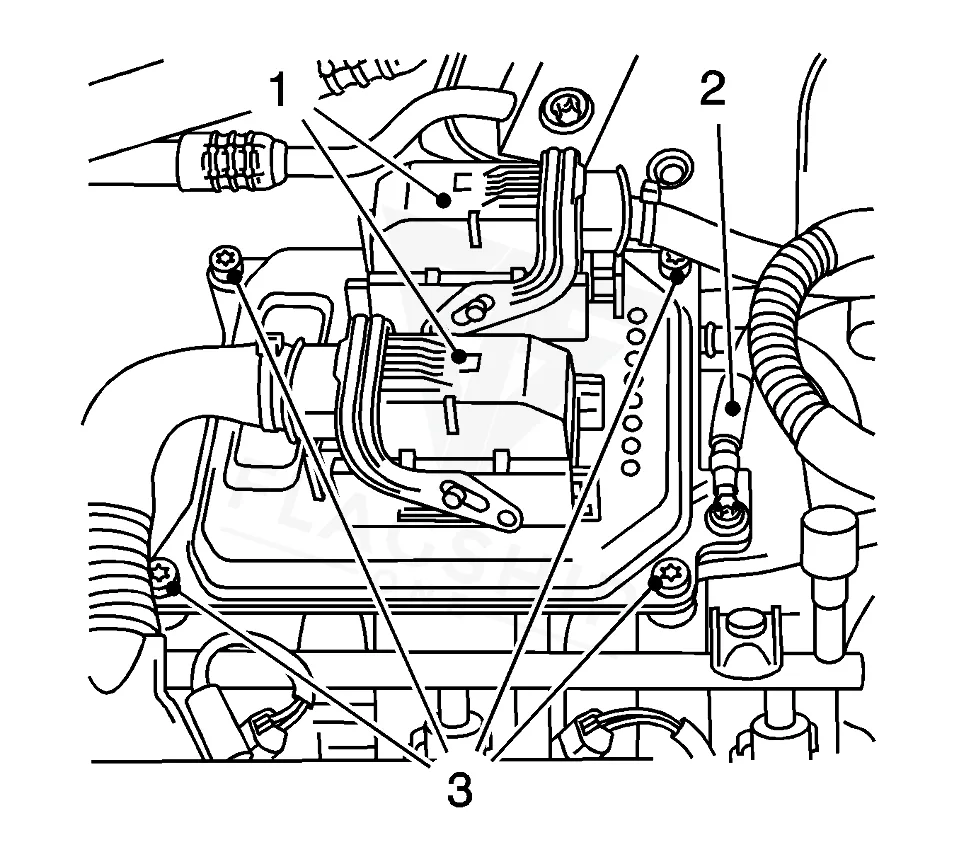

How to Reach the ECM on the 2009 Saturn Astra
- Open the hood.
- Disconnect the battery.
- Remove the ground connection from the ground terminal.
- Loosen the nut.
- Remove the wiring harness from the engine control module.
- Disconnect the 2 wiring harness.
- Remove the ground cable from the ECM.
- Remove the bolt.
- Remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After installing a new ECM in a 2009 Saturn Astra, the factory procedure calls for a specific reprogramming step to load the correct calibration and special equipment data. This process typically involves connecting a diagnostic tool to the vehicle’s OBD port and uploading the appropriate software version. Flagship One units arrive already VIN‑programmed, so the required reprogramming is completed before the part reaches you. When you receive a VIN-programmed replacement unit, the post‑install programming step is effectively eliminated, allowing a straightforward swap without additional dealer visits.
Symptoms of a Failing ECM
A failing ECM in the 2009 Saturn Astra may present a variety of observable issues. You might notice the check‑engine light flashing intermittently, especially when the ambient temperature is low, accompanied by codes such as P0116, P0128, or P2097. Engine idle can become unstable, and the vehicle may experience occasional stalling or rough running that disappears after a short warm‑up period. In some cases, the scan tool will lose communication with the control unit, preventing live data readouts. These symptoms often point to internal processor problems, and processor error is a common code that indicates a fault within the module’s core functions. Addressing these signs promptly can prevent further degradation of engine performance.
Module Trouble Codes on the 2009 Saturn Astra
The following diagnostic trouble codes are documented for the 2009 Saturn Astra ECM and can help identify specific failure modes.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0607 | Module performance fault | Full P0607 guide → |
| P061A | Module-internal fault | — |
| P061B | Module-internal fault | — |
| P061C | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #09-06-04-037, dated Oct 8 2009, addresses intermittent MIL illumination and the occurrence of DTCs P0116, P0128, or P2097 during cold ambient conditions. The recommended remedy is to reprogram the ECM to the latest calibration.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-04-037 | Intermittent MIL/Check Engine Light On, DTC P0116, P0128 or P2097 Set During Cold Ambient Tempe | Review the diagnostic information contained in SI. If no cause for the condition can be found, reprogram the ECM with a new service calibration using the… |
Protecting the ECM in Your 2009 Saturn Astra
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Use surge‑protective devices when jump‑starting to limit voltage spikes.
- Promptly diagnose and clear any stored trouble codes.
- Ensure connector seals remain intact to keep moisture out.
- Avoid aftermarket accessories that draw excessive current from the 12 V system.
Frequently Asked Questions
Can a 2009 Saturn Astra run without reprogramming the new ECM?
The vehicle may start, but without the correct calibration the engine can run poorly, and emissions may exceed limits. Reprogramming aligns the unit with factory specifications.
What does DTC P0601 indicate in my Astra?
P0601 signals a processor communication error inside the ECM, often caused by internal failures or poor electrical connections.
Is the MIL flash pattern significant for the Astra?
A flashing MIL typically points to a severe misfire condition, which can be related to ECM faults or sensor issues that need immediate attention.
Do I need a special tool to replace the ECM in the 2009 Astra?
Standard hand tools are sufficient for removal, but a diagnostic scanner is required for post‑install programming unless the unit is pre‑programmed.
Will a refurbished ECM affect my warranty?
A refurbished unit that meets OEM specifications and is VIN‑programmed should not void the vehicle warranty, but you should verify with the dealer.
When the ECM in your 2009 Saturn Astra needs attention, you can choose a professional repair that includes reprogramming or opt for a Flagship One refurbished replacement that arrives VIN‑programmed. Both paths restore engine control, but the pre‑programmed unit reduces shop time and eliminates the need for a separate calibration step, giving you a quicker return to the road.
Flagship One stocks a refurbished, VIN-programmed ECM for the 2009 Saturn Astra with a lifetime warranty, free shipping and no core charge. The full Saturn Astra module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Saturn Astra’s engine control module is vital for reliable performance. Whether you pursue a repair or a Flagship One refurbished replacement, ensuring proper programming will keep the vehicle running smoothly and within emissions limits.
