2009 Ford F-Series 6.4L: When Your Engine Computer Needs Attention

If your 2009 Ford F-Series 6.4L truck has begun stalling unexpectedly, refusing to start, or illuminating warning lights on the dashboard, the Powertrain Control Module (PCM) may be the culprit. This critical component oversees nearly every aspect of engine and transmission performance, from fuel injection timing to shift scheduling. When it malfunctions, the effects can range from subtle drivability issues to complete immobilization. Understanding how the PCM functions in your specific vehicle, what signs indicate failure, and what replacement entails can help you make informed decisions. This guide explains the role of the PCM in your F-Series, common symptoms of failure, and the steps required to restore proper operation—whether you’re diagnosing the issue or preparing for a repair.

What the PCM Does in a 2009 Ford Truck (F-Series)

The Powertrain Control Module (PCM) in your 2009 Ford F-Series 6.4L diesel serves as the central command unit for both the engine and transmission. It continuously monitors inputs from sensors throughout the vehicle, such as the mass airflow sensor, throttle position sensor, and crankshaft position sensor, to calculate optimal fuel delivery, ignition timing, and transmission shift points. This real-time coordination ensures efficient combustion, smooth gear changes, and compliance with emissions standards. Without a properly functioning PCM, your truck may experience poor fuel economy, rough idling, or even fail to start. The module also interfaces with the replacement engine computers for the F-Series to manage the Passive Anti-Theft System (PATS), which prevents unauthorized engine operation. Given its role in critical systems, a failing PCM can trigger a cascade of warning lights and performance issues, making timely diagnosis and replacement essential for maintaining reliability.

Where the PCM Is Located and What Replacement Involves

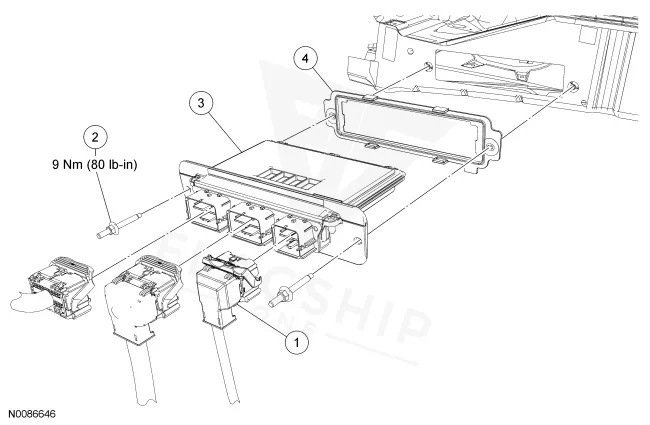

In your 2009 Ford F-Series 6.4L, the Powertrain Control Module (PCM) is located in the engine compartment, typically mounted on the passenger-side fender well or near the firewall. Accessing it requires removing a protective cover or air intake components, depending on the configuration. Replacement involves disconnecting the battery, unplugging the wiring harness connectors, and removing the mounting bolts. The labor time for removing and reinstalling the PCM is typically 0.6 hours, according to factory estimates. After installation, the module must be reconnected, and the battery restored to power. No specialized tools are required beyond basic hand tools, but care must be taken to avoid damaging the connectors or the module itself during the process.

Programming Requirements After Replacement

After replacing the Powertrain Control Module (PCM) in your 2009 Ford F-Series 6.4L, the factory procedure requires reprogramming the Passive Anti-Theft System (PATS) to ensure the vehicle recognizes the new module. This step is critical because the PATS system prevents the engine from starting if it detects an unprogrammed or unauthorized module. Additionally, a relearn procedure, typically taking 0.5 hours, must be performed to synchronize the PCM with the vehicle’s sensors and transmission. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured to your truck’s specifications, eliminating the need for these additional steps. This ensures a seamless installation and immediate functionality, reducing downtime and the risk of programming errors during the repair process.

Symptoms of a Failing PCM

When the Powertrain Control Module (PCM) in your 2009 Ford F-Series 6.4L begins to fail, you may notice a range of symptoms that affect drivability and performance. One of the most common signs is a no-start condition, where the engine cranks but fails to fire, often due to the PCM’s inability to command fuel injection or ignition. Stalling or rough idling may also occur, particularly at low speeds or when the engine is under load, as the module struggles to maintain consistent fuel and air delivery. Warning lights, such as the Malfunction Indicator Lamp (MIL) or Traction Control Lamp, may illuminate on the dashboard, often accompanied by diagnostic trouble codes. For example, a PCM internal control module memory check sum error could indicate corrupted data within the module, leading to erratic behavior. Other symptoms include poor acceleration, transmission shifting issues, or even complete loss of communication with a scan tool, which can make diagnosis challenging. If you experience any of these issues, prompt attention to the PCM can prevent further complications and restore your truck’s reliability.

Factory Service Bulletins Worth Knowing

Ford has issued several service bulletins addressing issues that may involve the Powertrain Control Module (PCM) in the 2009 F-Series 6.4L. TSB 12-11-18 covers vehicles built on or before June 10, 2012, and addresses traction control lamp flashing or illumination, often linked to diagnostic trouble codes C1278, C1280, C1282, and/or C1963. While these codes are related to the traction control system, they may indicate underlying communication issues with the PCM. Additionally, TSBs 13-03-05 and 11-03-27 focus on 4.6L and 5.4L engines, detailing Malfunction Indicator Lamp (MIL) illumination with codes such as P0130, P0150, P2195, or P2197. Though these bulletins target gasoline engines, they highlight the importance of addressing oxygen sensor-related faults, which can sometimes overlap with PCM performance in diesel applications.

Protecting the PCM in Your 2009 Ford Truck (F-Series)

• Maintain a healthy charging system to prevent voltage spikes that can damage the PCM.
• Ensure all electrical grounds and connectors are clean and securely fastened to avoid intermittent faults.
• Avoid jump-starting the vehicle with improper voltage, as this can cause irreversible module damage.
• Address diagnostic trouble codes promptly to prevent cascading failures in related systems.
• Keep the PCM connector seals intact to prevent moisture intrusion, which can lead to corrosion.
• Use a battery maintainer during long periods of inactivity to prevent low-voltage conditions that stress the module.

Frequently Asked Questions

My 2009 Ford F-Series 6.4L cranks but won’t start. Could the PCM be the issue?

Yes, a faulty Powertrain Control Module (PCM) can prevent your engine from starting by failing to command fuel injection or ignition. However, other issues like a dead battery, failed fuel pump, or faulty crankshaft position sensor can also cause this symptom. A diagnostic scan for trouble codes can help isolate the problem.

How do I know if my F-Series PCM needs to be replaced rather than reprogrammed?

If your PCM is generating internal fault codes (e.g., P0601) or fails to communicate with a scan tool, replacement is often necessary. Reprogramming may resolve software-related issues, but hardware failures typically require a new module. A professional diagnosis can determine the best course of action.

What’s involved in the PCM relearn procedure for my 2009 F-Series 6.4L?

The relearn procedure synchronizes the new PCM with your vehicle’s sensors and transmission. It typically takes 0.5 hours and may require a scan tool to reset adaptive values. This step ensures proper engine and transmission performance after replacement.

Can I replace the PCM in my F-Series myself, or should I take it to a shop?

Replacing the PCM is a straightforward process involving basic hand tools, but programming and relearn procedures require specialized equipment. If you’re comfortable with electrical work, you can handle the physical replacement, but a shop may be needed for the programming steps.

Will a new PCM fix my F-Series if the traction control light is flashing?

A flashing traction control light, often accompanied by codes like C1278 or C1280, may indicate a PCM-related issue, but it could also stem from wheel speed sensor faults or wiring problems. A diagnostic scan is necessary to confirm the root cause before replacing the PCM.

If your 2009 Ford F-Series 6.4L is experiencing PCM-related issues, you have options for restoring reliability. A professional repair shop can diagnose and replace the module, handling the necessary programming and relearn procedures. Alternatively, a refurbished or new replacement unit, pre-programmed to your vehicle’s specifications, can simplify the process and reduce downtime. Given the critical role of the PCM in engine and transmission performance, addressing the issue promptly ensures your truck remains dependable for daily use or heavy-duty tasks.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Truck (F-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Truck (F-Series) module lineup covers other engine configurations as well.

Final Thoughts

The Powertrain Control Module (PCM) in your 2009 Ford F-Series 6.4L is a vital component that ensures smooth engine operation and transmission performance. When it fails, symptoms like stalling, no-start conditions, or warning lights can disrupt your routine. Understanding the role of the PCM, recognizing failure signs, and knowing the replacement process empowers you to make informed decisions. Whether you opt for professional repair or a pre-programmed replacement unit, addressing PCM issues promptly will keep your F-Series running reliably for years to come.
