2008 Ford F‑Series Truck PCM and ECM Replacement Guide
In the 2008 Ford F‑Series with the 6.4L engine, the Powertrain Control Module (PCM) and Engine Control Module (ECM) coordinate engine timing, fuel delivery, and emission controls. A failure in either computer can trigger idle irregularities, misfire codes, or a check‑engine light, often requiring removal and reprogramming.
Quick Summary
- Replacement labor is typically half an hour per module according to the book time.
- Both PCM and ECM require a relearn procedure after installation.
- Factory‑programmed Flagship One units arrive with the passive anti‑theft system already set.
- TSB 08‑12‑01 addresses extended idle and specific DTCs for pre‑May‑2008 builds.
When a 2008 Ford F‑Series begins to idle erratically, illuminates the MIL, or throws misfire codes, the vehicle’s computer systems are often the culprits. The Powertrain Control Module and Engine Control Module manage everything from fuel injection to transmission shift timing, and any glitch can produce noticeable drivability problems. This guide explains what each module does, how to access and replace them using the documented labor times, and what programming steps are required to get your truck back to normal operation. By following the outlined procedures, you can avoid unnecessary diagnostic cycles and ensure that a new or refurbished unit integrates smoothly with the factory anti‑theft system.
What the PCM Does in a 2008 Ford Truck (F-Series)
The Powertrain Control Module in the 2008 Ford F‑Series acts as the central brain for both engine and transmission functions, interpreting sensor data to adjust fuel, spark, and shift timing. The Engine Control Module focuses specifically on combustion management, handling injector timing, ignition sequencing, and emission monitoring. Together they ensure the 6.4L V8 runs efficiently and meets emissions standards. A malfunction can cause rough idle, stalling, or loss of power, which is why proper replacement is critical. The vehicle relies on these computers to coordinate with the passive anti‑theft system, so any new unit must match the VIN data. For owners needing a swap, replacement engine computers for the 2008 Ford F‑Series provide a direct fit and retain original calibrations.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM reside within the engine compartment, typically mounted near the firewall and secured with bolts that can be accessed without removing major components. According to the factory labor guide, removing and reinstalling each module takes about 0.5 hours. The process involves disconnecting the electrical harness, unbolting the unit, and positioning the new module in the same location. After the unit is seated, the harness is reconnected and the bolts are tightened to the specified torque. No additional disassembly is required beyond the steps outlined in the book time, making the job relatively straightforward for a trained technician.

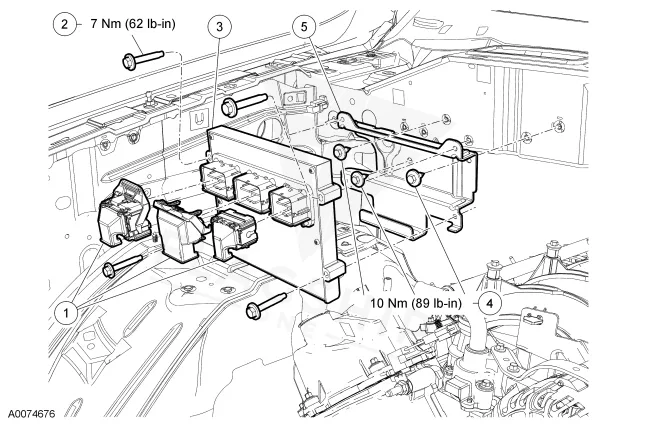

How to Reach the PCM on the 2008 Ford Truck (F-Series)
- Disconnect the PCM electrical connectors (3 required).
- Remove the PCM bolt (4 required).
- Remove the PCM bracket bolts.
- Remove the PCM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the replacement module is installed, the factory procedure calls for a relearn of the PCM and a separate relearn of the ECM, each taking roughly 0.5 hours. Flagship One supplies a a VIN‑programmed replacement unit that arrives with the passive anti‑theft system already configured, so the technician can skip the PATS programming step. The remaining tasks involve following the standard relearn sequence using a compatible scan tool, which restores the vehicle’s adaptive memory and ensures smooth operation.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2008 Ford F‑Series include a rough or stalled idle, loss of power under load, and intermittent illumination of the MIL. Drivers may also notice misfire codes such as P0301 or fuel mixture codes like P0171, especially when the engine is under extended idle conditions. In some cases, the scan tool may lose communication with the control module, indicating a possible loss of internal power or corrupted firmware. When the fault relates to idle performance, the vehicle may trigger the specific scenario described in Powertrain Control Module communication error and require a module replacement.
Factory Service Bulletins Worth Knowing
Service Bulletin 08‑12‑01 applies to 5.4L engines built on or before May 20, 2008, but the same idle‑related symptoms and DTCs (P0301 and P0171) have been observed on the 6.4L version. The bulletin advises extended idle testing and outlines steps to clear the MIL when those codes appear.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-12-01 | 5.4L ENGINE ONLY – BUILT ON OR BEFORE 5/20/2008 – EXTENDED IDLE ONLY – MIL ON WITH DTCS P0301 A | — |
Protecting the PCM in Your 2008 Ford Truck (F-Series)
- Maintain a healthy charging system to avoid voltage drops that can corrupt module memory.
- Ensure all ground straps and connector pins are clean and tightly secured.
- Avoid jump‑starting the vehicle with excessive voltage spikes that may damage the PCM or ECM.
- Address any diagnostic codes promptly to prevent prolonged stress on the control modules.
- Inspect connector seals regularly to keep moisture out of the electronic housing.
- Use OEM‑specified fuses and relays to protect the modules from over‑current conditions.
When the PCM or ECM in your 2008 Ford F‑Series needs attention, you can choose a brand‑new factory replacement or a Flagship One refurbished unit that arrives VIN‑programmed. Both options follow the same half‑hour labor steps, but the refurbished part saves you the additional programming time while meeting the same performance criteria.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Ford Truck (F-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Truck (F-Series) module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module or Engine Control Module on a 2008 Ford F‑Series can restore reliable idle and eliminate check‑engine warnings. Consider a Flagship One refurbished unit for a cost‑effective solution that includes the necessary VIN programming.
