2012 Ford F-150 PCM Replacement: Symptoms, Costs & Programming
The Powertrain Control Module (PCM) in your 2012 Ford F-150 3.7L is the main computer that manages engine timing, fuel delivery, and transmission shifting. Failure often results from internal component degradation, leading to drivability issues, warning lights, and stored trouble codes like P0606.
Quick Summary
- PCM or ECM removal and installation carries a book time of 1.8 hours.
- A relearn procedure adds 0.5 hours after module replacement.
- Factory TSB 12-11-18 addresses traction control codes C1278, C1280, C1282, and C1963 on vehicles built on or before June 10, 2012.
- Module-internal code P0606 is documented for this vehicle and indicates a PCM internal fault.
If your 2012 Ford F-150 3.7L is experiencing drivability issues, warning lights, or trouble codes, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that controls engine and transmission functions, and when it fails, symptoms can range from poor performance to a no-start condition. This guide explains what the PCM does in your F-150, common failure symptoms, relevant factory service bulletins, and what to expect during replacement. You will also learn about the programming steps required after installing a new module and how a pre-programmed unit can simplify the process.
What the PCM Does in a 2012 Ford Truck (F-Series)
The Powertrain Control Module (PCM) in your 2012 Ford F-150 3.7L acts as the brain of the engine and transmission management system. It processes sensor inputs to control fuel injection, ignition timing, idle speed, and shift points. When the PCM fails, it can cause erratic behavior, poor fuel economy, or a complete no-start. For this vehicle, replacement PCMs for the 2012 Ford F-150 are available that match the original specifications. The PCM also communicates with other modules via the CAN bus, so a fault can trigger multiple warning lights. Understanding its role helps you diagnose issues accurately and avoid unnecessary part replacements.
Where the PCM Is Located and What Replacement Involves
The PCM on the 2012 Ford F-150 3.7L is mounted in the engine bay, typically on the driver side near the firewall. Replacement involves disconnecting the battery, removing the air intake duct and battery tray for access, unbolting the module, and disconnecting the wiring harnesses. The book time for PCM or ECM removal and installation is 1.8 hours. After installation, a relearn procedure is required, adding 0.5 hours. This relearn allows the module to adapt to the vehicle’s specific components and driving characteristics.

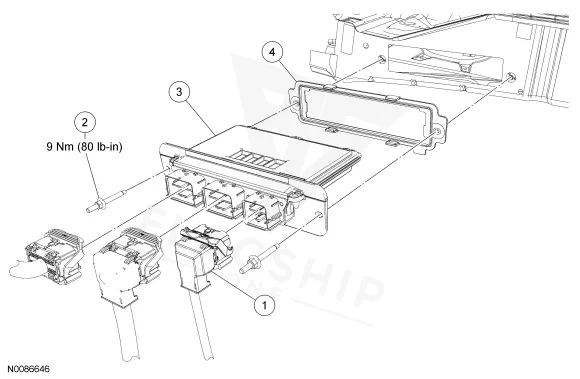

How to Reach the PCM on the 2012 Ford Truck (F-Series)
- Remove the PCM stud bolt (2 required).
- Disconnect the ground cable nut – 9 Nm (80 lb-in).
- Remove the PCM stud bolt (2 required) – 9 Nm (80 lb-in).
- Remove the PCM support bracket.
- Remove the PCM -to-PCM support bracket bolt – 9 Nm (80 lb-in) (2 required).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.8 hr |
Programming Requirements After Replacement
After installing a replacement PCM on the 2012 Ford F-150 3.7L, the factory procedure requires flashing the Electrically Erasable Programmable Read Only Memory (EEPROM) and programming the Vehicle Identification Block (VID block) for the replacement PCM, as outlined in Section 2 of the service manual. This step ensures the module recognizes the vehicle’s configuration. However, a VIN-programmed replacement unit from Flagship One arrives with the correct programming already loaded, so the flash and VID block steps are completed before installation, saving you the 0.5-hour relearn time and specialized equipment.
Symptoms of a Failing PCM
Common symptoms of a failing PCM in the 2012 Ford F-150 3.7L include intermittent stalling, rough idle, hesitation during acceleration, and the check engine light illuminating. You may also experience transmission shifting problems or a no-start condition where the engine cranks but does not fire. A scan tool may show communication errors with the module. One specific trouble code to watch for is internal controller fault P0606, which indicates an internal PCM failure. Other symptoms can include the traction control light flashing or staying on, especially if the vehicle was built on or before June 10, 2012.
Module Trouble Codes on the 2012 Ford Truck (F-Series)
The following module-internal trouble code is documented for the 2012 Ford F-150 3.7L PCM. This code points to a fault within the module itself rather than an external sensor or circuit issue.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Factory Service Bulletin TSB 12-11-18 applies to 2012 Ford F-150 vehicles built on or before June 10, 2012. It addresses diagnostic trouble codes C1278, C1280, C1282, and/or C1963, which are associated with the traction control system. Symptoms include the traction control lamp flashing or remaining illuminated. The bulletin provides updated calibration software for the PCM to correct these conditions. If your vehicle exhibits these codes and symptoms, the PCM may require reprogramming or replacement per the bulletin instructions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 12-11-18 | BUILT ON OR BEFORE 6/10/2012 – DTCS C1278, C1280, C1282 AND/OR C1963 – TRACTION CONTROL LAMP FL | — |
Protecting the PCM in Your 2012 Ford Truck (F-Series)
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep battery terminals and ground connections clean and tight to ensure stable voltage.
- Avoid jump-starting with a running vehicle; use a quality battery charger instead.
- Address any trouble codes promptly to prevent further module stress.
- Inspect PCM connector seals for damage or moisture intrusion, especially after engine bay cleaning.
When your 2012 Ford F-150 3.7L needs a new PCM, you have two main options: have a dealer or shop install a blank module and perform the factory programming, or choose a refurbished unit that arrives pre-programmed with your VIN. The latter eliminates the need for the flash and VID block steps, reducing downtime and complexity. Flagship One offers such units specifically for your F-150.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Ford Truck (F-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Truck (F-Series) module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2012 Ford F-150 3.7L is a critical component that controls engine and transmission operation. Recognizing symptoms like code P0606 or traction control warnings can help you address issues early. Whether you opt for a dealer-installed module or a pre-programmed replacement, understanding the process ensures a smoother repair. Flagship One provides VIN-programmed units that simplify the replacement.
