2007 Saturn Aura Engine Control Module Replacement
The Engine Control Module in the 2007 Saturn Aura manages fuel delivery, ignition timing, and emissions. Failure can trigger codes P0601–P1621, leading to poor performance or engine shutdown.
Quick Summary
- ECM replacement takes 1.4 hours; relearn takes 0.5 hours.
- Must capture and restore data to prevent loss of calibration.
- Special equipment and correct calibration are required for reprogramming.
- After replacement, the ECM must be reprogrammed to the correct VIN.
- The module controls critical functions like ignition and emissions.
If you own a 2007 Saturn Aura and notice a rough idle, misfire, or a warning light after a recent engine control module (ECM) swap, this guide explains the process. The ECM is the brain of your vehicle, coordinating fuel, ignition, and emissions. Understanding how to replace and program it correctly can save time and avoid costly errors. By following these steps, you’ll learn where the module sits, how long the job typically takes, and what precautions protect the new unit. The information is tailored to the Aura’s specific architecture, so you’ll know exactly what to expect when you work on your own car.
What the PCM Does in a 2007 Saturn Aura
The Engine Control Module in a 2007 Saturn Aura is the central computer that orchestrates fuel injection, spark timing, and emission controls. It receives input from sensors such as the crankshaft position and throttle position, processes this data, and sends commands to actuators. A healthy ECM ensures smooth acceleration, efficient fuel use, and compliance with emissions standards. When it malfunctions, you may see codes like P0601 or P1621 and experience stalling, loss of power, or a failure to start. Engine Control Module for the 2007 Saturn Aura is the part that performs these functions, and its reliability is essential for everyday driving.
Where the PCM Is Located and What Replacement Involves
The ECM is located under the passenger side dashboard, near the steering column. To replace it, you must first disconnect the battery, then remove the dashboard panel to access the module. The job requires 1.4 hours of labor to remove and reinstall the unit. After removal, the replacement unit is installed and secured before any reprogramming steps. The process involves carefully routing the harnesses and ensuring all connections are seated correctly.

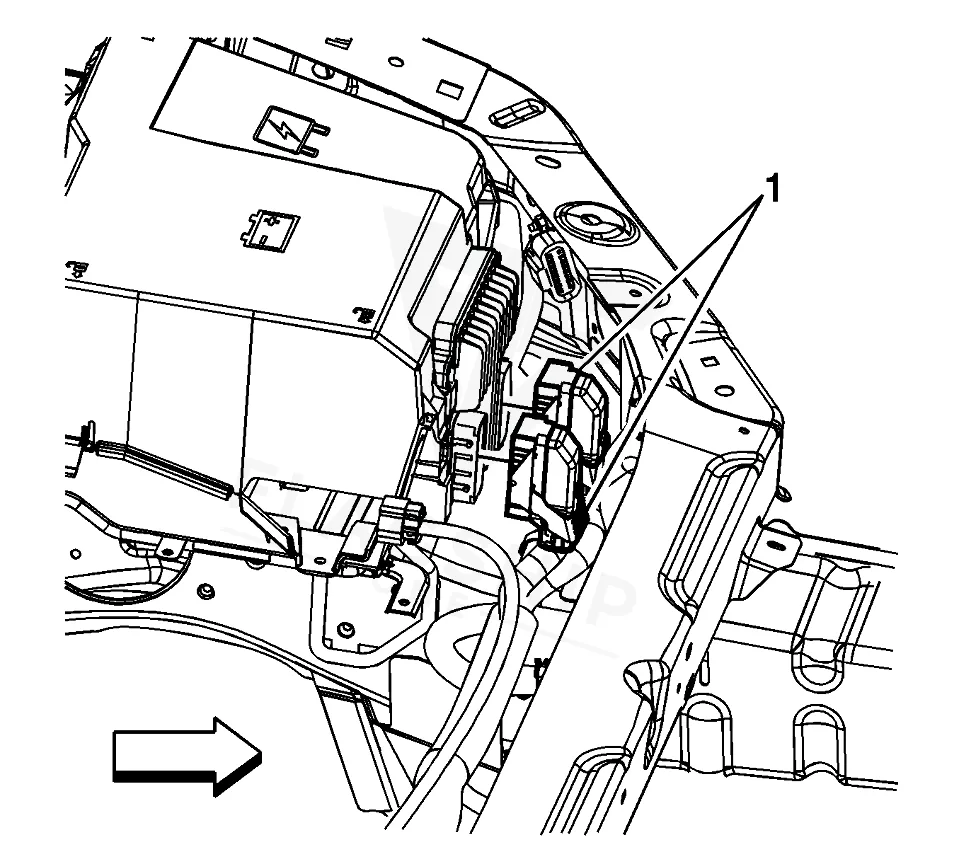

How to Reach the PCM on the 2007 Saturn Aura
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Slide the lever locks to the up position in order to release the engine wiring harness.
- Disconnect the engine wiring harness electrical connectors from the engine control.
- Release the retaining tab located in the battery tray using a small screwdriver or.
- Remove the ECM by lifting upward after releasing the tab.
- Slide the ECM into the bracket on the battery tray.
- Slide the lever locks to the down position in order to engage the engine wiring harness.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is physically installed, the factory requires the scan tool to capture data, then the same data must be restored to the new unit. Flagship One units arrive VIN‑programmed, so this data capture and restoration step is already complete. The replacement unit is ready for use immediately after installation, eliminating the need for additional programming steps. VIN‑programmed replacement unit ensures the correct calibration is loaded for your Aura.
Symptoms of a Failing PCM
Common signs that the ECM has failed include a check engine light, engine misfire, or the vehicle not starting. If you see a code such as Powertrain Control Module Failure it indicates a communication issue between the module and the vehicle’s network. Other symptoms may involve irregular idle, sudden loss of power, or erratic accelerator response. These issues often stem from a damaged ECM or poor connections.
Module Trouble Codes on the 2007 Saturn Aura
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
Factory Service Bulletins Worth Knowing
Factory Service Bulletin #PI0777 addressed oil life monitor calibration for the ECM, while #06‑07‑30‑022 dealt with transmission shift issues that require TCM reprogramming. Bulletin #PIP4248 documented DTCs U0111 and U1897 that can appear after an ECM reflash.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Oil Life Monitor Calibration Update – Reprogram Engine Control Module – (Aug 3, 2012) | — |
| 06-07-30-022 | MH2, 6T70 Automatic Transmission Shift Flare, Bump or Harshness (Reprogram Transmission Control | — |
| — | DTCs U0111 And U1897 After ECM Reflash – (Oct 17, 2007) | — |
Protecting the PCM in Your 2007 Saturn Aura
- Keep the battery’s charging system in good condition to avoid voltage spikes.
- Ensure all electrical connectors are clean and securely seated.
- Avoid jump‑starting the vehicle without a proper relay or fuse protection.
- Address any diagnostic codes promptly to prevent further damage.
- Maintain proper connector seals to keep moisture out.
- Verify that the ECM is correctly seated before closing the dashboard panel.
Frequently Asked Questions
Will I need a special scan tool to program the new ECM in my 2007 Saturn Aura?
Yes, a scan tool that can capture and restore ECM data is required. Flagship One units are pre‑programmed, so the tool is only needed for data capture before removal.
How long does the ECM replacement take on a 2007 Saturn Aura?
The labor book time for removal and reinstall is 1.4 hours. An additional 0.5 hours may be needed for relearn procedures if not handled by the pre‑programmed unit.
Can I use a generic ECM replacement instead of a Flagship One unit?
A generic unit would need to be programmed to your vehicle’s VIN and calibrated, which adds steps. Flagship One’s VIN‑programmed units eliminate that requirement.
What should I do if the check engine light stays on after the replacement?
Run a diagnostic scan to see if any new codes appear. If the light remains, verify that all connections are secure and that the ECM was properly seated.
Is there any risk of damaging the ECM during removal?
The module is sensitive to electrostatic discharge; avoid touching connector pins and handle it with insulated gloves. Follow the factory caution to prevent damage.
When a 2007 Saturn Aura’s ECM needs replacement, you can choose between a refurbished unit or a new Flagship One replacement. Both options are compatible with the Aura’s wiring and come with the same VIN‑specific calibration. Consider the benefits of a new unit, such as longer warranty coverage and no risk of wear from previous use.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Saturn Aura with a lifetime warranty, free shipping and no core charge. The full Saturn Aura module lineup covers other engine configurations as well.
Final Thoughts
For your 2007 Saturn Aura, replacing the Engine Control Module with a Flagship One unit ensures proper calibration and eliminates post‑install programming steps. Protect your vehicle’s performance by choosing a reliable replacement today.
