2007 GMC Canyon PCM Replacement Guide
In a 2007 GMC Canyon with the 2.9L engine, the powertrain control module (PCM) manages engine timing, fuel delivery, and transmission shift logic. Failure of this computer can cause loss of power, erratic shifting, or complete no‑start conditions, and often triggers internal diagnostic codes.
Quick Summary
- PCM removal typically requires under one hour of labor per task.
- Capture and restore PCM data before removal to avoid losing calibration.
- After installation, a crankshaft position variation learn must be performed.
- Flagship One units arrive VIN‑programmed, eliminating the re‑learn steps.
If your 2007 GMC Canyon is showing intermittent shifting, stalling, or a collection of P‑codes, the powertrain control module may be the culprit. This guide explains what the PCM does in your vehicle, the steps required to replace it safely, and how Flagship One’s pre‑programmed units simplify the process. By the end, you’ll understand the key cautions, labor expectations, and post‑install procedures so you can make an informed decision about repair or replacement.
What the PCM Does in a 2007 GMC Canyon
The powertrain control module in the 2007 GMC Canyon orchestrates engine and transmission functions, translating sensor inputs into fuel, spark, and shift commands. It stores calibration data that the vehicle relies on for smooth operation, making its integrity critical for performance and emissions. When the PCM fails, the engine may run rough, stall, or refuse to start, and the transmission can exhibit erratic behavior. Proper handling is essential, and a replacement should be paired with a replacement powertrain control module for the 2007 GMC Canyon to maintain system harmony.

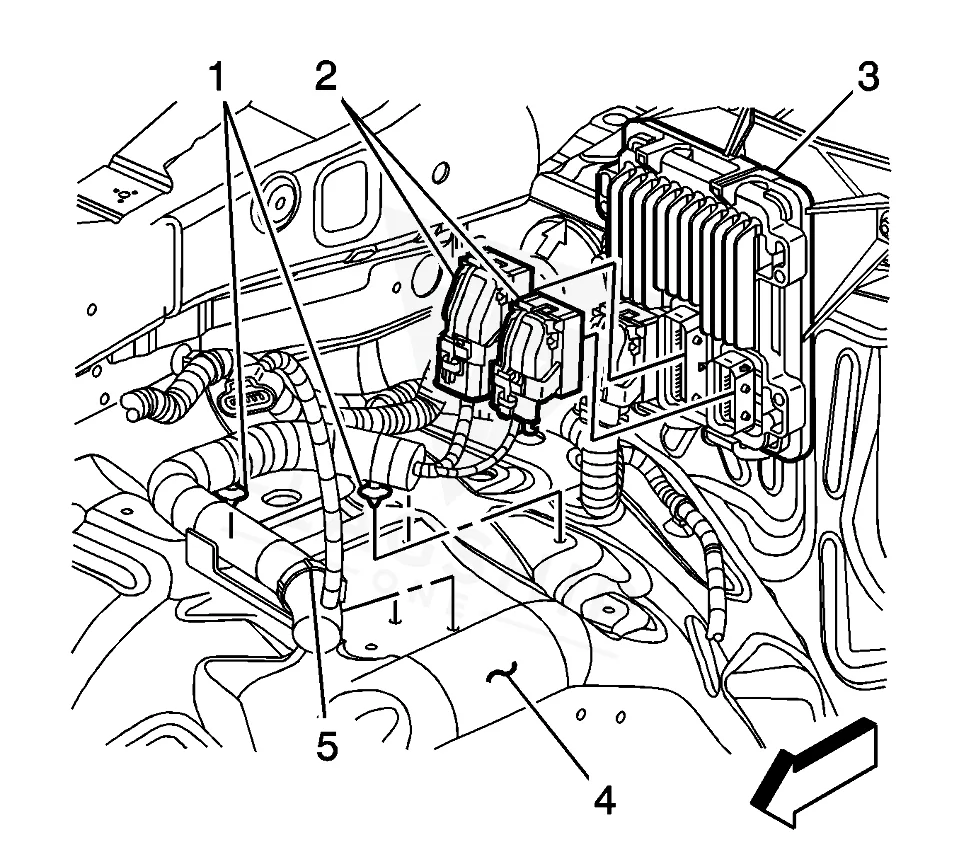

Where the PCM Is Located and What Replacement Involves
The PCM is mounted in a bracket that must be disengaged by removing its mounting tabs before the unit can be withdrawn. Labor estimates indicate 0.8 hours for removal and another 0.8 hours for reinstalling the module. After the PCM is out, the bracket can be re‑secured, and the electrical connector reattached, taking care not to touch pins or soldered components to avoid static discharge. The process typically follows the factory cautions for ESD protection and connector handling.
How to Reach the PCM on the 2007 GMC Canyon
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Disconnect the PCM harness connectors from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
Once the new PCM is installed, the factory procedure calls for a relearn of the crankshaft position variation and, if required, a full PCM reprogramming via the Service Programming System. Flagship One supplies a a VIN‑programmed replacement unit that arrives already calibrated for your vehicle, so those reprogramming steps are already completed, leaving only the relearn to verify proper operation.
Symptoms of a Failing PCM
Common signs of a failing PCM in a 2007 GMC Canyon include engine no‑start, rough idle, unexpected stall, and transmission shift anomalies. Diagnostic scans often reveal internal codes such as Powertrain Control Module Processor Fault which directly point to PCM issues. Additionally, you may notice loss of communication with the scan tool or erratic throttle response.
Module Trouble Codes on the 2007 GMC Canyon
The following internal trouble codes are documented for the 2007 GMC Canyon and may appear when the PCM is malfunctioning:
Factory Service Bulletins Worth Knowing
Service bulletin PIP4503, dated October 10, 2008, addresses erratic torque converter clutch operation at cruise speeds and recommends PCM reprogramming to correct the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Erratic TCC Operation At Cruise Speeds – Reprogram PCM – (Oct 10, 2008) | — |
Protecting the PCM in Your 2007 GMC Canyon
- Maintain a healthy charging system to avoid voltage spikes that can damage the PCM.
- Ensure all ground connections are clean and secure.
- Avoid jump‑starting the vehicle unless necessary, and use a surge protector if you do.
- Address any diagnostic codes promptly before they trigger PCM failure.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2007 GMC Canyon?
Factory labor guides list 0.8 hours for both removal and reinstalling the PCM, plus additional time for relearn procedures.
Do I need to capture data before removing the PCM?
Yes, the factory cautions advise using a scan tool to capture PCM data prior to removal so it can be restored to the new unit.
Is a post‑install crankshaft position variation learn required?
The procedure is required after PCM replacement to ensure the engine timing aligns with the new module’s calibration.
When the PCM in your 2007 GMC Canyon shows signs of failure, you can choose a factory‑refurbished unit or a Flagship One replacement. Both options restore engine and transmission control, but Flagship One’s VIN‑programmed units arrive ready for immediate installation, reducing the need for on‑site reprogramming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 GMC Canyon with a lifetime warranty, free shipping and no core charge. The full GMC Canyon module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2007 GMC Canyon can resolve a range of performance issues. Consider a Flagship One unit for a pre‑programmed solution that streamlines the repair process and gets you back on the road faster.
