2006 Cadillac XLR-V ECM Replacement and Internal Fault Guide
The Engine Control Module (ECM) in the 2006 Cadillac XLR-V manages fuel delivery, ignition timing, and emissions systems. Internal faults may cause drivability issues, including stalling or failure to start, often triggered by voltage irregularities or corrupted calibration data.
Quick Summary
- ECM replacement typically requires 1.4 hours of labor plus a 0.5-hour relearn procedure.
- Factory procedure mandates capturing ECM data before removal to restore to a new module.
- Common symptoms include no-start conditions, stalling, and internal control module trouble codes.
- Aftermarket electrical additions should connect directly to the battery to avoid ECM damage.
- Flagship One units arrive pre-programmed to the vehicle’s VIN, eliminating additional setup steps.
If your 2006 Cadillac XLR-V hesitates, stalls, or refuses to start, the Engine Control Module (ECM) may be at fault. This critical component governs engine performance, and its failure can disrupt fuel delivery, ignition timing, and emissions controls. Replacing it involves more than swapping hardware—factory procedures require data preservation and precise reprogramming. Understanding the process helps you anticipate labor time, avoid common pitfalls, and restore your vehicle’s reliability without unnecessary delays.
What the PCM Does in a 2006 Cadillac XLR-V
The Engine Control Module in the 2006 Cadillac XLR-V acts as the brain of the engine, interpreting sensor data to optimize fuel injection, spark timing, and emissions systems. A malfunctioning ECM may cause erratic idling, reduced power, or complete failure to start. When replacement becomes necessary, replacement engine computers for the Cadillac XLR-V are designed to integrate seamlessly with the vehicle’s existing systems, but proper installation and programming are critical to avoid further issues.
Where the PCM Is Located and What Replacement Involves
The ECM in the 2006 Cadillac XLR-V is typically mounted near the engine bay, though exact placement may vary. Replacement involves disconnecting the battery, removing the module’s electrical connector, and unbolting the unit. Labor guides estimate 1.4 hours for removal and reinstallation, followed by a 0.5-hour relearn procedure. Before removal, the factory advises capturing the ECM’s data to transfer to the new unit, ensuring retained vehicle-specific settings.

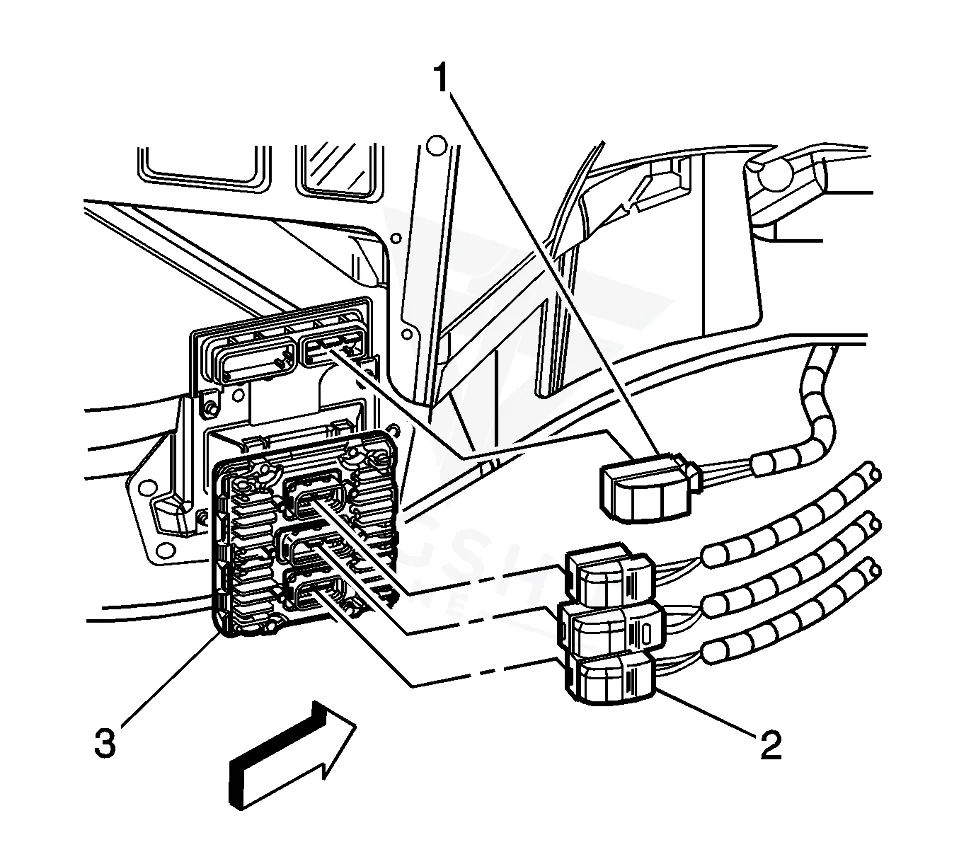

How to Reach the PCM on the 2006 Cadillac XLR-V
- Remove any debris from around the control module connector.
- Remove the right front wheelhouse filler panel.
- Disconnect the ECM electrical harness connectors.
- Remove the fasteners from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in the 2006 Cadillac XLR-V, the factory requires a data transfer from the old module to the replacement. This step ensures retained vehicle settings and calibration. Specialized equipment and the correct software are necessary for reprogramming. However, a VIN-programmed replacement unit from Flagship One arrives ready for installation, eliminating the need for additional programming steps and reducing downtime.
Symptoms of a Failing PCM
A failing ECM in the 2006 Cadillac XLR-V may trigger symptoms like intermittent stalling, rough idling, or a no-start condition. Scan tools often reveal internal control module faults, such as control module read-only memory error, indicating corrupted data or hardware failure. Other signs include poor throttle response, misfires, or transmission shifting irregularities, as the ECM influences multiple powertrain systems.
Module Trouble Codes on the 2006 Cadillac XLR-V
The 2006 Cadillac XLR-V may log several module-internal trouble codes when the ECM experiences faults. These codes often point to internal memory errors or communication failures within the control system.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2006 Cadillac XLR-V address ECM-related concerns. Bulletin #06516 outlines a system software upgrade to improve OBD performance, while #05-06-04-060 covers shared trouble codes P0601, P0602, P0603, P0604, and P1621 across multiple control modules. Bulletin #08128 extends reprogramming coverage under the emissions warranty for up to 8 years or 80,000 miles.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | System Software Upgrade-OBD System Improvements (Reprogram Engine Control Module (ECM)) – (Mar | — |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| — | Service Update for Inventory and Customer Vehicles-OBD System Improvements-Reprogram Engine Con | — |
Protecting the PCM in Your 2006 Cadillac XLR-V
- Maintain a stable charging system to prevent voltage spikes that may damage the ECM.
- Ensure clean, corrosion-free electrical connectors and grounds to avoid signal interference.
- Avoid jump-starting with improper voltage, which can overload sensitive electronics.
- Address trouble codes promptly to prevent cascading failures in related systems.
- Keep the ECM connector sealed to protect against moisture and contaminants.
- Use a professional-grade scan tool to monitor ECM health during routine maintenance.
Frequently Asked Questions
Why does my 2006 Cadillac XLR-V stall intermittently with no trouble codes?
Intermittent stalling without codes may indicate an early-stage ECM failure or poor electrical connections. The module’s internal circuits can degrade gradually, causing sporadic disruptions before triggering a fault code. Inspecting the ECM connector and grounds is a logical first step.
Can I replace the ECM in my 2006 Cadillac XLR-V myself?
While physically replacing the ECM is straightforward, the factory requires data capture and reprogramming afterward. Without the proper tools and software, the vehicle may not start or run correctly. Professional installation ensures all steps are followed accurately.
How do I know if my 2006 Cadillac XLR-V ECM needs reprogramming or replacement?
Persistent internal control module codes (e.g., P0601-P1621) often suggest hardware failure rather than a software issue. If reprogramming does not resolve the codes, replacement may be necessary. A diagnostic scan can help determine the root cause.
When the ECM in your 2006 Cadillac XLR-V fails, you have options. A repair may address minor issues, but a replacement ensures long-term reliability. Flagship One provides pre-programmed units designed for direct installation, reducing labor time and eliminating the need for additional setup. Consider your vehicle’s age and usage when deciding between repair and replacement.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Cadillac XLR-V with a lifetime warranty, free shipping and no core charge. The full Cadillac XLR-V module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Cadillac XLR-V relies on its ECM for smooth operation, and addressing faults promptly can prevent further complications. Whether opting for repair or replacement, understanding the process helps you make informed decisions. With the right approach, your vehicle can regain its performance and dependability.
