1996 Cadillac Fleetwood PCM Replacement and Reprogramming Guide

If your 1996 Cadillac Fleetwood has set a P0601 trouble code or is experiencing drivability problems that resist conventional diagnosis, the Powertrain Control Module may be the culprit. This guide explains where the module lives, what the factory cautions demand during handling, and why post-replacement programming is critical for proper operation. Understanding these requirements helps you decide whether to attempt replacement yourself or trust the work to a qualified technician. The goal is to give you enough context to ask the right questions and recognize when a replacement unit is properly equipped for your vehicle.

What the PCM Does in a 1996 Cadillac Fleetwood

The Powertrain Control Module on the 1996 Fleetwood serves as the central computer managing engine timing, fuel delivery, transmission shift points, and emissions controls. It receives input from dozens of sensors and adjusts actuator outputs in real time to maintain performance and efficiency. When the module detects a fault in its own internal memory circuits, it typically defaults to reduced-power operation to prevent further damage. This computer relies on consistent voltage, clean grounds, and intact data pathways to function correctly. For owners seeking replacement engine computers for the Fleetwood, understanding the module’s role clarifies why proper replacement and programming procedures matter for reliable operation.

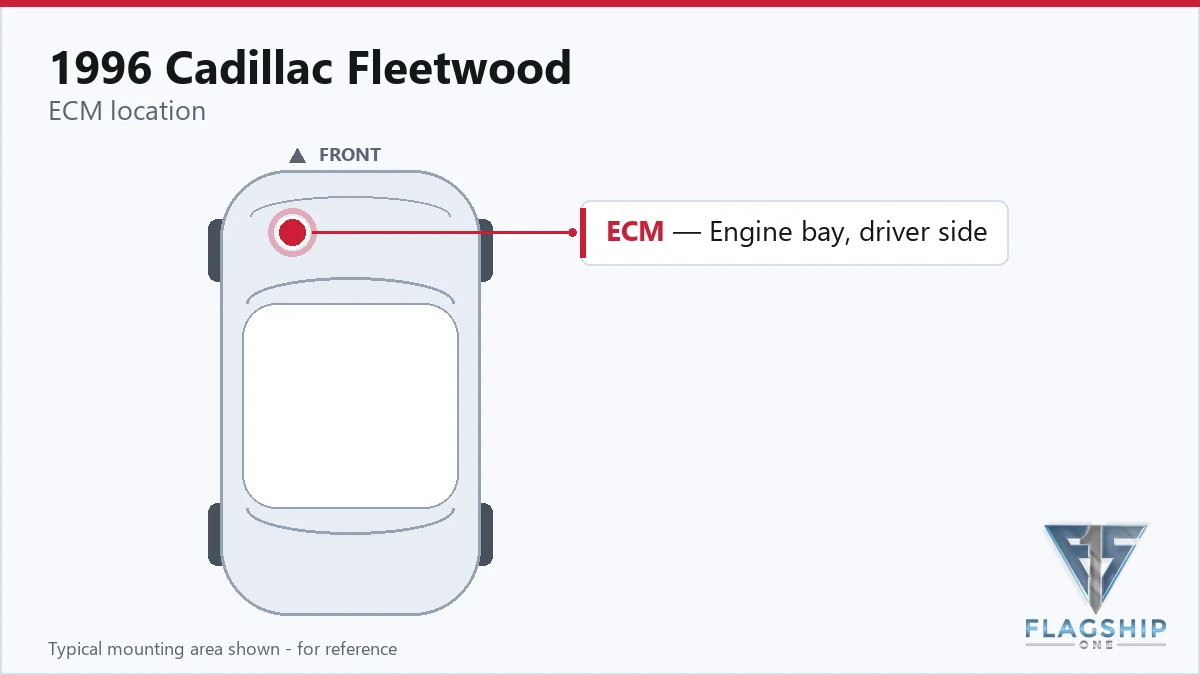

Where the PCM Is Located and What Replacement Involves

The factory removal procedure directs technicians to access the control module near the air cleaner assembly, which provides reasonable reach to the unit without major disassembly. Standard book time for Powertrain Control Module removal and reinstallation is 1.1 hours, while the accompanying relearn procedure adds 0.5 hours. For Engine Control Module specifically, the book time is 0.7 hours with an additional 0.5-hour relearn operation. After the module is secured and connectors are locked, the relearn procedure allows the new unit to adapt to your vehicle’s specific sensors and calibration targets. Using factory torque specifications and connector-seal integrity during reassembly helps prevent future moisture intrusion and intermittent faults.

Programming Requirements After Replacement

After installing a replacement control module on your 1996 Fleetwood, the factory procedure typically requires a relearn process so the module can calibrate itself to your vehicle’s unique sensor readings and drivetrain characteristics. The relearn operation accounts for the additional book time listed in factory labor operations. Units from Flagship One arrive with your specific VIN already programmed into the module, which means those post-install programming steps are completed before the part reaches your shop. This pre-programming allows the module to communicate immediately with your vehicle’s sensors and avoids the delay of dealer-side or third-party programming sessions.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

Control module failure on the 1996 Fleetwood often presents as a no-start condition, intermittent stalling, or persistent misfire codes that do not correlate with ignition or fuel-system problems. You may notice the check engine light illuminated with multiple unrelated codes, or the scan tool may fail to establish communication with the module entirely. Transmission shifting may become harsh or delayed, and the engine may enter a reduced-power limp mode without warning. The memory checksum error code specifically indicates the module detected internal memory corruption and may continue driving with compromised calibration data.

Module Trouble Codes on the 1996 Cadillac Fleetwood

The 1996 Cadillac Fleetwood covered in this guide has documented module-internal trouble codes that signal problems originating within the control module itself rather than external sensors or wiring.

Factory Service Bulletins Worth Knowing

Service bulletin 99-06-04-053 from October 1999 addresses PCM reprogramming procedures for this model year range. Service bulletin 83-81-32 from September 1998 covers new PCM connector service kits available for repair. These bulletins indicate that GM recognized specific replacement and service needs for the control module on these vehicles, and that connector hardware updates were deemed necessary during the vehicle’s service life.

Protecting the PCM in Your 1996 Cadillac Fleetwood

• Maintain healthy charging system voltage to prevent low-power operation that stresses module electronics.
• Keep battery grounds clean and tight at both the battery and body/chassis attachment points.
• Always disconnect the negative battery cable before working near the module or its wiring harness.
• Avoid jump-starting with high-voltage booster cables that can exceed the module’s voltage tolerance.
• Address any stored trouble codes promptly before they cascade into broader system failures.
• Ensure all module connectors are fully seated and weather seals are intact after any service work.

Frequently Asked Questions

Will any used PCM work in my 1996 Cadillac Fleetwood?

No, the replacement module must match your vehicle’s specific VIN and calibration requirements. A mismatched unit may not communicate with your sensors or could trigger additional fault codes.

Why does my Fleetwood still run poorly after replacing the PCM?

If the relearn procedure was not performed after replacement, the module may not have adapted to your vehicle’s specific sensor calibration data. Incomplete connector seating or underlying wiring damage can also cause persistent symptoms.

Can aftermarket accessories damage the PCM on my 1996 Fleetwood?

Yes, accessories wired into non-battery circuits may introduce voltage spikes or electrical noise that corrupts the module’s memory. The factory caution specifically recommends connecting add-on equipment directly to battery terminals to minimize this risk.

When internal module failure occurs on your 1996 Fleetwood, you face two practical paths: repair the existing unit or replace it with a remanufactured or refurbished control module. Repair may involve specialized soldering and chip-level work that not all shops can perform reliably. A replacement unit that arrives pre-programmed with your VIN eliminates one variable and gets your vehicle back on the road faster. Evaluate whether the shop performing the replacement has the equipment to complete the post-install relearn procedure properly, as that step is essential for optimal driveability.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Cadillac Fleetwood with a lifetime warranty, free shipping and no core charge. The full Cadillac Fleetwood module lineup covers other engine configurations as well.

Final Thoughts

The 1996 Cadillac Fleetwood’s Powertrain Control Module is a critical component that coordinates engine and transmission operation. Proper handling during replacement, attention to factory cautions regarding static discharge and electrical connections, and completing the post-install relearn procedure all contribute to a successful repair. If you are considering a replacement unit, look for one that arrives ready to install without requiring additional programming appointments.
