2009 Cadillac XLR‑V Engine Control Module Replacement Guide
In the 2009 Cadillac XLR‑V the Engine Control Module (ECM) manages fuel delivery, ignition timing and emission controls. Failure typically stems from corrupted software, voltage spikes, or damaged connectors, leading to loss of engine start, stalling or diagnostic trouble codes.
Quick Summary
- ECM removal and installation generally requires 1.4 hours of labor.
- A 0.5‑hour relearn procedure follows a new ECM install.
- Capture ECM data with a scan tool before removal.
- Special equipment and the correct calibration are needed to reprogram the ECM.
When a 2009 Cadillac XLR‑V begins to exhibit no‑start conditions, erratic shifting or persistent diagnostic trouble codes, the Engine Control Module often becomes a focal point. This guide walks you through what the ECM does, where it lives, how to replace it, and what programming steps are required to return your vehicle to normal operation. By the end, you will understand the labor involved, the precautions needed to protect the vehicle’s electrical system, and how a Flagship One replacement can simplify the post‑install process.
What the PCM Does in a 2009 Cadillac XLR-V
The Engine Control Module in the 2009 Cadillac XLR‑V serves as the central brain for powertrain management, interpreting sensor inputs to control fuel injection, ignition timing, and emissions systems. It also communicates with the Transmission Control Module to coordinate gear shifts. Because the ECM directly influences engine start, idle stability and emissions compliance, any corruption in its software or loss of power can cause a cascade of drivability issues. Maintaining a reliable power source and clean connector contacts is essential for its longevity. For owners seeking a swap, replacement engine modules for the XLR‑V are available that match the original specifications and programming requirements.
Where the PCM Is Located and What Replacement Involves
The ECM is mounted within the engine compartment, attached to the vehicle’s wiring harness. Removal typically follows the factory book time of 1.4 hours, which includes disconnecting the 12 V battery, releasing the harness connectors and unbolting the module. Installation reverses the steps, ensuring the battery is reconnected only after the module is seated and fastened. The same 1.4‑hour estimate applies to reinstalling a new unit, and a subsequent 0.5‑hour relearn operation is required to synchronize the ECM with the transmission after the swap.
How to Reach the PCM on the 2009 Cadillac XLR-V

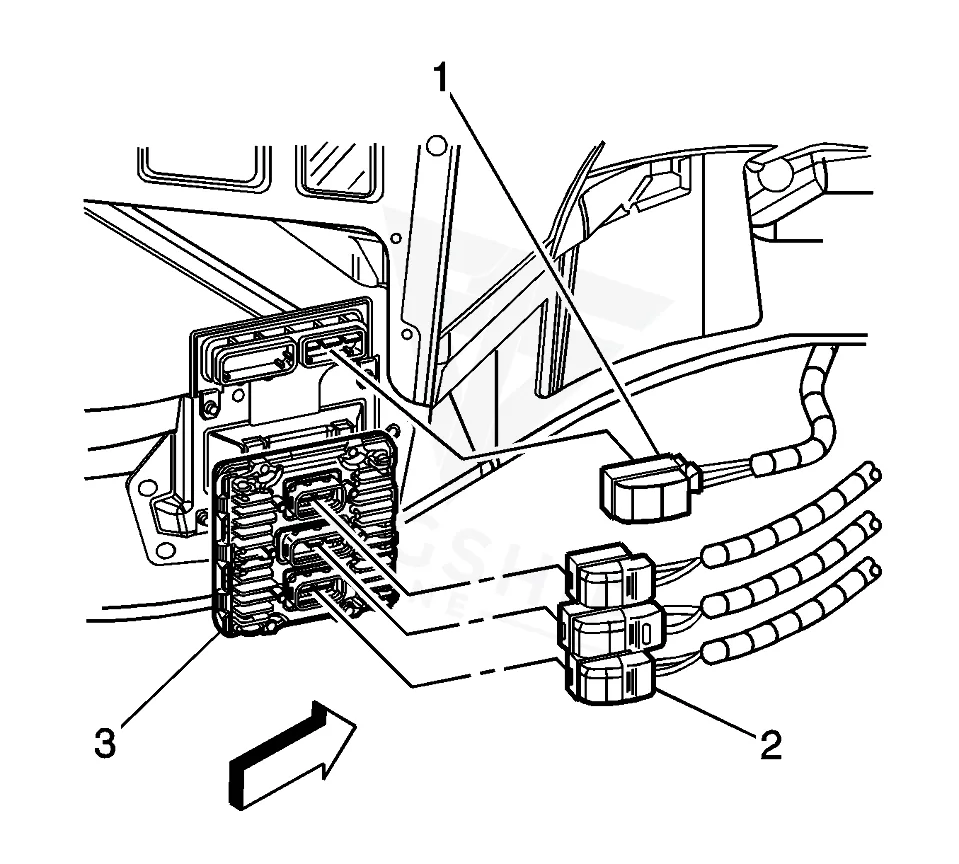

- Remove any debris from around the control module connector.
- Remove the right front wheelhouse filler panel.
- Disconnect the ECM electrical harness connectors.
- Remove the fasteners from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory service procedures dictate that, after installing a new ECM, the technician must use a scan tool to capture the original module’s data before removal, then apply the correct program and calibration to the replacement. Special equipment is required to write the vehicle‑specific software to the ECM. With Flagship One, the unit arrives a VIN-programmed replacement unit so those programming steps are already completed, allowing you to skip the calibration stage and proceed directly to the relearn.
Symptoms of a Failing PCM
Typical signs of a failing ECM in the 2009 Cadillac XLR‑V include a complete lack of engine crank, intermittent stalling at idle, and loss of power‑train communication that can trigger a no‑display of the PRNDL selector. Scan tools often reveal stored codes such as processor communication error, indicating internal processor failures. Other observed codes may include P0602, P0603, P0604, P062F and P1621, each pointing to various internal communication or processing faults within the module.
Module Trouble Codes on the 2009 Cadillac XLR-V
The following internal trouble codes have been documented for the 2009 Cadillac XLR‑V ECM:
Factory Service Bulletins Worth Knowing
Service bulletin #08‑07‑30‑020 (Mar 3 2010) addresses MIL illumination with DTCs P1825, P182E or P1915, potential no‑crank, and missing PRNDL display. Bulletin #PIP4653D (Jun 20 2012) covers DTCs P0601, P0603, P0604, P062F and P1621 stored in the TCM, offering diagnostic guidance for related failures.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-07-30-020 | Diagnostic Information for MIL Illuminated with DTC P1825, P182E or P1915 Found Current or as H | — |
| — | DTC’s P0601 P0603 P0604 P062F Or P1621 (Stored in the TCM) – (Jun 20, 2012) | — |
Protecting the PCM in Your 2009 Cadillac XLR-V
- Maintain the vehicle’s charging system within specification to avoid voltage spikes.
- Inspect and clean all ECM connector pins and ground straps regularly.
- Use surge‑protected jump‑starts to prevent transient over‑voltage.
- Address any diagnostic codes promptly before they cascade.
- Ensure aftermarket accessories are wired at the 12 V battery with proper grounding.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor is required to replace the ECM in a 2009 Cadillac XLR‑V?
The factory book time lists 1.4 hours for removal and installation, plus an additional 0.5 hours for the relearn procedure.
Do I need special tools to program the new ECM?
Yes, the factory procedure requires a scan tool to capture original data and equipment to load the correct calibration, unless you use a VIN‑programmed replacement.
Can aftermarket add‑on equipment damage the ECM?
Connecting aftermarket devices directly to the vehicle’s wiring without using the 12 V battery power and ground can expose the ECM to voltage irregularities that may cause failure.
What does DTC P0601 indicate for this model?
P0601 signals a processor communication error inside the ECM, often requiring module replacement or reprogramming.
Is a post‑install relearn always necessary?
Yes, after any ECM replacement the vehicle requires a 0.5‑hour relearn to synchronize the module with the transmission control unit.
When the ECM in your 2009 Cadillac XLR‑V needs attention, you can either have a dealer perform a full removal, programming and relearn, or choose a Flagship One refurbished unit that arrives pre‑programmed to the vehicle’s VIN. Both paths restore engine control, but the pre‑programmed option eliminates the need for on‑site calibration, reducing shop time and potential for error.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Cadillac XLR-V with a lifetime warranty, free shipping and no core charge. The full Cadillac XLR-V module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Cadillac XLR‑V relies on a healthy Engine Control Module for reliable performance. Whether you opt for a new factory‑spec unit or a Flagship One replacement, following the proper removal, data capture and relearn steps will help ensure your vehicle returns to smooth operation.
