2005 Toyota RAV4 Engine Control Module Replacement & Programming

When your 2005 Toyota RAV4 exhibits persistent driveability problems, the engine control module may be the root cause. This computer orchestrates critical engine functions, and a malfunction can leave you stranded. Replacing it involves not just swapping hardware but also performing specific programming steps to match the vehicle’s security and calibration data. This guide explains the ECM’s role, its location, the replacement process, and the programming requirements. You’ll learn how to identify symptoms, understand the labor involved, and see how a pre-programmed unit can simplify the job, eliminating the need for a dealership visit or specialized scan tool. Whether you’re a DIY mechanic or a shop owner, understanding the ECM replacement process for the 2005 Toyota RAV4 2.4L can save time and prevent costly mistakes. With the right information, you can restore your RAV4’s performance and reliability.

What the PCM Does in a 2005 Toyota RAV4

The engine control module in the 2005 Toyota RAV4 is the central computer that governs fuel injection, spark advance, and emission controls. It processes inputs from sensors like the mass airflow and oxygen sensors to adjust engine operation in real time. When this module degrades, it can misinterpret sensor data or fail to activate critical outputs, leading to poor performance or a no-start condition. For owners seeking replacement engine computers for the RAV4, understanding the module’s function helps in diagnosing issues. The ECM also communicates with the immobilizer system, so a replacement must be properly programmed to the vehicle’s VIN and security codes. Without correct programming, the engine may crank but not fire, or the vehicle may enter a limp mode. This module is not a simple plug-and-play part; it requires specific initialization steps to work with the RAV4’s existing systems.

Where the PCM Is Located and What Replacement Involves

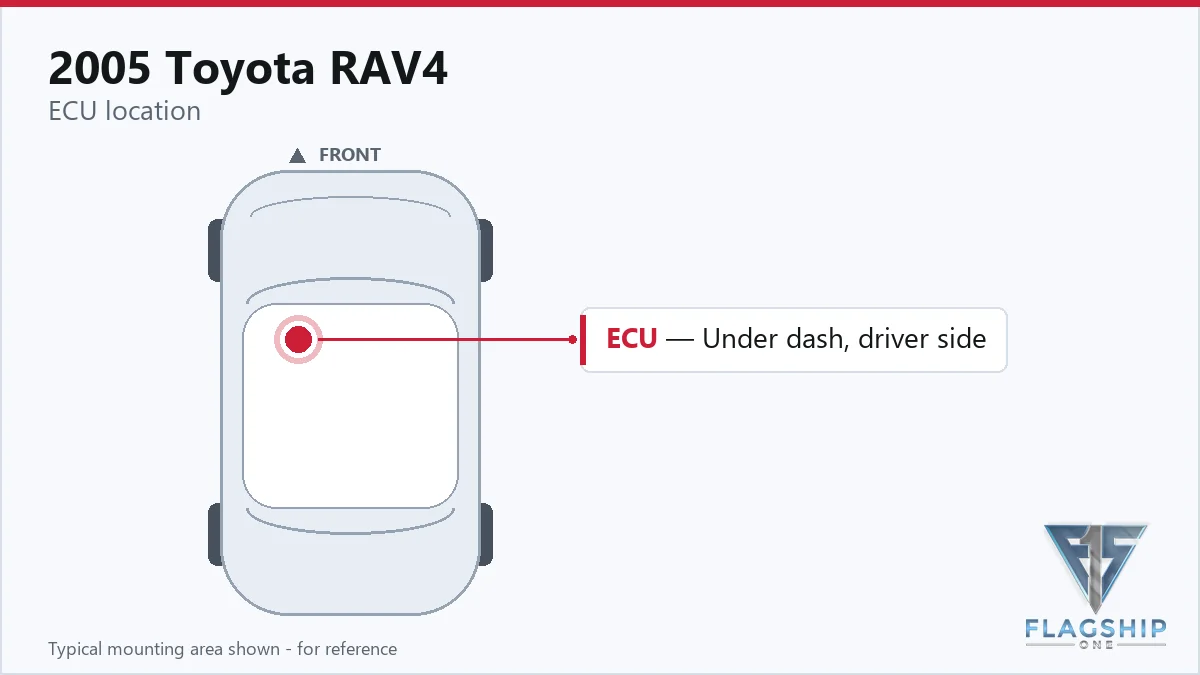

The factory wiring guide places the engine ECU within the instrument panel. Accessing it typically involves removing trim panels and possibly the glove box or lower dash components. The book time for removing and reinstalling the engine control module is 0.8 hours. The same 0.8-hour allowance applies to the powertrain control module if it is a separate unit. After installation, a relearn procedure is required, which takes 0.5 hours for the engine control module and another 0.5 hours for the powertrain control module. This relearn allows the module to adapt to the vehicle’s sensors and actuators. No torque specifications or additional access steps are provided in the standard labor guide, but careful handling of connectors and mounting hardware is essential to avoid damage.

Programming Requirements After Replacement

After installing a new ECM, the factory procedure requires entering the vehicle’s VIN and performing a relearn to sync the module with the immobilizer and engine sensors. The service bulletin EG045-04 highlights the importance of VIN entry during replacement to prevent DTC P0630. Flagship One ships a VIN-programmed replacement unit that arrives with the correct VIN and immobilizer data already loaded, so these steps are already done. This eliminates the need for a dealership-level scan tool or a separate programming session. The module is ready to install, and the relearn procedure can be completed by driving the vehicle through a specific drive cycle or using a basic scan tool to initiate the adaptation. This plug-and-play approach saves the 0.5-hour relearn labor and reduces the risk of programming errors.

Symptoms of a Failing PCM

A failing ECM in the 2005 Toyota RAV4 often produces symptoms that mimic other problems. The engine may crank but not start, or it may start and then stall unexpectedly. Intermittent misfires, rough idling, and hesitation during acceleration are common. The transmission may shift erratically or hold gears too long because the ECM shares data with the transmission control. The check engine light may illuminate, and a scan tool might fail to communicate with the module. In some cases, the vehicle may enter a fail-safe mode with reduced power. These issues can come and go, making diagnosis challenging. If you experience multiple, seemingly unrelated electrical glitches, the ECM is a prime suspect. Because the module controls the fuel pump relay and ignition, a total failure will leave the engine silent.

Factory Service Bulletins Worth Knowing

Toyota issued service bulletin EG045-04 for all 2004–2006 models, including the 2005 RAV4. This bulletin addresses the procedure for entering the VIN during ECM or PCM replacement. It also covers diagnostic trouble code P0630, which indicates a VIN mismatch or programming error. The bulletin emphasizes that failing to correctly program the VIN can cause the vehicle to not start or to set a permanent code. Technicians are advised to follow the outlined steps to ensure the replacement module is properly initialized. This factory guidance underscores the critical nature of VIN programming when swapping the engine control module.

Protecting the PCM in Your 2005 Toyota RAV4

• Keep the battery and charging system in good condition to avoid voltage spikes that can damage the ECM.
• Inspect and clean all ground connections and ECM connectors to prevent intermittent faults.
• Avoid jump-starting with high-voltage boosters; use a regulated jump pack.
• Address check engine lights promptly to prevent cascading sensor or module failures.
• Ensure the ECM connector seals are intact to keep out moisture and corrosion.
• When replacing the module, handle it carefully and avoid static discharge.

Frequently Asked Questions

What are the signs that the ECM in my 2005 Toyota RAV4 is failing?

Common signs include a no-start condition, stalling, rough running, and transmission shifting problems. You may also see a check engine light and have trouble communicating with the module using a scan tool. These symptoms can be intermittent, making diagnosis tricky.

Does a replacement ECM for the 2005 RAV4 need to be programmed?

Yes, the factory procedure requires entering the VIN and performing a relearn. However, a pre-programmed unit from Flagship One arrives with the VIN and immobilizer data already loaded, so you can skip the dealership programming step.

Where is the ECM located in the 2005 Toyota RAV4?

The engine control module is located in the instrument panel. Accessing it typically involves removing trim pieces and possibly the glove box. The book time for replacement is 0.8 hours.

When your RAV4’s ECM fails, you have two paths: purchase a new unit from a dealer and pay for programming, or choose a refurbished, pre-programmed module that arrives ready to install. A refurbished unit from Flagship One is tested and loaded with your vehicle’s specific data, saving you time and money. The installation is straightforward, and the relearn can often be completed by driving. This approach puts you back on the road quickly without a trip to the dealership.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.

Final Thoughts

Replacing the engine control module in a 2005 Toyota RAV4 doesn’t have to be a daunting task. With the module located in the instrument panel and a straightforward R&R time of 0.8 hours, the physical swap is manageable. The key is ensuring the programming is correct. A pre-programmed unit from Flagship One removes that hurdle, letting you complete the job with confidence. Get your RAV4 running smoothly again.
