2004 Toyota RAV4 2.4L Engine Control Module Replacement Guide
The engine control module in the 2004 Toyota RAV4 acts as the central processor for fuel delivery and ignition timing. When this computer fails, it often causes rough idling, sudden stalling, or a complete inability to start the engine, disrupting daily driving.
Quick Summary
- The factory wiring guide locates the engine ECU inside the instrument panel.
- Removing and replacing the engine control module requires 0.8 hours of book time.
- An engine control module relearn procedure typically takes 0.5 hours after installation.
- Powertrain control module replacement also requires 0.8 hours for the R&R process.
- Module failure often results in starting difficulties or intermittent stalling.
Encountering unexpected drivability issues with your 2004 Toyota RAV4 can quickly become frustrating, especially when the root cause points to the engine control module. This critical computer dictates how your vehicle operates, managing everything from fuel injection to ignition timing. When it begins to fail, you might notice rough running conditions, intermittent stalling, or even a complete no-start situation. Understanding how this component works within your specific SUV is the first step toward resolving the issue efficiently. By learning about its location, replacement requirements, and common failure indicators, you gain the knowledge needed to make informed repair decisions. Rather than guessing at the problem, you can approach the situation with confidence, knowing exactly what the replacement entails and what to expect from the installation process. This information empowers you to avoid unnecessary diagnostic delays and ensures your 2004 Toyota RAV4 returns to reliable operation as swiftly as possible. Taking the time to familiarize yourself with the module’s role helps streamline the overall repair process and minimizes vehicle downtime.
What the PCM Does in a 2004 Toyota RAV4
The engine control module serves as the central nervous system for the 2004 Toyota RAV4. It continuously processes data from various sensors located throughout the vehicle to calculate the precise fuel and ignition requirements for the 2.4L engine. By adjusting these parameters in real time, the computer ensures optimal combustion, which translates into smooth acceleration, steady idling, and efficient fuel economy. When this module operates correctly, you rarely notice its presence. However, when internal circuits degrade or software glitches arise, the engine’s performance degrades rapidly. The computer may stop communicating with sensors, leading to a cascade of drivability problems that leave you stranded. Because this module controls such fundamental engine functions, even a minor malfunction can prevent the vehicle from running at all. Addressing a failing unit promptly is crucial, and sourcing 2004 Toyota RAV4 ECMs ensures you get the correct replacement for your SUV. Without a properly functioning computer, the engine cannot maintain correct timing or fuel ratios. This is why recognizing the symptoms of failure early on is vital for maintaining the reliability of your 2004 Toyota RAV4. Replacing a defective unit restores these vital communication lines, allowing the engine to operate exactly as the factory intended. A malfunctioning unit often causes severe disruptions to your daily commute, making prompt diagnosis essential.
Where the PCM Is Located and What Replacement Involves

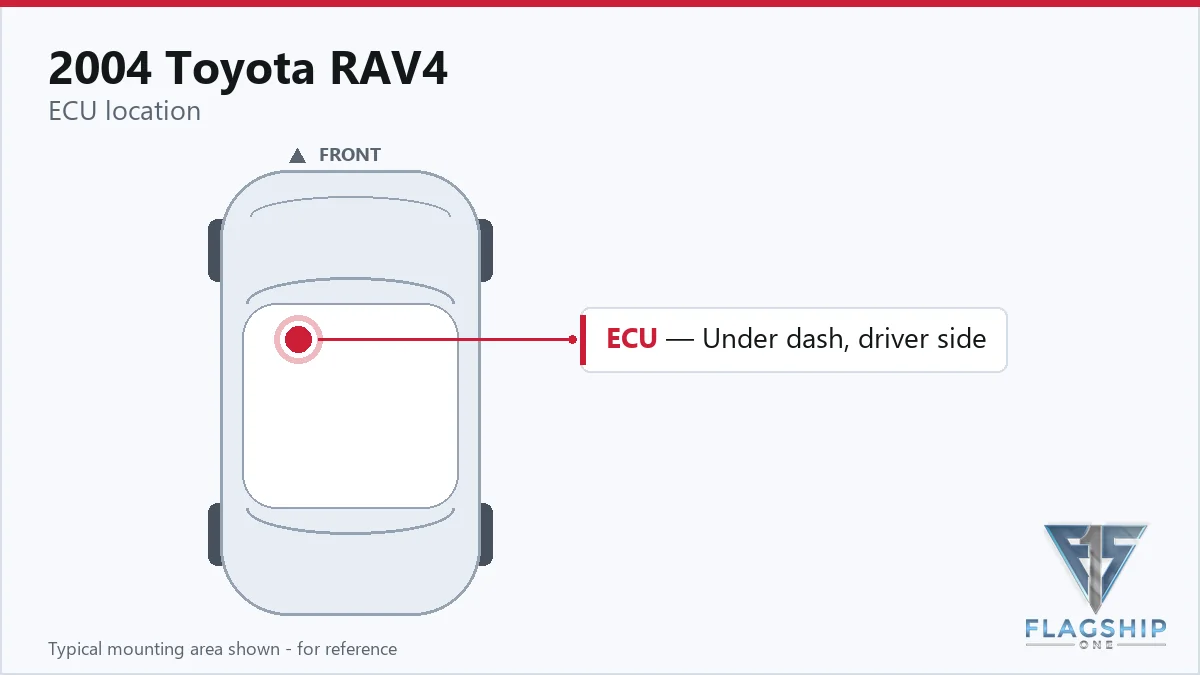

Locating the engine computer in the 2004 Toyota RAV4 requires looking inside the passenger compartment. According to the factory wiring guide component grid, the engine ECU sits within the instrument panel. Accessing it typically involves removing interior trim pieces to reach the unit. Once accessed, the physical removal and replacement of the engine control module takes 0.8 hours of book time. Similarly, if addressing the powertrain control module, the R&R procedure also takes 0.8 hours. After physically installing the new unit, the vehicle requires a relearn procedure to adapt to the new hardware. The engine control module relearn takes 0.5 hours, while the powertrain control module relearn also takes 0.5 hours. These times reflect standard industry guidelines for completing the work. Mechanics must ensure the battery is disconnected before starting the R&R process to prevent electrical damage.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Following the physical installation of a new engine computer in your 2004 Toyota RAV4, the factory procedure requires specific programming steps to ensure the vehicle runs correctly. The engine control module relearn takes 0.5 hours, and the powertrain control module relearn also takes 0.5 hours. During this time, a technician typically flashes the new unit with the vehicle’s specific calibration files and performs idle relearn procedures so the engine adapts to the fresh hardware. Without these steps, the vehicle may stall or idle roughly. However, choosing a VIN-programmed replacement unit from Flagship One bypasses these lengthy procedures entirely. Because the necessary programming and VIN matching are already completed before the part arrives, you avoid the need for dealership programming. This means the relearn time is effectively eliminated from your repair timeline, allowing you to install the computer and get your 2004 Toyota RAV4 back on the road much faster.
Symptoms of a Failing PCM
When the engine computer begins to fail in the 2004 Toyota RAV4, several distinct symptoms often appear. A complete no-start condition is one of the most common indicators; the engine may crank without ever firing up because the module fails to trigger the fuel injectors or ignition coils. Intermittent stalling is another frequent complaint, where the engine suddenly shuts off while driving, creating a serious safety hazard. You might also experience rough idling or misfire codes, as the failing computer struggles to maintain proper fuel and spark timing. In some cases, the check engine light may illuminate, but when you connect a diagnostic scan tool, you encounter dead communication, meaning the module cannot send or receive data. Shifting issues can also occur if the unit controls transmission functions, causing harsh or delayed gear changes. These drivability problems often start intermittently and worsen over time. Ignoring these warning signs can lead to complete vehicle immobilization. Recognizing these specific indicators helps pinpoint a failing engine control module before it leaves you stranded. If your SUV exhibits these issues alongside an unresponsive diagnostic port, the computer is a likely culprit. Because these symptoms overlap with other sensor failures, thorough diagnostics remain essential to avoid replacing the wrong part.
Protecting the PCM in Your 2004 Toyota RAV4
- Maintain charging system health to prevent voltage fluctuations that may damage the computer.
- Keep electrical grounds and connectors clean to avoid erratic signals or poor communication.
- Avoid jump-starting the vehicle to prevent sudden voltage spikes from harming internal circuits.
- Address illuminated check engine codes promptly before they worsen into complete failure.
- Inspect and keep connector seals intact to block moisture intrusion into the wiring harness.
- Ensure the battery is securely mounted to protect the module from excessive vibration damage.
Frequently Asked Questions
Where is the engine computer located in the 2004 Toyota RAV4?
According to the factory wiring guide component grid, the engine ECU sits inside the instrument panel. Accessing it typically requires removing interior trim panels to reach the module.
How long does it take to replace the engine control module in a 2004 Toyota RAV4?
The book time for engine control module removal and replacement is 0.8 hours. The powertrain control module R&R also takes 0.8 hours of book time.
Is a relearn procedure required after replacing the computer in my 2004 Toyota RAV4?
Yes, the factory procedure requires an engine control module relearn of 0.5 hours, or a powertrain control module relearn of 0.5 hours, to adapt the new hardware to the vehicle.
Can a failing engine computer cause my 2004 Toyota RAV4 to stall?
Yes, intermittent stalling is a common symptom of a failing engine computer. The module may stop triggering the ignition or fuel systems properly, causing the engine to shut off unexpectedly.
What does dead scan-tool communication mean on a 2004 Toyota RAV4?
Dead communication often indicates the engine computer is not powering up or has internal processor failures. This prevents the diagnostic tool from reading data, pointing directly to a module issue.
Deciding between repairing or replacing the engine computer in your 2004 Toyota RAV4 depends on the extent of the internal damage. While some specialized shops offer repair services, a refurbished replacement often provides a more reliable long-term solution backed by a warranty. Choosing a pre-programmed replacement unit eliminates the dealership visit entirely, ensuring your SUV gets back on the road faster and with greater confidence in its continued performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.
Final Thoughts
Addressing engine computer issues in your 2004 Toyota RAV4 promptly ensures your vehicle remains safe and dependable. Understanding the module location, replacement times, and relearn requirements helps you approach the repair process with confidence. When you are ready to resolve those frustrating drivability symptoms, explore reliable replacement options to restore your SUV to its proper operating condition and eliminate the risk of unexpected stalling.
