2003 Toyota RAV4 Engine Control Module Replacement And Programming Guide
The engine computer manages fuel delivery and ignition timing within your 2003 Toyota RAV4. When this unit fails, you may encounter drivability issues or communication errors. Replacing the component restores critical signal processing required for stable operation and efficient powertrain management during daily driving.
Quick Summary
- Factory documentation locates the engine ECU inside the instrument panel area.
- Book time estimates suggest 0.8 hours for removal and replacement procedures.
- Reprogramming procedures typically require 0.5 hours according to labor guides.
- Technical service bulletins address flash reprogramming processes for applicable models.
Dealing with engine management issues in your 2003 Toyota RAV4 often leads to questions about the central computer. You need clear information regarding removal times and programming requirements before starting repairs. This guide explains where the unit resides and what factory procedures entail for this specific vehicle. Understanding these details helps you prepare for the work ahead without unnecessary delays. You will learn about labor estimates and technical service bulletins relevant to your model. Proper knowledge ensures you approach the repair with realistic expectations regarding time and tools. Reading this overview provides a solid foundation for diagnosing potential electronic faults within the powertrain system.
What the PCM Does in a 2003 Toyota RAV4
This electronic control unit regulates essential functions like ignition timing and fuel injection maps for your 2003 Toyota RAV4. It processes sensor data to optimize performance and emissions compliance during various driving conditions. When searching for replacement engine computers for the RAV4 you should verify compatibility with your specific engine configuration. The module acts as the brain of the powertrain system, coordinating inputs from oxygen sensors and throttle position switches. Failure here often results in poor mileage or rough idling sensations while operating the vehicle. Maintaining proper voltage supply protects internal circuits from damage caused by electrical spikes. You rely on this component for smooth shifting and consistent acceleration responses throughout the lifespan of the car.
Where the PCM Is Located and What Replacement Involves

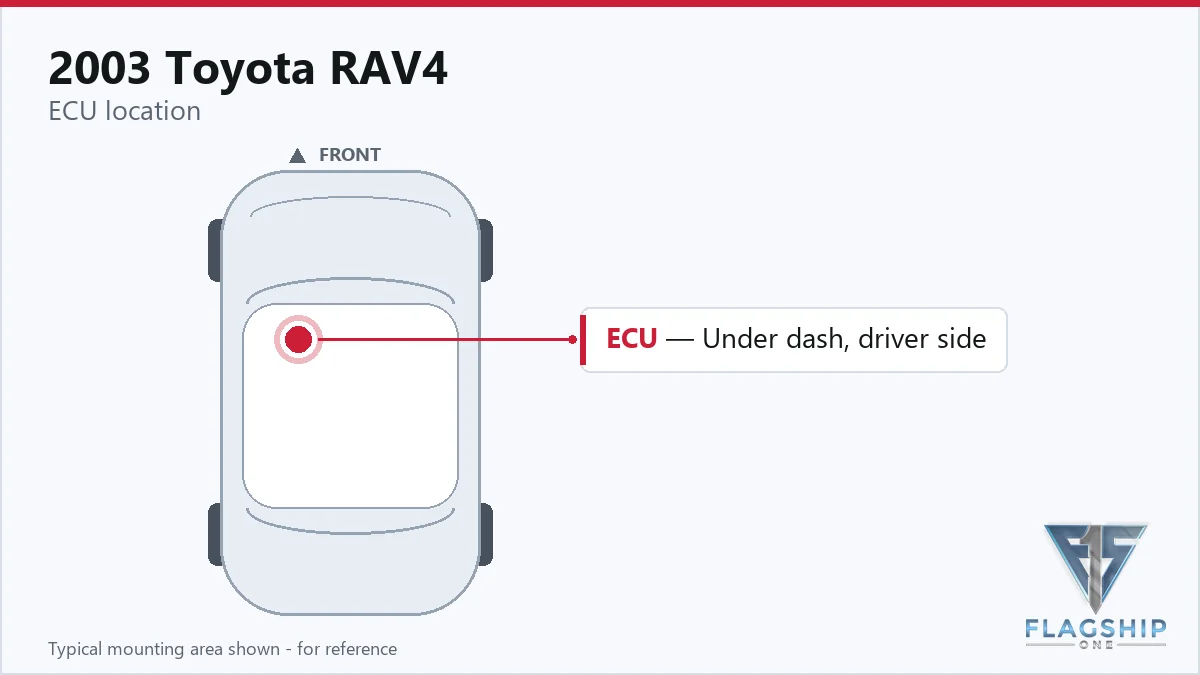

According to factory wiring documentation, the engine ECU resides within the instrument panel of your 2003 Toyota RAV4. Accessing this component involves working within the dashboard area to reach the mounted unit safely. Labor guides estimate the removal and replacement process takes approximately 0.8 hours for skilled technicians. Once installed, the new unit typically requires a relearn procedure estimated at 0.5 hours to synchronize with existing systems. You should plan for these book times when scheduling service appointments or planning DIY repairs. Proper handling prevents damage to surrounding dash components during the extraction process. Torque specifications are not provided in the available data, so follow standard fastener practices. Completing both the physical swap and the software synchronization ensures the vehicle operates correctly after the work is finished.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory procedures often require flash reprogramming using specific diagnostic tools like Techstream for applicable Toyota models. This step ensures the software matches the vehicle configuration after hardware installation. When you order a VIN-programmed replacement unit from Flagship One, those configuration steps are already completed before shipping. This eliminates the need for you to perform the 0.5 hour relearn procedure typically found in labor guides. The module arrives ready to communicate with your powertrain systems immediately upon installation. You save time by avoiding the complex flashing process described in technical service bulletins. Pre-configured electronics reduce the risk of errors during the setup phase. Your vehicle benefits from this streamlined approach to engine computer replacement and restoration.
Symptoms of a Failing PCM
Owners of the 2003 Toyota RAV4 may notice erratic engine behavior when the control module begins to fail. Common signs include unexpected stalling at idle or difficulty starting the engine after sitting. You might experience misfire codes that persist despite changing spark plugs or ignition coils. Communication errors with scan tools often indicate internal processing faults within the computer itself. Shifting issues may arise if the transmission data becomes corrupted or unavailable to the drivetrain. These symptoms suggest the electronic brain is struggling to manage critical powertrain functions reliably. Addressing these warnings early prevents further damage to connected sensors and actuators. Ignoring such signs often leads to complete loss of propulsion while driving on the road.
Factory Service Bulletins Worth Knowing
Toyota issued technical service bulletin SS002-01 covering 2001 onward applicable models regarding the updated process for flashing the ECU. Another document, SS002-07, details the procedure for flashing ECUs using Techstream for applicable Toyota vehicles from 2001 to 2008. These bulletins provide updated instructions for updating software within the engine control unit. Technicians should reference these guides when performing calibration updates on your 2003 Toyota RAV4. Following the revised processes ensures compatibility with current diagnostic equipment and standards. Adhering to factory communications helps maintain proper system function during service events.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-01 | :SS002-01: 2001 & Later Applicable Models: ECU Flash Reprogramming Process (Revised) | — |
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2003 Toyota RAV4
- Maintain charging system health to prevent voltage spikes damaging the computer.
- Keep ground connections clean and tight to ensure stable signal flow.
- Avoid jump-starting with incorrect polarity to protect internal circuits.
- Address diagnostic trouble codes promptly to prevent cascading system failures.
- Keep connector seals intact to moisture and corrosion from entering ports.
Frequently Asked Questions
Where is the ECU located in the 2003 Toyota RAV4?
Factory documentation places the engine computer within the instrument panel area. You will need to access the dashboard to reach the unit safely.
How long does it take to replace the module?
Labor guides estimate 0.8 hours for removal and replacement tasks. An additional 0.5 hours is typically allocated for the relearn procedure.
Do I need to reprogram the computer myself?
Flagship One units arrive pre-configured for your specific vehicle identification number. This eliminates the need for you to perform flash reprogramming steps.
You may choose between repairing your existing unit or installing a refurbished replacement for your 2003 Toyota RAV4. Refurbished options often provide a faster solution than sending your original computer out for service. Both paths aim to restore reliable engine management without compromising vehicle performance. Consider the downtime associated with each option when planning your repair strategy.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.
Final Thoughts
Proper handling of the engine computer ensures long-term reliability for your 2003 Toyota RAV4. Understanding labor times and location details helps you prepare for the repair process effectively. Flagship One offers solutions designed to get you back on the road quickly. Review your options to find the best fit for your maintenance needs.
