2002 Toyota RAV4 Engine Computer Replacement & Reprogramming Guide
The engine control module (ECM) in your 2002 Toyota RAV4 manages fuel delivery, ignition timing, and emissions systems. A failing ECM may cause erratic idling, poor acceleration, or failure to start, often triggering diagnostic trouble codes related to engine performance.
Quick Summary
- The ECM in your 2002 RAV4 is located behind the instrument panel.
- Replacing the module typically takes less than an hour of labor.
- A relearn procedure is required after installation to synchronize the ECM with the vehicle.
- Factory service bulletins outline reprogramming steps for updated calibration.
- Common symptoms include stalling, misfires, or a no-start condition.
If your 2002 Toyota RAV4 is experiencing unexplained stalling, rough idling, or a check engine light, the engine control module (ECM) may be the culprit. This small but critical component governs fuel injection, ignition timing, and emissions controls, ensuring smooth operation. When it fails, symptoms can range from poor drivability to complete engine shutdown. Understanding how the ECM functions, where it’s located, and what’s involved in replacement or reprogramming can help you make informed decisions. This guide covers the essentials, including labor times, factory procedures, and common failure signs, so you can address issues efficiently.
What the PCM Does in a 2002 Toyota RAV4
The engine control module in your 2002 Toyota RAV4 acts as the brain of the engine, continuously adjusting fuel and ignition parameters for optimal performance. It monitors sensors throughout the vehicle, ensuring emissions compliance and responsive acceleration. A malfunctioning ECM may disrupt these processes, leading to poor fuel economy or even a no-start condition. If replacement becomes necessary, you’ll need to consider replacement engine computers for the RAV4, which are designed to match the original specifications. Without a properly functioning ECM, your vehicle’s engine may run erratically or fail to start altogether.
Where the PCM Is Located and What Replacement Involves

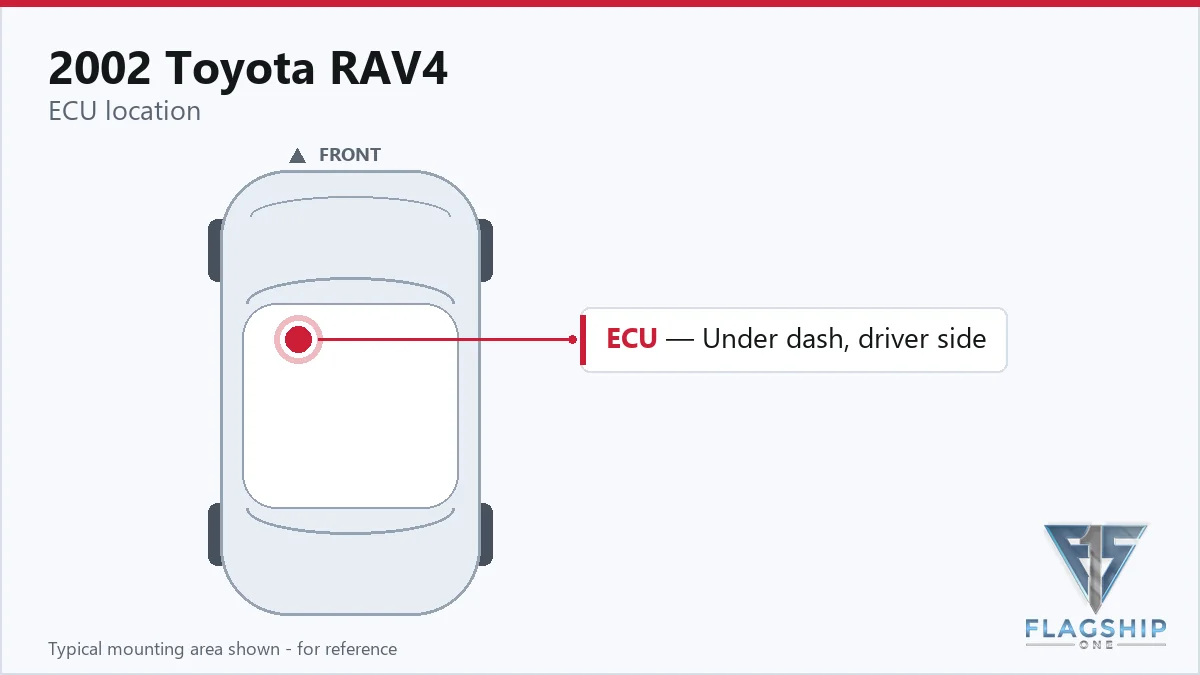

In the 2002 Toyota RAV4, the engine control module is mounted behind the instrument panel, requiring removal of the dashboard trim for access. Replacing the ECM involves disconnecting the battery, unplugging the wiring harness, and removing the module from its bracket. Labor estimates for this procedure typically range around 0.8 hours, as the module is secured with fasteners and connected via a multi-pin harness. Once the new unit is installed, reconnecting the battery and ensuring all electrical connections are secure completes the physical replacement.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new engine control module in your 2002 Toyota RAV4, the factory procedure requires a relearn process to synchronize the ECM with the vehicle’s systems. This typically involves using specialized diagnostic equipment to initialize the module, which may take about 0.5 hours of labor. However, a VIN-programmed replacement unit arrives pre-configured for your vehicle, eliminating the need for this step. This ensures the ECM is immediately compatible with your RAV4’s engine and transmission, reducing downtime and potential calibration issues.
Symptoms of a Failing PCM
A failing engine control module in your 2002 Toyota RAV4 may cause a variety of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, reduced fuel efficiency, or an illuminated check engine light. In some cases, the vehicle may enter a limp-home mode, limiting engine power. Diagnostic trouble codes like catalyst system efficiency below threshold may appear, indicating potential issues with emissions controls or sensor readings. If your scan tool fails to communicate with the ECM, the module itself could be the source of the problem.
Factory Service Bulletins Worth Knowing
Toyota has issued several service bulletins addressing engine control module updates for the 2002 RAV4. Bulletin #SS002-01 outlines the ECU flash reprogramming process for 2001 and later models, while #SS002-07 details the Techstream reprogramming procedure for 2001–2008 Toyota vehicles. Additionally, #EG010-02 provides an ECM calibration update for 2001–2002 RAV4 models experiencing MIL illumination with codes P0420 or P0430, aiming to improve engine performance and emissions compliance.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-01 | :SS002-01: 2001 & Later Applicable Models: ECU Flash Reprogramming Process (Revised) | — |
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
| EG010-02 | :EG010-02: 01-02 RAV4: ECM Calibration Update – MIL ‘ON’ DTC P0420 or P0430 and Enhanced Engine | — |
Protecting the PCM in Your 2002 Toyota RAV4
- Maintain a healthy charging system to prevent voltage spikes that may damage the ECM.
- Keep electrical connections clean and secure, especially the ECM harness and battery terminals.
- Avoid jump-starting the vehicle with improper voltage, which can stress the module.
- Address check engine lights promptly to prevent minor issues from escalating.
- Ensure the ECM connector seals remain intact to protect against moisture and corrosion.
Frequently Asked Questions
Why does my 2002 Toyota RAV4 need an ECM relearn after replacement?
The relearn procedure synchronizes the new ECM with the vehicle’s sensors and transmission, ensuring proper fuel delivery and ignition timing. Without it, the engine may run poorly or fail to start. Factory tools are typically required to complete this process.
Can I drive my 2002 RAV4 with a bad engine control module?
Driving with a faulty ECM may lead to poor performance, stalling, or even a no-start condition. In some cases, the vehicle may enter limp mode, limiting engine power. It’s best to address ECM issues promptly to avoid further complications.
How do I know if my 2002 RAV4’s ECM is failing or if it’s another issue?
Common signs of ECM failure include a no-start condition, stalling, or an illuminated check engine light with codes related to engine performance. If your scan tool cannot communicate with the ECM, the module itself may be the problem. A professional diagnosis can confirm the issue.
If your 2002 Toyota RAV4 is experiencing ECM-related issues, you have options. A repair shop can attempt to reflash or replace the module, though this may require additional programming time. Alternatively, a pre-programmed replacement unit ensures compatibility and reduces installation complexity, allowing you to get back on the road sooner.

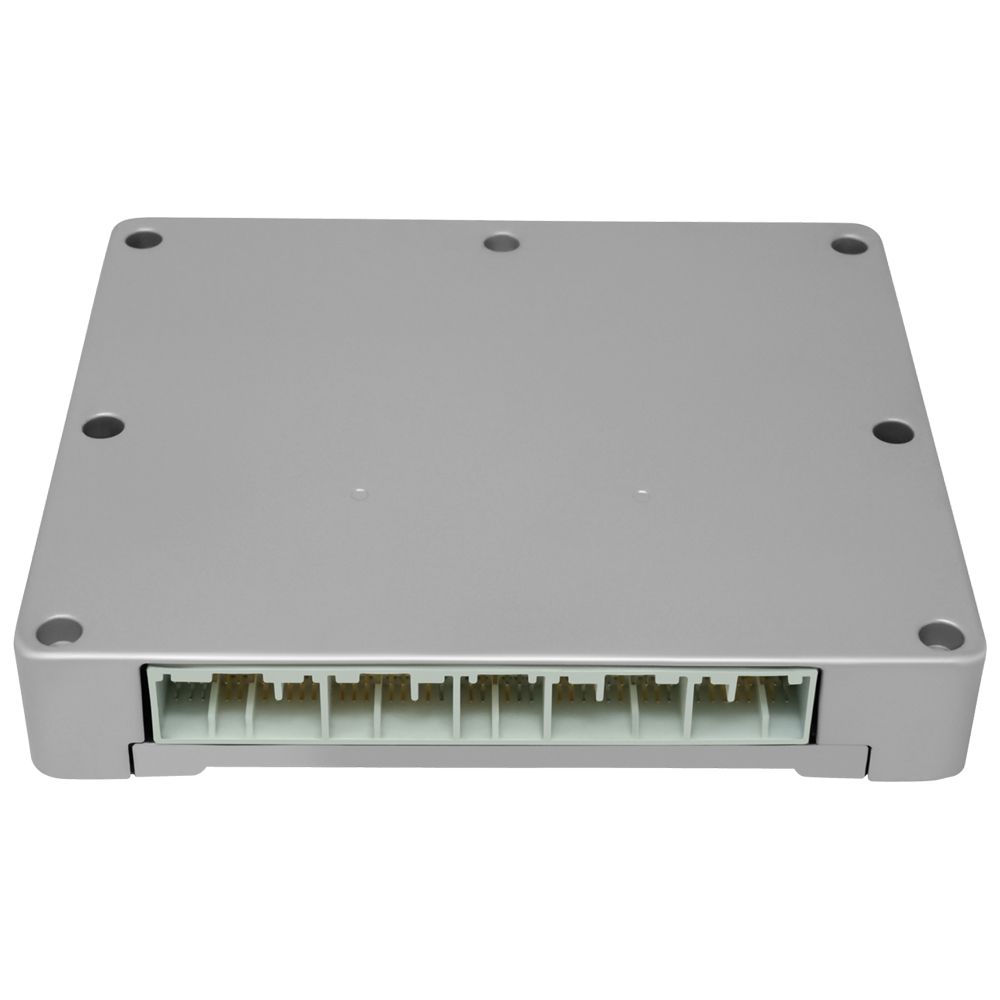

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 2002 Toyota RAV4 plays a critical role in maintaining smooth operation. If you’re facing stalling, poor acceleration, or a no-start condition, addressing the ECM may resolve these issues. Whether you opt for a factory replacement or a pre-programmed unit, understanding the process helps you make an informed decision for your vehicle.
