2005 Saturn VUE PCM/ECM Replacement and Reprogramming Guide
The 2005 Saturn VUE uses a Powertrain Control Module (PCM) to manage engine and transmission functions. Failures may trigger warning lights, poor performance, or prevent the vehicle from starting. Replacement requires data transfer and reprogramming to restore proper operation.
Quick Summary
- The PCM controls critical engine and transmission functions in the 2005 Saturn VUE.
- Replacement labor typically takes 0.5 to 0.9 hours for the 2.2L engine.
- Factory procedure requires data capture before removal to avoid driveability issues.
- A relearn process (0.5 hours) is needed after installation.
- Flagship One units arrive pre-programmed to the vehicle’s VIN, simplifying installation.
If your 2005 Saturn VUE is experiencing unexplained stalling, warning lights, or a no-start condition, the Powertrain Control Module (PCM) may be at fault. This module acts as the vehicle’s brain, coordinating engine and transmission operations. Replacing it involves more than just swapping hardware—proper data transfer and reprogramming are critical to avoid further issues. Understanding the process helps you make informed decisions, whether tackling the job yourself or working with a shop. This guide covers what the PCM does, where it’s located, and the steps required to restore your VUE’s performance reliably.
What the PCM Does in a 2005 Saturn VUE
In the 2005 Saturn VUE, the Powertrain Control Module (PCM) manages fuel delivery, ignition timing, and transmission shifts to optimize performance and efficiency. It constantly adjusts these systems based on sensor inputs, ensuring smooth operation under varying conditions. When the PCM fails, you may notice erratic shifting, poor fuel economy, or even a complete loss of engine control. Replacing it requires replacement engine computers for the Saturn VUE to maintain compatibility with the vehicle’s specific calibration. Without proper programming, the new module may not communicate with other systems, leading to further driveability problems.

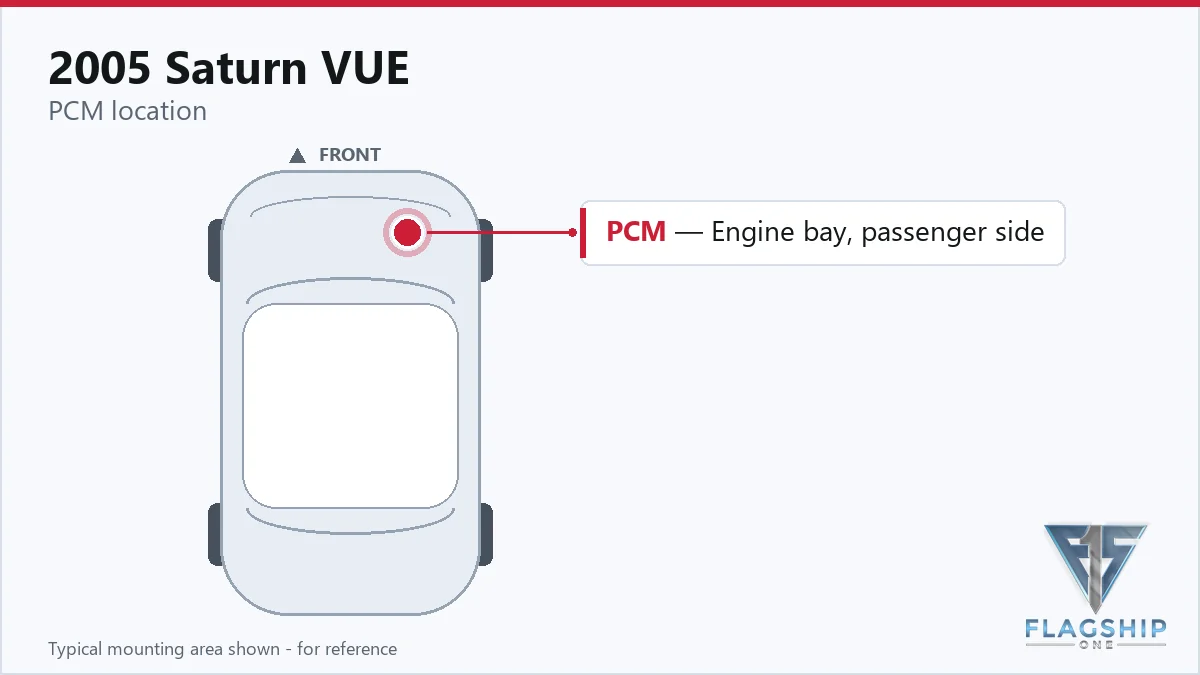

Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module (PCM) in the 2005 Saturn VUE is located in the engine bay, typically mounted near the firewall or fender well for accessibility. Replacing it involves disconnecting the battery, removing the electrical connector, and unbolting the module from its mount. Labor times vary by engine: 0.5 hours for the 2.2L and 1.4 hours for the 3.5L. After installation, a 0.5-hour relearn procedure is required to synchronize the module with the vehicle’s systems. Always ensure the connector is fully seated and free of corrosion to prevent future issues.
How to Reach the PCM on the 2005 Saturn VUE
- Remove any debris from around the control module connector.
- Disconnect the battery negative cable.
- Disconnect the wiring harness.
- Remove the PCM from the housing.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.2L | 0.5 hr |
| Powertrain Control Module R&R | 3.5L | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.2L | 0.9 hr |
| Engine Control Module R&R | 3.5L | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory procedure requires capturing the PCM’s data with a scan tool before removal and restoring it to the new module. If the Engine Control Module (ECM) is replaced, it must also be reprogrammed using the Service Stall System (SSS) to match the vehicle’s specifications. After reprogramming, the ECM Passlock Relearn Procedure is necessary to ensure proper security system communication. Choosing a VIN-programmed replacement unit eliminates these steps, as the module arrives ready to install and drive, saving time and reducing the risk of programming errors.
Symptoms of a Failing PCM
A failing PCM in the 2005 Saturn VUE may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice warning lights on the dashboard, such as the Service Vehicle Soon (SVS) indicator, or experience poor acceleration and shifting issues. In some cases, the vehicle may enter a reduced-power mode to prevent further damage. A common trouble code associated with PCM failure is internal control module memory checksum error, which indicates a potential corruption in the module’s memory. If these symptoms appear, prompt diagnosis is recommended to avoid further complications.
Module Trouble Codes on the 2005 Saturn VUE
The 2005 Saturn VUE’s PCM may log specific trouble codes when internal faults occur. These codes help diagnose issues related to memory corruption, communication errors, or calibration mismatches. Addressing them early can prevent more severe driveability problems.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2005 Saturn VUE address PCM-related issues, including cruise control inoperative conditions and warning lights. Bulletin #04-08-68-004 (updated as #04-08-68-004B) describes a scenario where the SVS wrench telltale illuminates, often accompanied by Diagnostic Trouble Code (DTC) P0571, indicating a cruise control brake switch error. Another bulletin, #05-06-04-060, covers multiple modules logging codes P0601, P0602, P0603, P0604, and P1621, which may require PCM reprogramming to resolve.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-08-68-004 | Cruise Control Inoperative and/or Service Vehicle Soon (SVS) Wrench Telltale Illuminated with D | Some customers may comment on an SVS “wrench” telltale illuminated while driving. DTC P0571 (Cruise Control Brake Switch Error) may be set or recorded in… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 Saturn VUE
- Maintain a healthy charging system to prevent voltage spikes that can damage the PCM.
- Ensure all electrical connectors are clean, dry, and securely fastened to avoid corrosion or poor contact.
- Avoid jump-starting the vehicle with improper voltage, as this may cause module failure.
- Address warning lights or trouble codes promptly to prevent cascading issues.
- Keep the PCM’s connector seals intact to protect against moisture and debris.
- Use a battery maintainer during long periods of inactivity to preserve electrical system stability.
Frequently Asked Questions
How do I know if my 2005 Saturn VUE’s PCM is failing?
Common signs include warning lights, stalling, or a no-start condition. The vehicle may also exhibit poor acceleration or shifting issues. A scan tool can confirm PCM-related trouble codes, such as P0601 or P0603, which often indicate internal faults.
Can I replace the PCM in my 2005 Saturn VUE myself?
Replacement is possible if you have basic mechanical skills and the right tools. However, the factory requires data capture before removal and a relearn procedure afterward. Skipping these steps may result in driveability issues or security system faults.
Why does the 2005 Saturn VUE require reprogramming after PCM replacement?
The PCM contains vehicle-specific calibrations and security data. Reprogramming ensures the new module matches the vehicle’s configuration, preventing communication errors with other systems. Factory procedure also includes a Passlock relearn to maintain anti-theft functionality.
If your 2005 Saturn VUE is showing signs of PCM failure, you have options. A repair shop can perform the replacement and reprogramming, though labor and diagnostic costs may add up. Alternatively, a pre-programmed replacement module ensures compatibility and eliminates the need for post-install procedures, simplifying the process and reducing downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Saturn VUE with a lifetime warranty, free shipping and no core charge. The full Saturn VUE module lineup covers other engine configurations as well.
Final Thoughts
The 2005 Saturn VUE relies on its PCM for smooth operation, and addressing failures promptly can prevent further issues. Whether you choose a repair or a pre-programmed replacement, understanding the process helps you make the best decision for your vehicle. Proper installation and programming ensure your VUE runs reliably for miles to come.
