2002 Saturn Vue Powertrain Control Module Replacement
In the 2002 Saturn Vue, the Powertrain Control Module (PCM) orchestrates engine timing, fuel delivery, and emission controls. Failure can lead to engine misfires, reduced power, or a malfunctioning check engine light.
Quick Summary
- PCM replacement takes 1.4 hours for 3.0L engines.
- Removal accesses the module adjacent to the air cleaner.
- Post‑install reprogramming is required to set oil life and calibrations.
- Service bulletins address OBD upgrades and specific error codes.
- Flagship One units come pre‑VIN‑programmed, eliminating reprogram steps.
If your 2002 Saturn Vue shows a check engine light or exhibits erratic power, the Powertrain Control Module may be the culprit. This guide explains what the PCM does in this vehicle, how to replace it, and what steps follow the swap. You’ll learn the labor involved, the factory procedure, common failure symptoms, and how a quality replacement keeps your engine running smoothly.
What the PCM Does in a 2002 Saturn VUE
The PCM in a 2002 Saturn Vue controls engine combustion timing, fuel injection, and emission systems, ensuring efficient operation. Replacement engine computers for the 2002 Saturn Vue It also monitors sensors and reacts to changing driving conditions. When it fails, the engine can misfire, stall, or lose power, and diagnostic trouble codes may appear.

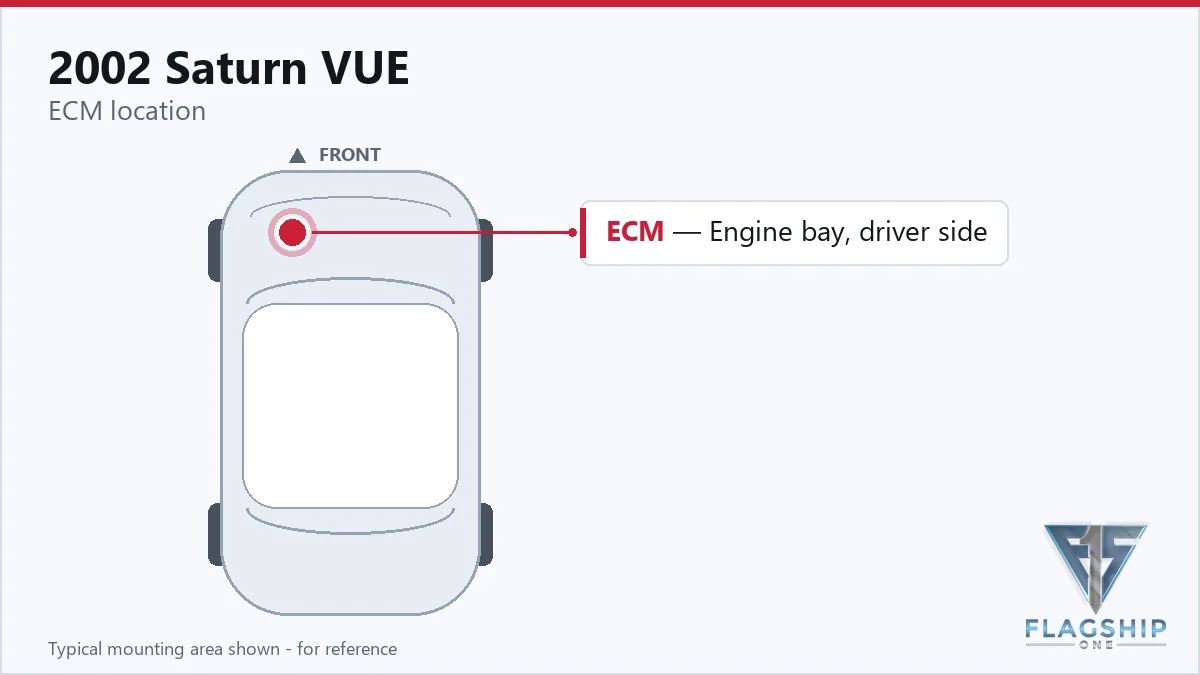

Where the PCM Is Located and What Replacement Involves
The factory procedure for removing the PCM places the module beside the air cleaner assembly. Replacing it requires 1.4 hours of labor for a 3.0L engine. The technician must carefully disconnect wiring harnesses and remove the module, then install the new unit in the same position.
How to Reach the PCM on the 2002 Saturn VUE
- Disconnect the negative battery cable.
- Disconnect the intake air temperature (IAT) sensor.
- Loosen the clamp at the air cleaner assembly.
- Remove the push pin attachment from the outlet resonator/duct.
- Loosen the clamp at the throttle body assembly.
- Disconnect the PCV fresh air hose at the cam cover.
- Remove the outlet resonator/duct assembly.
- Remove the J 1 and J 2 connectors at.
- Remove the 4 ECM attachment bolts.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.2L | 0.5 hr |
| Powertrain Control Module R&R | 3.0L | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 3.0L | 1.4 hr |
| Engine Control Module R&R | 2.2L | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory mandates recording the remaining engine oil life and reprogramming the module with new software and calibrations. Flagship One units arrive VIN‑programmed, so those steps are already completed. a VIN-programmed replacement unit This eliminates the need for a separate reprogramming session.
Symptoms of a Failing PCM
When the PCM is failing, you may notice a loss of power, stalling, or a check engine light with codes such as P0601, which indicates a communication error between the engine and PCM. Misfires, irregular idle, or difficulty starting are also common signs of PCM malfunction in the 2002 Saturn Vue.
Module Trouble Codes on the 2002 Saturn VUE
The 2002 Saturn Vue’s PCM can generate several internal trouble codes. These include P0601 through P062F and P1621, indicating communication or calibration issues.
Factory Service Bulletins Worth Knowing
Service bulletins relevant to the 2002 Saturn Vue PCM include #03065 for OBD system software upgrades and #04-06-04-033/#04-06-04-033A addressing P0440/P0442 EVAP codes. Bulletin #05-07-30-006 covers the SES light with DTC P0742, though this involves the TCM.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | On-Board Diagnostic (OBD) System Software Upgrade (Install Updated Engine Control Module (ECM) | — |
| 04-06-04-033 | Check Engine Light On with P0440 or P0442 Stored (Diagnose Evaporate Emission (EVAP) System and | Some customers may comment that the check engine light is on with diagnostic trouble code (DTC) P0440 (large leak) or P0442 (small leak) stored with no actual… |
| 05-07-30-006 | Service Engine Soon (SES) Telltale Illuminated with Diagnostic Trouble Code (DTC) P0742 Set (Re | Some customers may comment that the Service Engine Soon (SES) telltale may be illuminated with DTC P0742 (TCC Torque Converter – Stuck ON) |
Protecting the PCM in Your 2002 Saturn VUE
- Keep the charging system clean and well‑regulated to avoid voltage spikes.
- Inspect PCM connectors and grounds for corrosion or loose contact.
- Avoid jump‑starting without proper safeguards to protect the PCM.
- Address any check engine codes promptly to prevent further damage.
- Seal connector housings properly to keep moisture out.
Frequently Asked Questions
How long does a PCM replacement take on a 2002 Saturn Vue?
The factory book time for a 3.0L engine is 1.4 hours. The actual time can vary slightly depending on shop conditions.
Do I need to reprogram the PCM after replacement?
Factory procedures require reprogramming to set oil life and calibrations. Flagship One units come VIN‑programmed, so reprogramming is already handled.
What codes should I watch for after a PCM replacement?
Common codes include P0601 through P062F and P1621. If any appear, they indicate communication or calibration issues that should be checked.
Replacing the PCM can restore your 2002 Saturn Vue’s performance. If you prefer a new unit, a refurbished replacement may be a cost‑effective choice. Either option gives you a module that meets factory specifications and keeps your engine running reliably.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Saturn VUE with a lifetime warranty, free shipping and no core charge. The full Saturn VUE module lineup covers other engine configurations as well.
Final Thoughts
For your 2002 Saturn Vue, a proper PCM replacement and programming will return the vehicle to its expected performance. Consider a reputable supplier to ensure quality and compatibility.
