2003 Saturn VUE ECM Replacement Guide and Common Issues

If your 2003 Saturn VUE is experiencing starting problems, stalling, or illumination of the check engine light with specific trouble codes, the Engine Control Module may be the culprit. The ECM serves as the brain of your vehicle’s powertrain, coordinating numerous systems to ensure proper operation and emissions compliance. This guide explains what the ECM does in your specific vehicle, where it is located, the replacement process, and the critical programming steps required after installation. Understanding these details helps you make informed decisions about repair options and what to expect during service.

What the PCM Does in a 2003 Saturn VUE

The Engine Control Module in your 2003 Saturn VUE with the 3.0L V6 engine is the central computer responsible for managing the engine’s combustion process, transmission shifting, emissions systems, and various sensor inputs. It receives data from numerous sensors throughout the powertrain and adjusts fuel delivery, ignition timing, and other parameters in real-time to optimize performance and efficiency. This module also monitors itself through internal diagnostics, storing trouble codes when internal faults are detected. If the ECM fails, your vehicle may not start, may run poorly, or may display multiple electrical symptoms. Because the ECM controls so many interdependent systems, a failure can affect everything from throttle response to transmission operation. When replacing this component, you will need a replacement engine computers for the Saturn VUE that is compatible with your specific vehicle configuration.

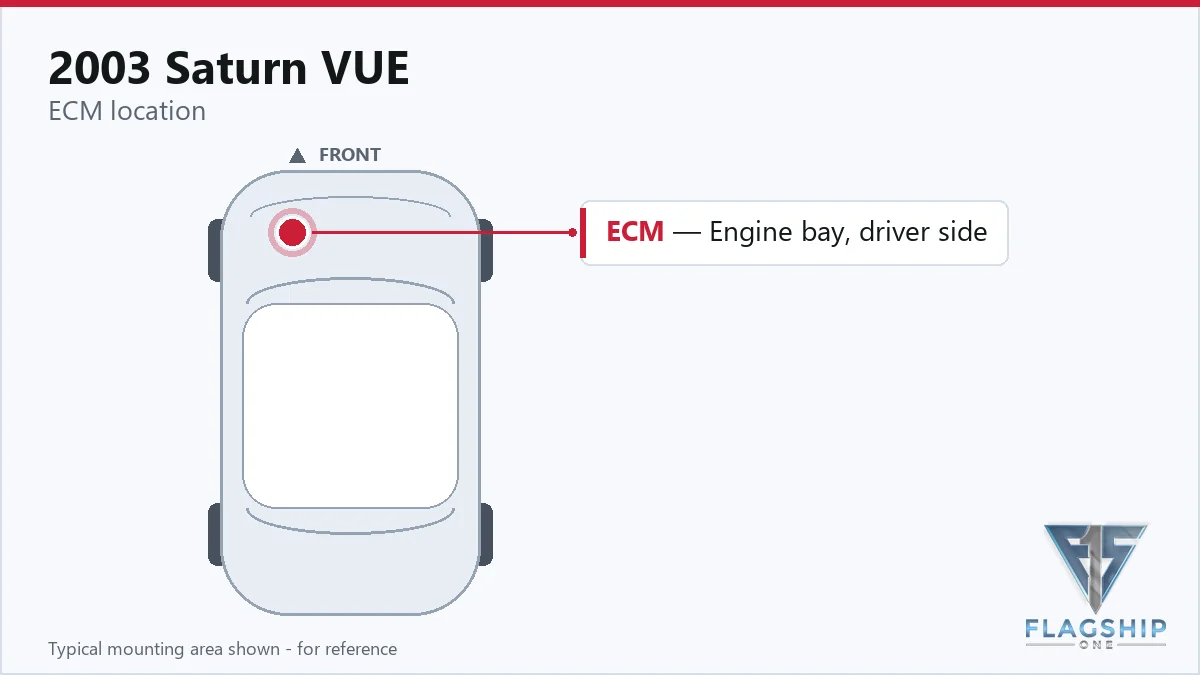

Where the PCM Is Located and What Replacement Involves

The ECM on your 2003 Saturn VUE 3.0L is located next to the air cleaner assembly, requiring removal of the air intake ducting and potentially the cleaner housing itself to gain access. The factory procedure specifies that the original ECM must be checked to confirm it has the correct VIN and vehicle options recorded before removal. Replacement involves disconnecting the electrical harness, removing the old module, installing the new unit, and reconnecting all connectors securely. The book time for ECM R&R on the 3.0L engine is 1.4 hours, with an additional 0.5 hour allocated for the relearn procedure. Proper torque specifications for mounting hardware should be followed to ensure the replacement module remains securely fastened and protected from vibration damage.

Programming Requirements After Replacement

After replacing the ECM on your 2003 Saturn VUE, the factory procedure requires programming the new module with the correct VIN and vehicle-specific options using the Service Stall System. If a new ECM is being installed, it must be reprogrammed with new software and calibrations per the SSS User Guide. Once the reprogramming is complete, the Passlock Relearn Procedure must be performed using the SSS to ensure the anti-theft system recognizes the new module. Additionally, the remaining engine oil life from the original ECM must be recorded and programmed into the replacement unit—if this step is skipped, the oil life monitor will incorrectly default to 100%. When you purchase a a VIN-programmed replacement unit, these programming steps are completed before shipment, meaning the module arrives ready to install with your vehicle’s specific information already configured.

Symptoms of a Failing PCM

When the ECM in a 2003 Saturn VUE begins to fail, common symptoms include a no-start condition where the engine cranks but will not run, intermittent stalling especially at idle, and rough running that may manifest as misfiring or hesitation during acceleration. Many owners report that the scan tool cannot communicate with the vehicle’s systems, or multiple trouble codes may appear simultaneously across different categories. In some cases, the transmission may exhibit harsh shifting or fail to shift properly because the ECM controls shift points. Electrical glitches such as flickering gauges, inoperative accessories, or unexpected warning light illumination can also point to ECM issues. If your vehicle displays any internal memory checksum failure along with drivability concerns, the ECM should be suspect.

Module Trouble Codes on the 2003 Saturn VUE

The 2003 Saturn VUE with this engine is known to store specific module-internal trouble codes that indicate various ECM faults. These include P0601 through P0606, covering memory range, checksum, and calibration issues, plus P062F related to internal control module performance and P1621 concerning the theft deterrent module. When these codes appear without other external causes, the Engine Control Module typically requires replacement.

Factory Service Bulletins Worth Knowing

Two factory service bulletins apply to this vehicle. Bulletin #03065 addresses On-Board Diagnostic System Software Upgrade, recommending installation of updated ECM calibration if required to improve system performance or address known issues. Bulletin #04-07-30-005 covers a hissing or chirping noise in Park or Neutral at idle temperature, which some customers may experience—this condition mimics an alternator belt chirp or vacuum leak and is addressed through new Transmission Control Module calibration. Both bulletins involve software updates that may require ECM or TCM reprogramming.

Protecting the PCM in Your 2003 Saturn VUE

• Maintain the charging system in good condition—alternator overvoltage can damage the ECM
• Ensure all ground connections and electrical connectors are clean and tight
• Avoid jump-starting the vehicle incorrectly, as voltage spikes can harm the module
• Address any check engine light or drivability codes promptly before they worsen
• Keep the engine compartment clean and dry, protecting electrical connections from moisture intrusion

Frequently Asked Questions

Will any ECM fit my 2003 Saturn VUE 3.0L?

No. The replacement ECM must be programmed with your specific VIN and vehicle options. Using an incompatible module may result in no-start, improper operation, or trigger anti-theft codes.

Do I need to reprogram the ECM after installation?

The factory requires reprogramming with correct VIN, options, and software. Units from Flagship One arrive VIN-programmed, eliminating most post-install programming steps except the Passlock relearn.

What happens if I don’t transfer the oil life data?

If the remaining engine oil life is not recorded and programmed into the new ECM, the system defaults to 100%, meaning the oil change reminder will not activate at the correct interval.

When faced with ECM failure on your 2003 Saturn VUE, you have two primary paths: repair the existing module if the damage is minor and reversible, or replace it with a remanufactured or new unit. Remanufactured ECMs from reputable suppliers like Flagship One are disassembled, inspected, cleaned, and have failed components replaced before being reprogrammed with your VIN. This approach typically costs less than a new dealer part while providing comparable reliability. Regardless of your choice, ensure the replacement unit is programmed for your specific vehicle to avoid starting or security issues.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Saturn VUE with a lifetime warranty, free shipping and no core charge. The full Saturn VUE module lineup covers other engine configurations as well.

Final Thoughts

The Engine Control Module is a critical component in your 2003 Saturn VUE, managing essential engine and transmission functions. If you suspect failure based on symptoms or trouble codes, addressing it promptly prevents further drivability issues. Whether you choose replacement or repair, ensure the new unit is properly programmed with your vehicle’s VIN and configuration for reliable operation.
