2006 Saturn VUE PCM & ECM: Replacement & Programming Guide

If your 2006 Saturn VUE with the 2.2L engine is experiencing starting issues, stalling, or dashboard warning lights, the Powertrain Control Module may be the culprit. This comprehensive guide explains what the PCM does, common failure symptoms, and what the factory repair procedure requires. You’ll learn why module replacement is more involved than simply swapping parts, and how programming and relearn procedures factor into the repair. Whether you’re diagnosing a no-start condition or planning a professional repair, this information helps you understand what’s involved and what to expect from the service.

What the PCM Does in a 2006 Saturn VUE

The Powertrain Control Module in your 2006 Saturn VUE with the 2.2L engine is the primary computer responsible for managing all engine and transmission operations. Unlike vehicles that use separate Engine Control Module and Transmission Control Module units, the PCM integrates these functions into one module. It controls fuel injection, ignition timing, emissions systems, torque converter clutch engagement, and shift points for the automatic transmission. This unit stores vehicle-specific calibration data that tells the engine how to run optimally with your specific powertrain. When the internal memory or processor within the PCM fails, the result is often a vehicle that won’t start or run properly, even though all the sensors and mechanical components may be perfectly fine. Replacement requires careful attention to data capture and programming procedures to ensure the new module functions correctly with your vehicle’s specific hardware and software configuration.

Flagship One keeps Saturn VUE replacement engine computers in stock for exactly this failure pattern.

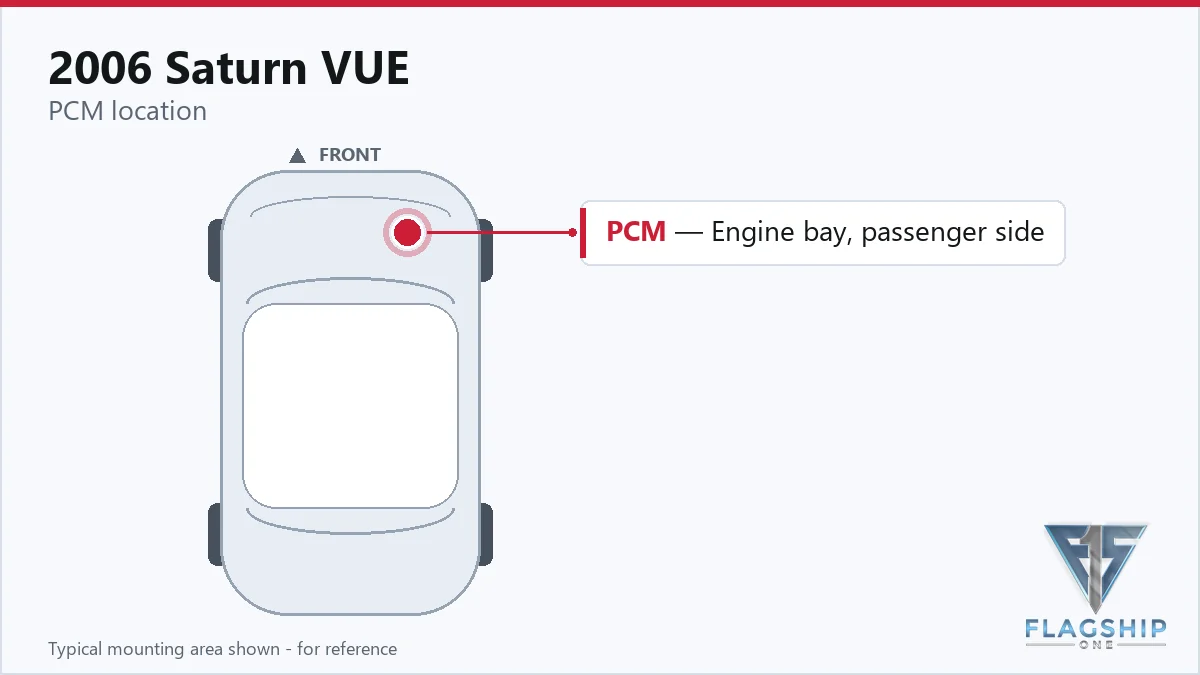

Where the PCM Is Located and What Replacement Involves

The Powertrain Control Module on your 2006 Saturn VUE 2.2L is located in the engine compartment. According to factory procedures, the module must be identified as the PCM in the factory engine-controls component views. The replacement procedure begins with using a scan tool to capture the existing PCM data before removal—this captured data must then be restored into the new PCM. The book time for Powertrain Control Module R&R on the 2.2L engine is 0.5 hours. Following installation, a relearn procedure adding 0.5 hours is required to calibrate the new module to your vehicle. The entire replacement process typically takes around one hour of labor when performed by a qualified technician following proper data capture protocols.

Programming Requirements After Replacement

The factory procedure for your 2006 Saturn VUE requires several programming steps after module replacement. Before removing the old ECM, the existing data must be captured using a scan tool and then restored to the replacement unit. If a new ECM is being installed, it must be reprogrammed with new software and calibrations following the Service Stall System (SSS) user guide procedures. Once the ECM reprogram is complete, the SSS system is used to perform the ECM Passlock Relearn Procedure to ensure the vehicle’s security system recognizes the new module. Flagship One units arrive as a VIN-programmed replacement unit, which means the programming steps the factory requires are already completed before the module ships—you install the pre-programmed unit and perform the relearn procedure without needing to handle software reflash yourself.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the PCM fails on your 2006 Saturn VUE, you’ll typically experience a no-start condition or intermittent stalling that leaves you stranded. The check engine light may illuminate, and diagnostic scan tools might show no communication with the module or display module-internal trouble codes. Common symptoms include rough idle, hesitation under acceleration, and transmission shifting problems that feel like the vehicle is losing its connection to the engine controls. In some cases, the engine may start but run in a reduced-power limp mode. The vehicle may also experience multiple unrelated trouble codes appearing simultaneously, which is a hallmark of internal module failure rather than individual sensor problems. If you see CODE:P0601:internal memory code] in the diagnostic results, this specifically indicates a read-only memory integrity failure within the module itself.

Module Trouble Codes on the 2006 Saturn VUE

Your 2006 Saturn VUE may store module-internal trouble codes that point directly to PCM or ECM problems. These codes indicate various internal faults: P0601 through P0607 cover different memory and processor issues, P060E relates to throttle position sensor integration, P062F indicates internal firmware problems, P1600 and P1621 cover controller area network communication failures, P1627 and P1681 relate to calibration memory faults, and P1683 indicates processor faults. These codes are different from typical sensor or actuator codes and point specifically to problems within the control module itself rather than external components.

Factory Service Bulletins Worth Knowing

Two factory service bulletins apply to your 2006 Saturn VUE’s control module. Bulletin #05-06-04-060 addresses multiple module-internal diagnostic trouble codes including P0601, P0602, P0603, P0604, and P1621 that can appear across the Powertrain Control Module, Engine Control Module, and Transmission Control Module. Bulletin #10285A covers customer satisfaction regarding vehicle vibration—on certain 2005-2007 model year Saturn VUE vehicles equipped with a 5-speed automatic transmission, a transmission torque converter condition may cause a judder or shaking motion between 20 and 45 mph, and the solution involves reprogramming the Powertrain Control Module.

Protecting the PCM in Your 2006 Saturn VUE

• Maintain proper charging system health—weak or overcharging alternators can cause voltage spikes that damage the PCM
• Keep all ground connections clean and secure at the battery, engine, and body grounds
• Avoid jump-starting other vehicles or using booster packs without proper voltage regulation
• Address diagnostic trouble codes promptly rather than ignoring warning lights
• Inspect and maintain intact connector seals to prevent moisture intrusion into the module
• Use quality fuel and keep the fuel system clean to reduce engine operating stresses that can cascade to electronics

When your 2006 Saturn VUE needs a replacement control module, you have two primary options: a new module that requires programming by a dealer or specialty shop, or a remanufactured unit that arrives pre-programmed with your vehicle’s VIN. Flagship One provides VIN-programmed replacement units specifically configured for your 2.2L VUE, eliminating the need for dealer programming appointments. The module typically arrives ready to install, after which a qualified technician performs the relearn procedure to complete the repair.

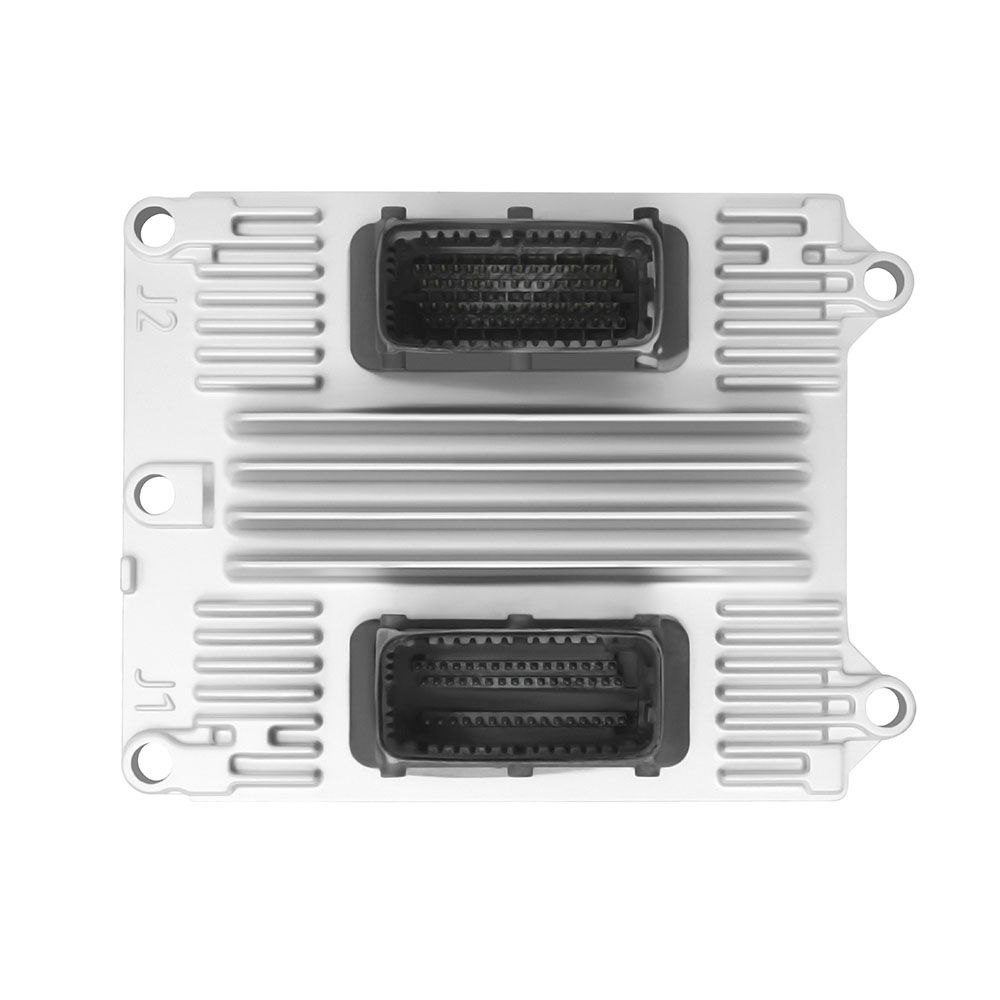

Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Saturn VUE with a lifetime warranty, free shipping and no core charge. The full Saturn VUE module lineup covers other engine configurations as well.

Final Thoughts

Your 2006 Saturn VUE relies on the Powertrain Control Module as the brain of the engine and transmission system. When this unit fails, the vehicle experiences symptoms ranging from no-start conditions to drivability issues and illuminated warning lights. Understanding the factory programming requirements helps you make informed decisions about repair options. Whether you choose professional installation or a pre-programmed replacement unit, addressing PCM problems promptly restores reliable operation to your Saturn VUE.
