1999 Toyota RAV4 Engine Control Module Replacement And Programming

When your 1999 Toyota RAV4 begins to exhibit frustrating drivability issues, such as unexpected stalling or a stubborn no-start condition, the engine control module often emerges as a prime suspect. This critical computer dictates precisely how your engine operates, adjusting fuel delivery and ignition timing to maintain smooth performance. Understanding the function, location, and replacement process for this component can save you significant time and diagnostic frustration. If you suspect a failing unit, learning the specific replacement steps and programming requirements for your SUV thoroughly prepares you for an effective repair. You will discover exactly where the factory positioned this module, what the standard labor times involve, and how to handle the necessary relearn procedures. Armed with this knowledge, you can approach the repair confidently, ensuring your vehicle gets back on the road without unnecessary delays or redundant shop visits. Recognizing the symptoms early and understanding the complete replacement workflow gives you a distinct advantage, whether you plan to handle the physical swap yourself or rely on a trusted professional technician to resolve the issue completely and reliably.

What the PCM Does in a 1999 Toyota RAV4

The engine control module in the 1999 Toyota RAV4 functions as the central processing unit for your entire powertrain management system. It continuously gathers data from various sensors distributed throughout the engine bay, calculating the optimal air-fuel ratio and ignition timing required for efficient combustion. By regulating these vital parameters, the computer ensures your SUV delivers adequate power while maintaining acceptable emissions standards. When this module operates correctly, your engine runs smoothly, responds predictably to throttle inputs, and conserves fuel. However, when internal components degrade due to age or electrical stress, the module can no longer process sensor data accurately. This degradation often leads to poor engine performance or complete operational failure. Because this computer controls such fundamental aspects of engine management, a malfunctioning unit directly impacts vehicle reliability and safety. Replacing a faulty unit with 1999 Toyota RAV4 replacement engine computers restores proper processing capability, allowing your engine to operate exactly as the factory intended. The module also actively manages emission controls and idle speed, ensuring your vehicle complies with environmental regulations while maintaining a stable idle at stoplights. Without a functioning computer, your RAV4 may suffer from severe drivability issues that make daily commuting unpredictable and stressful. Understanding the integral role this component plays helps clarify why addressing failures promptly remains essential for maintaining your vehicle’s overall health and ensuring consistent, dependable performance on every journey you take.

Where the PCM Is Located and What Replacement Involves

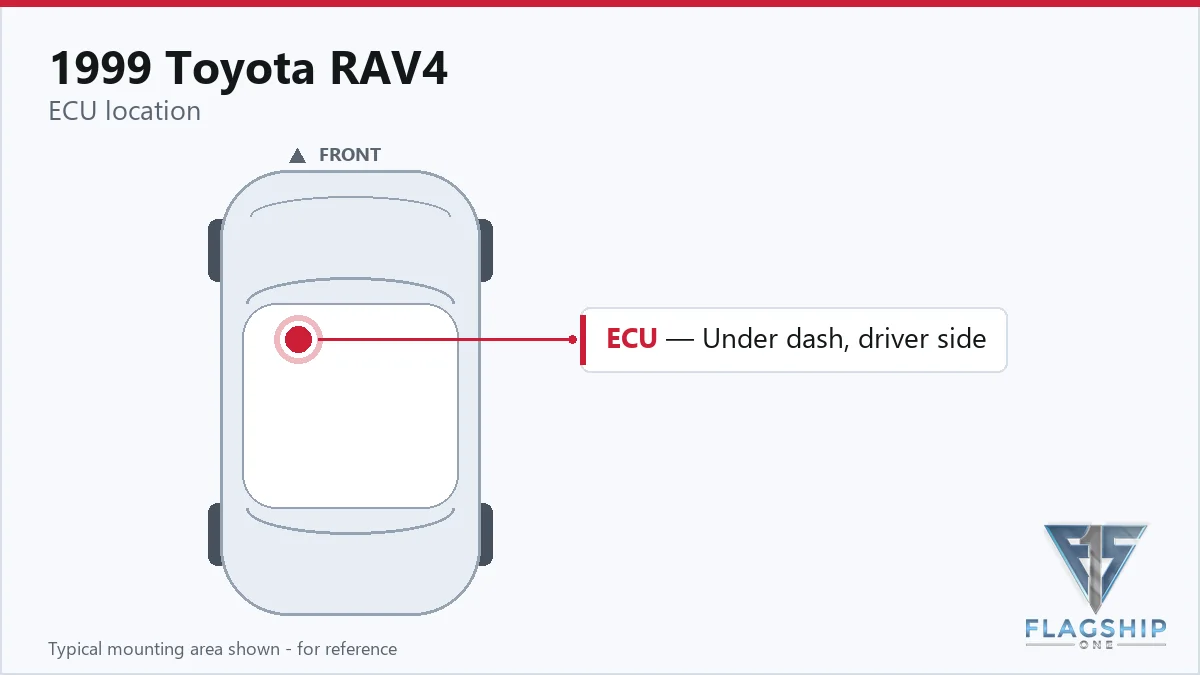

According to the factory wiring guide’s component grid, the engine ECU in your 1999 Toyota RAV4 sits inside the instrument panel. Accessing this unit requires careful disassembly of the dashboard components surrounding the driver’s area to reach the mounting bracket. Once you locate the module within the instrument panel cavity, you must disconnect the vehicle battery to prevent electrical shorts. The removal process involves unlatching the primary wiring harness connectors and unbolting the module from its mounting position. The standard book time for engine control module removal and replacement stands at 0.8 hours. After physically installing the replacement unit, you must perform the required relearn procedure to synchronize the new computer with your vehicle. This relearn process accounts for an additional 0.5 hours of book time. Taking care during the physical removal prevents damage to the delicate connector pins and ensures the new module communicates properly once installed.

Programming Requirements After Replacement

Following the physical installation of a new engine control module, the factory procedure mandates a specific relearn sequence. This relearn process, which requires 0.5 hours of book time, allows the replacement computer to recognize your vehicle’s specific sensor baselines and idle characteristics. Without completing this step, your 1999 Toyota RAV4 may experience erratic idle fluctuations or suboptimal fuel mapping. The factory expects technicians to initiate this sequence using specialized diagnostic equipment to ensure all adaptive strategies reset properly. However, choosing a VIN-programmed replacement unit from Flagship One eliminates the need to perform these post-installation programming steps. Because the unit arrives already configured to your vehicle’s specific identification number, the necessary programming and relearn procedures are already completed before the part ships. This pre-programming advantage significantly reduces the total installation time, removing the 0.5 hours of book time typically required for the relearn process. You simply install the module, connect the battery, and start your engine, bypassing the complicated dealership programming procedures entirely.

Symptoms of a Failing PCM

When the engine control module begins to fail in your 1999 Toyota RAV4, several distinct symptoms often emerge. A persistent no-start condition frequently serves as the most obvious indicator, leaving you stranded when the computer fails to trigger the fuel injectors or ignition coils. You might also experience frequent stalling at idle or while driving, creating unpredictable and potentially hazardous situations in traffic. Misfire codes commonly appear during diagnostic scans, pointing to the module’s inability to correctly calculate ignition timing for the cylinders. Furthermore, a failing computer often causes dead scan-tool communication, preventing your mechanic from retrieving vital diagnostic data from the vehicle’s data link connector. Shifting issues may also occur if the unit struggles to coordinate transmission functions, causing harsh or delayed gear changes. You could notice a sudden drop in fuel economy, as the engine runs rich when the module defaults to a safe fuel map. Intermittent rough running or hesitation during acceleration further suggests internal processor degradation. Because these symptoms can mimic faulty sensors or wiring problems, thorough diagnostics remain essential before condemning the module. However, when multiple electrical symptoms appear simultaneously, the engine computer becomes a highly probable cause. Recognizing these specific drivability warnings early helps you address the underlying computer failure before it completely disables your vehicle and leads to costly towing expenses.

Protecting the PCM in Your 1999 Toyota RAV4

• Maintain your charging system health, ensuring the alternator neither overcharges nor undercharges the battery.
• Keep electrical grounds and wiring harness connectors clean to prevent voltage fluctuations that stress the module.
• Avoid jump-starting your vehicle with excessively high voltage, which can instantly spike and damage sensitive circuitry.
• Address illuminated check engine lights promptly before minor issues cascade into computer-damaging electrical problems.
• Inspect and maintain the connector seals to prevent moisture intrusion, which causes internal corrosion over time.
• Ensure the battery is properly secured, as vibrations can loosen terminals and create damaging power surges.

Frequently Asked Questions

Where is the engine control module located in the 1999 Toyota RAV4?

The factory wiring guide places the engine ECU inside the instrument panel. You must access it by carefully disassembling the dashboard components to reach the mounting location.

What is the standard book time for replacing the engine control module in a 1999 Toyota RAV4?

The industry book time for engine control module removal and replacement is 0.8 hours. An additional 0.5 hours of book time applies if you must perform the relearn procedure.

Does a replacement engine control module for the 1999 Toyota RAV4 require programming?

Yes, the factory procedure requires a relearn sequence to synchronize the new computer with your vehicle. This relearn process typically requires 0.5 hours of labor when performed at a service facility.

What are the common symptoms of a failing engine control module in the 1999 Toyota RAV4?

Common symptoms include a persistent no-start condition, unexpected stalling, misfire codes, and dead scan-tool communication. You might also experience shifting issues or significant drops in fuel economy.

Can I drive my 1999 Toyota RAV4 with a faulty engine control module?

Driving with a malfunctioning computer is generally not recommended due to unpredictable stalling and shifting issues. These drivability problems create hazardous situations, making it safer to repair the vehicle before continuing regular use.

Deciding between an expensive dealership repair and a reliable refurbished replacement for your 1999 Toyota RAV4 often comes down to cost and convenience. A pre-programmed replacement unit eliminates the need for costly dealership programming, getting your SUV back on the road faster. Choosing a refurbished option provides a dependable solution without the premium price tag of a brand-new part, restoring proper vehicle operation efficiently.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1999 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.

Final Thoughts

Addressing engine control module issues in your 1999 Toyota RAV4 promptly prevents frustrating no-start conditions and unpredictable stalling. Understanding the module location, replacement times, and programming requirements prepares you for a smooth repair process. Consider exploring a pre-programmed replacement unit to simplify the installation process, bypass complicated relearn procedures, and restore your vehicle’s drivability quickly and reliably. Replacing your faulty computer restores the precise engine management your SUV requires.
