2001 Saturn S-Series PCM Programming Installation
In the 2001 Saturn S-Series the Powertrain Control Module manages engine timing, fuel delivery, and transmission shift strategy. A failure typically disables communication with the engine, leading to no‑start conditions, erratic idle, or loss of gear control.
Quick Summary
- PCM removal or replacement generally requires about 0.7 hours of labor.
- Relearn procedures after install add roughly 0.5 hours per module.
- A new PCM must be reprogrammed and the ignition cycled before the engine will start.
- Factory service bulletins address calibration and labor‑code clarifications.
When a 2001 Saturn S-Series exhibits PCM‑related symptoms, the repair path often involves removal, replacement, and a post‑install reprogram. This guide explains what the module does, where it lives, how much work is typical, and what factory steps are required after a new unit is fitted. Following the information helps you understand the process and decide between a new factory‑programmed part or a refurbished alternative.
What the PCM Does in a 2001 Saturn S-Series
The Powertrain Control Module in the 2001 Saturn S-Series controls engine ignition timing, fuel injection, and transmission shift logic. It receives sensor data and sends commands to keep the powertrain running smoothly. Because it coordinates critical functions, a malfunction can prevent the vehicle from starting or cause shifting irregularities. Proper operation is essential for emissions compliance and drivability. The module is one of the replacement engine modules for Saturn that must be correctly calibrated to the vehicle’s systems.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted in the engine compartment and is accessed by disconnecting the negative battery cable as a safety precaution. Removal and installation each typically require 0.7 hours of labor according to the shop manual. After the unit is seated, a relearn procedure of about 0.5 hours is needed to synchronize the module with the body control system. No additional torque specifications are provided in the available data.

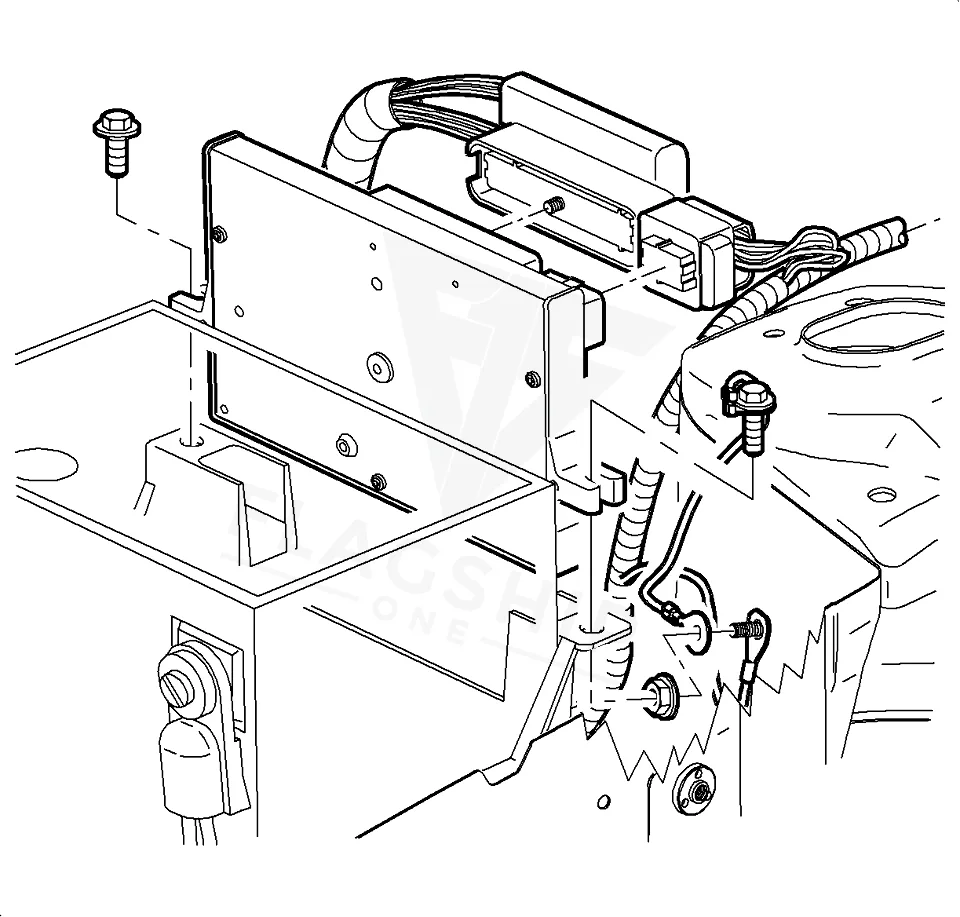

How to Reach the PCM on the 2001 Saturn S-Series
- Disconnect the negative battery cable.
- Disconnect the PCM J2 black 28-way harness.
- Remove the PCM J1 black 80-way connector bolt and.
- Remove the powertrain control module (PCM) attachment bolts.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | SC2 | 0.7 hr |
| Engine Control Module R&R | SL2 | 0.7 hr |
| Engine Control Module R&R | SW2 | 0.7 hr |
| Engine Control Module Relearn | SC2 | 0.5 hr |
| Engine Control Module Relearn | SL2 | 0.5 hr |
| Engine Control Module Relearn | SW2 | 0.5 hr |
| Powertrain Control Module R&R | SC2 | 0.7 hr |
| Powertrain Control Module R&R | SW2 | 0.7 hr |
Programming Requirements After Replacement
After a new PCM is installed in a 2001 Saturn S-Series, the factory procedure calls for a full reprogramming of the module followed by an ignition cycle to complete the Passlock password learning. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated, eliminating the need for on‑site software updates.
Symptoms of a Failing PCM
Typical signs of a failing PCM in this vehicle include a no‑start condition, rough idle, unexpected stalling, and transmission shift delays. Diagnostic scans often reveal communication loss and may set codes such as processor fault indicating internal processor issues. Addressing these symptoms promptly can prevent further drivetrain problems.
Module Trouble Codes on the 2001 Saturn S-Series
The following diagnostic trouble codes are commonly associated with PCM failures in the 2001 Saturn S-Series:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
| P1624 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service Bulletin #00‑T‑71 (Jan 7 2003) discusses calibration procedures for 2000‑2001 S‑Series powertrain modules. Bulletin #07‑00‑89‑043 (Aug 23 2007) clarifies warranty administration for parts and calibrations not issued through GM. Bulletin #03‑00‑89‑025 (Aug 29 2003) provides guidance on labor codes used during controller reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Information Regarding 2000-2001 S Series Powertrain Control Module Calibrations – (Jan | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
| 03-00-89-025 | Info – Clarification of Labor Codes Used for Reprogramming Vehicle Controllers – (Aug 29, 2003) | — |
Protecting the PCM in Your 2001 Saturn S-Series
- Maintain a healthy charging system to avoid voltage spikes.
- Keep ground straps and connector pins clean and tight.
- Use proper jump‑start techniques to protect module electronics.
- Address any PCM‑related codes as soon as they appear.
- Inspect connector seals regularly for moisture intrusion.
Frequently Asked Questions
What should I do before removing the PCM on a 2001 Saturn S-Series?
Disconnect the negative battery cable first, as recommended by the factory caution, to prevent electrical damage during removal.
Is a reprogram required after installing a new PCM in this vehicle?
Yes, the new PCM must be reprogrammed and the ignition cycled to allow the engine to start, per the factory procedure.
Can a refurbished PCM be used without additional programming?
A refurbished unit that is VIN‑programmed will already contain the necessary calibrations, eliminating the on‑site reprogram step.
When the PCM fails, you can choose a brand‑new, factory‑programmed replacement or a refurbished unit that meets the same specifications. Both options restore the vehicle’s control logic, but a refurbished part may offer a quicker turnaround if it arrives pre‑programmed for your VIN.

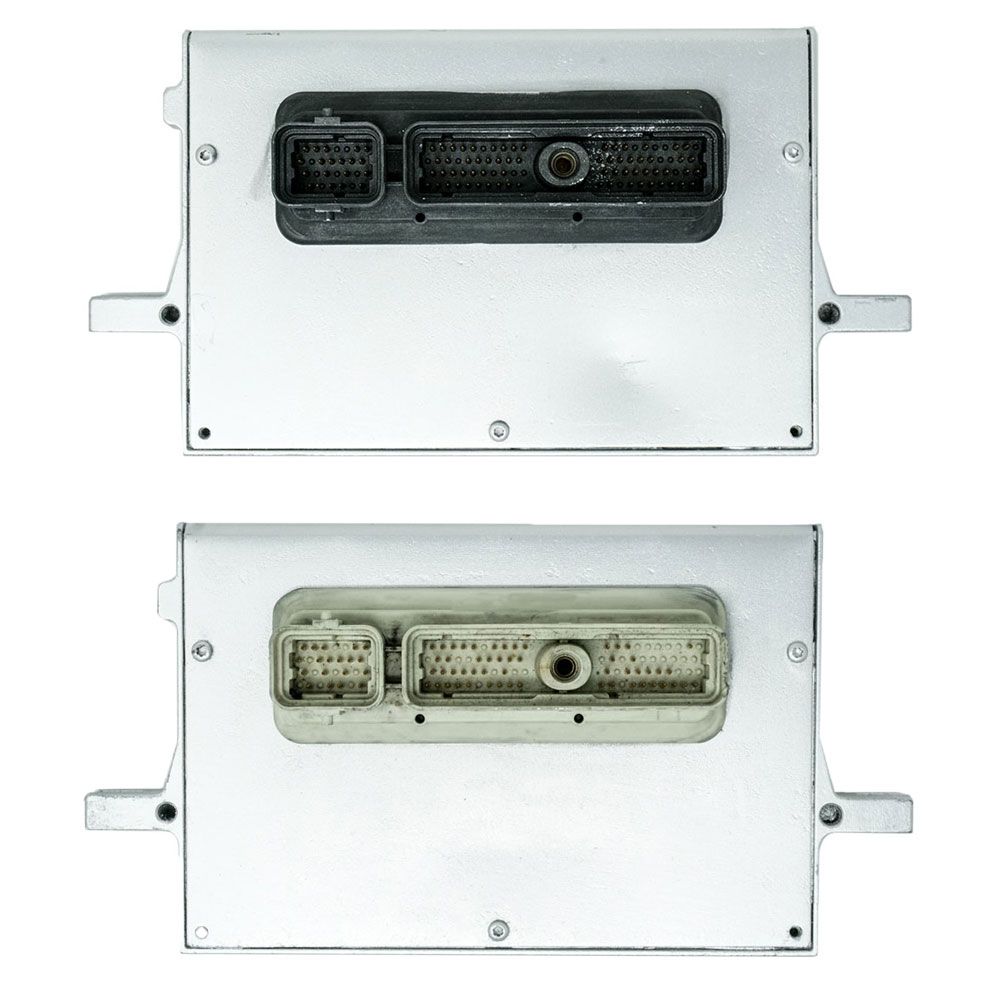

Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Saturn S-Series with a lifetime warranty, free shipping and no core charge. The full Saturn S-Series module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM on your 2001 Saturn S-Series restores essential engine and transmission functions. Consider the benefits of a VIN‑programmed replacement to simplify the post‑install steps and get back on the road sooner.
