1998 Saturn S-Series PCM/ECM Replacement and Reprogramming Guide

If your 1998 Saturn S-Series is experiencing unexplained stalling, rough idling, or a no-start condition, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be the culprit. These modules act as the brain of your vehicle’s engine management system, regulating fuel injection, ignition timing, and emissions controls. Over time, electrical wear or environmental factors can degrade their performance, leading to drivability issues or even leaving you stranded. Replacing or reprogramming the module is a precise process, requiring careful handling to avoid damaging interior components or losing radio presets. Understanding the steps involved—from locating the module to completing the relearn procedure—can help you make an informed decision about repairs. Whether you’re a DIY enthusiast or relying on a professional, knowing what to expect ensures your Saturn runs reliably after the job is done.

What the PCM Does in a 1998 Saturn S-Series

The Powertrain Control Module (PCM) or Engine Control Module (ECM) in your 1998 Saturn S-Series is responsible for managing the engine’s fuel, ignition, and emissions systems. It continuously monitors sensors throughout the vehicle, adjusting parameters like air-fuel ratio and spark timing to optimize performance and efficiency. When this module fails, you may notice symptoms such as poor acceleration, misfires, or even a complete inability to start the engine. The PCM also plays a role in diagnostics, storing trouble codes when it detects anomalies in engine operation. For example, if the module’s internal memory becomes corrupted, it may trigger a replacement engine computers for the Saturn S-Series to restore proper function. Without a fully operational PCM, your vehicle may run poorly or fail emissions tests, making timely replacement or repair essential for dependable operation.

Where the PCM Is Located and What Replacement Involves

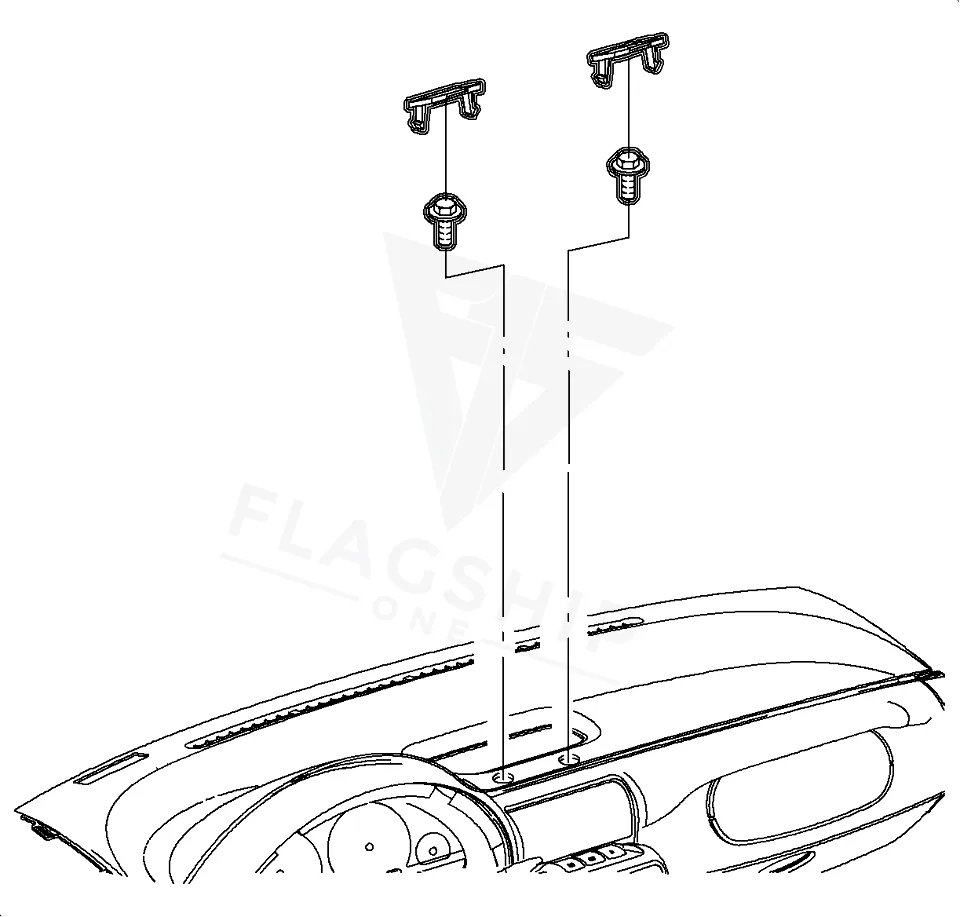

In the 1998 Saturn S-Series, the PCM or ECM is located behind the instrument panel’s upper trim pad, near the center of the dashboard. To access it, you’ll need to carefully remove the upper trim panel, taking care not to damage the VIN plate or the trim seal. The factory recommends disconnecting the negative battery cable before starting the procedure to prevent electrical shorts or data loss. Once the trim is removed, the module can be unbolted and disconnected from its wiring harness. Reinstallation follows the reverse process, with the module secured in place and the trim panel reinstalled. Labor estimates for removal and replacement (R&R) are typically 0.7 hours, regardless of whether your Saturn is an SC2, SW2, or SL2 model. After installation, a relearn procedure may be required, which adds another 0.5 hours to the job.

Programming Requirements After Replacement

After replacing the PCM or ECM in your 1998 Saturn S-Series, the module must be reprogrammed with the correct software and calibrations to match your vehicle’s VIN. This step ensures the new unit communicates properly with the engine’s sensors and other onboard systems. The factory procedure involves using specialized diagnostic equipment to upload the latest software, which can be time-consuming and requires access to manufacturer-specific tools. However, when you install a VIN-programmed replacement unit, this step is already completed, saving you the hassle of on-site programming. This not only reduces labor time but also minimizes the risk of compatibility issues, ensuring your Saturn runs as intended from the moment the new module is installed.

Symptoms of a Failing PCM

When the PCM or ECM in your 1998 Saturn S-Series begins to fail, you may experience a range of drivability issues. Common symptoms include intermittent stalling, especially at idle or during deceleration, as the module struggles to maintain proper fuel and ignition timing. The engine may also misfire, causing rough acceleration or a noticeable loss of power. In some cases, the vehicle may fail to start altogether, leaving you with a cranking engine that refuses to fire. Another telltale sign is the illumination of the Malfunction Indicator Lamp (MIL), often accompanied by stored trouble codes. For instance, a memory integrity fault may appear, indicating internal corruption within the module’s software. Additionally, you might notice erratic shifting if the transmission control functions are affected, or the engine may run excessively rich or lean, leading to poor fuel economy. If your scan tool fails to communicate with the PCM, that’s another strong indicator of module failure. Addressing these symptoms promptly can prevent further damage to other engine components and restore your Saturn’s reliability.

Factory Service Bulletins Worth Knowing

Several factory service bulletins (TSBs) address issues related to the Powertrain Control Module (PCM) in the Saturn S-Series and similar vehicles. Bulletin #96-T-46B, issued in June 1998, covers PCM and antilock brake system concerns for models from 1991 to 1997, though it may still offer relevant insights for the 1998 model year. Another bulletin, #03-00-89-025, clarifies labor codes used for reprogramming vehicle controllers, which can be useful if you’re dealing with software updates or module replacements. Additionally, #06-06-04-037 explains the normal behavior of the Malfunction Indicator Lamp (MIL) during OBD inspections, helping you understand when the light’s activity is expected versus when it signals a problem. While these bulletins don’t directly address the 1998 Saturn S-Series, they provide context for common PCM-related procedures and diagnostics.

Protecting the PCM in Your 1998 Saturn S-Series

• Keep your vehicle’s charging system in good condition to prevent voltage spikes that may damage the PCM.
• Regularly inspect and clean electrical connectors to ensure a solid connection and prevent corrosion.
• Avoid jump-starting your Saturn with improper voltage, as this can overload the module’s circuitry.
• Address any stored trouble codes promptly to prevent cascading failures in other engine systems.
• Ensure the PCM’s connector seals remain intact to protect against moisture and debris.
• Disconnect the battery before performing any electrical work to avoid accidental shorts or data loss.

Frequently Asked Questions

Why does my 1998 Saturn S-Series stall after replacing the PCM?

Stalling after a PCM replacement often occurs if the module wasn’t properly reprogrammed or if the relearn procedure wasn’t completed. The engine relies on the PCM to manage fuel and ignition timing, so any mismatch in calibrations can cause erratic behavior. Ensure the new unit is programmed to your vehicle’s VIN and that the relearn steps are followed.

Can I drive my 1998 Saturn S-Series with a bad PCM?

Driving with a failing PCM is risky, as it may lead to poor engine performance, stalling, or even a no-start condition. In some cases, the vehicle may enter a limp-home mode, limiting power to prevent damage. However, continued driving with a faulty module can cause further issues, such as catalytic converter failure or transmission problems.

How do I know if my 1998 Saturn S-Series PCM needs to be reprogrammed?

If your Saturn is experiencing drivability issues like rough idling, misfires, or poor acceleration, the PCM may need reprogramming. A scan tool can check for stored trouble codes, such as those related to fuel trim or ignition timing. If the module’s software is outdated or corrupted, reprogramming may resolve these issues without requiring a full replacement.

What’s the difference between the PCM and ECM in my 1998 Saturn S-Series?

In the 1998 Saturn S-Series, the terms PCM (Powertrain Control Module) and ECM (Engine Control Module) are often used interchangeably, as the module handles both engine and transmission control functions. The PCM manages fuel injection, ignition timing, and emissions systems, while also overseeing transmission shifting in automatic models. Both terms refer to the same physical unit in this vehicle.

Why does my 1998 Saturn S-Series lose radio presets when the PCM is replaced?

The radio presets and clock settings are stored in the vehicle’s memory, which relies on a constant power supply from the battery. When the negative battery cable is disconnected during PCM replacement, this memory is cleared. The factory recommends recording your radio stations and clock time before starting the job to avoid losing these settings.

If your 1998 Saturn S-Series is showing signs of PCM or ECM failure, you have a few options to consider. A repair shop can attempt to reprogram the existing module, though this may not resolve internal hardware issues. Alternatively, replacing the unit with a new or refurbished module ensures reliable performance, especially if the replacement is pre-programmed to your vehicle’s VIN. Given the labor involved in accessing and reinstalling the module, choosing a unit that eliminates the need for on-site programming can save time and reduce the risk of complications.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Saturn S-Series with a lifetime warranty, free shipping and no core charge. The full Saturn S-Series module lineup covers other engine configurations as well.

Final Thoughts

The Powertrain Control Module or Engine Control Module in your 1998 Saturn S-Series plays a critical role in keeping your engine running smoothly. Whether you’re dealing with stalling, misfires, or a no-start condition, addressing PCM issues promptly can restore your vehicle’s reliability. With the right replacement unit and proper installation, your Saturn can continue to deliver dependable performance for miles to come. If you’re ready to tackle the job, ensure you follow the factory cautions and consider a pre-programmed module to simplify the process.
