2000 Chevrolet Suburban 5.3L PCM Replacement Guide
The Powertrain Control Module in the 2000 Chevrolet Suburban 5.3L manages fuel delivery, ignition timing, and engine load sensing. When it fails, the engine may misfire, stall, or refuse to start, and diagnostic tools often lose communication with the vehicle.
Quick Summary
- PCM controls engine and transmission functions.
- Replacement requires disconnecting battery and key.
- Book times are 0.5–1.4 hours for relearn or reset.
- A new module must be programmed to match the vehicle.
- Failure codes include P0601, P0602, and others.
You’ve probably noticed that your 2000 Chevrolet Suburban 5.3L is acting up—perhaps it won’t start, stalls during idle, or the check‑engine light flashes with odd codes. These symptoms can stem from a malfunctioning Powertrain Control Module, the brain that coordinates fuel injection, ignition timing, and many sensor inputs. Understanding how the PCM works, where it sits, and what to do after replacement will help you avoid costly mistakes. By the end of this guide, you’ll know the exact steps to safely remove the old unit, install a new one, and why a factory‑programmed unit from Flagship One eliminates extra steps. You’ll also see how to spot trouble early and keep your Suburban running smoothly.
What the PCM Does in a 2000 Chevrolet Suburban
The PCM in the 2000 Chevrolet Suburban 5.3L is the central electronic unit that processes input from sensors such as crankshaft position, throttle position, and coolant temperature, then sends signals to the fuel injectors and ignition coils to keep the engine running efficiently. It also communicates with the transmission control module to adjust shift timing. replacement engine computers for the 2000 Chevrolet Suburban 5.3L If the PCM’s internal memory is corrupted or its firmware is out of sync, the engine can misfire, stall, or fail to start, and the diagnostic scanner may report codes like P0601 or P0602.
Where the PCM Is Located and What Replacement Involves
The PCM is located under the passenger side of the dashboard, close to the steering column. To replace it, the vehicle’s key must be removed and the ignition turned off. The battery cable is disconnected first, followed by the PCM pigtail, the PCM fuse, and any jumper cables. The new unit is then installed in the same cavity and all connections are re‑attached. After installation, the engine control module relearn procedure should be performed, which typically takes 0.5 hours for relearn or 1.4 hours for reset, depending on the specific task required.

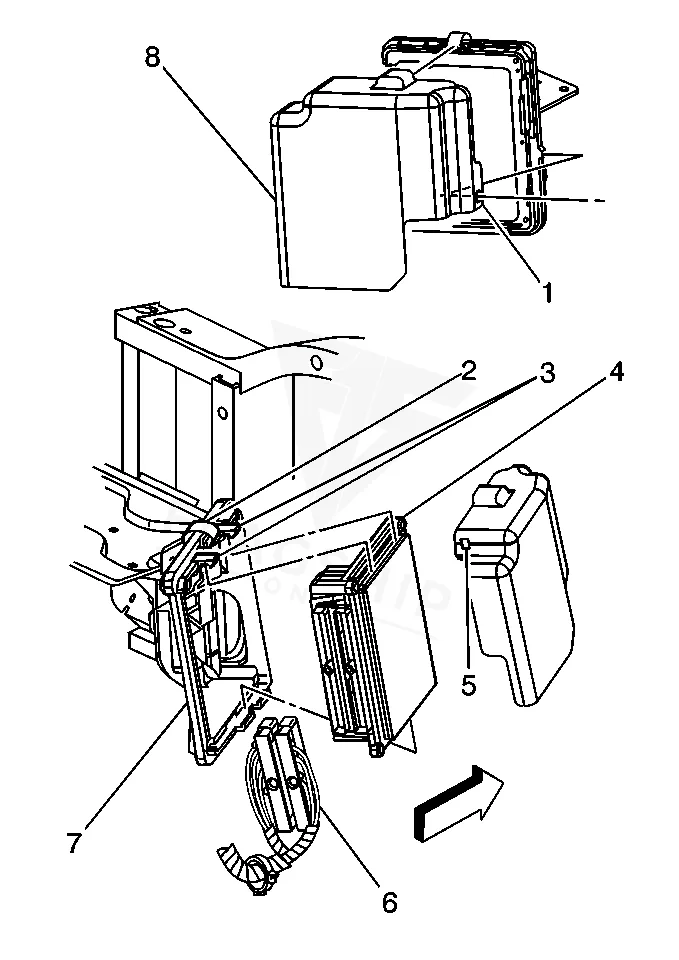

How to Reach the PCM on the 2000 Chevrolet Suburban
- Remove any debris from the PCM connector surfaces before.
- Release the PCM cover mounting holes (1,5) away.
- Release the PCM cover from the mounting.
- Remove the PCM cover.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the.
- Remove the PCM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | Suburban 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Suburban 2500 | 0.5 hr |
| Engine Control Module R&R | Suburban 1500 | 1.4 hr |
| Engine Control Module R&R | Suburban 2500 | 1.4 hr |
| Engine Control Module Relearn | Suburban 1500 | 0.5 hr |
| Engine Control Module Relearn | Suburban 2500 | 0.5 hr |
| Engine Control Module Reset | Suburban 1500 | 0.3 hr |
| Engine Control Module Reset | Suburban 2500 | 0.3 hr |
Programming Requirements After Replacement
Once a new PCM is installed, it must be programmed to match the 2000 Chevrolet Suburban’s VIN and remaining oil life. Flagship One units come pre‑programmed with the vehicle’s VIN and oil‑life data, so the relearn and reset steps outlined above are already fulfilled. During the factory procedure, the PCM would normally be set to a 100% oil life if not programmed. The pre‑programmed replacement eliminates this requirement, saving you time and reducing the risk of a mis‑programmed unit.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Common signs that the PCM in your 2000 Chevrolet Suburban 5.3L is failing include a sudden loss of engine power, rough idling, and intermittent stalling. The vehicle may also refuse to start, or the check‑engine light may illuminate with generic codes. When the PCM is damaged, the scanner can lose communication, presenting a blank or error message. PCM EEPROM Not Programmed or Malfunctioning If you notice any of these symptoms, consider having the PCM inspected or replaced.
Module Trouble Codes on the 2000 Chevrolet Suburban
The 2000 Chevrolet Suburban 5.3L may generate several internal trouble codes that indicate PCM or ECU problems. The list below includes the most common codes you might encounter.
Protecting the PCM in Your 2000 Chevrolet Suburban
- Keep the charging system in good condition to prevent voltage spikes.
- Inspect all ground straps and connector pins for corrosion.
- Avoid jump‑starting the vehicle with a damaged battery cable.
- Respond quickly to any diagnostic codes to prevent further damage.
- Check and replace worn connector seals to maintain a proper connection.
- Ensure the battery is fully charged before starting the engine.
Frequently Asked Questions
What steps should I take if my 2000 Chevrolet Suburban 5.3L shows a P0601 code?
A P0601 code indicates the PCM EEPROM is not programmed. First, verify the battery is connected and the key is in the OFF position. Then, remove and reinstall the PCM following the book times, and confirm the module is properly programmed. If the code persists, a replacement PCM may be required.
How long does the relearn procedure take for a new PCM in my 2000 Chevrolet Suburban 5.3L?
The relearn procedure typically requires about 0.5 hours for the PCM relearn and an additional 0.5 hours for the engine control module relearn, according to the book times for the 2000 Suburban 5.3L.
Is it safe to work on the PCM while the ignition is on?
No. The factory caution states that the ignition must be OFF when disconnecting or reconnecting power to the PCM to avoid internal damage. Always turn the key to the OFF position and disconnect the battery first.
What happens if the new PCM is not programmed with the remaining oil life?
If the PCM is not programmed with the remaining oil life, the engine oil life will default to 100%. This may mislead the driver into overusing the oil and can affect engine longevity.
Can I use a generic replacement PCM for my 2000 Chevrolet Suburban 5.3L?
A generic unit may lack the specific programming required for your vehicle’s VIN and oil‑life data. Flagship One’s VIN‑programmed units are designed to match the 2000 Suburban 5.3L’s specifications, reducing the risk of compatibility issues.
Replacing the PCM in your 2000 Chevrolet Suburban 5.3L can be done by a skilled technician or a knowledgeable DIYer with the right tools. If you prefer a quick fix, a refurbished PCM may be a viable option, but it must still be properly programmed. For peace of mind, a Flagship One VIN‑programmed unit offers a reliable, factory‑matched replacement that eliminates additional programming steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2000 Chevrolet Suburban with a lifetime warranty, free shipping and no core charge. The full Chevrolet Suburban module lineup covers other engine configurations as well.
Final Thoughts
Your 2000 Chevrolet Suburban 5.3L deserves reliable engine control. By understanding the PCM’s role, following safe replacement steps, and choosing a pre‑programmed unit, you can keep your vehicle running smoothly and avoid costly downtime.
