2002 Chevrolet Suburban PCM Replacement Guide
The PCM in a 2002 Chevrolet Suburban controls engine timing, fuel delivery, and transmission shift logic. A malfunctioning PCM can trigger engine misfires, loss of power, or failure to start, compromising vehicle safety.
Quick Summary
- The PCM and ECM each take 1.4 hours to replace in this model.
- Relearn procedures for both modules require an additional 0.5 hours.
- The battery must be disconnected during module removal to protect the PCM.
- Unprogrammed PCM modules produce DTC P0601 and P0602.
- Engine oil life must be recorded before installation to avoid resetting to 100%.
If your 2002 Chevrolet Suburban has been acting up with misfires, stalling, or a dead diagnostic port, the Powertrain Control Module (PCM) may be at fault. This guide walks you through what the PCM does, why its reliability matters, and how to replace it safely. By the end of this article you will understand the labor involved, the precautions to take, and how Flagship One’s VIN‑programmed units simplify the process.
What the PCM Does in a 2002 Chevrolet Suburban
The PCM in a 2002 Chevrolet Suburban coordinates engine and transmission functions, interpreting sensor data to adjust fuel injection, ignition timing, and shift points. It also stores diagnostic trouble codes and communicates with the driver‑information display. 2002 Chevrolet Suburban PCM replacement is a critical component; a failure can lead to engine misfires, sudden loss of power, or a complete shutdown. The module’s internal logic depends on accurate sensor input and proper calibration, so any damage or misprogramming can disrupt the vehicle’s performance and safety systems.
Where the PCM Is Located and What Replacement Involves
The PCM is located under the driver’s side dash, behind the steering column cover. To access it, remove the steering column panel and lift the PCM cover. The replacement job requires 1.4 hours of labor for removal and reinstallation. For the engine control module, the process is similar and takes the same amount of time. After the unit is in place, a 0.5‑hour relearn procedure is needed to reset operating parameters.

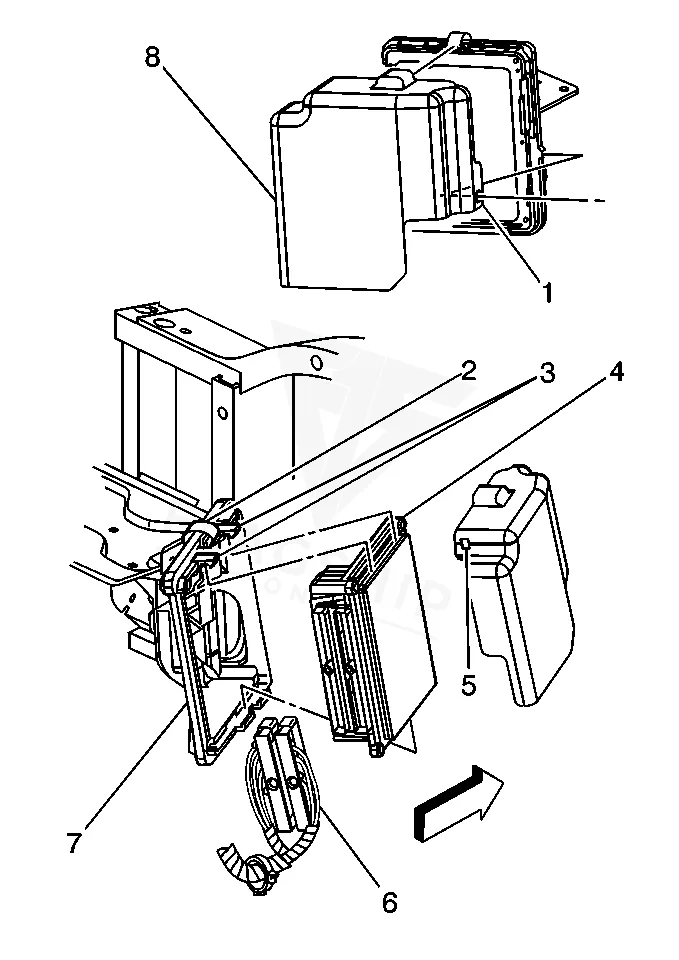

How to Reach the PCM on the 2002 Chevrolet Suburban
- Remove any debris from the PCM connector surfaces before.
- Release the PCM cover mounting holes (1,5) away.
- Release the PCM cover from the mounting.
- Remove the PCM cover.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the.
- Remove the PCM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Suburban 1500 | 1.4 hr |
| Powertrain Control Module R&R | Suburban 2500 | 1.4 hr |
| Powertrain Control Module Relearn | Suburban 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Suburban 2500 | 0.5 hr |
| Engine Control Module R&R | Suburban 1500 | 1.4 hr |
| Engine Control Module R&R | Suburban 2500 | 1.4 hr |
| Engine Control Module Relearn | Suburban 1500 | 0.5 hr |
| Engine Control Module Relearn | Suburban 2500 | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory requires a relearn of the module’s internal maps. Flagship One units arrive VIN‑programmed, so that relearn step is already completed. The technician simply mounts the unit and verifies communication. VIN‑programmed replacement unit ensures the PCM and ECM operate with the correct vehicle data and that no additional programming is necessary.
Symptoms of a Failing PCM
A faulty PCM in a 2002 Chevrolet Suburban can manifest as engine misfires, poor acceleration, or the vehicle refusing to start. You may also notice a sudden drop in power or irregular transmission shifts. When the PCM is damaged, the scan tool will report a dead port and may display trouble codes such as PCM EEPROM not programmed. These symptoms are typical of a module that has lost its internal memory or is unable to communicate with the rest of the vehicle.
Module Trouble Codes on the 2002 Chevrolet Suburban
The 2002 Chevrolet Suburban’s PCM and ECM can produce a range of internal trouble codes, including P0601 through P1683, indicating various memory and communication issues.
Protecting the PCM in Your 2002 Chevrolet Suburban
- Maintain a healthy charging system to avoid voltage spikes.
- Keep all connector grounds clean and free of corrosion.
- Avoid using jump‑start cables on the PCM power leads.
- Respond promptly to any diagnostic codes that appear.
- Inspect connector seals for wear before each service.
- Use proper torque settings when reinstalling modules.
Frequently Asked Questions
Will I need to reprogram the PCM after replacement on my 2002 Chevrolet Suburban?
Because Flagship One units are VIN‑programmed, the relearn step is already completed. The technician simply mounts the unit and verifies communication; no additional programming is required.
What should I do if my Suburban shows DTC P0601 after a PCM replacement?
Check that the battery is disconnected during removal and that all power connections are secure. If the code persists, confirm the unit is correctly installed and that the ECU is receiving proper voltage.
How long does the PCM replacement take on a 2002 Suburban?
The labor book time for replacing the PCM is 1.4 hours, with an additional 0.5 hours for the relearn procedure.
Does the PCM replacement affect engine oil life tracking?
Yes, the remaining engine oil life must be recorded before installing a new PCM. If not programmed, the engine oil life defaults to 100%.
Can I use a refurbished PCM instead of a new one?
A refurbished unit may be available, but it must be properly inspected and tested for reliability. Flagship One offers new, VIN‑programmed modules that guarantee compatibility.
Replacing the PCM on a 2002 Chevrolet Suburban can be handled by a skilled mechanic or with a refurbished unit from a reputable source. If you need a quick, reliable solution, consider a Flagship One VIN‑programmed replacement that eliminates extra steps and ensures proper calibration for your specific vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Chevrolet Suburban with a lifetime warranty, free shipping and no core charge. The full Chevrolet Suburban module lineup covers other engine configurations as well.
Final Thoughts
The 2002 Chevrolet Suburban’s PCM is essential for engine and transmission coordination. By following the outlined steps and precautions, you can restore reliable performance and avoid costly downtime.
