2003 Chevrolet Suburban PCM Replacement: Symptoms, Labor, and Programming
The powertrain control module (PCM) in your 2003 Chevrolet Suburban manages engine and transmission functions. When it fails, you may experience no-start, stalling, poor shifting, or diagnostic trouble codes like P0601. Replacement requires careful handling to avoid internal damage.
Quick Summary
- Replacement labor is 1.4 hours for both 1500 and 2500 models.
- A 0.5-hour relearn procedure is required after installation.
- Record remaining engine oil life before removal to avoid default to 100%.
- Ignition must be off when disconnecting or reconnecting the PCM connector.
- A service bulletin addresses driveline clunk on 3-2 downshift at 15 mph.
If your 2003 Chevrolet Suburban is experiencing driveline clunk, no-start, or check engine light with internal module codes, the powertrain control module (PCM) may need replacement. This guide covers the symptoms, replacement labor, and programming requirements specific to your Suburban. You will learn what the PCM does, where it is located, and how a pre-programmed replacement can save time. The information here is based on factory labor times and service bulletins, so you can approach the repair with confidence.
What the PCM Does in a 2003 Chevrolet Suburban
The PCM in your 2003 Chevrolet Suburban acts as the brain for engine and transmission control. It monitors sensors and adjusts fuel, spark, and shift points. When it fails, you may notice poor performance or codes like P0601. For a reliable fix, consider replacement engine computers for the Suburban that come pre-programmed to your VIN. The module also tracks engine oil life, which must be recorded before removal to prevent a default to 100% after replacement. Understanding its role helps you diagnose issues accurately.

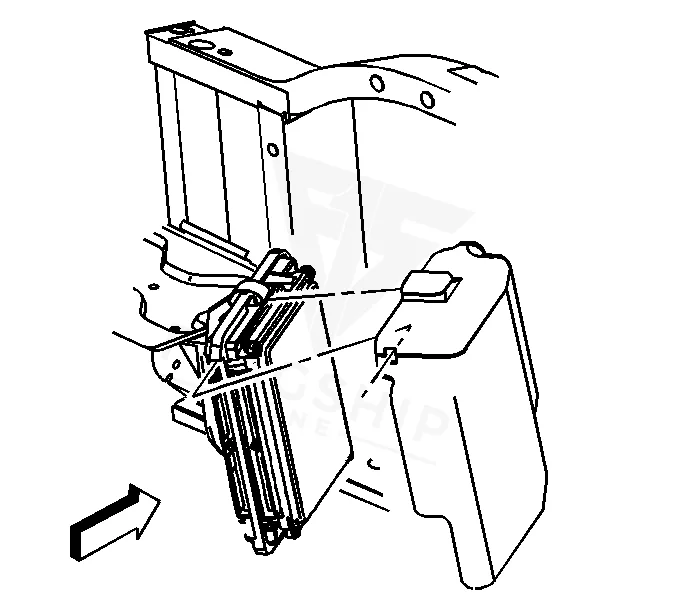

Where the PCM Is Located and What Replacement Involves
The PCM on your 2003 Chevrolet Suburban is typically located in the engine compartment, often on the driver side near the firewall or inner fender. Replacement involves disconnecting the battery, removing the electrical connectors, and unbolting the module. Book time for removal and replacement is 1.4 hours for both 1500 and 2500 models. An additional 0.5 hours is required for the relearn procedure. It is critical to turn the ignition off before disconnecting or reconnecting the PCM connector to prevent internal damage. Ensure the replacement module is properly secured and connectors are clean.
How to Reach the PCM on the 2003 Chevrolet Suburban
- Remove any debris from around the PCM connector surfaces.
- Disconnect the negative battery cable.
- Release the PCM cover mounting tabs.
- Remove the PCM cover from the mounting brackets.
- Remove the PCM cover.
- Loosen the PCM electrical connector bolts.
- Disconnect the PCM electrical connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Suburban 1500 | 1.4 hr |
| Powertrain Control Module R&R | Suburban 2500 | 1.4 hr |
| Powertrain Control Module Relearn | Suburban 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Suburban 2500 | 0.5 hr |
| Engine Control Module R&R | Suburban 1500 | 1.4 hr |
| Engine Control Module R&R | Suburban 2500 | 1.4 hr |
| Engine Control Module Relearn | Suburban 1500 | 0.5 hr |
| Engine Control Module Relearn | Suburban 2500 | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires programming the remaining engine oil life and performing a relearn. Without this, the oil life defaults to 100%. However, when you choose a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s VIN and settings, eliminating the need for those steps. This saves you the 0.5-hour relearn time and ensures the oil life is set correctly from the start.
Symptoms of a Failing PCM
Common symptoms of a failing PCM in your 2003 Chevrolet Suburban include no-start, stalling, erratic shifting, and a check engine light. You may also experience a driveline clunk when stopping, as noted in service bulletin 03-07-30-028. Diagnostic trouble codes such as internal control module fault P0601 indicate a problem with the PCM itself. Other internal codes like P0602 or P0603 may also appear. Dead scan-tool communication or sudden loss of power are additional signs of module failure.
Module Trouble Codes on the 2003 Chevrolet Suburban
The following trouble codes are stored internally within the PCM and indicate specific failures. These codes may appear during diagnosis of your Suburban’s engine or transmission issues.
Factory Service Bulletins Worth Knowing
Service bulletin #03-07-30-028 (June 2003) addresses a driveline clunk noise when stopping. The condition occurs on a 3-2 downshift at approximately 15 mph, especially during quicker stops. The remedy is to reprogram the PCM with updated software. If your Suburban exhibits this symptom, a PCM reprogram or replacement may resolve it. No other service bulletins were provided for this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 03-07-30-028 | Driveline Clunk When Stopping (Reprogram Powertrain Control Module (PCM)) – (Jun 27, 2003) | Some customers may comment on a clunk noise when stopping. This noise may occur on a 3–2 downshift at approximately 24 km/h (15 mph) and may be more noticeable… |
Protecting the PCM in Your 2003 Chevrolet Suburban
- Keep the battery and charging system in good condition to avoid voltage spikes.
- Clean and tighten all ground connections and PCM mounting bolts.
- Avoid jump-starting with reversed polarity or using high-voltage boosters.
- Address diagnostic trouble codes promptly before they lead to module damage.
- Inspect PCM connector seals for cracks or moisture and apply dielectric grease.
Frequently Asked Questions
What is the labor time to replace the PCM on a 2003 Chevrolet Suburban?
The book time for PCM removal and replacement is 1.4 hours for both 1500 and 2500 models. An additional 0.5 hours is required for the relearn procedure.
Do I need to program the oil life after installing a new PCM in my 2003 Suburban?
Yes, the factory procedure requires recording the remaining engine oil life before removal. If not programmed, the oil life defaults to 100%. A pre-programmed unit from Flagship One avoids this step.
What does trouble code P0601 mean for my 2003 Chevrolet Suburban?
P0601 is an internal control module memory check sum error. It indicates a fault within the PCM itself, often requiring replacement. Other internal codes may also point to module failure.
When your 2003 Chevrolet Suburban’s PCM fails, you have options: repair the original module or replace it with a refurbished unit. Given the complexity of internal faults and the need for programming, a pre-programmed replacement often provides a more reliable solution. Flagship One offers units ready to install, saving you the relearn and oil life programming steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet Suburban with a lifetime warranty, free shipping and no core charge. The full Chevrolet Suburban module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2003 Chevrolet Suburban is a straightforward job with the right preparation. By understanding the symptoms, labor time, and programming requirements, you can make an informed decision. A pre-programmed replacement from Flagship One ensures your Suburban is back on the road quickly.
