1997 Toyota RAV4 Engine Computer Replacement & Relearn Guide
The engine control module (ECM) in your 1997 Toyota RAV4 manages fuel delivery, ignition timing, and emissions systems. Failure may cause rough idling, stalling, or a complete no-start condition, often triggered by voltage spikes or corrosion in wiring connections.
Quick Summary
- The ECM controls critical engine functions like fuel injection and ignition timing.
- Replacement typically requires 0.8 hours of labor, plus 0.5 hours for relearn procedures.
- The module is located behind the instrument panel, requiring dashboard disassembly.
- A VIN-programmed replacement unit eliminates the need for post-install programming.
- Common symptoms include stalling, misfires, or scan tool communication failures.
If your 1997 Toyota RAV4 is experiencing erratic engine behavior—stalling, misfires, or a refusal to start—the engine control module (ECM) may be the culprit. This small but critical computer manages fuel delivery, ignition timing, and emissions systems, ensuring smooth operation. When it fails, symptoms can range from subtle performance issues to a complete breakdown. Replacing the ECM involves more than just swapping parts; it requires careful installation and, in some cases, a factory relearn procedure. Understanding the process helps you make informed decisions, whether you’re tackling the job yourself or working with a mechanic. This guide covers what the ECM does, where it’s located, and what to expect during replacement and programming.
What the PCM Does in a 1997 Toyota RAV4
In your 1997 Toyota RAV4, the engine control module (ECM) acts as the brain of the engine, continuously adjusting fuel injection, ignition timing, and idle speed to optimize performance and emissions. It relies on inputs from sensors throughout the engine bay, processing data in real time to keep the 2.0L engine running smoothly. When the ECM fails, you may notice poor fuel economy, rough idling, or even a no-start condition. Replacement engine computers for the RAV4 are available, but proper installation and programming are essential to restore full functionality. Without a functioning ECM, your vehicle’s engine management system cannot operate correctly, leading to potential drivability issues or even long-term damage if left unaddressed.
Where the PCM Is Located and What Replacement Involves

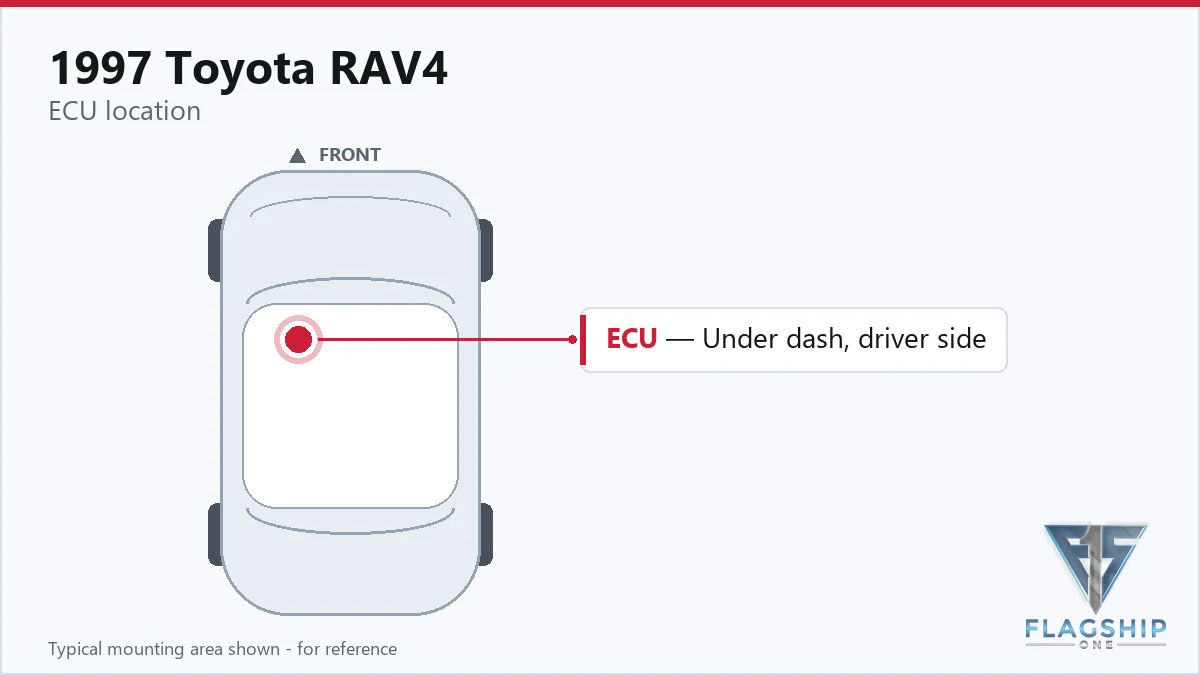

The engine control module in your 1997 Toyota RAV4 is mounted behind the instrument panel, requiring partial dashboard disassembly for access. This location protects it from moisture and extreme temperatures but makes replacement more involved than in some other vehicles. According to factory labor estimates, removing and reinstalling the ECM typically takes 0.8 hours. The process involves disconnecting the battery, removing dashboard panels, and carefully unplugging the wiring harness from the module. No special torque specifications are provided, but securing connections properly is critical to avoid intermittent electrical issues. Once the new unit is installed, a relearn procedure may be necessary to synchronize the ECM with the engine’s sensors.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the engine control module in your 1997 Toyota RAV4, the factory procedure requires a 0.5-hour relearn process to calibrate the new unit with the engine’s sensors. This step ensures proper fuel delivery, ignition timing, and idle control. However, if you install a VIN-programmed replacement unit, these programming steps are already completed, saving you time and potential headaches. The relearn process typically involves using a scan tool to reset adaptive values, but with a pre-programmed module, your vehicle should start and run correctly immediately after installation, assuming no other issues are present.
Symptoms of a Failing PCM
A failing engine control module in your 1997 Toyota RAV4 may cause a range of symptoms, often starting with subtle performance issues before escalating. Common signs include rough idling, stalling at stoplights, or hesitation during acceleration. You might also notice the check engine light illuminating, with codes pointing to fuel or ignition system faults. In some cases, the vehicle may fail to start altogether, or the engine may run poorly under load. Scan tool communication issues can also occur, making diagnostics difficult. If you see a code like internal control module memory checksum error, it often indicates a fault within the ECM itself, signaling the need for replacement or reprogramming.
Factory Service Bulletins Worth Knowing
Toyota issued a service bulletin (#EG008-97) for the 1997 RAV4 addressing updates to the ECM’s fuel cut logic. This bulletin, specific to the 3S-FE engine, modifies how the module handles fuel delivery under certain conditions to improve drivability and reduce the risk of stalling. If your vehicle exhibits fuel-related performance issues, this update may be relevant, though it typically applies during ECM replacement or reprogramming procedures.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| EG008-97 | :EG008-97:97 RAV4 3S-FE ECM TAU Fuel Cut Logic Changed | — |
Protecting the PCM in Your 1997 Toyota RAV4
- Keep your vehicle’s battery and charging system in good condition to avoid voltage spikes that can damage the ECM.
- Inspect wiring harnesses and connectors regularly for corrosion or damage, especially near the instrument panel.
- Address check engine lights promptly to prevent minor issues from escalating into ECM-related failures.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive electronics.
- Ensure the ECM’s connector seals remain intact to prevent moisture intrusion, which can cause corrosion.
Frequently Asked Questions
How do I know if my 1997 Toyota RAV4’s ECM is bad?
Common signs include rough idling, stalling, or a no-start condition. The check engine light may illuminate with codes related to fuel or ignition systems. If scan tool communication fails, the ECM itself may be the issue. Testing voltage and ground signals at the module can help confirm a fault.
Can I replace the ECM in my 1997 RAV4 myself?
Replacement is possible if you’re comfortable with dashboard disassembly and electrical work. The module is located behind the instrument panel, requiring careful handling of wiring connections. A factory relearn procedure may also be needed unless you use a pre-programmed unit.
What happens if I don’t relearn the ECM after replacement?
Without a relearn procedure, your 1997 RAV4 may experience poor fuel economy, rough idling, or hesitation. The ECM needs to recalibrate with the engine’s sensors to ensure proper performance. A pre-programmed unit eliminates this step, allowing immediate operation.
If your 1997 Toyota RAV4’s engine control module has failed, you have options. A repair shop can attempt reprogramming or replacement, but labor costs for installation and relearn procedures can add up. A refurbished, VIN-programmed replacement unit ensures compatibility and eliminates the need for post-install programming, getting your vehicle back on the road faster. Consider your budget and timeline when deciding between a dealer visit or a pre-programmed module.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 1997 Toyota RAV4 plays a critical role in managing engine performance. If you’re experiencing stalling, misfires, or a no-start condition, the ECM may be the cause. Replacement involves careful installation and, in some cases, a relearn procedure, but a pre-programmed unit simplifies the process. Addressing ECM issues promptly can restore smooth operation and prevent further drivability problems.
