1996 Toyota RAV4 Engine and Powertrain Control Module Overview
In the 1996 Toyota RAV4 the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage fuel delivery, ignition timing, and transmission shift strategy. A failure in either unit can cause loss of power, rough idle, or complete engine shutdown, often accompanied by diagnostic trouble codes and loss of communication with scan tools.
Quick Summary
- ECM relearn takes about half an hour of labor.
- PCM removal and installation typically requires 0.8 hours.
- Factory wiring places the ECM in the instrument panel.
- Flagship One units arrive VIN‑programmed, eliminating post‑install steps.
When a 1996 Toyota RAV4 experiences intermittent power loss, stalling, or refuses to start, the engine and powertrain control modules are common suspects. Understanding how these computers function and what service steps are required can help you decide whether a repair or a replacement is the best path. This guide explains the modules’ roles, where they live, the labor involved, and how Flagship One products simplify the process.
What the PCM Does in a 1996 Toyota RAV4
The ECM and PCM in a 1996 Toyota RAV4 act as the vehicle’s brain, constantly adjusting fuel injection, ignition timing, and transmission shift points to match driving conditions. They receive sensor data, calculate optimal engine parameters, and command actuators to keep the powertrain running smoothly. Because the RAV4 relies on precise timing, any deviation can lead to performance loss or emissions issues. Proper operation is essential for fuel efficiency and drivability, and a faulty unit often triggers diagnostic codes that require attention. The replacement engine modules for RAV4 are designed to meet the original specifications and maintain system integrity.
Where the PCM Is Located and What Replacement Involves

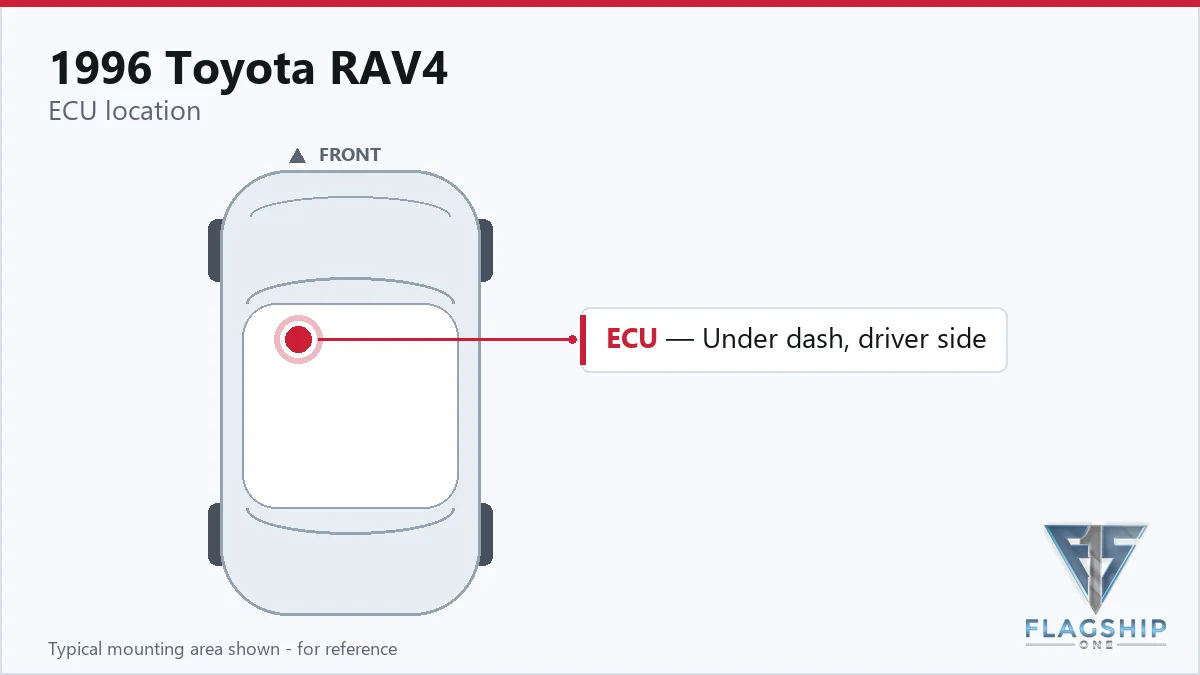

The factory wiring guide shows the engine control unit mounted within the instrument panel, making it accessible from the dashboard area. Removing the ECM typically involves disconnecting the connector, unscrewing the mounting bolts, and extracting the module. Installation reverses these steps, and the labor time is listed as 0.5 hours for a relearn or 0.8 hours for a full removal and replacement. The PCM follows a similar procedure, with a comparable labor estimate of 0.8 hours for removal and reinstall. No additional torque specifications are provided in the source data.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM or PCM in the 1996 Toyota RAV4, the factory service procedure requires a relearn of the control module, which is documented as a 0.5‑hour task for each unit. Flagship One supplies a a VIN-programmed replacement unit that arrives with the necessary calibration already applied, so the relearn step is effectively completed at delivery, reducing shop time.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in a 1996 Toyota RAV4 include a no‑start condition, rough idle, sudden stalling, and the appearance of diagnostic trouble codes. You may also notice a loss of communication when connecting a scan tool, which can prevent reading other systems. In many cases the fault triggers a communication fault that points directly to the control module’s internal processor.
Factory Service Bulletins Worth Knowing
Service bulletin EG008-97 (RAV4 3S-FE ECM TAU Fuel Cut Logic Changed) addresses a fuel cut logic update for the ECM. This bulletin recommends a software revision to correct the identified issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| EG008-97 | :EG008-97:97 RAV4 3S-FE ECM TAU Fuel Cut Logic Changed | — |
Protecting the PCM in Your 1996 Toyota RAV4
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections and sensor plugs regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the typical labor times for ECM replacement on a 1996 Toyota RAV4?
The factory book lists about 0.8 hours for removal and reinstall, with an additional 0.5 hours for the relearn procedure.
Can I reuse the original ECM after it fails in a 1996 Toyota RAV4?
Reusing a failed module is not recommended because internal faults often persist, and a new unit ensures reliability.
Do I need special tools to access the ECM in a 1996 Toyota RAV4?
Standard hand tools are sufficient; the ECM is located in the instrument panel and is secured with bolts and a connector.
When the ECM or PCM in your 1996 Toyota RAV4 shows signs of failure, you can choose a repair if the fault is isolated, or opt for a refurbished replacement that arrives pre‑programmed. Considering the labor times and the need for a relearn, a replacement often saves time while restoring full functionality.

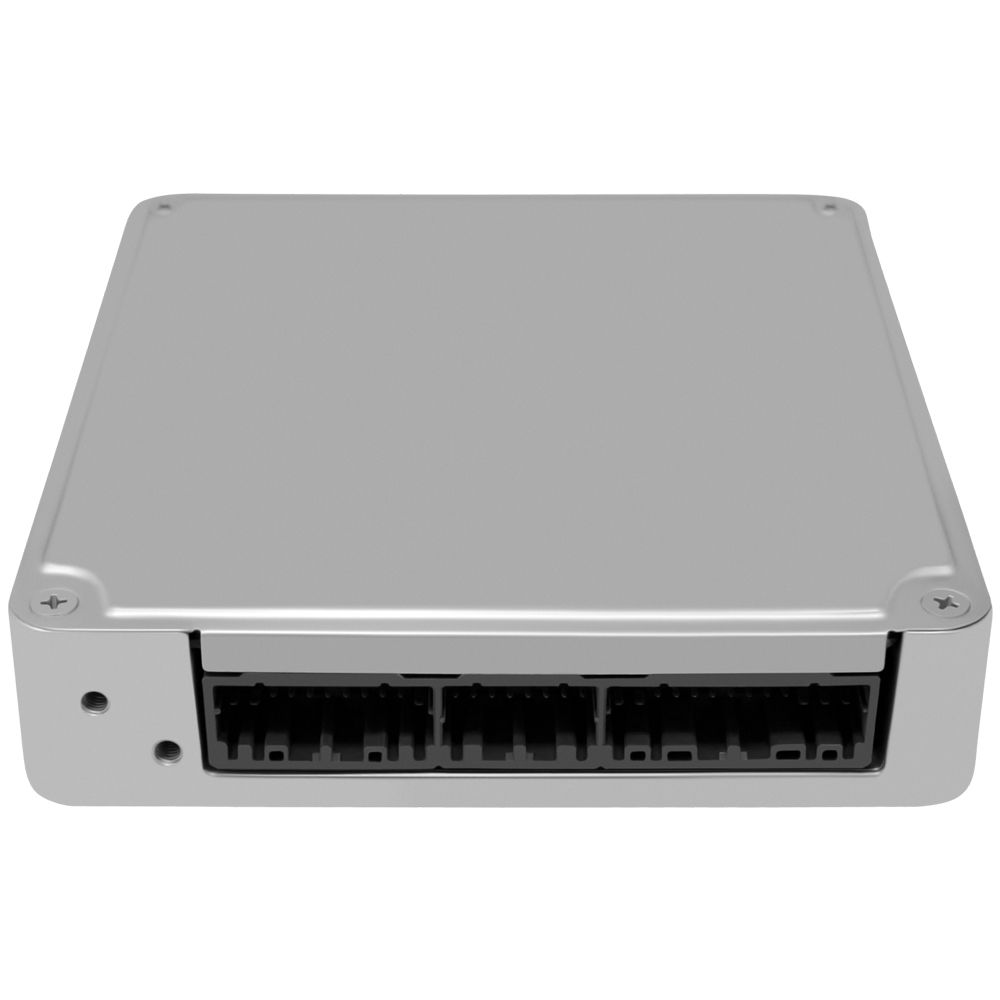

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Toyota RAV4 with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 module lineup covers other engine configurations as well.
Final Thoughts
The 1996 Toyota RAV4’s engine and powertrain control modules are vital for reliable operation. Whether you repair or replace, ensuring proper installation and programming will keep the vehicle running as intended. Contact a qualified technician to assess the best approach for your situation.
