1996 Pontiac Trans Sport: PCM/ECM Replacement & Repair Guide

If your 1996 Pontiac Trans Sport is experiencing starting issues, intermittent stalling, or unexpected transmission behavior, the Powertrain Control Module may be the culprit. The PCM serves as the brain of your vehicle’s powertrain, coordinating engine and transmission functions to deliver smooth operation. This guide explains what the module does, where it’s located, common failure symptoms, and your replacement options so you can make an informed repair decision.

What the PCM Does in a 1996 Pontiac Trans Sport

The Powertrain Control Module in your 1996 Pontiac Trans Sport is the primary computer responsible for managing the 3.4L engine’s fuel injection, ignition timing, emissions control, and automatic transmission shifting. This module receives input from numerous sensors throughout the engine compartment and uses that data to make real-time adjustments for optimal performance and fuel efficiency. Unlike simple relay boxes, the PCM contains internal memory and processors that can develop faults over time due to heat cycling, voltage spikes, or component degradation. When the internal circuitry fails, you may lose the ability to start the engine or experience erratic running conditions that standard sensor replacements cannot fix. Replacement engine computers for the Trans Sport are available as new or refurbished units, with the latter often providing a cost-effective solution for this older vehicle.

Flagship One keeps Pontiac Trans Sport replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

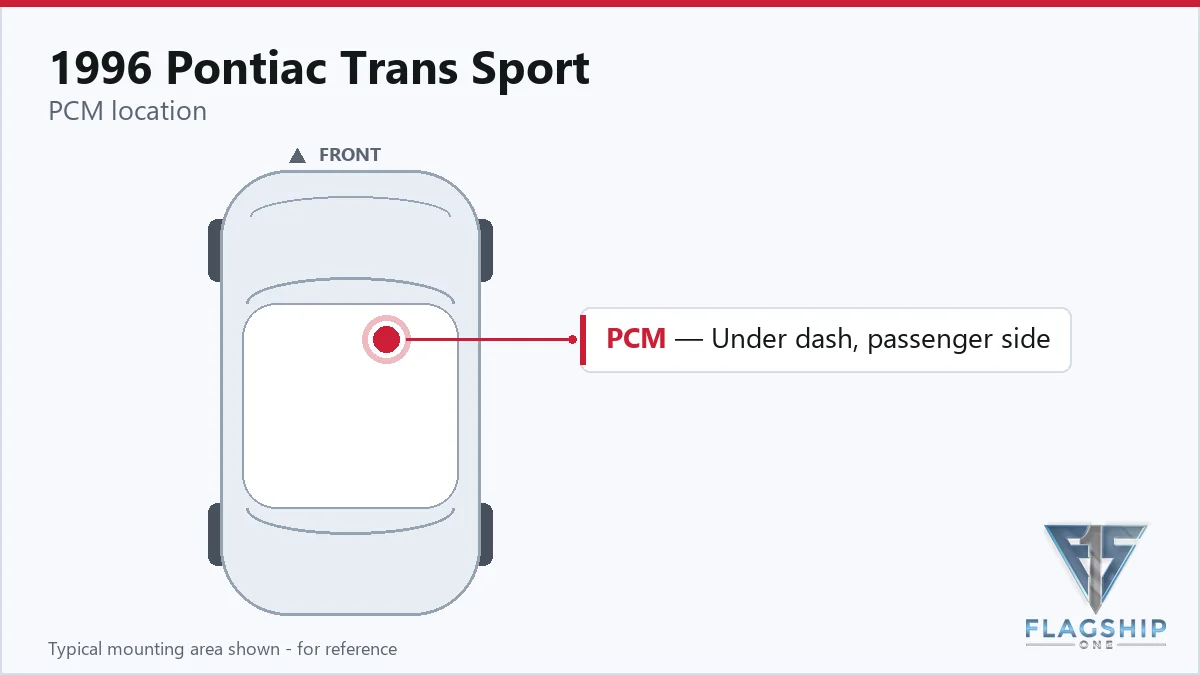

Accessing the PCM on your 1996 Pontiac Trans Sport requires removing the trim panel on the right side of the instrument panel. The module is positioned behind the convenience center, which means you’ll need to work from the passenger side of the cabin. The book time for PCM removal and reinstallation is 1.3 hours, with an additional 0.5 hour allocated for the relearn procedure that follows replacement. During installation, you’ll need to reconnect the ignition switch and ensure all connectors are fully seated. The factory cautions that you must turn the ignition OFF before connecting or disconnecting the PCM to prevent internal damage to the module’s circuitry.

Programming Requirements After Replacement

After installing a replacement PCM, your 1996 Pontiac Trans Sport requires a relearn procedure to establish communication between the new module and your vehicle’s systems. The factory procedure involves connecting a scan tool to initiate the relearn process, which takes approximately 0.5 hours. However, when you purchase from Flagship One, you receive a VIN-programmed replacement unit that arrives pre-configured to your specific vehicle, eliminating most of the post-install programming steps that would otherwise be required at a dealership or repair facility.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the PCM fails on your 1996 Pontiac Trans Sport, several symptoms commonly appear. A no-start condition is frequent, where the engine cranks but receives no fuel or spark due to the PCM not commanding injector operation. Stalling and rough idle may occur as the module loses the ability to maintain proper air-fuel mixture. Misfire codes can set because the PCM cannot correctly control ignition timing. In some cases, the scan tool may fail to communicate with the vehicle entirely, indicating a dead PCM. Transmission shifting problems may also manifest, as the PCM controls shift points. When the module-internal fault P0601:internal memory checksum error is present, the PCM has detected corruption in its internal memory and replacement is typically required.

Module Trouble Codes on the 1996 Pontiac Trans Sport

The 1996 Pontiac Trans Sport can store module-internal diagnostic trouble codes that indicate failures within the PCM itself rather than from external sensor issues. These codes are critical because they signal that the control module’s internal circuitry has detected a fault requiring attention.

Factory Service Bulletins Worth Knowing

Factory service bulletin #99-06-04-053 addresses PCM reprogramming procedures for this vehicle, providing dealers and technicians with updated calibration information when replacing the module. Bulletin #83-81-32 introduced new PCM connector service kits, offering improved hardware for repairs involving the module’s electrical connections. Both bulletins remain relevant for technicians working on this model year.

Protecting the PCM in Your 1996 Pontiac Trans Sport

• Maintain healthy charging system voltage—weak or failing alternators can cause voltage drops that stress the PCM
• Keep all ground connections clean and secure at the engine and body to ensure proper electrical reference
• Avoid jump-starting from another vehicle when possible—voltage spikes during jump starts can damage sensitive electronics
• Address diagnostic trouble codes promptly rather than ignoring warning lights
• Inspect and protect connector seals during any work near the PCM to prevent moisture intrusion
• Use a battery maintainer if the vehicle sits unused for extended periods

Frequently Asked Questions

Can I replace the PCM on my 1996 Pontiac Trans Sport myself?

If you have moderate mechanical experience and can access the module behind the instrument panel, replacement is feasible. You’ll need basic tools and should follow the ESD precautions to avoid damaging the new module.

Will a used PCM from a junkyard work in my Trans Sport?

A used PCM requires programming to match your specific vehicle’s VIN and configuration. This typically requires dealer-level equipment or a professional tuning service, making it less straightforward than purchasing a pre-programmed unit.

How do I know if my Trans Sport’s PCM is bad versus having a simpler sensor issue?

If your scan tool shows module-internal codes like P0601, or if the vehicle won’t start and all basic checks (fuel, spark, timing) are normal, the PCM is likely at fault. A professional diagnosis can confirm this.

When your 1996 Pontiac Trans Sport requires a new PCM, you have two primary paths: visiting a dealership for expensive OEM replacement with programming, or choosing a quality refurbished unit that arrives VIN-programmed and ready to install. The latter option typically saves significant cost while providing comparable reliability for this older vehicle.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Pontiac Trans Sport with a lifetime warranty, free shipping and no core charge. The full Pontiac Trans Sport module lineup covers other engine configurations as well.

Final Thoughts

The PCM in your 1996 Pontiac Trans Sport is a critical component that manages your vehicle’s core functions. If diagnostic testing points to module failure, replacing it with a properly programmed unit restores reliable operation. Consider your budget and repair timeline when choosing between dealership service and quality aftermarket options.
