1995 Mazda RX-7 PCM Replacement Guide
In the 1995 Mazda RX-7, the PCM controls engine timing, fuel delivery, and transmission shifts. A failure can lead to loss of power, erratic shifting, or the engine not starting.
Quick Summary
- The PCM is a central control unit for engine and transmission.
- A failed PCM can cause stalling, misfires, or no-start conditions.
- Replacement units are VIN‑programmed by Flagship One.
- The module sits behind the center console, accessible by removing console panels.
- Post‑install, the PCM is already configured for your vehicle.
When a 1995 Mazda RX‑7 refuses to start, stalls mid‑drive, or behaves erratically, the culprit often lies in the PCM. This module orchestrates everything from spark timing to shift timing, making it essential for smooth operation. Replacing a malfunctioning PCM can bring back reliable performance without the complexity of re‑programming. This guide explains where the PCM sits in your RX‑7, what the replacement process involves, and why a VIN‑programmed unit from Flagship One can simplify the job. You’ll also learn how to recognize failure symptoms and what steps follow installation. By the end, you’ll know whether a repair or a refurbished replacement is the best choice for your vehicle.
What the ECM Does in a 1995 Mazda RX-7
The PCM in a 1995 Mazda RX‑7 acts as the brain that synchronizes engine and transmission functions. It receives data from sensors such as throttle position, engine temperature, and crankshaft position, then calculates ignition timing, fuel injector pulses, and shift points. Accurate timing ensures efficient combustion and smooth gear changes, while any deviation can cause misfires, loss of power, or even a no‑start condition. The PCM also monitors engine load and adjusts fuel maps for optimal performance. replacement PCM for 1995 Mazda RX‑7 plays a pivotal role in maintaining these delicate balances, and a failure can disrupt the entire drivetrain.
Where the ECM Is Located and What Replacement Involves
The PCM is located behind the center console, directly beneath the front console area. To access it, you must remove the front console panels, which requires disconnecting the battery and prying the panels away with a trim tool. Once the console is removed, the PCM is visible behind the center console, secured with a few screws. Replacing the unit involves removing these screws, unplugging the electrical connectors, and installing the new PCM in the same orientation. The job typically takes a few hours of labor if you have basic mechanical tools and a service manual at hand.

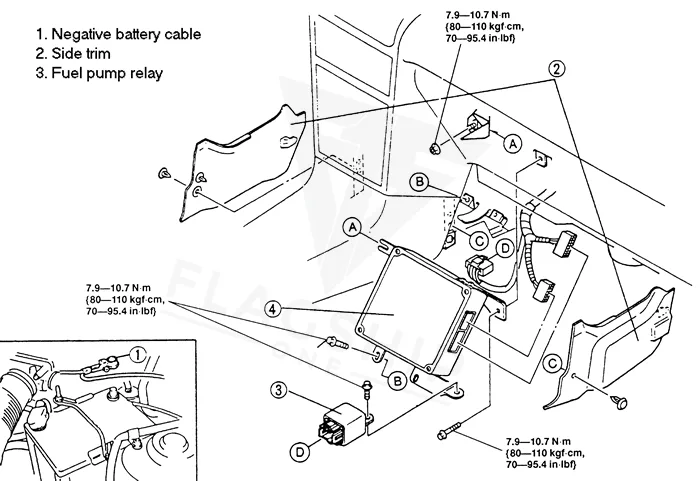

How to Reach the ECM on the 1995 Mazda RX-7
- Disconnect the negative battery cable.
- Remove the rear console.
- Remove the ashtray.
- Remove the front console to gain access to the module.
- Remove the ECM mounting bolts/nuts, and disconnect the module electrical.
- Position the module, and install the mounting nuts.
- Remove both center console side trim panels to gain.
- Remove the module mounting bolts/nuts, and disconnect.
- Remove the center console assembly, by pulling it.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After the new PCM is installed, the factory procedure would normally require a diagnostic tool to program the unit with the vehicle’s VIN and sensor calibrations. Because Flagship One units are shipped VIN‑programmed, those steps are already completed. VIN‑programmed replacement PCM ensures that the module is ready to communicate with the vehicle’s electronics immediately upon installation, eliminating the need for a separate programming session.
Symptoms of a Failing ECM
A failing PCM in a 1995 Mazda RX‑7 may manifest as a sudden loss of power, frequent stalling, or a complete no‑start condition. The engine might misfire or run unevenly, and you could notice erratic shifting or delayed gear changes. In some cases, the vehicle’s scan tool may fail to communicate, showing no data from the PCM. If a diagnostic scan reveals a fault code, you might see PCM Failure indicated, signaling a problem within the PCM itself.
Protecting the ECM in Your 1995 Mazda RX-7
- Keep the charging system in good condition to avoid voltage spikes.
- Regularly inspect and clean the PCM’s electrical connectors and grounds.
- Avoid using a jump‑starter without a voltage regulator to protect the PCM.
- Address any error codes promptly to prevent further damage.
- Ensure the PCM’s connector seals remain intact to prevent moisture ingress.
- Maintain proper coolant temperature to avoid overheating the PCM.
Frequently Asked Questions
What should I do if my 1995 Mazda RX‑7 stalls during acceleration?
Stalling during acceleration often points to a PCM issue or a sensor that feeds incorrect data. First, run a diagnostic scan to check for error codes. If the PCM is suspected, consider a replacement or a certified repair.
Can I repair a faulty PCM in my 1995 Mazda RX‑7 instead of replacing it?
Repairing a PCM is uncommon because the unit is highly integrated. Most technicians recommend a replacement, especially if the PCM shows persistent faults or error codes.
Does a new PCM require a specific calibration for the 1995 Mazda RX‑7?
Yes, the PCM must be programmed with the vehicle’s VIN and sensor calibrations. Flagship One’s VIN‑programmed units come ready for installation, so no additional calibration is needed.
Will a refurbished PCM work in my 1995 Mazda RX‑7?
Refurbished units can be a cost‑effective option, but they may not come pre‑programmed. Ensure the unit is compatible with the 1995 Mazda RX‑7 and verify that it has the correct firmware.
How long does it take to replace the PCM in my 1995 Mazda RX‑7?
The replacement process typically takes a few hours, depending on your familiarity with removing console panels and handling the PCM’s connectors.
Whether you choose a repair or a refurbished replacement, the 1995 Mazda RX‑7’s PCM is central to its performance. A new, VIN‑programmed unit from Flagship One can restore reliability quickly, while a refurbished unit offers a more economical path. Evaluate your vehicle’s condition and decide which option best aligns with your maintenance goals.
Flagship One stocks a refurbished, VIN-programmed ECM for the 1995 Mazda RX-7 with a lifetime warranty, free shipping and no core charge. The full Mazda RX-7 module lineup covers other engine configurations as well.
Final Thoughts
For a 1995 Mazda RX‑7, a reliable PCM ensures smooth acceleration, proper shifting, and overall engine health. If you notice any of the symptoms described, consider a replacement to keep your vehicle running efficiently.
