1992 Mazda Navajo PCM Replacement, Location & Programming

When the engine in your 1992 Mazda Navajo refuses to start properly or runs roughly at idle, the powertrain control module often deserves a closer look. This vehicle generation relies on a centralized computer that orchestrates how your 4.0L V6 delivers power through its fuel injection and ignition systems. Unlike vehicles built after 1996, the Navajo uses a pre-OBD-II architecture that limits how thoroughly scan tools can interrogate the computer’s internal status. Many owners discover that traditional code scanning yields little useful information even when the engine clearly malfunctions. Understanding where this module lives, what happens during replacement, and how programming affects your vehicle helps you make informed decisions about repair options. This guide walks through the essential facts about the 1992 Mazda Navajo’s computer module without unnecessary technical jargon or sales pressure.

What the ECM Does in a 1992 Mazda Navajo

The powertrain control module in your 1992 Mazda Navajo serves as the electronic brain managing your 4.0L engine’s core functions. This device receives information from sensors measuring engine temperature, throttle position, airflow into the intake, and vehicle speed, then uses that data to calculate optimal fuel injector pulse width and ignition timing advance. Your automatic transmission also depends on this module for shift scheduling and torque converter clutch engagement. The module resides inside the passenger compartment rather than under the hood, a design choice that shields it from engine bay heat and moisture while making access somewhat more involved than other vehicles. Pre-OBD-II vehicles like the Navajo communicate through a limited data protocol that predates the standardized code systems introduced later in the decade. This means the module can store certain failure flags internally, but retrieving that information often requires manufacturer-specific diagnostic equipment rather than a generic scan tool. Replacement engine computers for the Navajo must be matched to your vehicle’s specific calibration, and any new unit requires initialization procedures before your engine will run properly. The module also manages emissions-related functions, though the specific strategies differ from OBD-II implementations.

Flagship One keeps Mazda Navajo replacement engine computers in stock for exactly this failure pattern.

Where the ECM Is Located and What Replacement Involves

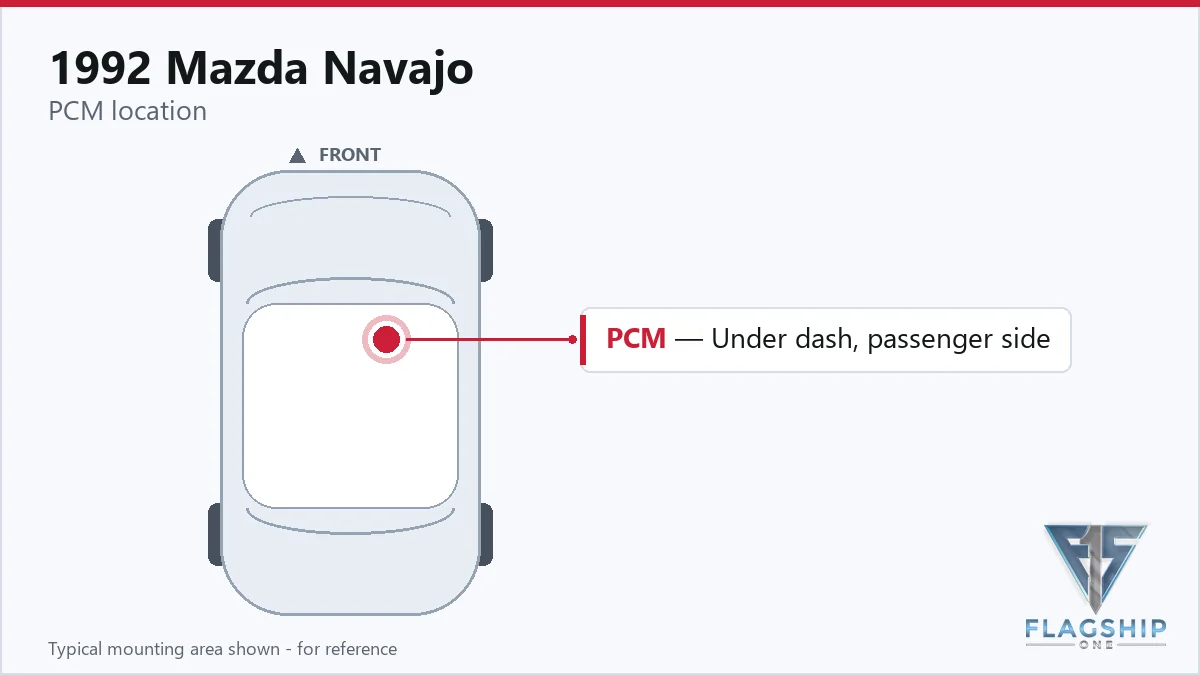

Reaching the powertrain control module in your 1992 Mazda Navajo requires working inside the passenger compartment near the right side foot well. The module sits beneath dashboard trim panels on the passenger side of the vehicle, positioned forward of where the occupant’s feet would rest. Accessing this location means removing kick panels and potentially ducking under the steering column area to reach the unit’s mounting position. The electrical connector attaches to the module’s face, and disconnecting it involves releasing a locking tab before pulling the harness free. Physical removal requires unbolting the module from its bracket, which may involve working in confined spaces with limited visibility. When installing a replacement unit, route the wiring harness connector to align with the new module’s socket, ensure the locking mechanism engages fully, and verify the unit seats securely in its mounting location. Reassembly of interior trim follows in reverse order of disassembly. All electrical work should begin with the negative battery terminal disconnected to prevent short circuits or module damage during handling.

Programming Requirements After Replacement

After physically installing a replacement computer in your 1992 Mazda Navajo, the factory service procedure requires performing a PCM relearn process to calibrate the new module to your specific vehicle. This procedure involves allowing the engine to idle through a specific sequence while the module adapts its fuel delivery and timing strategies based on sensor feedback. Without completing this initialization, the engine may run poorly, stall frequently, or fail to start entirely due to unmapped fuel trims and timing values. The relearn process typically requires leaving the ignition on for a set period before starting, then driving through specific conditions to finalize the adaptation values. When you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already configured with your vehicle’s specific identification data, which means the initial parameter programming is completed before installation. This reduces the post-install procedure to primarily the relearn cycle rather than requiring full parameter flashing with dealer-level equipment.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Protecting the ECM in Your 1992 Mazda Navajo

• Maintain proper charging system function by keeping your battery and alternator in good condition to prevent voltage fluctuations that stress module electronics.
• Clean electrical ground connections periodically, particularly those associated with engine and body circuits, to ensure stable voltage reference for the computer.
• Avoid jump-starting your vehicle incorrectly by connecting booster cables positive to positive and negative to an unpainted chassis ground rather than the battery terminal.
• Address any drivability symptoms promptly rather than allowing an engine to run poorly for extended periods, which can mask underlying electronic issues.
• Keep wiring connectors protected from moisture intrusion and inspect harness insulation for damage during other service work.
• Use caution when pressure-washing the engine compartment to prevent water from reaching the module’s electrical connections.

Frequently Asked Questions

Why won’t my scan tool communicate with my 1992 Mazda Navajo computer?

Pre-OBD-II vehicles like the 1992 Mazda Navajo use manufacturer-specific communication protocols that many aftermarket scan tools cannot interpret. The module may still be functioning normally, or complete electrical failure could prevent any data exchange. A dealer-level diagnostic scanner or professional-grade equipment may be necessary to retrieve stored information.

Can a bad battery cause the PCM to fail on my Navajo?

Severely discharged batteries or jump-starting with reverse polarity can introduce voltage spikes that damage sensitive electronic components inside the control module. While normal battery drain does not typically harm the computer, excessive voltage events from charging system failures present a legitimate risk.

Will a used PCM from another 1992 Mazda Navajo work in my vehicle?

A used module from another Navajo may physically fit, but it contains calibration data and vehicle identification information specific to its original vehicle. Without reprogramming to match your VIN and option content, the engine may run poorly or not at all.

How do I know if my 1992 Mazda Navajo needs a new computer or just sensor repairs?

Systematic diagnosis matters before replacing the module. Testing individual sensors and their circuits can identify whether the problem originates from peripheral components or the central processing unit itself. A module that causes multiple simultaneous failures across unrelated systems warrants closer inspection.

What happens during the PCM relearn process on this vehicle?

The relearn procedure allows the replacement module to establish correct fuel delivery calibrations and timing parameters specific to your engine. This involves specific driving patterns that give the module’s adaptive algorithms time to finalize their values based on real-time sensor feedback.

Deciding between repair and replacement involves weighing costs against reliability for your 1992 Mazda Navajo. In-house repair of failed modules carries uncertainty about long-term durability, while installing a rebuilt or new replacement unit provides known electronics but requires the post-installation relearn procedure. Refurbished units from reputable suppliers offer a middle ground with tested components. Regardless of your chosen path, understanding that this pre-OBD-II vehicle demands proper module initialization after any computer replacement helps set realistic expectations for the repair process.

Flagship One stocks a refurbished, VIN-programmed ECM for the 1992 Mazda Navajo with a lifetime warranty, free shipping and no core charge. The full Mazda Navajo module lineup covers other engine configurations as well.

Final Thoughts

The 1992 Mazda Navajo’s powertrain control module manages critical engine and transmission functions from its interior mounting location behind the passenger dashboard. This generation relies on older diagnostic strategies that make symptom recognition particularly valuable compared to code-based diagnosis. Whether your vehicle currently exhibits driveability concerns or you are preparing for potential future repairs, understanding the module’s role, access requirements, and programming needs positions you to make informed service decisions for your Navajo.
