1991 Mazda Navajo PCM/ECM Location and Replacement Guide
In the 1991 Mazda Navajo the powertrain control module manages engine timing, fuel delivery, and emission functions. When the unit fails, the engine may run rough, stall, or refuse to start, and diagnostic communication can be lost, leading to loss of driveability and emissions compliance.
Quick Summary
- The PCM sits under the passenger‑side dash, making access tight.
- Replacement typically requires removal of interior trim and a few fasteners.
- Factory programming is required after install, but Flagship One units arrive VIN‑programmed.
- Common symptoms include no‑start, stalling, and loss of scan‑tool communication.
When you notice that your 1991 Mazda Navajo hesitates to start, stalls unexpectedly, or the dashboard shows no response from a scan tool, the powertrain control module may be the culprit. This guide explains what the PCM does in this specific vehicle, where it is located, how a replacement is performed, and what steps the factory expects after a new unit is installed. By understanding the module’s role and the required procedures, you can decide whether a repair or a refurbished replacement best fits your needs, and you’ll know what to expect during the service process.
What the ECM Does in a 1991 Mazda Navajo
The powertrain control module in the 1991 Mazda Navajo serves as the central computer that monitors sensor inputs, controls fuel injection timing, and manages emission controls. It translates data from the crankshaft position sensor, throttle position sensor, and other inputs to adjust engine operation for smooth performance and compliance. Because the Navajo predates OBD‑II, the module uses manufacturer‑specific protocols rather than standardized codes. A malfunction can disrupt fuel delivery, cause erratic idle, or prevent the engine from cranking. Maintaining a functional PCM is essential for reliable power delivery and emissions control. Understanding its function helps you appreciate why a proper replacement and programming are critical, especially when considering replacement engine computers for Navajo options.

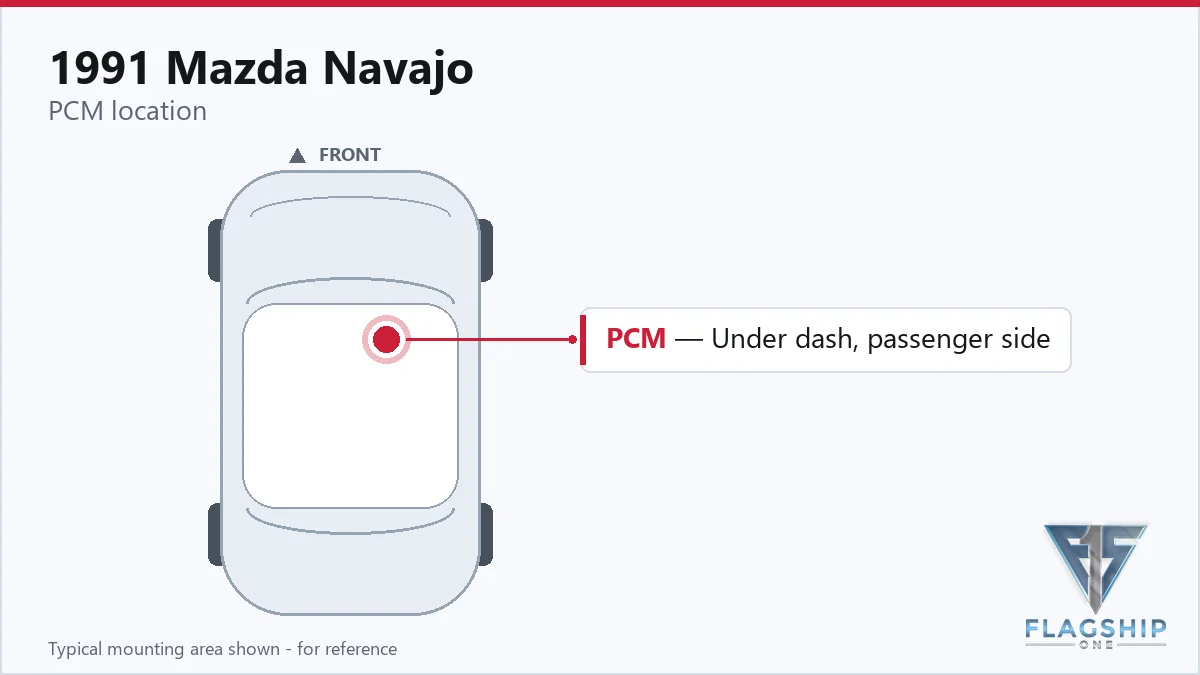

Where the ECM Is Located and What Replacement Involves
The PCM for the 1991 Mazda Navajo is mounted inside the cabin, positioned on the right side of the dashboard beneath the passenger area. To access it, you typically need to remove the lower dash panel and any covering fasteners that secure the module housing. Once the panel is off, the unit can be unplugged and unbolted. The factory service manual lists a labor estimate of a few hours for removal and installation, reflecting the interior location and the need to reconnect the wiring harness securely. Proper torque specifications are not provided, so hand‑tightening until the connector seats firmly is standard practice.
How to Reach the ECM on the 1991 Mazda Navajo
- Disconnect the negative battery cable.
- Remove the two nuts and the PCM cover.
- Remove the PCM from the bracket by pulling the unit outward.
- Remove the right side scuff plate and right front side trim.
- Lift up the front mat.
- Remove the protector cover.
- Unplug the wiring harness connector from the control module.
- Loosen the mounting fasteners and remove the PCM/ECM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After a new PCM is installed in the 1991 Mazda Navajo, the factory procedure calls for a vehicle‑specific calibration that aligns the module with the engine’s mechanical timing and sensor characteristics. This process normally requires a dealer‑level scan tool to write the correct parameters. Flagship One units arrive pre‑loaded with the correct VIN data, so the required calibration step is already completed, eliminating the need for additional programming on your part. Using a a VIN-programmed replacement unit simplifies the install and reduces the chance of post‑repair issues.
Symptoms of a Failing ECM
When the PCM begins to fail in a 1991 Mazda Navajo, drivers often experience a no‑start condition where the engine cranks but does not fire, or the vehicle may stall unexpectedly during idle or acceleration. Rough idle, irregular power delivery, and a lack of communication with diagnostic tools are also common. Because this model uses a proprietary communication protocol, a dead scan‑tool link can be an early sign that the module is no longer responding to input signals. These symptoms typically point to a loss of internal control logic rather than a simple sensor fault.
Protecting the ECM in Your 1991 Mazda Navajo
- Inspect and maintain the vehicle’s charging system to ensure stable voltage.
- Keep all PCM connectors clean and free of corrosion.
- Secure grounding straps and verify they are tight.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Address any diagnostic codes promptly to prevent further damage.
- Replace worn connector seals to keep moisture out of the module.
Frequently Asked Questions
Can I replace the PCM on my 1991 Mazda Navajo myself?
The PCM is located behind interior trim, so removal requires careful disassembly of dash panels and proper handling of the wiring harness. If you are comfortable with interior work and have the right tools, a DIY replacement is possible, but a professional may be preferable for calibration.
What are the common signs that the PCM has failed in a 1991 Mazda Navajo?
Typical indicators include a no‑start condition, sudden stalling, rough idle, and loss of communication with a scan tool. These symptoms arise because the module can no longer process sensor data correctly.
Do I need special equipment to program a new PCM in this vehicle?
Factory programming normally requires a dealer‑level scan tool to write vehicle‑specific parameters. Flagship One units are delivered VIN‑programmed, so the additional programming step is not required.
How long does it usually take to replace the PCM on a 1991 Mazda Navajo?
The service manual estimates a few hours for removal and installation, reflecting the interior location and the need to reconnect the harness securely.
Will a refurbished PCM work as well as a new one?
A refurbished PCM that has been tested and VIN‑programmed can restore full functionality, provided it matches the vehicle’s specifications and is installed correctly.
When the PCM in your 1991 Mazda Navajo needs attention, you can choose a repair that restores the original unit or install a refurbished replacement that meets factory specifications. Both options address the underlying control issues, but a refurbished module from Flagship One arrives pre‑programmed for your VIN, reducing labor and ensuring proper calibration.
Flagship One stocks a refurbished, VIN-programmed ECM for the 1991 Mazda Navajo with a lifetime warranty, free shipping and no core charge. The full Mazda Navajo module lineup covers other engine configurations as well.
Final Thoughts
The 1991 Mazda Navajo’s PCM plays a critical role in engine management. Whether you opt for repair or a VIN‑programmed replacement, ensuring the module functions correctly will keep your vehicle reliable. Consider your comfort level with interior work and the benefits of a pre‑programmed unit when making your decision.
