2020 Toyota RAV4 Hybrid Powertrain Control Module Replacement
The engine control module in your 2020 Toyota RAV4 Hybrid manages the 2.5L powertrain and hybrid system coordination. Internal processor faults or voltage spikes may disrupt fuel injection timing and electric motor synchronization, causing drivability issues or warning lamps.
Quick Summary
- The module resides beside the air cleaner assembly behind several trim pieces.
- Book time lists 0.7 hours for Powertrain Control Module R&R and 0.5 hours for relearn procedures.
- Factory service bulletin T-SB-0058-22 addresses high-altitude fuel pressure codes that may relate to module operation.
- Access requires disconnecting the negative battery cable and removing the engine cover and air cleaner components.
- Internal fault code P0606 indicates processor performance issues within the module.
When the check engine light illuminates or your 2020 Toyota RAV4 Hybrid refuses to start, the engine control module may be the underlying cause. This computer manages the 2.5L engine and coordinates with the hybrid drive system, making it central to daily operation. Understanding how this component functions and what replacement entails helps you make informed decisions about repairs. You will learn where the module sits, what access steps the factory recommends, and why professional installation matters for hybrid vehicles. We will cover the specific labor times listed for removal and the initialization procedures required afterward. Whether you are diagnosing a no-start condition or planning a replacement, this guide provides the technical context you need to discuss options with your technician confidently and understand the scope of work involved.
What the PCM Does in a 2020 Toyota RAV4 Hybrid
The engine control module in your 2020 Toyota RAV4 Hybrid serves as the central processor for the 2.5L powertrain, continuously adjusting fuel injection, ignition timing, and hybrid system integration. It receives data from oxygen sensors, throttle position sensors, and the hybrid control unit to optimize efficiency across driving conditions. When this computer fails, you may experience erratic shifting, reduced power, or complete powertrain shutdown. Replacement engine computers for the RAV4 requires careful consideration because the module stores vehicle-specific calibration data essential for hybrid operation. Unlike generic components, these units must match your exact VIN configuration to communicate properly with the antilock brake system and battery management electronics. The module also handles diagnostic trouble code storage, enabling technicians to trace intermittent faults. Keeping this processor healthy ensures the seamless coordination between gasoline and electric power sources that defines your RAV4 Hybrid’s performance.
Where the PCM Is Located and What Replacement Involves

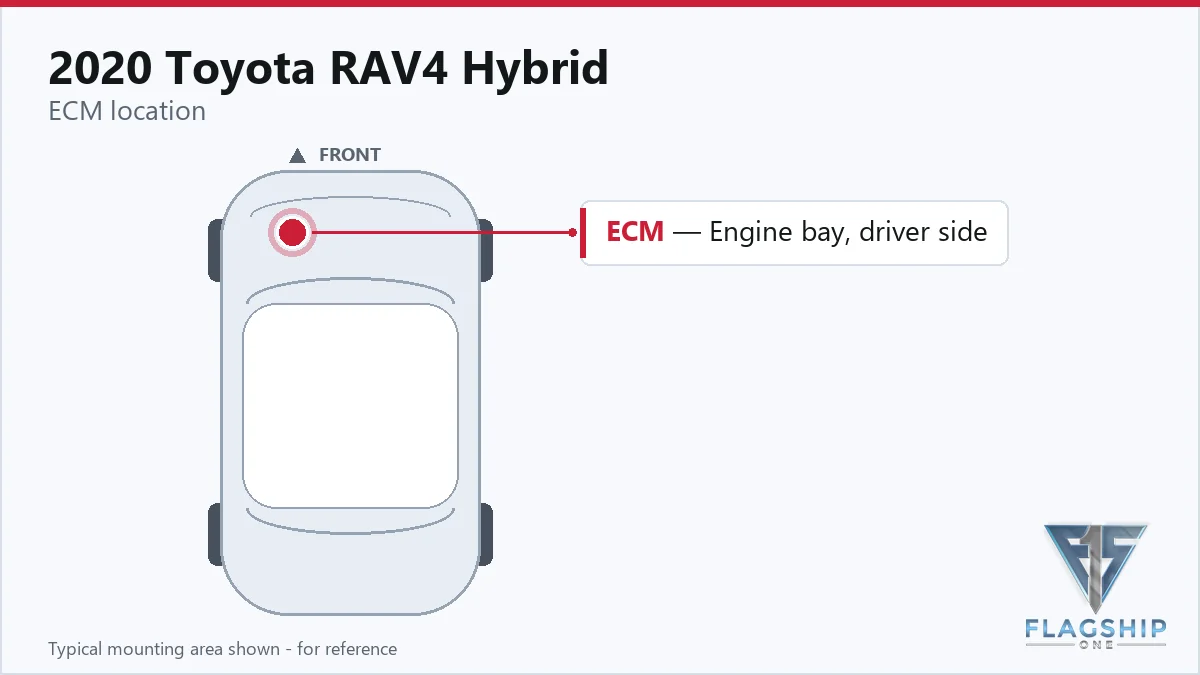

The factory procedure places the control module adjacent to the air cleaner assembly in your 2020 Toyota RAV4 Hybrid. Reaching the unit requires several preparatory steps. You must first detach the cable from the negative battery terminal, noting that the factory manual indicates a waiting period may be necessary after switching the power off before this disconnection. Next, remove the engine cover marked No. 1 followed by the inlet air cleaner. Finally, detach the air cleaner assembly including its hose to expose the module mounting location. The standard labor allowance lists 0.7 hours for Powertrain Control Module R&R and 0.8 hours for the gasoline-specific variant, while relearn procedures add 0.5 hours. The reset operation alone requires 0.3 hours. These time allocations reflect the physical removal and installation without accounting for diagnostic scans or unexpected connector issues.
How to Reach the PCM on the 2020 Toyota RAV4 Hybrid
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Click here More Info.
- REMOVE INLET AIR CLEANER ASSEMBLY Click here More Info.
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE Click here More Info.
- Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.
- Remove the 2 bolts, nut and ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | GAS | 0.8 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | GAS | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing new hardware, the factory specifies that adjustment, calibration, initialization, or registration procedures must be performed. These steps ensure the new module communicates correctly with the hybrid control systems and recognizes your specific vehicle configuration. The relearn procedure typically requires 0.5 hours of labor, while a simple reset takes 0.3 hours. However, when you order a VIN-programmed replacement unit, these initialization steps are completed before shipping. Your technician can proceed directly to installation without performing the lengthy calibration sequence required by raw modules. This preparation eliminates the risk of improper hybrid system synchronization and ensures immediate compatibility with your 2020 Toyota RAV4 Hybrid’s existing electronics.
Symptoms of a Failing PCM
A failing engine computer in your 2020 Toyota RAV4 Hybrid often presents as a no-start condition where the starter engages but the engine never fires. You may notice intermittent stalling at traffic lights or rough idling that feels like misfires across the four cylinders. The dashboard might display the check engine light alongside hybrid system warnings. Scan tools sometimes lose communication with the powertrain controller entirely, showing no data or frozen parameter readings. Transmission shifting may become harsh or delayed as the module stops coordinating with the hybrid drive. Internal diagnostics can reveal processor fault P0606 indicating the module’s internal computer has detected a malfunction. These symptoms typically worsen with temperature extremes or after jump-starting attempts.
Module Trouble Codes on the 2020 Toyota RAV4 Hybrid
The following diagnostic trouble codes originate from within the engine control module itself, indicating internal processor faults or memory errors rather than external sensor circuits. When your scan tool displays these specific identifiers, the issue typically requires module replacement or reprogramming rather than wiring harness repairs.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletin T-SB-0058-22 addresses specific conditions affecting the 2020 Toyota RAV4 Hybrid. The document describes situations where the malfunction indicator lamp illuminates accompanied by diagnostic trouble codes P0087, P008700, and P107A2A. These codes typically appear when operating at high altitudes combined with elevated ambient temperatures. The bulletin provides diagnostic guidance for technicians encountering fuel pressure related concerns under these environmental conditions. While this technical service bulletin does not mandate automatic module replacement, it outlines inspection procedures that may involve the engine control module’s fuel control strategies. Consult this bulletin if your vehicle exhibits warning lights specifically during mountain driving or hot weather operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| T-SB-0058-22 | Bulletins > T-SB-0058-22: MIL ON With DTCs P0087, P008700 and/or P107A2A at High Altitude and W | — |
Protecting the PCM in Your 2020 Toyota RAV4 Hybrid
- Maintain your charging system voltage within factory specifications to avoid electrical spikes that stress the module’s internal circuits.
- Clean battery terminals and main ground connections regularly to ensure stable voltage reference for the control module.
- Avoid jump-starting with incorrect polarity or high-voltage boosters that can surge through the electrical system.
- Address check engine lights promptly rather than driving with active fault codes that may compound into processor damage.
- Keep connector seals intact and free of corrosion moisture to prevent short circuits within the module harness.
Frequently Asked Questions
Does my 2020 Toyota RAV4 Hybrid require programming after installing a new engine computer?
The factory procedure requires initialization, calibration, or registration after installation. However, pre-programmed units arrive with your VIN already configured, eliminating the need for additional dealership programming steps.
What labor time should I expect for replacing the powertrain control module in my RAV4 Hybrid?
The standard labor guide lists 0.7 hours for Powertrain Control Module R&R procedures on your hybrid model. Additional time may apply for the 0.5-hour relearn process or 0.3-hour reset if required.
Where is the engine computer located in the 2020 Toyota RAV4 Hybrid?
The module sits next to the air cleaner assembly. Access requires removing the negative battery cable, engine cover, inlet air cleaner, and air cleaner hose assembly.
When your 2020 Toyota RAV4 Hybrid shows signs of computer failure, you face the choice between attempting circuit board repair or installing a replacement unit. While repair might seem economical, it often proves unreliable for internal processor faults. A replacement unit programmed to your specific VIN offers a straightforward solution that restores factory performance without requiring extensive shop time for initialization procedures.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2020 Toyota RAV4 Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Addressing engine computer issues in your 2020 Toyota RAV4 Hybrid promptly prevents secondary damage to hybrid system components and costly cascading failures. With proper installation following factory access procedures and initialization requirements, your vehicle can return to reliable operation quickly. Consider pre-programmed replacement options to streamline the repair process, minimize downtime, and ensure proper communication between all onboard control modules for lasting performance and peace of mind.
