2016 Toyota RAV4 Hybrid Engine Control Module Replacement Guide
The engine computer manages fuel and ignition systems within your 2016 Toyota RAV4 Hybrid. Internal processing errors may trigger specific diagnostic trouble codes. When this component fails, you could experience drivability concerns requiring professional assessment or replacement to restore normal operation safely.
Quick Summary
- Book time for removal and installation is 0.8 hours.
- Access requires removing the air cleaner case assembly.
- Internal processor faults may generate code P0606.
- Battery disconnect procedures require specific waiting periods.
Owning a hybrid crossover involves complex electronics managing powertrain functions. When the central computer managing these systems malfunctions, you need clear information about service requirements. Information covers the removal process and necessary programming steps for your 2016 Toyota RAV4 Hybrid. You learn about access paths involving the air intake system and battery safety precautions. Understanding the factory labor estimates helps you prepare for shop visits. We clarify the distinction between physical replacement and software initialization. Reviewing these details ensures you know what technical procedures are involved before authorizing repairs. Proper handling prevents unnecessary delays during the service appointment. Your vehicle depends on this component for efficient operation.
What the PCM Does in a 2016 Toyota RAV4 Hybrid
This component serves as the primary brain for engine management tasks. It processes sensor data to regulate fuel delivery and ignition timing effectively. Without proper function, the powertrain cannot operate efficiently or meet emissions standards. Significant internal faults may prevent the engine from starting or running smoothly. Technicians often diagnose these issues using specialized scan tools to read stored data. If replacement becomes necessary, you might consider replacement engine computers for RAV4 Hybrid to restore functionality. These units manage critical hybrid system interactions alongside standard combustion duties. Ensuring the new hardware communicates correctly with existing sensors is vital. Failure to address processing errors can lead to reduced performance or limp mode activation. You should verify compatibility before installing any new electronic control unit. Proper integration ensures your crossover returns to reliable daily transportation duties without further complications.

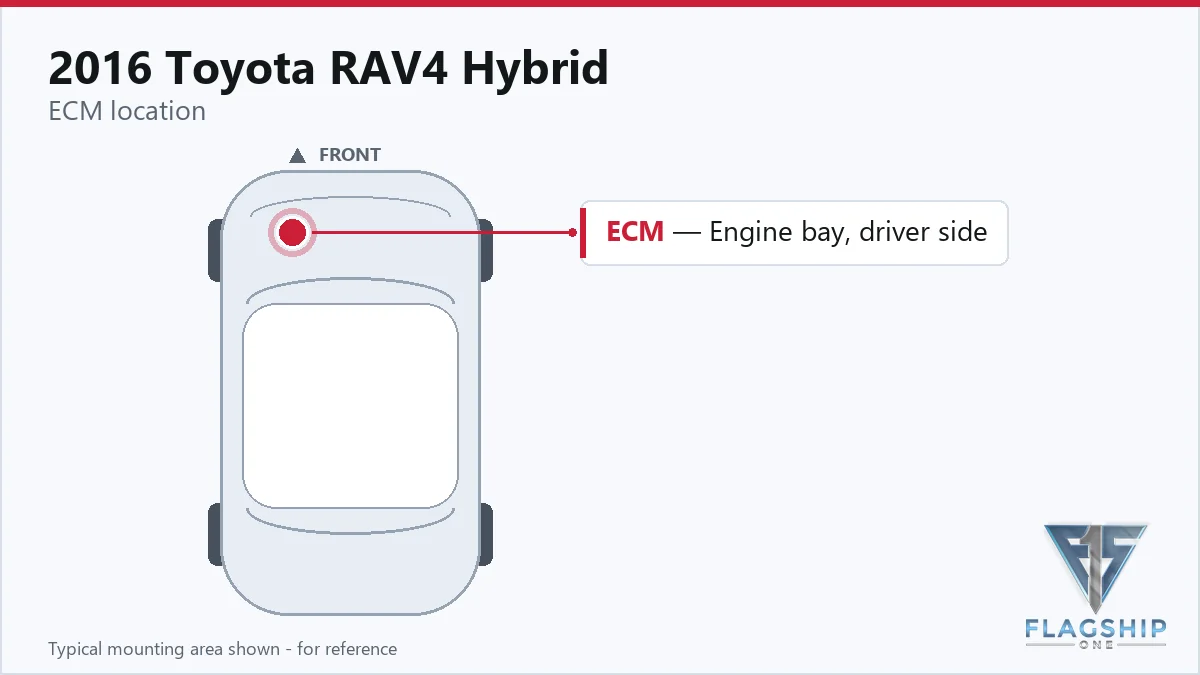

Where the PCM Is Located and What Replacement Involves
Factory service information places the unit beside the air intake housing. Gaining access requires disconnecting the negative battery cable first. You must also remove the air cleaner cap sub-assembly to proceed. The air cleaner case comes out next to expose the component. Labor guides list 0.8 hours for engine control module swap. Separate labor estimates exist for resetting or relearning procedures after physical swap. Powertrain control module removal and installation also shows 0.8 hours in the guide. Relearning the system generally requires 0.5 hours of labor. Resetting the unit independently requires 0.3 hours according to factory data. Technicians follow specific sequences to avoid damaging surrounding intake components. You should expect the shop to follow these established access paths. Proper torque specifications are not provided in the available facts. Adhering to the listed steps ensures safe component retrieval.
How to Reach the PCM on the 2016 Toyota RAV4 Hybrid
- Disconnect cable from negative battery terminal.
- Remove air cleaner cap sub-assembly.
- Disconnect the mass air flow meter sub-assembly connector.
- Disconnect the purge VSV connector.
- Detach the 2 wire harness clamps.
- Slide the 2 clamps and disconnect the fuel vapor feed hose and No.
- Disconnect the No.
- Detach the 2 hook clamps, and then remove the air cleaner cap sub-assembly.
- Remove the air cleaner filter element from the air cleaner case.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory protocols often require initialization steps after installing new hardware. Relearning the system generally requires 0.5 hours to complete fully. Some services involve resetting the unit which may take 0.3 hours. However, Flagship One units arrive VIN-programmed so those steps are already done. You receive a VIN-programmed replacement unit ready for installation. This eliminates the need for extensive post-install configuration at the shop. The vehicle recognizes the new computer immediately upon connection. You save time otherwise spent on software initialization tasks. Standard factory requirements suggest reading disconnect notices before battery work. Technicians should note a delay might be needed prior to battery cable removal. Proper programming ensures compatibility with your specific hybrid system configuration. This approach streamlines the repair process significantly for your 2016 Toyota RAV4 Hybrid.
Symptoms of a Failing PCM
Symptoms of computer failure vary but often include no-start conditions or unexpected stalling. You might notice misfire codes appearing alongside communication errors with scan tools. Shifting issues can occur if the transmission data becomes corrupted. Internal processor faults are specifically linked to internal processor malfunction codes in this model. The engine may run rough or enter a protective limp mode. Loss of power during acceleration is another common sign of trouble. Hybrid system warnings may illuminate on the dashboard unexpectedly. Communication loss prevents technicians from reading live data streams effectively. You should address these signs promptly to avoid being stranded. Persistent illumination of the check engine light warrants immediate investigation. These symptoms indicate the central computer may need replacement soon.
Module Trouble Codes on the 2016 Toyota RAV4 Hybrid
Diagnostic scans may reveal specific internal fault identifiers stored within the memory. The following code represents a documented processor error for this vehicle. Technicians use this information to confirm hardware failure versus sensor issues.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2016 Toyota RAV4 Hybrid
- Maintain charging-system health to prevent voltage spikes.
- Keep connector seals intact to avoid moisture intrusion.
- Clean grounds and connectors during routine maintenance checks.
- Address diagnostic codes promptly to prevent further damage.
- Avoid jump-start voltage spikes by following proper procedures.
Frequently Asked Questions
How long does ECM replacement take on a 2016 Toyota RAV4 Hybrid?
Factory book time for removal and installation is 0.8 hours. Additional time applies for relearn or reset procedures separately.
Where is the computer located in the 2016 Toyota RAV4 Hybrid?
The factory removal procedure reaches the control module beside the air intake housing. Access involves removing the air cleaner case and battery cable.
What code indicates internal failure in the 2016 Toyota RAV4 Hybrid?
Documented module-internal trouble codes include P0606 for this vehicle. This suggests a processor malfunction requiring hardware replacement.
You may choose between repairing the original unit or installing a refurbished replacement. Refurbished options often provide a more reliable long-term solution for internal faults. Your 2016 Toyota RAV4 Hybrid requires precise electronics for hybrid system management. Consider the labor costs involved when deciding on the best path forward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Toyota RAV4 Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Restoring your 2016 Toyota RAV4 Hybrid depends on correct component selection and installation. Follow factory precautions regarding battery disconnects to ensure safety during service. Properly programmed hardware eliminates additional setup steps for your technician. Contact Flagship One for compatible replacement solutions today.
