2017 Toyota RAV4 Hybrid Engine and Powertrain Control Module Overview
In the 2017 Toyota RAV4 Hybrid the Engine Control Module and Powertrain Control Module manage engine timing, fuel delivery, and transmission coordination. A failure typically disrupts communication, triggers diagnostic codes, and can prevent the vehicle from starting or shifting properly.
Quick Summary
- ECM and PCM share similar service times, ranging from 0.3 to 0.8 hours.
- Both modules sit beside the air‑cleaner assembly and require battery cable removal.
- Factory procedure includes a relearn step after replacement.
- P0606 indicates internal control‑module communication faults.
When a 2017 Toyota RAV4 Hybrid experiences erratic engine behavior or loss of power‑train control, the electronic modules are often the focus. This guide explains what the Engine Control Module (ECM) and Powertrain Control Module (PCM) do in this vehicle, how they are accessed, and what steps follow a replacement. By the end, you will understand the labor involved, the importance of the factory relearn process, and how a Flagship One unit fits into the service flow.
What the PCM Does in a 2017 Toyota RAV4 Hybrid
The Engine Control Module and Powertrain Control Module in the 2017 Toyota RAV4 Hybrid act as the brain for engine ignition timing, fuel injection, and transmission shift logic. They continuously monitor sensor inputs and adjust output signals to keep the hybrid system operating within design limits. Because these computers coordinate both gasoline and electric drive functions, a malfunction can lead to no‑start conditions or erratic shifting. Proper operation is essential for emissions compliance and fuel‑efficiency. For owners seeking a swap, replacement engine modules for RAV4 Hybrid are available that match the vehicle’s specifications.
Where the PCM Is Located and What Replacement Involves

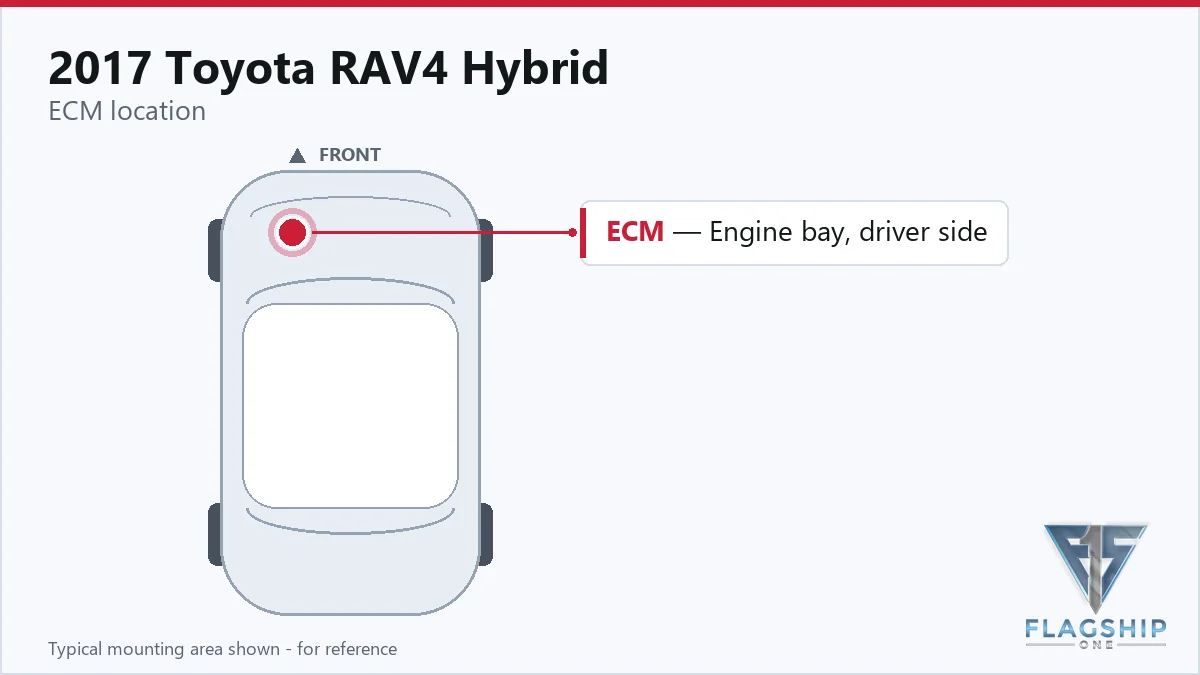

The control modules are located adjacent to the air‑cleaner assembly, reachable after removing the negative battery cable, the air‑cleaner cap sub‑assembly, and the air‑cleaner case. Factory labor times list 0.5 hours for an ECM relearn, 0.8 hours for an ECM removal and replacement, and 0.3 hours for an ECM reset. The PCM follows similar timing, with 0.8 hours for removal and replacement and 0.5 hours for a relearn. After the battery cable is disconnected, the service manual advises waiting a brief period before proceeding, ensuring safety and preventing voltage spikes.
How to Reach the PCM on the 2017 Toyota RAV4 Hybrid
- Disconnect cable from negative battery terminal.
- Remove air cleaner cap sub-assembly.
- Disconnect the mass air flow meter sub-assembly connector.
- Disconnect the purge VSV connector.
- Detach the 2 wire harness clamps.
- Slide the 2 clamps and disconnect the fuel vapor feed hose and No.
- Disconnect the No.
- Detach the 2 hook clamps, and then remove the air cleaner cap sub-assembly.
- Remove the air cleaner filter element from the air cleaner case.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Following replacement, the factory process calls for a module‑specific relearn or reset to restore proper communication with the vehicle’s networks. Flagship One units arrive VIN‑programmed, so those relearn steps are already completed. Consequently, the installer can focus on physical installation and final verification. The a VIN-programmed replacement unit eliminates the need for additional on‑site programming.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in the 2017 RAV4 Hybrid include a no‑start condition, intermittent stalling, rough idle, and loss of hybrid‑system monitoring. Drivers may also notice transmission shift delays or unexpected gear changes. When the internal fault code internal control module communication error appears, it confirms a communication issue within the module itself, often prompting a scan‑tool readout of dead data streams.
Module Trouble Codes on the 2017 Toyota RAV4 Hybrid
The following internal diagnostic codes may be logged by the control modules in a 2017 Toyota RAV4 Hybrid:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2017 Toyota RAV4 Hybrid
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and connector pins regularly.
- Avoid jump‑start spikes that can stress the module circuitry.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is required to replace the ECM on a 2017 Toyota RAV4 Hybrid?
Factory labor guides list 0.8 hours for removal and replacement, plus an additional 0.5 hours for a relearn if required.
Can I use a used ECM in my 2017 RAV4 Hybrid without programming?
A used unit would need to be programmed to match the vehicle’s VIN and configuration, which Flagship One units already include.
What does code P0606 indicate on my RAV4 Hybrid?
P0606 signals an internal communication error within the control module, often requiring inspection or replacement of the ECM/PCM.
When the control module fails, you can either have a qualified technician perform a factory‑specified replacement or consider a Flagship One refurbished unit that arrives VIN‑programmed. Both options restore the vehicle’s electronic management, but the Flagship One part saves the additional programming step, potentially reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Toyota RAV4 Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota RAV4 Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role and service requirements of the ECM and PCM helps keep your 2017 Toyota RAV4 Hybrid running smoothly. Whether you choose a new factory part or a Flagship One replacement, addressing the issue promptly protects performance and reliability.
