2020 Toyota C-HR Powertrain Control Module Replacement Overview
The engine control module in the 2020 Toyota C-HR manages fuel injection, ignition timing, and emissions systems. When it fails, the vehicle may stall, refuse to start, or display warning lights with stored diagnostic codes. Module-internal faults can disrupt communication with other vehicle systems, making proper diagnosis and replacement essential for restoring normal operation.
Quick Summary
- The control module sits next to the air cleaner assembly and requires removing six components to access.
- Book time for ECM or PCM removal and installation is 1.1 hours, with relearn procedures adding 0.5 hours each.
- Module-internal trouble codes P0604 and P0606 are documented for this vehicle.
- Factory procedures require calibration and initialization after module replacement.
- A waiting period after shutting off the ignition may be necessary before disconnecting the battery.
Engine computer problems can leave your 2020 Toyota C-HR difficult to start or unreliable on the road. The control module governs fuel delivery, ignition, and emissions functions, so when it malfunctions, the effects are noticeable and sometimes severe. This guide walks through what the module does, where it sits in your vehicle, and what the replacement process involves according to factory service information. You will find book times, access steps, and the post-installation procedures the manufacturer specifies. Understanding these details helps you make informed decisions about repair options, whether you are diagnosing a stalling issue or planning a module swap. Knowing what to expect from the process can reduce surprises at the repair shop and help you verify that the work meets factory standards.
What the PCM Does in a 2020 Toyota C-HR
The engine control module in the 2020 Toyota C-HR serves as the central processor for fuel delivery, ignition timing, and emissions management. It continuously reads input from sensors throughout the vehicle and adjusts operating parameters to maintain efficient combustion. When this module fails, the vehicle may experience rough idling, reduced fuel economy, or a complete inability to start. The module also communicates with other onboard systems, so a fault can trigger warning lights and store diagnostic codes that help pinpoint the problem. Finding C-HR replacement engine computers that match your specific vehicle identification number ensures proper compatibility with the factory calibration. The module stores learned adaptations for driving conditions, so a replacement unit typically requires programming to function correctly. Without proper initialization, the new module may not communicate with the immobilizer or other security features. This makes both the physical installation and the software configuration equally important steps in the overall repair process.
Where the PCM Is Located and What Replacement Involves

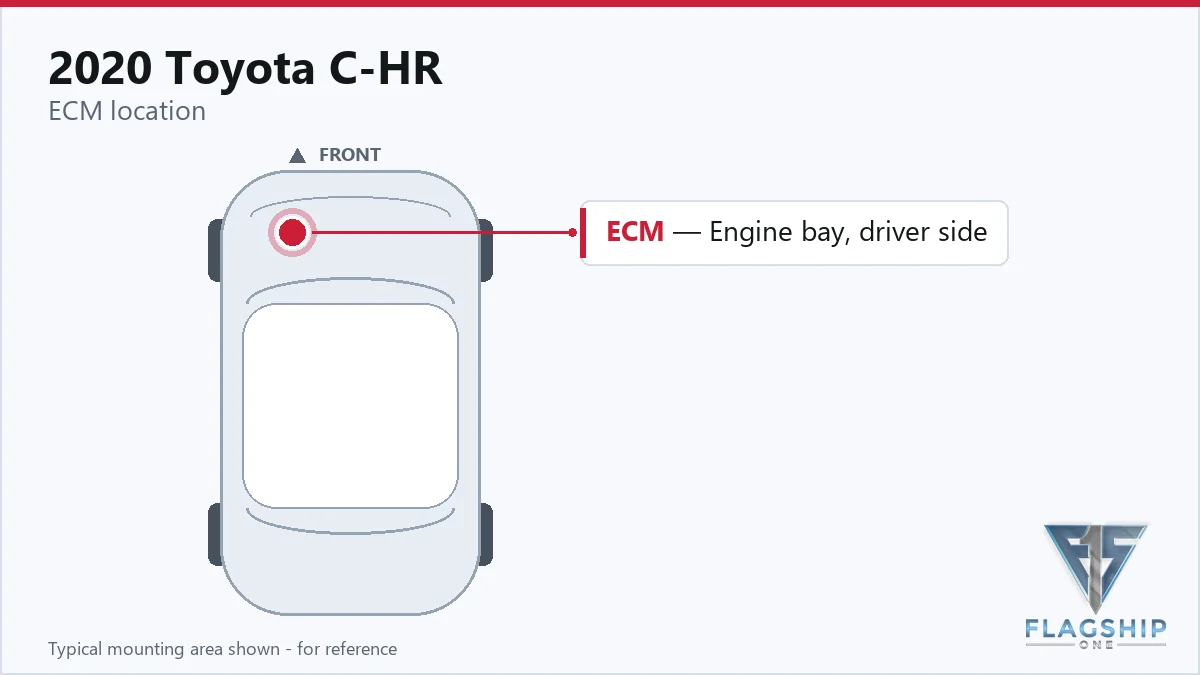

The factory service information places the control module next to the air cleaner assembly on the 2020 Toyota C-HR. Reaching it requires removing several components in sequence: the cable from the negative battery terminal, the No. 2 cylinder head cover, the air cleaner cap with air cleaner hose, the radiator cover, the No. 1 air cleaner inlet, and the air cleaner case sub-assembly. The book time for removing and reinstalling the powertrain control module is 1.1 hours. A relearn procedure adds 0.5 hours, and a reset procedure adds 0.3 hours. For the engine control module, removal and installation also carries a book time of 1.1 hours, with a relearn procedure of 0.5 hours. The factory cautions that after turning the ignition switch off, a waiting period may be required before disconnecting the negative battery cable, so reviewing the battery disconnect notices before starting work is important.
How to Reach the PCM on the 2020 Toyota C-HR
- Disconnect cable from negative battery terminal Initialize back door lock.
- Disconnect cable from negative battery terminal.
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Click here More Info.
- REMOVE RADIATOR COVER Click here More Info.
- Remove air cleaner case sub-assembly.
- Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.
- Remove the 2 bolts and air cleaner case sub-assembly from the vehicle.
- Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.
- Remove the No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After the ECM is removed or replaced on the 2020 Toyota C-HR, the factory procedure requires specific adjustment, calibration, initialization, or registration steps to restore proper operation. These procedures ensure the module communicates correctly with the immobilizer, adapts to driving conditions, and integrates with other vehicle systems. Skipping these steps may result in starting issues or warning lights. Flagship One supplies a VIN-programmed replacement unit so the programming and initialization steps are completed before the part ships. This means the module arrives ready to install with your vehicle identification number already entered, reducing the post-installation work to basic relearn procedures if needed. The factory cautions that proper waiting time after shutting off the ignition is necessary before disconnecting the battery, and that step should not be overlooked during the swap.
Symptoms of a Failing PCM
When the engine control module in the 2020 Toyota C-HR begins to fail, several symptoms may surface. The vehicle may crank without starting, stall unexpectedly at idle or while driving, or trigger misfire codes even when the ignition components are in good condition. Scan-tool communication may become intermittent or fail entirely, preventing diagnostic readouts. Some owners report rough running, reduced power, or illuminated warning lights with no obvious mechanical cause. The module may also store internal fault codes such as the P0606 control module fault, indicating a problem within the processor itself rather than in an external sensor or actuator. Because these symptoms overlap with fuel pump, ignition coil, or sensor failures, a thorough diagnostic process is important before concluding the module is at fault. Checking wiring and connectors first can prevent unnecessary replacement of a functioning unit.
Module Trouble Codes on the 2020 Toyota C-HR
The following diagnostic trouble codes are documented as module-internal faults for the 2020 Toyota C-HR. These codes indicate problems within the control module itself rather than in external sensors or circuits. Reviewing them alongside your scan-tool data can help confirm whether the module needs replacement or whether an external issue is triggering the code.
| Code | Meaning | Full Guide |
|---|---|---|
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2020 Toyota C-HR
- Maintain a healthy charging system to prevent voltage spikes that can damage the module.
- Keep ground connections clean and tight to ensure stable electrical signals.
- Avoid jump-starting with mismatched voltage sources that may send surges through the module.
- Address stored trouble codes promptly to prevent cascading electrical issues.
- Inspect connector seals during routine service to prevent moisture intrusion.
Frequently Asked Questions
How long does ECM replacement take on a 2020 Toyota C-HR?
The book time for removing and reinstalling the engine control module is 1.1 hours. A relearn procedure adds 0.5 hours, and a reset adds 0.3 hours. Actual time may vary depending on shop conditions and tooling.
What codes indicate an internal ECM failure on the 2020 Toyota C-HR?
Codes P0604 and P0606 are documented as module-internal faults for this vehicle. These codes suggest a problem within the module processor itself. A full diagnostic review is recommended before replacing the unit.
Does the replacement ECM for the 2020 Toyota C-HR need programming?
The factory procedure requires calibration and initialization after replacement. A VIN-programmed unit from Flagship One arrives with the programming already completed, reducing post-installation steps to basic relearn procedures if needed.
When the engine control module in your 2020 Toyota C-HR needs replacement, you have options. A brand-new unit from a dealership may carry a higher cost, while a refurbished unit can offer savings if properly tested and programmed. Flagship One provides VIN-programmed modules that arrive ready for installation, eliminating the need for separate programming appointments. Reviewing your diagnostic data and confirming the part number before ordering helps ensure a smooth repair.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2020 Toyota C-HR with a lifetime warranty, free shipping and no core charge. The full Toyota C-HR module lineup covers other engine configurations as well.
Final Thoughts
The 2020 Toyota C-HR relies on its engine control module for proper fuel management and emissions control. When symptoms like stalling, no-start, or internal fault codes appear, diagnosing the module carefully before replacement can save time and expense. A VIN-programmed replacement from Flagship One simplifies the repair by arriving ready to install. Explore available options for your C-HR to get back on the road with confidence.
