2018 Nissan Titan XD 5.0L PCM/ECM Failure Symptoms & Replacement
The Powertrain Control Module (PCM) in your 2018 Nissan Titan XD 5.0L manages engine and transmission functions. Failure can cause no-start, stalling, poor performance, and trigger code P0605 (internal control module fault).
Quick Summary
- PCM removal and installation book time is 3.0 hours.
- A powertrain control module relearn procedure takes 0.5 hours after replacement.
- An engine control module reset is listed at 0.3 hours.
- Documented trouble code P0605 indicates an internal PCM fault.
- Flagship One units arrive VIN-programmed, eliminating the factory relearn step.
If your 2018 Nissan Titan XD with the 5.0L engine is experiencing intermittent stalling, hard starting, or a check engine light, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that controls fuel delivery, ignition timing, turbocharger operation, and transmission shift patterns. When it fails, the vehicle may become undrivable or exhibit erratic behavior. This guide explains what the PCM does in your Titan XD, common failure symptoms including the documented P0605 code, and what replacement involves based on factory labor times. You will learn the difference between a standard replacement and a VIN-programmed unit that arrives ready to install. Understanding these details helps you make an informed decision about repairing or replacing the module, saving time and avoiding unnecessary diagnostic steps.
What the PCM Does in a 2018 Nissan Titan XD
The Powertrain Control Module (PCM) in your 2018 Nissan Titan XD 5.0L is the primary electronic brain that coordinates engine and transmission operation. It receives data from sensors such as the crankshaft position, mass airflow, and oxygen sensors, then adjusts fuel injector pulse width, ignition timing, and boost pressure from the Cummins turbo-diesel. The PCM also manages the six-speed automatic transmission’s shift solenoids and torque converter lockup. Because the Titan XD is a heavy-duty truck used for towing and hauling, the PCM must handle high loads and temperature extremes. When the PCM fails, it often loses communication with other modules, triggers fault codes like P0605, and may prevent the engine from starting. The PCM is one of the engine computers for the Titan XD that can be replaced if internal circuitry fails. A replacement unit must be programmed with the vehicle’s VIN and calibration data to function correctly. Without proper programming, the truck may run poorly or not at all. Flagship One provides pre-programmed units that match your original specifications, reducing installation complexity.
Where the PCM Is Located and What Replacement Involves
The exact location of the PCM in the 2018 Nissan Titan XD 5.0L is not specified in the available data, but it is typically mounted in the engine bay near the battery or on the firewall. Replacement involves disconnecting the battery, removing electrical connectors, and unbolting the module. According to factory labor times, PCM removal and installation is booked at 3.0 hours. After installation, a powertrain control module relearn procedure is required, taking an additional 0.5 hours. An engine control module reset is also listed at 0.3 hours. These times reflect the work of a professional technician using proper tools. Access may require removing air intake components or other parts. It is important to handle the PCM carefully to avoid damaging connectors or pins. Always disconnect the battery before starting work to prevent electrical shorts or module damage.
How to Reach the PCM on the 2018 Nissan Titan XD
- Disconnect the battery or batteries negative terminal(s).
- Remove the cowl top extension.
- Remove the front wheel and tire (RH) using power tool.
- Remove the front fender protector (RH).
- Position the relay box and IDPM/ER aside.

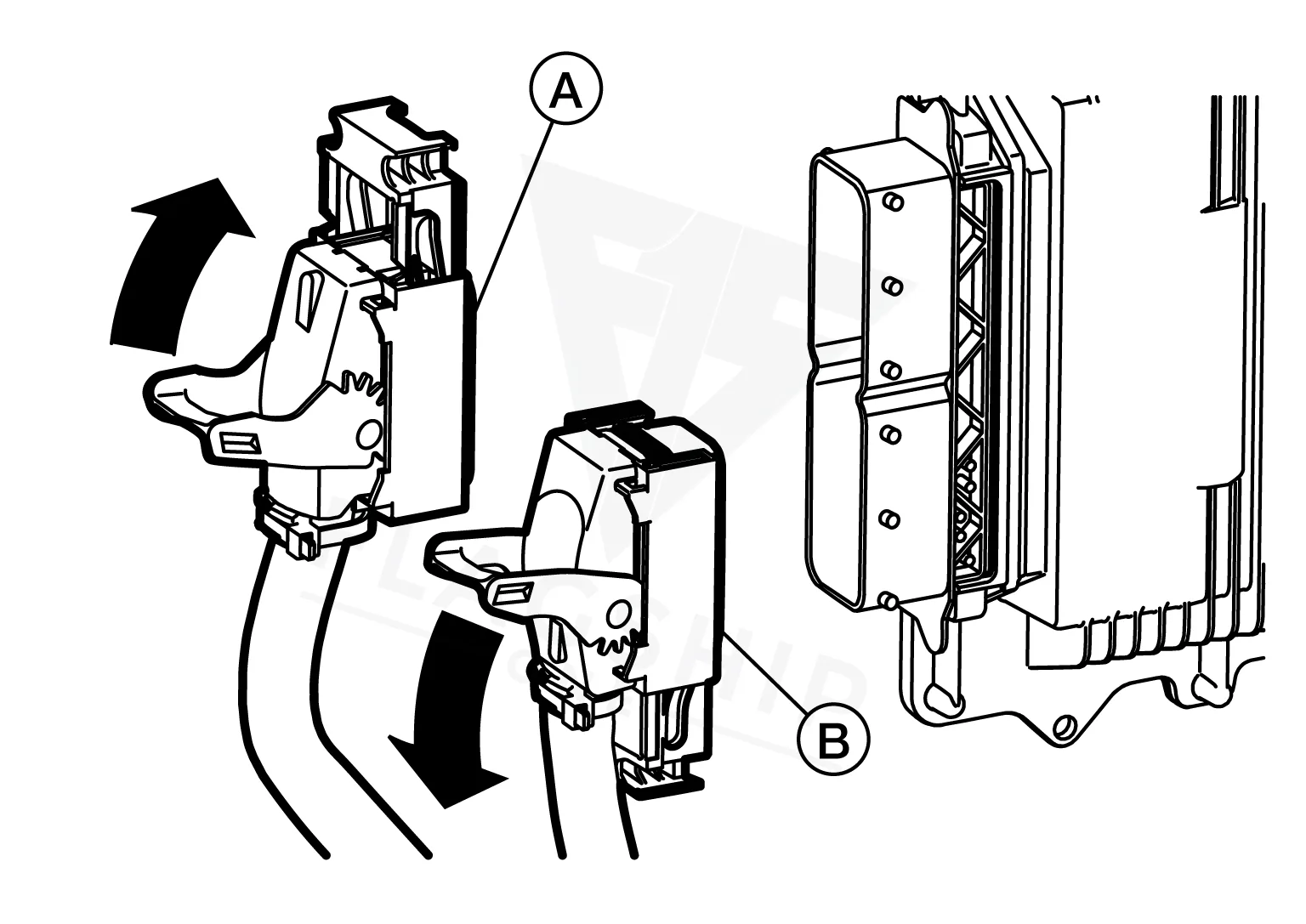

- Disconnect harness connector from the ECM.
- Remove nuts and ECM from ECM bracket.
- Remove bolts and ECM bracket from vehicle (if necessary).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 3.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 3.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM in your 2018 Nissan Titan XD 5.0L, the factory procedure requires a powertrain control module relearn that takes 0.5 hours. This step typically involves using a scan tool to initialize the module and teach it the vehicle’s VIN, immobilizer codes, and transmission adaptations. Some models also require an engine control module reset (0.3 hours) to clear learned values. However, when you choose a VIN-programmed replacement PCM from Flagship One, these steps are already completed. The unit arrives with your vehicle’s VIN and calibration data pre-loaded, so it is ready to install and start the engine. This eliminates the need for a dealer visit or specialized programming equipment, saving you the 0.5-hour relearn time and potential diagnostic fees. Simply install the module, reconnect the battery, and perform any basic idle relearn if recommended.
Symptoms of a Failing PCM
A failing PCM in the 2018 Nissan Titan XD 5.0L can produce a range of symptoms that may be mistaken for other issues. Common signs include the engine cranking but not starting, intermittent stalling while driving, rough idle, loss of power, and poor fuel economy. The check engine light may illuminate with various codes, but one documented trouble code is P0605 internal module fault, which indicates an internal PCM failure. Other symptoms include erratic transmission shifting, such as harsh engagement or failure to shift, and loss of communication with scan tools. The vehicle may also experience surging or hesitation under load, especially when towing. In some cases, the PCM may cause the cooling fan to run continuously or the glow plug system to malfunction. If you notice multiple electrical issues occurring together, the PCM should be inspected. Diagnostic steps include checking power and ground circuits, verifying connector integrity, and scanning for module-internal codes.
Module Trouble Codes on the 2018 Nissan Titan XD
The following module-internal trouble code has been documented for the 2018 Nissan Titan XD 5.0L. This code points to a fault within the PCM itself rather than an external sensor or circuit.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2018 Nissan Titan XD
- Keep the battery and charging system in good condition; low voltage or voltage spikes can damage the PCM.
- Clean and tighten all ground connections, especially the main engine ground and PCM ground strap.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger or follow the manual’s jump-start procedure.
- Address any check engine light or trouble codes promptly before they lead to PCM damage.
- Inspect PCM connector seals and ensure they are fully seated to prevent moisture or corrosion entry.
- Use only high-quality replacement sensors and components to avoid sending incorrect signals to the PCM.
Frequently Asked Questions
What does the PCM do in a 2018 Nissan Titan XD 5.0L?
The PCM controls engine and transmission functions including fuel injection, ignition timing, turbo boost, and shift patterns. It processes sensor inputs to optimize performance and emissions. Failure can cause drivability issues.
How long does it take to replace the PCM on a 2018 Nissan Titan XD?
Factory book time for PCM removal and installation is 3.0 hours. An additional 0.5 hours is required for a powertrain control module relearn. An engine control module reset takes 0.3 hours if needed.
What is code P0605 on a 2018 Nissan Titan XD?
P0605 is a module-internal trouble code indicating a fault within the PCM itself. It often means the internal read-only memory (ROM) has failed. Replacement of the PCM is typically required to resolve this code.
Can I install a used PCM from a salvage yard on my 2018 Titan XD?
A used PCM must be programmed with your vehicle’s VIN and immobilizer data. Without proper programming, the engine may not start. Flagship One offers VIN-programmed units that are ready to install, avoiding compatibility issues.
Do I need to reprogram the PCM after replacement on a 2018 Nissan Titan XD?
Factory procedure requires a 0.5-hour powertrain control module relearn. However, a VIN-programmed replacement PCM from Flagship One arrives with the correct calibration, so no additional programming is needed.
When your 2018 Nissan Titan XD 5.0L needs a new PCM, you have two main options: have a dealer install a blank module and program it, or choose a refurbished VIN-programmed unit. The dealer route involves the 3.0-hour labor plus programming time. A pre-programmed unit from Flagship One eliminates the programming step, reducing downtime and cost. For a heavy-duty truck like the Titan XD, a reliable replacement is essential for towing and daily driving.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Nissan Titan XD with a lifetime warranty, free shipping and no core charge. The full Nissan Titan XD module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2018 Nissan Titan XD 5.0L is a critical component that controls engine and transmission performance. Recognizing symptoms like no-start, stalling, or code P0605 can help you diagnose a failing module. Replacement involves 3.0 hours of labor plus a 0.5-hour relearn, but a VIN-programmed unit from Flagship One simplifies the process. Consider a pre-programmed replacement to get your truck back on the road quickly.
