2020 Nissan Maxima ECM Replacement Guide
The ECM in a 2020 Nissan Maxima is the central unit that controls engine timing, fuel delivery, and sensor integration. A failure can cause loss of power, erratic idling, or complete engine shutdown.
Quick Summary

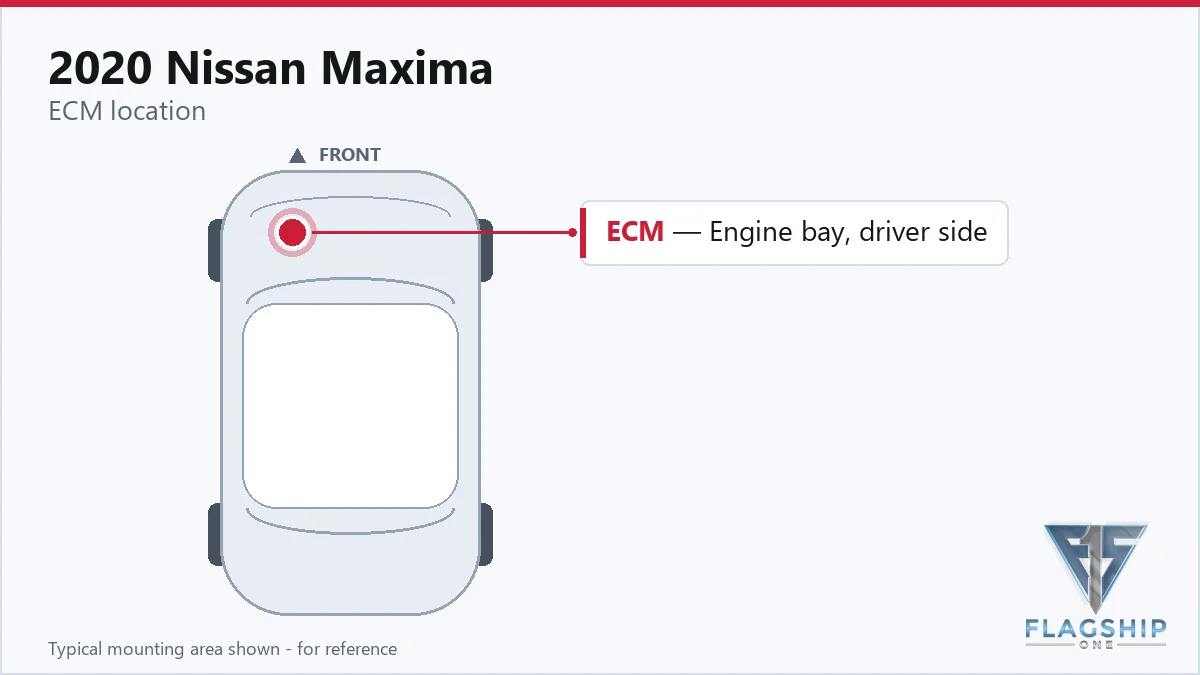

- ECM is located beneath the air cleaner cover on bank 1.
- Replacement requires removal of the air cleaner body on bank 1.
- The unit is VIN‑programmed by Flagship One, eliminating post‑install programming.
You’ve probably noticed your 2020 Nissan Maxima struggling to start, idling poorly, or suddenly losing power. These symptoms often point to the Engine Control Module, the brain of the vehicle’s powertrain. This guide walks you through the exact location of the ECM, the steps for safe removal and installation, and the factory procedures that Flagship One’s replacement units handle automatically. By understanding the module’s role and the repair workflow, you can decide whether a repair or a refurbished replacement is right for your situation and avoid unnecessary downtime.
What the ECM Does in a 2020 Nissan Maxima
The 2020 Nissan Maxima’s ECM is the electronic brain that manages fuel injection, ignition timing, and sensor data to keep the engine running efficiently. It receives inputs from crankshaft position, camshaft position, throttle, and various temperature sensors and uses that data to adjust spark and fuel delivery. A malfunctioning ECM can cause stalling, misfires, or a no‑start condition, making it a critical component for engine reliability. 2020 Nissan Maxima replacement engine computers The module’s failure can also trigger a P0605 code, indicating a communication error between the ECM and other control units.
Where the ECM Is Located and What Replacement Involves
The ECM sits under the air cleaner cover on bank 1 of the 2020 Nissan Maxima. To access it, remove the air cleaner body on bank 1, then lift the cover that protects the module. Replacement involves disconnecting the electrical harness, removing the mounting bolts, and installing the new unit. The new ECM is pre‑programmed for your VIN, so you can simply install it and reconnect the harness without additional tuning.
How to Reach the ECM on the 2020 Nissan Maxima
- Remove air duct (inlet).
- Remove air cleaner case (bank 1).
- Remove ECM cover.
- Disconnect ECM harness connectors.
- Remove harness bracket.
- Remove ECM bracket with ECM.
- Remove ECM from ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After installing the new ECM, Flagship One’s units are already configured for your vehicle’s VIN, so no factory re‑programming is necessary. The replacement unit is delivered ready to use, saving you time and eliminating the need for a specialized scan tool to set parameters. a VIN‑programmed replacement unit This streamlines the repair process and ensures that the module operates within the manufacturer’s specifications from the moment it’s installed.
Symptoms of a Failing ECM
A failing ECM in a 2020 Nissan Maxima can manifest as a no‑start condition, sudden stalling, rough idle, or intermittent misfires. The vehicle may also produce a P0605 code, which indicates a communication fault between the ECM and other modules. When the ECM fails, it may not send proper signals to the fuel injectors or ignition coils, causing the engine to lose power or shut down unexpectedly. Engine Control Module These symptoms typically arise after the module has been exposed to excessive heat, electrical noise, or physical damage.
Module Trouble Codes on the 2020 Nissan Maxima
The 2020 Nissan Maxima’s internal module codes include P0605, which signals a communication failure within the engine control system.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the ECM in Your 2020 Nissan Maxima
- Keep the charging system clean and ensure the alternator is functioning correctly.
- Inspect the ECM connector for corrosion and secure all terminals.
- Avoid jump‑starting the vehicle with a battery that has a low voltage output.
- Address any fault codes promptly to prevent further damage.
- Maintain the integrity of the air cleaner seal to protect the module.
- Use a quality diagnostic tool to monitor ECM performance over time.
Frequently Asked Questions
Is it safe to replace the ECM on my 2020 Nissan Maxima?
Yes, the replacement is a standard procedure. The new unit is pre‑programmed for your VIN, so you only need to install it and reconnect the harness.
Will a refurbished ECM work in a 2020 Nissan Maxima?
Refurbished units are tested to meet OEM standards. They should function identically to a new unit, but ensure the refurbisher follows the same VIN‑programming process.
How long does the ECM replacement take?
Typical installations require about 1–2 hours, depending on accessibility and the technician’s experience.
What if I still get a P0605 code after replacement?
Check the wiring harness for damage or loose connections, and verify that the air cleaner cover is properly seated. If the code persists, further diagnostics may be needed.
Do I need a diagnostic scan after installing the new ECM?
It’s recommended to run a quick diagnostic to confirm the module is communicating correctly and that no other codes are present.
When your 2020 Nissan Maxima’s engine starts to behave oddly, you can choose between a traditional repair or a refurbished replacement. Both options bring the same quality and reliability, but a refurbished unit offers a cost‑effective alternative with the same VIN‑programmed performance.
Flagship One stocks a refurbished, VIN-programmed ECM for the 2020 Nissan Maxima with a lifetime warranty, free shipping and no core charge. The full Nissan Maxima module lineup covers other engine configurations as well.
Final Thoughts
If your 2020 Nissan Maxima is showing signs of an ECM issue, remember that a pre‑programmed replacement can restore power and performance quickly. Reach out to a trusted technician to discuss the best solution for your vehicle.
