2018 Cadillac ATS‑V Powertrain and Engine Control Module Service Guide
In the 2018 Cadillac ATS‑V, the powertrain and engine control modules manage fuel delivery, ignition timing, and emission functions. Failure of either unit can cause loss of engine power, stalling, or communication errors with diagnostic tools.
Quick Summary
- Replacement of the PCM or ECM typically requires about 1.4 hours of labor per unit.
- After installation, a relearn or reset procedure of 0.3‑0.5 hours is usually needed.
- Factory caution advises the ignition be off when disconnecting ECM connectors to avoid damage.
- Flagship One units arrive VIN‑programmed, eliminating most post‑install steps.
When a 2018 Cadillac ATS‑V begins to exhibit no‑start conditions, rough idle, or persistent powertrain codes, the underlying issue often lies with the powertrain control module (PCM) or the engine control module (ECM). This guide explains what these modules do, how they are accessed, the labor involved in replacement, and the programming steps required to get your vehicle back on the road. By the end, you will understand the typical service time, safety precautions, and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2018 Cadillac ATS-V
The PCM in the 2018 Cadillac ATS‑V interprets sensor data to regulate fuel injection, ignition timing, and transmission shift points, while the ECM focuses on engine‑specific functions such as idle control and emissions monitoring. Both modules are critical for smooth operation and compliance with emission standards. Understanding their role helps you assess why a fault may trigger codes like P0601 or cause drivability issues. The vehicle relies on these computers to coordinate power delivery, so a malfunction often results in noticeable performance loss. replacement engine module for ATS-V ensures the vehicle retains its calibrated performance characteristics.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, accessible after removing the upper engine cover. Replacement involves disconnecting the wiring harnesses, unbolting the unit, and installing the new module in the same position. The book times list 1.4 hours for removal and installation of each module, followed by a 0.5 hour relearn or reset step. Technicians should observe the factory caution to keep the ignition off while handling ECM connectors to avoid inadvertent damage.

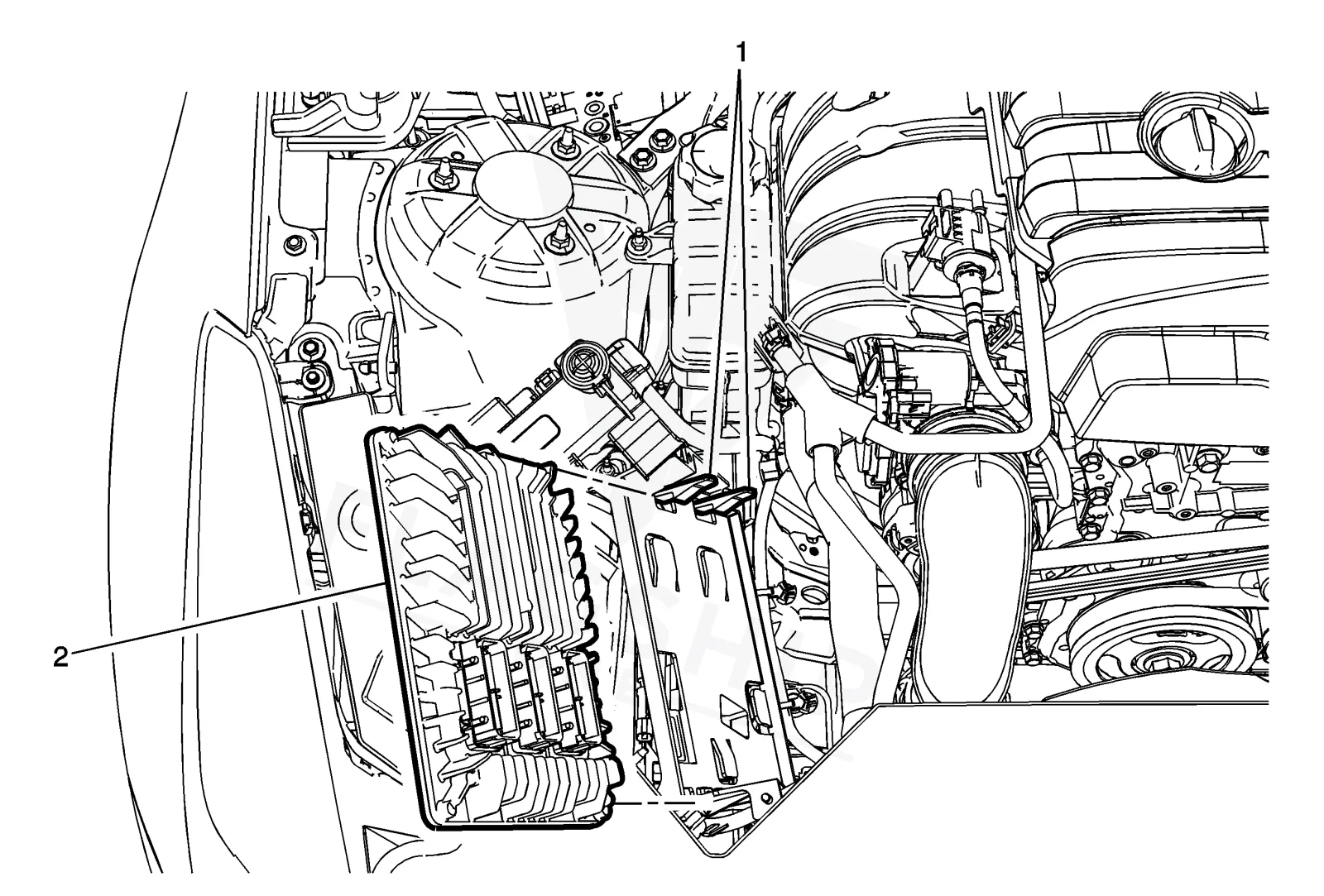

How to Reach the PCM on the 2018 Cadillac ATS-V
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a PCM relearn of 0.5 hours or an ECM reset of 0.3 hours to synchronize the vehicle’s systems. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated, so those steps are typically completed during installation, reducing shop time.
Symptoms of a Failing PCM
A common sign of a failing PCM or ECM in the 2018 Cadillac ATS‑V includes intermittent loss of power, engine stalling, or a complete no‑start condition. You may also see diagnostic trouble codes such as code P0601 processor fault appear during a scan. Other symptoms can involve rough idle, poor acceleration, or erratic transmission shifts, all of which point to a communication breakdown within the vehicle’s control network.
Module Trouble Codes on the 2018 Cadillac ATS-V
The following diagnostic trouble codes are documented for the 2018 Cadillac ATS‑V’s powertrain and engine control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0607 | Module performance fault | Full P0607 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P060C | Module-internal fault | — |
| P0610 | Module-internal fault | Full P0610 guide → |
| P062B | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Bulletin #18095 (June 11 2018) addresses ECM OBD memory being cleared after programming other modules. Bulletin #18239‑01 (December 4 2018) covers an emission‑related ECM circuit board connection failure. Bulletin #PIP5373B (June 11 2018) provides guidance for programming ECM error E4491/E4423.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Update – ECM OBD Memory Cleared After Programming of Other Modules – (Jun 11, 2018) | — |
| — | Emission Recall – ECM Circuit Board Connection Failure – (Dec 4, 2018) | Replace the Engine Control Module |
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2018 Cadillac ATS-V
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean connector grounds regularly.
- Avoid jump‑start spikes that can stress electronic modules.
- Promptly diagnose and clear any stored trouble codes.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2018 Cadillac ATS‑V?
The factory labor guide lists about 1.4 hours for removal and installation, plus an additional 0.5 hours for the required relearn procedure.
Do I need to perform an ECM reset after installing a new unit on my 2018 Cadillac ATS‑V?
Yes, the standard procedure includes a 0.3 hour reset to ensure the vehicle’s control strategies are correctly aligned.
Can a Flagship One replacement eliminate the post‑install programming steps?
Flagship One units arrive VIN‑programmed, which typically removes the need for separate relearn or reset actions during installation.
When the PCM or ECM in your 2018 Cadillac ATS‑V requires service, you can choose a brand‑new factory‑spec unit or a refurbished replacement that meets original specifications. Both options restore the vehicle’s control functions, but a Flagship One unit often saves time by arriving pre‑programmed for your VIN. Consider the condition of your current module and your repair schedule when deciding which path best fits your needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Cadillac ATS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac ATS-V module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 2018 Cadillac ATS‑V can restore reliable performance and clear related trouble codes. Whether you opt for a new or refurbished replacement, proper installation and adherence to factory cautions are essential. Contact a qualified technician to evaluate the best solution for your vehicle.
