2017 Cadillac ATS-V ECM Replacement & Common Failure Symptoms
The Engine Control Module (ECM) in your 2017 Cadillac ATS-V manages fuel delivery, ignition timing, and emissions systems. Failures may stem from voltage spikes, moisture intrusion, or corrupted software, often triggering drivability issues or no-start conditions.
Quick Summary
- ECM replacement typically requires 1.4 hours of labor for removal and installation.
- A 0.5-hour relearn procedure is necessary after module replacement to restore proper operation.
- Factory cautions advise turning the ignition off before disconnecting ECM connectors to prevent damage.
- Internal trouble codes like P0601 or P0603 may indicate ECM failure in this vehicle.
- Flagship One units arrive pre-programmed to your VIN, eliminating additional programming steps.
If your 2017 Cadillac ATS-V is experiencing intermittent stalling, a no-start condition, or persistent check-engine lights, the Engine Control Module (ECM) may be at fault. This critical component oversees engine performance by regulating fuel, ignition, and emissions systems. Replacing it involves precise steps to avoid damaging sensitive electronics. Understanding the process, labor requirements, and post-installation procedures can help you make informed decisions about repairs. This guide covers what the ECM does, where it’s located, common failure symptoms, and how to approach replacement without unnecessary complications.
What the PCM Does in a 2017 Cadillac ATS-V
The ECM in your 2017 Cadillac ATS-V acts as the brain of the engine, continuously adjusting fuel injection, spark timing, and emissions controls to optimize performance. It relies on input from sensors throughout the vehicle to make real-time adjustments, ensuring smooth operation and compliance with emissions standards. When the module fails, you may notice poor drivability, reduced fuel efficiency, or even a complete inability to start the engine. Replacing it with replacement engine computers for the ATS-V requires careful handling to avoid damaging connectors or introducing voltage spikes during installation.

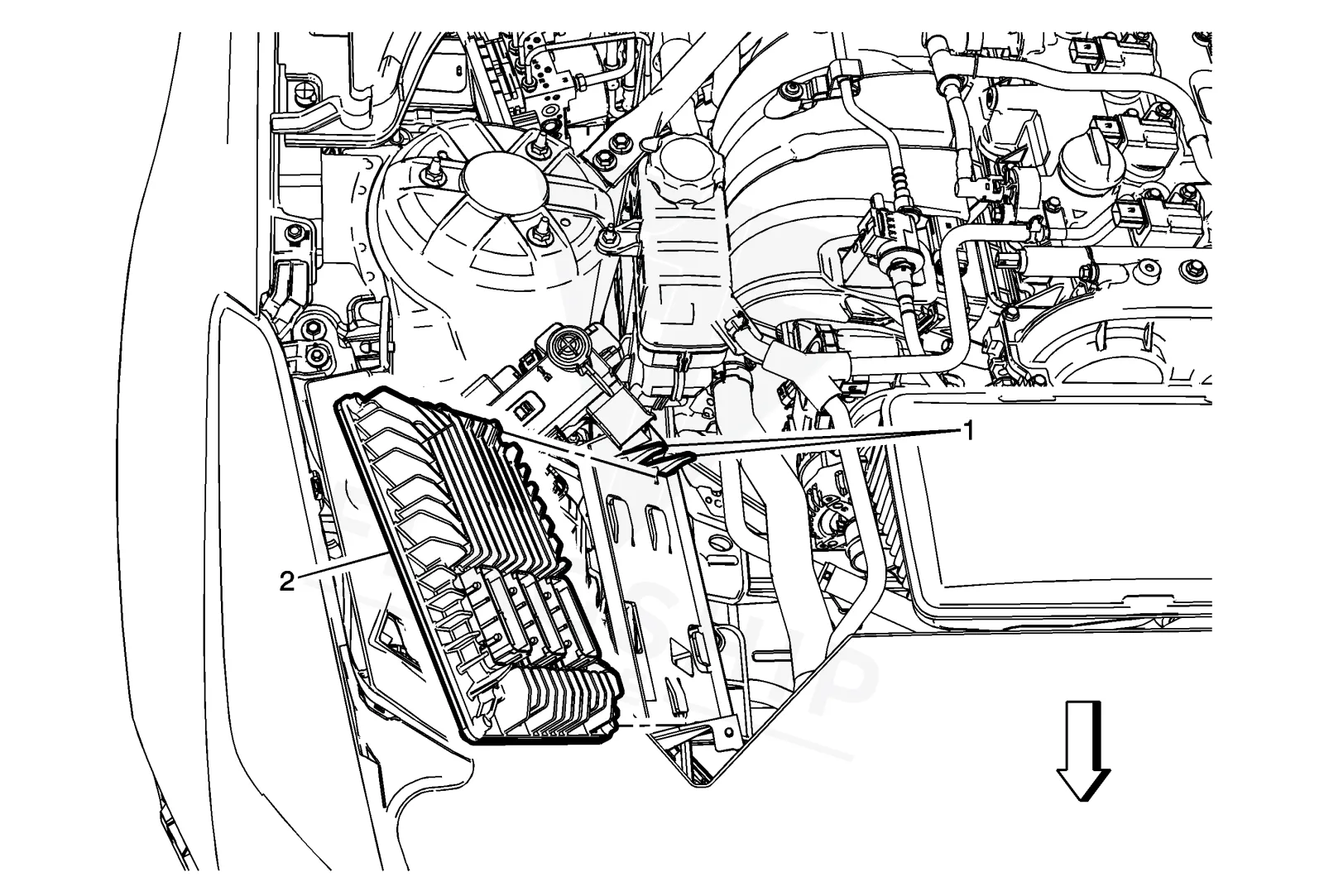

Where the PCM Is Located and What Replacement Involves
In the 2017 Cadillac ATS-V, the ECM is typically mounted in the engine bay for accessibility. Replacement involves disconnecting the battery, removing the module’s electrical connectors, and unbolting the unit from its mount. The factory labor time for removal and reinstallation is 1.4 hours. After installation, the ignition must remain off while connecting or disconnecting the ECM to prevent damage to internal components. No special tools are required beyond basic hand tools, but proper torque specifications should be followed if provided in service manuals.
How to Reach the PCM on the 2017 Cadillac ATS-V
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2017 Cadillac ATS-V, a relearn procedure is required to synchronize the module with the vehicle’s systems. This process typically takes 0.5 hours and may involve using a scan tool to input the engine identification number, as noted in some factory bulletins. However, a VIN-programmed replacement unit from Flagship One arrives ready to install, eliminating the need for additional programming steps and reducing the risk of errors during setup.
Symptoms of a Failing PCM
A failing ECM in your 2017 Cadillac ATS-V may cause a range of symptoms, including intermittent stalling, rough idle, or a no-start condition. You might also notice poor throttle response, reduced fuel economy, or the illumination of the check-engine light. Common trouble codes associated with ECM failure include internal control module memory checksum error, which often indicates corrupted software or hardware issues. If your scan tool fails to communicate with the ECM, the module itself may be unresponsive or damaged.
Module Trouble Codes on the 2017 Cadillac ATS-V
The 2017 Cadillac ATS-V may log several internal trouble codes when the ECM experiences faults. These codes typically point to software corruption, memory errors, or communication failures within the module. Addressing them promptly can prevent further drivability issues.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
| P064D | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2017 Cadillac ATS-V highlight potential ECM programming issues. Bulletin #PIP5373B addresses errors E4491 and E4423, which may occur during module updates. Another bulletin, #PIP5597, notes that technicians may be prompted to input the engine identification number while programming certain ECMs. These bulletins underscore the importance of following precise procedures during software updates or replacements to avoid complications.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Engine identification Number Requested When Programming ECM – (Oct 8, 2018) | During the programming of some ECM’s, the technician may be prompted to input the engine identification |
Protecting the PCM in Your 2017 Cadillac ATS-V
- Maintain a stable charging system to prevent voltage spikes that can damage the ECM.
- Inspect and clean electrical connectors regularly to avoid corrosion or poor contact.
- Avoid jump-starting the vehicle with improper voltage, which may harm sensitive electronics.
- Address check-engine lights or trouble codes promptly to prevent cascading failures.
- Ensure connector seals remain intact to protect the ECM from moisture intrusion.
- Disconnect the battery before performing any electrical work near the ECM.
Frequently Asked Questions
Why does my 2017 Cadillac ATS-V need an ECM relearn after replacement?
The relearn procedure ensures the new ECM synchronizes with the vehicle’s sensors and systems. This step is necessary to restore proper engine performance and prevent drivability issues. The process typically takes 0.5 hours and may require a scan tool to complete.
Can I replace the ECM in my 2017 Cadillac ATS-V myself?
While the ECM is accessible in the engine bay, replacement requires careful handling to avoid damaging connectors or introducing voltage spikes. If you’re unfamiliar with automotive electronics, professional installation is recommended to ensure proper function.
What causes ECM failure in a 2017 Cadillac ATS-V?
Common causes include voltage spikes, moisture intrusion, or software corruption. Poor electrical connections or jump-starting with incorrect voltage can also damage the module. Addressing these issues promptly can extend the ECM’s lifespan.
If your 2017 Cadillac ATS-V is experiencing ECM-related issues, you have options for repair or replacement. While some shops may attempt to reflash or repair the existing module, a replacement unit ensures reliable performance. Flagship One provides VIN-programmed ECMs designed to plug in and function without additional programming, saving time and reducing the risk of errors during installation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Cadillac ATS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac ATS-V module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2017 Cadillac ATS-V plays a critical role in engine performance and drivability. If you’re facing symptoms like stalling, no-start conditions, or persistent trouble codes, addressing the issue promptly can restore smooth operation. Whether you opt for a repair or replacement, understanding the process and labor requirements helps you make an informed decision.
