2017 Audi Q5 Engine Control Module: PCM Replacement Guide
The Engine Control Module (ECM) in your 2017 Audi Q5 serves as the brain of the 2.0L turbocharged engine, managing fuel injection, ignition timing, emissions systems, and sensor inputs. When this processor fails, engine operation becomes erratic or the vehicle may not start at all.
Quick Summary
- The ECM is the primary computer managing your 2017 Audi Q5’s 2.0L turbocharged engine
- Module failure often triggers multiple diagnostic trouble codes simultaneously
- Replacement requires programming to match your specific vehicle’s VIN
- Flagship One units ship VIN-programmed, eliminating dealer programming wait times
- The original module may fail suddenly without warning symptoms
If your 2017 Audi Q5 has developed starting issues, runs roughly, or illumination of the check engine light coincides with drivability complaints, the Engine Control Module may be the culprit. This guide explains what the ECM does, where it is located, the replacement process, and what you need to know about programming. You will gain a clear understanding of the repair procedure, labor considerations, and why a pre-programmed replacement can simplify your return to the road.
What the PCM Does in a 2017 Audi Q5
The Engine Control Module in your 2017 Audi Q5 functions as the central processor for all engine management functions. It receives input from dozens of sensors throughout the powertrain and uses that data to calculate optimal fuel delivery, ignition advance, turbo boost pressure, and emissions control device operation in real time. Without proper communication from the ECM, the 2.0L turbocharged engine cannot run efficiently. Replacement engine computers for the Q5 must be programmed with the vehicle’s specific VIN and configuration data to restore these critical functions.
Flagship One keeps Audi Q5 replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves
The ECM on a 2017 Audi Q5 is located in the engine compartment, typically mounted on the firewall or near the battery tray. Replacement involves removing the existing module, transferring any mounting brackets, and installing the new unit. The labor book time for ECM R&R on this vehicle is 1.4 hours. Note that the threads of the shear bolts that are not installed in the ECM are coated with locking compound, which is a factory assembly specification. Proper torque specification must be followed during reinstallation to ensure secure mounting.

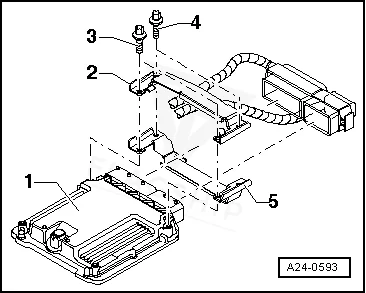

How to Reach the PCM on the 2017 Audi Q5
- Remove nut and bolt.
- Remove the bolts and the cover from the E-box.
- Release the retainers in direction of -arrows A- and remove the Engine Control Module.
- Remove shear bolts with suitable locking pliers (.
- Remove the old Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Q5 | 1.4 hr |
| Powertrain Control Module R&R | SQ5 | 1.4 hr |
| Engine Control Module Relearn | Q5 | 0.5 hr |
| Engine Control Module Relearn | SQ5 | 0.5 hr |
| Engine Control Module R&R | Q5 | 1.4 hr |
| Engine Control Module R&R | SQ5 | 1.4 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2017 Audi Q5, the factory procedure requires an engine control module relearn procedure to calibrate the new module to your vehicle’s specific sensors and actuators. The labor book time for this relearn procedure is 0.5 hours. Flagship One units arrive VIN-programmed so those steps are already done, meaning your replacement module is ready to install and operate without additional dealer programming appointments.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Engine Control Module fails on a 2017 Audi Q5, common symptoms include a no-start condition or crank-no-run scenario, engine stalling after startup, multiple misfire diagnostic codes (P0300 series), and inability to establish scan-tool communication with the module. You may also notice erratic shifting if the transmission control module loses communication with the ECM. In some cases, a code like P0603 indicating internal memory fault may be stored, signaling the module processor is compromised.
Module Trouble Codes on the 2017 Audi Q5
The following module-internal trouble codes are documented for the 2017 Audi Q5 and indicate various internal ECM processor or memory faults:
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2017 Audi Q5
- Maintain healthy charging system voltage to prevent low-voltage operation that stresses the ECM processor
- Ensure ground connections and electrical connectors at the ECM are clean and secure
- Avoid jump-starting the vehicle when possible, as voltage spikes can damage module electronics
- Address diagnostic trouble codes promptly rather than ignoring warning lights
- Keep engine compartment seals intact to prevent moisture intrusion that can corrode connector pins
Frequently Asked Questions
Can I replace the ECM on my 2017 Audi Q5 with a used unit from a salvage yard?
A used ECM requires programming by a dealer or specialized tool to match your specific VIN, and there is no way to verify the module’s internal condition. A remanufactured unit from a reputable supplier with a warranty provides known-good electronics.
Will my 2017 Audi Q5 run the same after ECM replacement?
Once properly programmed with your VIN and configuration data, the replacement ECM should restore identical performance to the original factory specifications. The key is ensuring the replacement unit is correctly programmed before installation.
Why does my 2017 Audi Q5 need a relearn procedure after ECM replacement?
The new module must learn the specific characteristics of your engine’s sensors, fuel system, and emission controls to optimize operation. This calibration process ensures smooth idle, proper cold start behavior, and accurate fuel trims.
When your 2017 Audi Q5 requires ECM replacement, you have two primary paths: a new or remanufactured unit from an automotive electronics specialist, or a used module from a salvage yard. The first option provides a known-good unit with a warranty and pre-programming; the second may require additional programming fees and carries unknown remaining service life. Consider your budget, warranty needs, and how quickly you need your vehicle back on the road.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Audi Q5 with a lifetime warranty, free shipping and no core charge. The full Audi Q5 module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is a critical component in your 2017 Audi Q5, and failure does not necessarily mean an expensive dealer repair. A quality replacement unit with proper VIN programming can restore your vehicle’s performance reliably. Take time to compare options and choose a solution that fits your situation.
