2014 Audi Q5 2.0L ECM Replacement Guide – Symptoms, Location, Programming
The Engine Control Module (ECM) in your 2014 Audi Q5 2.0L manages fuel injection, ignition timing, and emissions. When it fails, you may experience no-start, rough running, or diagnostic trouble codes like P0603, P0605, or P060A. Internal faults often require module replacement.
Quick Summary
- ECM replacement book time is 1.4 hours for the Q5.
- An ECM relearn takes 0.5 hours after installation.
- The ECM is secured with shear bolts coated with locking compound.
- Common failure codes include P0603, P0605, P060A, P060B, P0613, P0667.
- Pre-programmed modules eliminate the need for factory relearn.
If your 2014 Audi Q5 2.0L is experiencing no-start, stalling, or erratic performance, the Engine Control Module (ECM) may be at fault. This guide covers the symptoms, location, and replacement procedure for the ECM. You’ll learn the book labor times, the importance of the shear bolts with locking compound, and how a pre-programmed replacement unit can save you time and money. Understanding these details helps you make an informed decision about repairing or replacing the module.
What the PCM Does in a 2014 Audi Q5
The Engine Control Module (ECM) in your 2014 Audi Q5 2.0L is a Bosch unit that acts as the brain of the engine management system. It processes data from sensors to control fuel delivery, ignition timing, turbocharger boost, and emissions components. The ECM also communicates with other modules over the CAN bus for features like transmission shift logic and stability control. When the ECM fails internally, it often cannot be repaired and must be replaced. For a reliable fix, consider replacement ECMs for the Q5 from a trusted supplier that provides pre-programmed units.
Where the PCM Is Located and What Replacement Involves
The ECM on the 2014 Audi Q5 2.0L is typically mounted in the engine bay, often near the intake manifold or firewall. Replacement involves disconnecting the battery, removing the air intake duct for access, and unbolting the module. The ECM is secured with shear bolts that have locking compound applied to the threads of bolts not yet installed. These bolts must be replaced with new ones upon reinstallation. The book labor time for ECM removal and replacement is 1.4 hours. After installation, a 0.5-hour ECM relearn procedure is required using a factory-level diagnostic tool to synchronize the module with the vehicle.

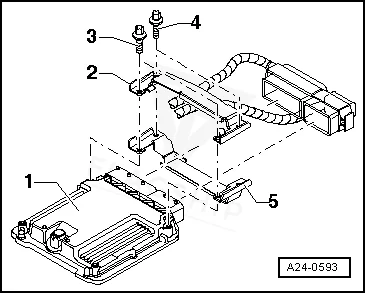

How to Reach the PCM on the 2014 Audi Q5
- Remove nut and bolt.
- Remove the filler neck with the filler tube from the washer fluid reservoir and the opening.
- Remove the bolts and the cover from the E-box.
- Release the retainers -A arrows- and remove the Engine Control Module.
- Remove shear bolts with suitable locking pliers (.
- Remove old Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | SQ5 | 1.4 hr |
| Powertrain Control Module R&R | Q5 | 1.4 hr |
| Engine Control Module Relearn | SQ5 | 0.5 hr |
| Engine Control Module Relearn | Q5 | 0.5 hr |
| Engine Control Module R&R | SQ5 | 1.4 hr |
| Engine Control Module R&R | Q5 | 1.4 hr |
Programming Requirements After Replacement
Factory procedure after ECM replacement on the 2014 Audi Q5 2.0L requires a 0.5-hour ECM relearn using a diagnostic scan tool. This step ensures the module properly communicates with the immobilizer, throttle body, and other systems. Without it, the vehicle may not start or run correctly. Choosing a VIN-programmed replacement unit from Flagship One eliminates the need for that step because the module arrives already programmed with your vehicle’s VIN and software. This saves you the relearn labor time and the need for specialized equipment.
Symptoms of a Failing PCM
A failing ECM in the 2014 Audi Q5 2.0L can cause a variety of driveability issues. Common symptoms include no-start or intermittent starting problems, stalling while driving, rough idle, misfires, and reduced power. You may also notice the check engine light illuminated with codes that do not clear. Communication loss with a scan tool is another sign, as the ECM may stop responding. If you see a internal memory fault code, the ECM likely has a hardware failure and needs replacement. Transmission shifting may become erratic if the ECM cannot communicate properly with the TCM.
Module Trouble Codes on the 2014 Audi Q5
The following diagnostic trouble codes are internal to the ECM and indicate a hardware or software failure within the module itself. These codes typically require ECM replacement rather than sensor or wiring repairs.
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2014 Audi Q5
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep all ground connections and wiring harness connectors clean and free of corrosion.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger instead.
- Address any diagnostic trouble codes promptly to prevent further module stress.
- Inspect the ECM connector seals and ensure they are intact to keep out moisture and debris.
Frequently Asked Questions
How long does it take to replace the ECM on a 2014 Audi Q5 2.0L?
The book labor time for ECM removal and replacement is 1.4 hours. An additional 0.5 hours is required for the ECM relearn procedure if you are using a non-programmed module.
What are the symptoms of a failing ECM in a 2014 Audi Q5?
Symptoms include no-start, stalling, rough idle, misfires, reduced power, and check engine light with internal codes like P0603 or P0605. You may also lose scan tool communication with the module.
Do I need to program a replacement ECM for my 2014 Audi Q5?
Yes, a replacement ECM requires a 0.5-hour relearn procedure using a factory diagnostic tool. However, a pre-programmed unit from Flagship One arrives ready to install, eliminating that step.
When the ECM in your 2014 Audi Q5 2.0L fails, repair is rarely an option due to internal component damage. Replacement is the standard solution. A pre-programmed ECM saves you the cost and hassle of dealer programming and the 0.5-hour relearn. Consider a refurbished or new module that matches your vehicle’s specifications for a straightforward installation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Audi Q5 with a lifetime warranty, free shipping and no core charge. The full Audi Q5 module lineup covers other engine configurations as well.
Final Thoughts
For your 2014 Audi Q5 2.0L, a failing ECM can be a frustrating issue. With the right replacement module, you can get back on the road quickly. A pre-programmed unit from Flagship One eliminates the factory relearn step and ensures a plug-and-play installation.
