2015 Audi Q5 2.0L ECM Replacement Guide – Symptoms, Programming, and Labor
The Engine Control Module (ECM) in the 2015 Audi Q5 2.0L manages fuel injection, ignition timing, turbo boost, and emissions. Failure can cause drivability issues, check engine light, and communication loss. Replacement requires programming to match the vehicle’s immobilizer and calibration.
Quick Summary
- The ECM is secured with shear bolts coated with locking compound, requiring careful removal.
- Replacement labor is 1.4 hours for removal and installation, plus 0.5 hours for the engine control module relearn.
- Common failure codes include P0603, P0605, P060A, P060B, P0613, and P0667.
- A VIN-programmed unit from Flagship One eliminates the need for dealer programming after installation.
- Symptoms may include no-start, stalling, misfire, and transmission shifting issues.
If your 2015 Audi Q5 2.0L has begun exhibiting erratic drivability problems such as intermittent stalling, a no-start condition, or a persistent check engine light, the Engine Control Module (ECM) may be the root cause. The ECM is the central computer that governs engine operation, including fuel delivery, ignition timing, turbocharger boost control, and emissions management. When it begins to fail, the vehicle may enter a reduced-power limp mode or refuse to start altogether. This article explains what the ECM does in your specific Audi Q5, where it is located, what the replacement process involves, and the labor times you can expect from a professional shop. You will also learn about the common trouble codes associated with ECM failure, the factory programming requirement after replacement, and how a pre-programmed unit can simplify the repair. Understanding these details helps you make an informed decision about whether to repair or replace the module.
What the PCM Does in a 2015 Audi Q5
The Engine Control Module in the 2015 Audi Q5 2.0L is a sophisticated computer that continuously monitors and adjusts engine parameters to maintain performance, fuel efficiency, and emissions compliance. It receives input from sensors such as the mass airflow sensor, oxygen sensors, crankshaft position sensor, and throttle position sensor, then calculates the optimal fuel injector pulse width, ignition timing, and turbocharger wastegate position. The ECM also communicates with other modules on the CAN bus, including the transmission control module and the immobilizer system. Because the 2.0L turbocharged engine relies heavily on precise boost control and direct injection timing, a failing ECM can cause a wide range of symptoms from rough idle to complete no-start. When the ECM fails internally, it often stores module-internal diagnostic trouble codes that are not related to external sensor faults. For this reason, when you need a replacement, it is critical to source a unit that is correctly programmed for your vehicle. That is where replacement ECMs for the Audi Q5 come into play, as they must match the original calibration and immobilizer data to function properly.
Where the PCM Is Located and What Replacement Involves
The ECM on the 2015 Audi Q5 2.0L is mounted in the engine compartment, typically on the driver’s side near the bulkhead or under the cowl. It is secured by shear bolts that have their threads coated with locking compound from the factory. These bolts are designed to break off at a specific torque during installation, making removal a one-time operation that requires drilling or using a bolt extractor. Replacement involves disconnecting the battery, removing any covers or air intake ducting for access, unbolting the ECM, and disengaging the wiring harness connectors. The book labor time for ECM removal and installation is 1.4 hours. After the new module is installed, an engine control module relearn procedure is required, which adds 0.5 hours of labor. The relearn process typically involves using a scan tool to synchronize the ECM with the immobilizer and perform throttle body adaptation.

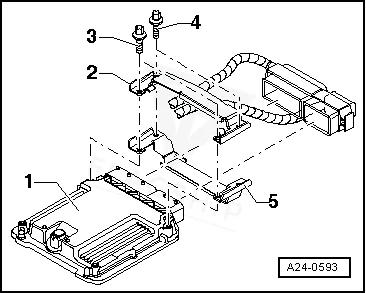

How to Reach the PCM on the 2015 Audi Q5
- Remove nut and bolt.
- Remove the bolts and the cover from the E-box.
- Release the retainers in direction of -arrows A- and remove the Engine Control Module.
- Remove shear bolts with suitable locking pliers (.
- Remove the old Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | SQ5 | 1.4 hr |
| Powertrain Control Module R&R | Q5 | 1.4 hr |
| Engine Control Module Relearn | SQ5 | 0.5 hr |
| Engine Control Module Relearn | Q5 | 0.5 hr |
| Engine Control Module R&R | SQ5 | 1.4 hr |
| Engine Control Module R&R | Q5 | 1.4 hr |
Programming Requirements After Replacement
After replacing the ECM on a 2015 Audi Q5 2.0L, the factory procedure requires an engine control module relearn that takes 0.5 hours of labor. This step is necessary to match the new module to the vehicle’s immobilizer system, calibrate the throttle body, and ensure all learned adaptations are reset. Without this relearn, the engine may not start or may run poorly. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives with the correct immobilizer data and calibration already loaded. This means the relearn step is already completed, and the module is ready to plug in and drive. You still need to perform any basic adaptations like throttle body reset if required, but the critical programming that would otherwise require a dealer-level scan tool is eliminated.
Symptoms of a Failing PCM
A failing ECM in the 2015 Audi Q5 2.0L can produce a variety of symptoms that may be mistaken for other component failures. The most common signs include a no-start condition where the engine cranks but does not fire, intermittent stalling that occurs without warning, and a check engine light that illuminates with module-internal codes. You may also experience rough idle, misfire under load, or a sudden loss of power that forces the transmission into limp mode. In some cases, the scan tool may fail to communicate with the ECM entirely, indicating a dead module. One of the documented internal fault codes for this vehicle is internal control module fault P0603, which points to a loss of keep-alive memory or internal ECM failure. Other codes such as P0605, P060A, P060B, P0613, and P0667 may also appear. If you notice any of these symptoms, it is wise to have the ECM tested before replacing other components.
Module Trouble Codes on the 2015 Audi Q5
The following module-internal trouble codes have been documented for the 2015 Audi Q5 2.0L ECM. These codes indicate faults within the module itself rather than external sensor or circuit problems.
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2015 Audi Q5
- Maintain a healthy charging system; low or fluctuating voltage can stress the ECM’s internal components.
- Keep all engine and chassis ground connections clean and tight to prevent voltage spikes and communication errors.
- Avoid jump-starting the vehicle with a running donor car; voltage surges can damage the ECM.
- Address any check engine light or drivability codes promptly before they cause secondary damage to the module.
- Inspect the ECM connector seals and harness for corrosion or moisture intrusion, especially after engine bay washing.
- Ensure the battery is fully charged and in good condition; a weak battery can cause erratic ECM behavior.
Frequently Asked Questions
What are the labor times for ECM replacement on a 2015 Audi Q5 2.0L?
The book labor time for ECM removal and installation is 1.4 hours. An additional 0.5 hours is required for the engine control module relearn procedure. These times are for a professional shop using standard tools and procedures.
What symptoms indicate ECM failure on a 2015 Audi Q5 2.0L?
Common symptoms include no-start, intermittent stalling, rough idle, misfire codes, and a check engine light with internal fault codes such as P0603 or P0605. The scan tool may also lose communication with the ECM.
Do I need to program a new ECM for my 2015 Audi Q5 2.0L?
Yes, a replacement ECM must be programmed with the vehicle’s immobilizer data and engine calibration. The factory procedure includes a 0.5-hour relearn. A VIN-programmed unit from Flagship One arrives with this programming already completed.
Where is the ECM located on a 2015 Audi Q5 2.0L?
The ECM is mounted in the engine compartment, typically on the driver’s side near the bulkhead. It is secured by shear bolts with locking compound on the threads, which may require special removal techniques.
Can I replace the ECM on my 2015 Audi Q5 2.0L myself?
Replacement is possible if you have basic mechanical skills and tools, but you must be prepared to deal with the shear bolts and the programming requirement. The labor time is 1.4 hours for R&R, plus 0.5 hours for the relearn if you have the necessary scan tool.
When your 2015 Audi Q5 2.0L needs a new ECM, you have two paths: have a shop install a new module and perform the factory relearn, or choose a refurbished unit that arrives pre-programmed to your VIN. The latter option saves the 0.5-hour relearn labor and avoids a trip to the dealer. Flagship One offers such units, tested and ready to install, so you can get your Q5 back on the road with minimal downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Audi Q5 with a lifetime warranty, free shipping and no core charge. The full Audi Q5 module lineup covers other engine configurations as well.
Final Thoughts
The 2015 Audi Q5 2.0L relies on its ECM for precise engine control, and failure can lead to frustrating drivability issues. Understanding the symptoms, labor times, and programming requirements helps you plan a cost-effective repair. Whether you choose a new or refurbished module, ensure it is correctly programmed for your vehicle to avoid repeat problems.
