2016 Lincoln MKZ PCM & ECM Replacement Guide: Factory Procedures & Programming
The powertrain control module (PCM) in your 2016 Lincoln MKZ serves as the central computer managing the 3.7L V6 engine and automatic transmission. It processes sensor inputs and adjusts fuel delivery, ignition timing, and shift points in real time. When the internal processor or memory fails, the module may trigger a no-start condition or derate the vehicle to limp-home mode to prevent drivability damage.
Quick Summary
- The 2016 Lincoln MKZ uses a single integrated PCM that controls both engine and transmission functions
- Module replacement on the 3.7L engine requires approximately 0.7 hours of labor according to factory book times
- Internal processor faults may set module-internal codes like P0606 that prevent scan-tool communication
- Factory post-install relearn procedures typically require 0.5 hours to complete
- Flagship One replacement units arrive pre-programmed with your VIN, eliminating dealer programming steps
If your 2016 Lincoln MKZ has developed a no-start condition, entered limp-home mode, or your scan tool cannot communicate with the powertrain control module, you may be facing an ECM or PCM failure. The engine control module and powertrain control module in this vehicle share similar functions and replacement procedures, though they are technically distinct components that serve different roles in your vehicle’s management system. Understanding whether your vehicle requires an ECM replacement, a PCM replacement, or simply a module reset can save you unnecessary parts spending and labor costs. This guide explains what these modules do in your specific vehicle, common symptoms that indicate failure, the factory-recommended replacement procedures, and what you need to know about programming and relearn steps after installing a replacement unit. Whether you are performing the repair yourself or discussing options with a service advisor, the information here helps you make informed decisions about your 2016 Lincoln MKZ.
What the PCM Does in a 2016 Lincoln MKZ
The powertrain control module in your 2016 Lincoln MKZ with the 3.7L V6 engine functions as the brain of the vehicle’s drivetrain system. Unlike older vehicles that used separate processors for engine and transmission control, this generation integrates both functions into a single module located in the passenger compartment. The module receives input from dozens of sensors throughout the engine and transmission, processing this data hundreds of times per second to adjust fuel injector pulse width, ignition coil firing order, variable valve timing, and automatic transmission shift firmness and timing. replacement engine computers for the MKZ must match the 3.7L engine calibration specifically, as the 2.0L turbocharged variant uses different programming and hardware configurations. The factory book time for powertrain control module replacement on the 3.7L engine is 0.7 hours, reflecting the relatively straightforward access to the module behind the passenger-side kick panel. This module also stores adaptive learning data for the transmission, which the factory relearn procedure must recalibrate after installation to restore normal shift quality and drivability.
Where the PCM Is Located and What Replacement Involves
The powertrain control module on your 2016 Lincoln MKZ is located behind the passenger-side kick panel trim, beneath the dashboard on the right side of the footwell. Access requires removal of the interior trim piece, which is held in place with plastic push clips and a single screws. Once the trim is removed, the module is visible mounted to a bracket with a multi-pin electrical connector. The replacement procedure involves disconnecting the battery negative terminal first, then unplugging the module connector, removing the mounting hardware, and installing the new unit in reverse order. The factory book time for powertrain control module replacement on the 3.7L engine is 0.7 hours. After installing the new module, the technician must reconnect the battery and perform the factory post-install relearn procedure to ensure the module establishes proper communication with all vehicle sensors and initializes the transmission adaptive tables.
How to Reach the PCM on the 2016 Lincoln MKZ
- Remove the bolts and the retainer.
- Disconnect the PCM electrical connectors and release the harness retainer.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | 2.0L | 0.8 hr |
| Engine Control Module R&R | 3.7L | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 2.0L | 0.8 hr |
| Powertrain Control Module R&R | 3.7L | 0.7 hr |
Programming Requirements After Replacement
After replacing the powertrain control module in your 2016 Lincoln MKZ, the factory procedure requires a relearn process that takes approximately 0.5 hours to complete. This procedure allows the new module to establish communication with the engine sensors, transmission control modules, and body control systems. During the relearn process, the module monitors sensor data and calibrates its internal tables to match the actual operating characteristics of your specific engine and transmission. Without completing this step, you may experience rough idle, harsh shifting, or the module may default to limp-mode operation. a VIN-programmed replacement unit from Flagship One arrives pre-programmed with your specific vehicle identification number, which means the module will already be recognized by your vehicle’s immobilizer system and other security features. This eliminates the need for dealer programming appointments that can add significant cost to the repair, though the factory relearn procedure is still required to optimize drivability.
Symptoms of a Failing PCM
When the powertrain control module in your 2016 Lincoln MKZ begins to fail, symptoms often appear gradually before progressing to complete failure. The most common indicator is a check engine light accompanied by a no-start condition, where the starter engages but the engine fails to fire. The vehicle may also run roughly at idle, stall unexpectedly, or display multiple unrelated diagnostic trouble codes across different sensor circuits. In many cases, the scan tool may be unable to communicate with the module, which indicates an internal processor fault rather than a simple wiring issue. Transmission symptoms are also common, including harsh shifting, failure to shift into gear, or the transmission slipping under acceleration. The vehicle may enter limp-home mode, limiting engine speed and locking the transmission in a single gear to allow driving to a safe location. processor fault detected in the control module is a module-internal code that specifically indicates the internal processor has detected an malfunction that prevents normal operation, and this code often cannot be cleared without replacing the module itself.
Module Trouble Codes on the 2016 Lincoln MKZ
Your 2016 Lincoln MKZ has documented module-internal trouble codes that indicate specific internal failures within the powertrain control module. These codes differ from standard sensor or circuit codes in that they point to failures within the module hardware itself rather than faults in external components. The P0606 code specifically indicates that the internal processor has detected an malfunction, often due to internal memory corruption or processor failure. When this code is present and cannot be cleared after clearing and rechecking, replacement of the module is typically required rather than repair.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2016 Lincoln MKZ
- Maintain healthy charging system voltage by testing the battery and alternator regularly, as low voltage during startup can stress the module processor
- Ensure all ground connections to the PCM are clean and secure, as poor grounds can cause voltage fluctuations that damage internal circuits
- Avoid jump-starting from another vehicle when possible, as voltage spikes during boost can exceed module design limits
- Address check engine lights and diagnostic codes promptly rather than driving with multiple faults present
- Keep the passenger-side kick panel area dry and free of debris, as moisture intrusion can corrode connector terminals over time
- Inspect wiring harness connectors periodically for corrosion, bent pins, or loose connections that can cause communication errors
Frequently Asked Questions
Will a used PCM from a salvage yard work in my 2016 Lincoln MKZ?
A used PCM requires dealer programming to match your specific vehicle’s immobilizer system and security calibration. Without proper programming, the engine will not start and the transmission may not engage. Additionally, used modules may have unknown internal damage that could fail shortly after installation.
Can I replace just the ECM instead of the PCM on my 2016 Lincoln MKZ?
The 2016 Lincoln MKZ uses an integrated PCM that handles both engine and transmission control functions. While some vehicles have separate ECM and TCM components, this model consolidates these functions. The factory labor time for PCM replacement on the 3.7L is 0.7 hours, while ECM-specific replacement is also listed at 0.7 hours for this engine.
How do I know if my MKZ needs a module replacement versus a simple reset?
If your vehicle has a no-start condition or multiple persistent codes that return immediately after clearing, the module may need replacement. A reset procedure (0.3 hours labor) may resolve software glitches, but hardware failures require replacement. A scan tool communication failure with the PCM typically indicates hardware-level failure.
Does replacing the PCM require any special tools or software?
The replacement procedure itself requires standard hand tools to access the module behind the kick panel. However, the post-install relearn procedure requires a scan tool capable of communicating with Ford/Lincoln modules and initiating the factory relearn routine. This is different from basic code clearing and ensures proper transmission adaptation.
What happens if I don’t complete the relearn procedure after PCM replacement?
The vehicle will likely run with default fuel and timing maps that do not account for your specific engine’s characteristics. This typically results in rough idle, poor throttle response, harsh transmission shifts, and reduced fuel efficiency. The vehicle may also remain in a reduced-power mode until the relearn is completed.
If your 2016 Lincoln MKZ has experienced a no-start condition, triggered a P0606 code, or shown symptoms of PCM failure, you have two primary repair paths. The first involves purchasing a new or remanufactured unit from a dealer, which includes programming but carries a higher cost and longer wait time. The second path uses a professionally refurbished replacement unit that arrives VIN-programmed to your specific vehicle, requiring only the factory relearn procedure to complete the repair. For the 3.7L engine, the replacement unit must be calibrated to the 3.7L V6 specification, not the 2.0L turbo calibration, to ensure proper operation.

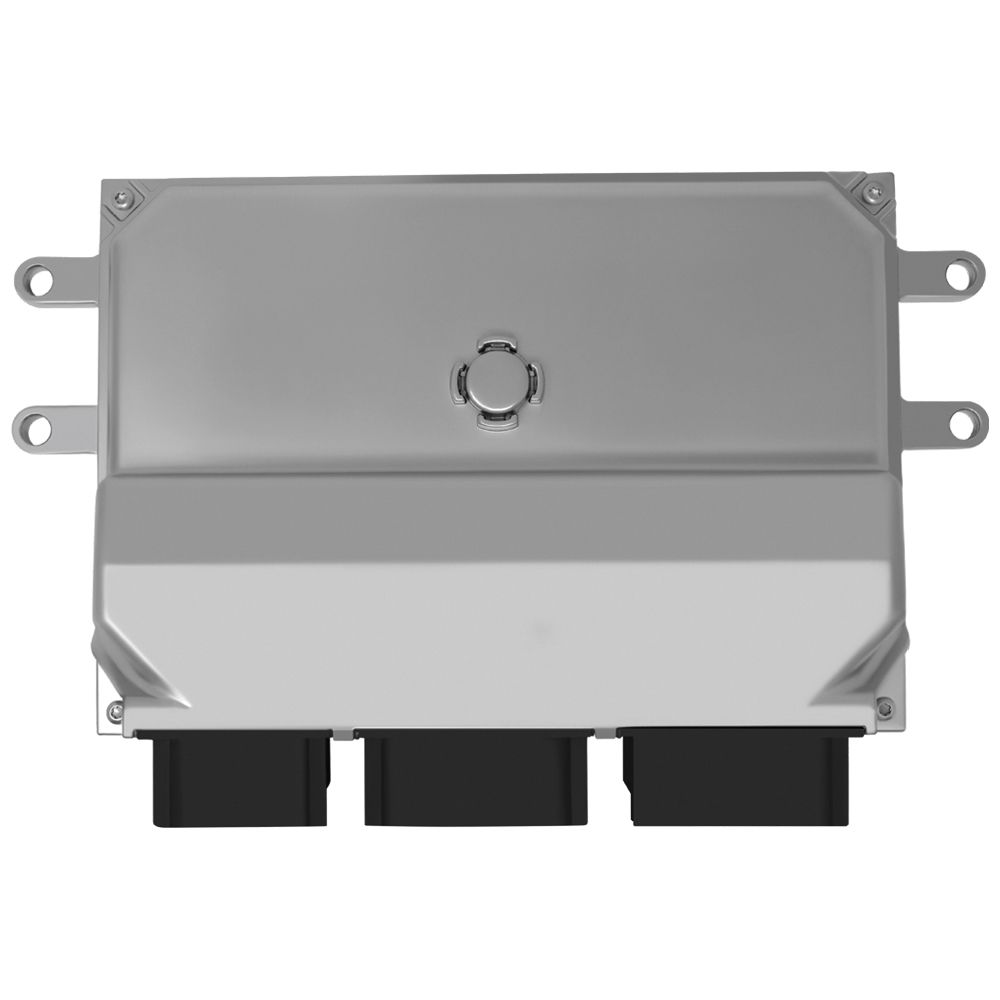

Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Lincoln MKZ with a lifetime warranty, free shipping and no core charge. The full Lincoln MKZ module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module in your 2016 Lincoln MKZ is a critical component that manages engine and transmission functions as an integrated system. When failure occurs, symptoms range from no-start conditions to limp-mode operation and transmission shifting issues. Replacement requires attention to the correct 3.7L-specific module calibration, and the post-install relearn procedure is essential for restoring proper drivability. Whether you choose dealer replacement or a professionally refurbished unit, understanding the factory procedures helps ensure your MKZ returns to reliable operation.
